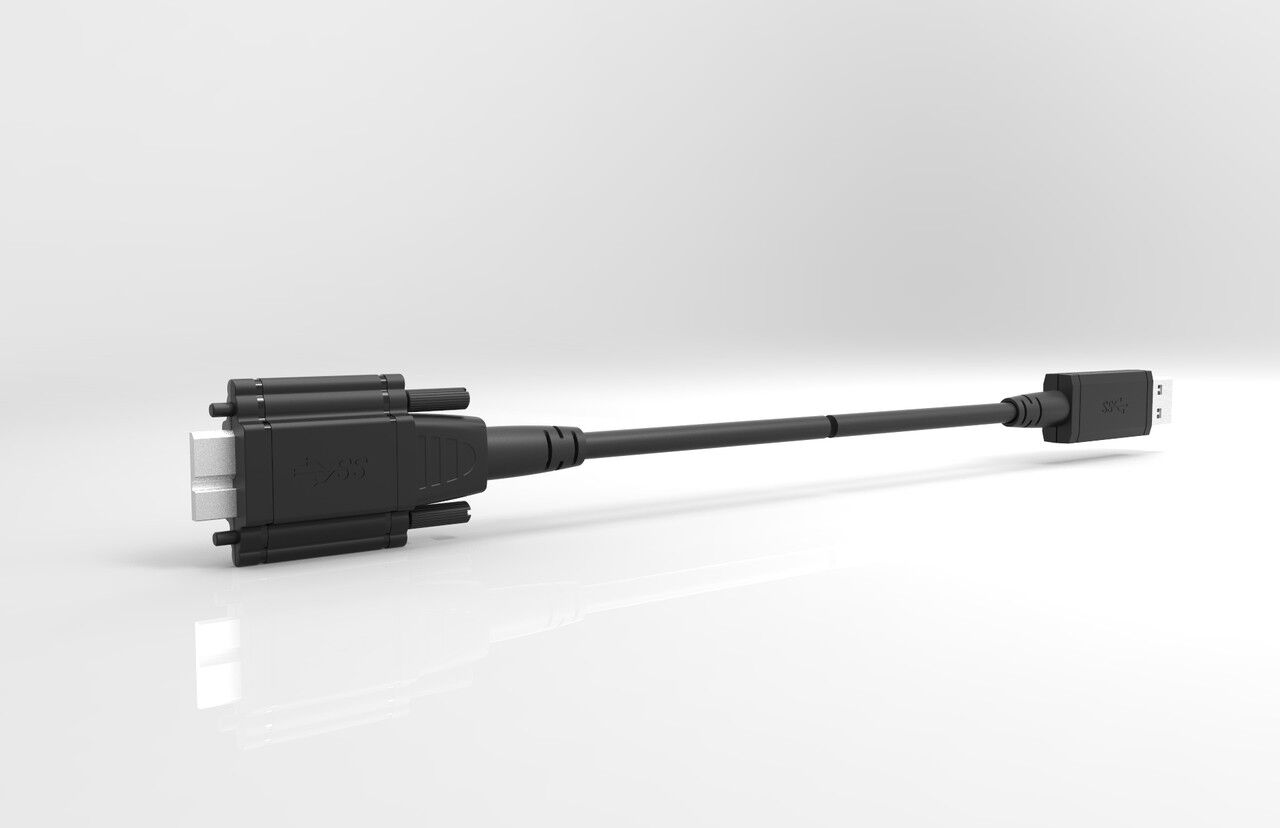

ADL/Senko USB-HYA0B3-NL-0100M USB3 Extender Cable 10 Meters - Standard A to Micro-B with Locking Screws

USB-HYA0B3-NL-0100M Spec Sheet

The Senko USB-HYA0B3-NL-0100M is a 10-meter USB 3.0 extender cable designed for high-performance industrial and vision system applications. It features a Standard-A to Micro-B connection with secure locking screws, ensuring a stable connection even in high-vibration environments. With a high-flex cable rated for over 5 million bend cycles and a bend radius of 50mm, it supports long-term, repeated motion without signal degradation.

Supporting transfer speeds up to 5 Gbps and delivering 900mA/5V power to connected devices, this plug-and-play solution meets USB 3.0 Vision standards. The 4.8mm diameter cable minimizes signal interference, operates in temperatures from 0–50°C, and complies with ROHS, CE, and UL standards. Ideal for industrial automation, robotics, and high-resolution camera systems.

Features:

• 10m extension, USB 3.0 compliant
• 5 Gbps transfer speed
• High-flex cable (>5M cycles)
• Locking Micro-B connector
• 900mA/5V power delivery
• Plug & play, no drivers required

Applications:

• Industrial automation
• High-speed data transfer
• Vision systems & cameras
• Robotics & motion control
