Computar M1228-MPW3 6 Megapixel 2/3" 12mm F2.8 (C Mount) Machine Vision Lens
Computar M1228-MPW3 6 Megapixel 2/3" 12mm F2.8 (C Mount) Machine Vision Lens
SKU:M1228-MPW3
Couldn't load pickup availability
Advanced Features of the Computar M1228-MPW3 6MP Machine Vision Lens
The Computar M1228-MPW3 6 Megapixel 2/3" 12mm F2.8 (C Mount) Machine Vision Lens offers exceptional performance in industrial and machine vision applications. Designed with a 2/3” format and a 12mm fixed focal length, this lens ensures high-resolution imaging for critical surveillance tasks. Its compact and lightweight build makes it ideal for integration into security systems without adding bulk.
Featuring a manual iris and full HD format, this lens delivers precise control over exposure and image quality. Its nominal distortion design ensures corner brightness and accurate image reproduction, while the shorter working distance allows for flexible installation in space-constrained environments.
The Computar M1228-MPW3 is optimized for sensors from 1/2.5“ to 2/3“ and is compatible with sensor types such as IMX250, IMX264, ICX625, RJ32S4, EV2S05M, and IMX178, providing versatility across various surveillance setups.
Features:
- 2/3” Format
- 6 Megapixel Resolution
- 12mm Fixed Focal Length
- F2.8 Aperture
- Full HD Format
- Manual Iris Control
- Compact & Lightweight Design
- Shorter Working Distance
- Nominal Distortion Design
- Corner Brightness Optimization
- Available in 5mm, 8mm, 12mm, 16mm, 35mm, 50mm, and 75mm
- For the sensor types: IMX250, IMX264, ICX625, RJ32S4, EV2S05M, IMX178
Applications:
- Surveillance Systems
- Manufacturing Quality Control
- Traffic Monitoring
- Robotics
- Object Detection

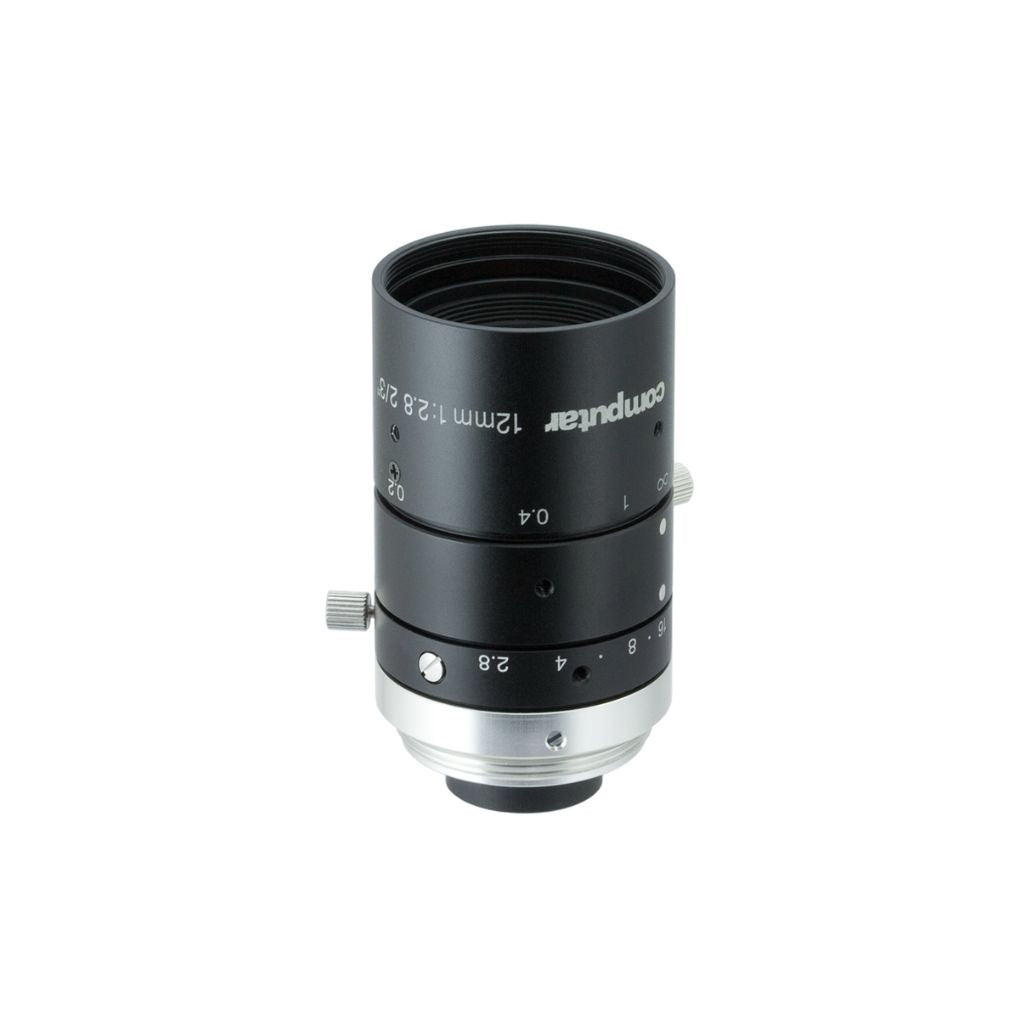

![M1228-MPW3 Front Angled View](http://www.usasecuritysystems.com/cdn/shop/files/M1228-MPW3FrontAngledView.jpg?v=1715617859&width=1445)
