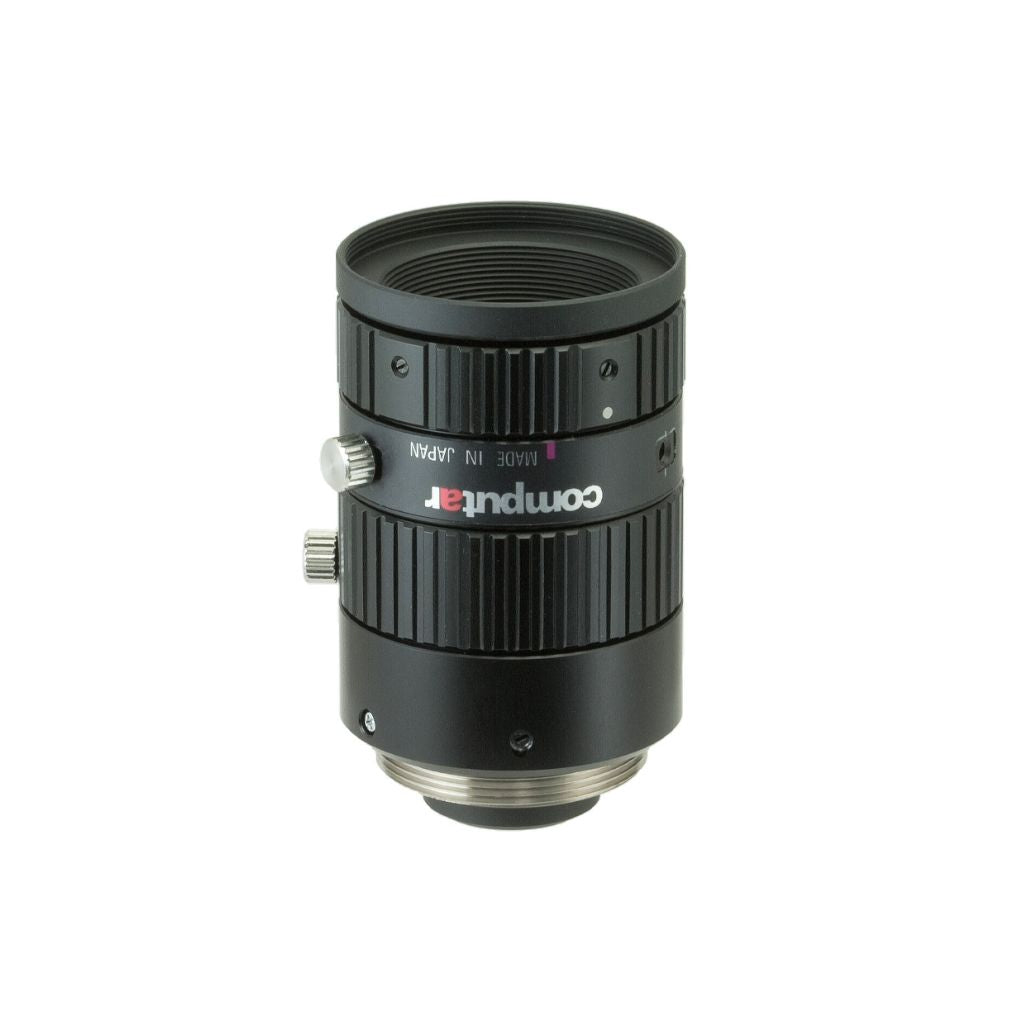

Computar M1628-MPX 2/3" 16mm F2.8 Ruggedized Lens for 16 Megapixel cameras (C-Mount)

Advanced Features of Computar M1628-MPX 16mm Lens

The Computar M1628-MPX 2/3" 16mm F2.8 Ruggedized Lens is meticulously engineered for machine vision applications, particularly in harsh industrial environments where durability and performance are paramount. Its anti-vibration and shock-resistant design ensure reliable operation even in the most demanding conditions. With a high-resolution lens supporting pixel sizes of 2μm or less, this lens delivers exceptional clarity and precision.

Featuring a floating mechanism, the lens maintains optimal performance across various distances, from close-up to long-range inspections. The precise focus adjustment, with a rotation angle five times greater than usual lenses, enables fine-tuning for precise image capture. The adoption of a click-type iris mechanism provides seamless aperture control for consistent image quality.

Available in various focal lengths, including 8mm, 12mm, 25mm, 35mm, 50mm, and 75mm, the M1628-MPX series offers versatility to suit diverse application needs. Whether used for surveillance, quality control, or automated inspection systems, this lens enhances imaging accuracy and reliability, empowering businesses to achieve superior results in their machine vision endeavors.

Features:

• Ruggedized design for harsh environments
• High-resolution lens for exceptional clarity
• Anti-vibration and shock resistance
• Floating mechanism for optimal performance at various distances
• Precise focus adjustment with enhanced rotation angle
• Click-type iris mechanism for seamless aperture control
• Also Available in f=8mm/12mm/25mm/35mm/50mm/75mm

Applications:

• Surveillance systems
• Quality control inspections
• Automated inspection systems

M1628-MPX Spec Sheet

M1628-MPX Brochure

MPX Ruggedized Lens Series
