LM100JC

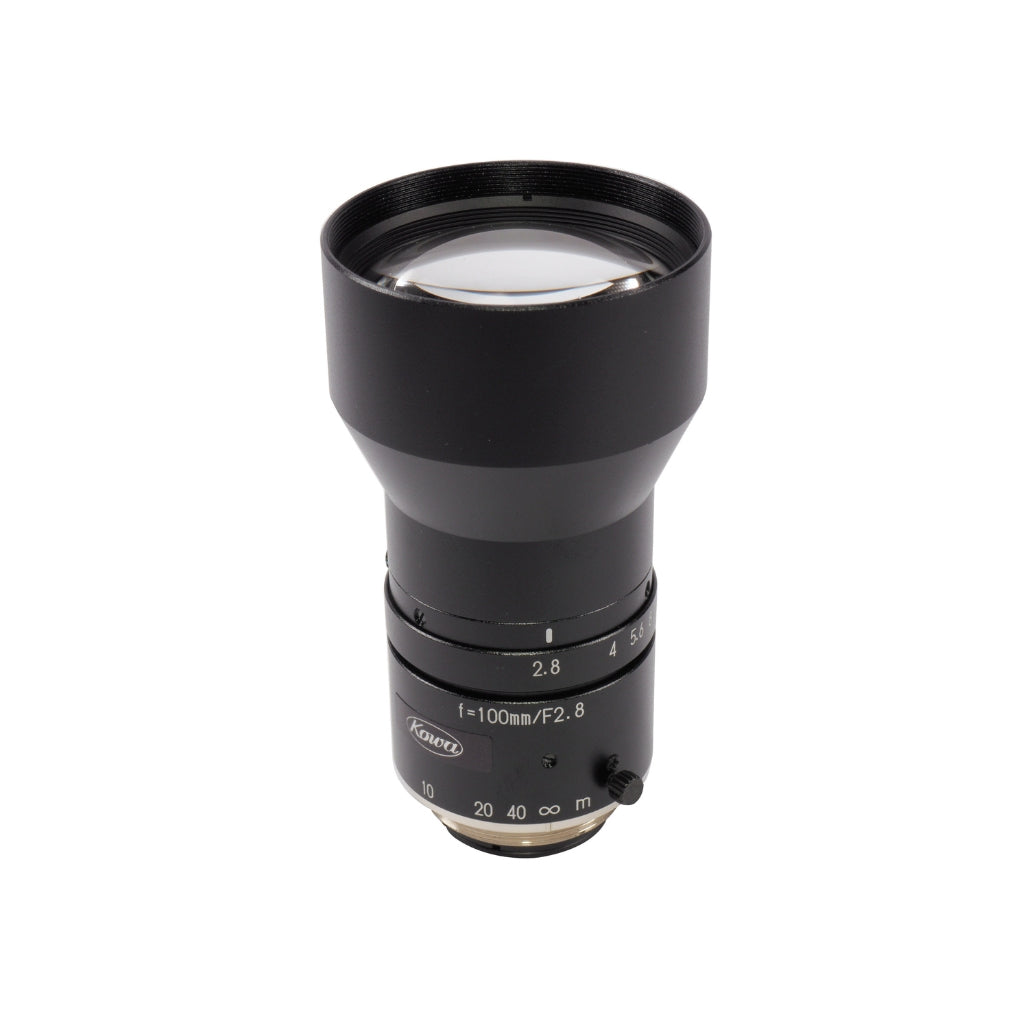

Kowa LM100JC 2/3" 100mm Megapixel C-mount industrial lens Compatible With e2v EV76C560, CMOSIS CMV2000 and Aptina MT9M001 sensors and many more
Kowa LM100JC 2/3" 100mm Megapixel C-mount industrial lens Compatible With e2v EV76C560, CMOSIS CMV2000 and Aptina MT9M001 sensors and many more
SKU:LM100JC
Couldn't load pickup availability
High-Quality Industrial Lenses for Precision Imaging
At USA Security Systems Inc., we offer top-tier machine vision solutions with our Kowa LM100JC 2/3" Megapixel C-mount industrial lens. Engineered for unparalleled performance, this lens is tailored to meet the demands of industrial imaging applications. With a focal length of 100mm and compatibility with sensors such as e2v EV76C560, CMOSIS CMV2000, and Aptina MT9M001, it ensures optimal image capture in diverse environments.
Our lens boasts exceptional features including manual iris control, a wide iris range from f/2.8 to f/32, and a focusing range from 2 meters to infinity. With a resolution of 100 lp/mm at the center and 60 lp/mm at the corner, it delivers high-definition imagery with minimal distortion (-0.05%) and precise back focus.
Ideal for industrial automation, quality control, and machine vision applications, our Kowa LM100JC lens offers reliability, durability, and superior optical performance. Elevate your imaging capabilities with our trusted industrial lenses.
Features:
- Compatible with various sensors
- Manual iris and focus control
- High resolution and low distortion
- Wide temperature range (-10°C to +50°C)
- Robust construction for industrial environments
Applications:
- Automated inspection systems
- Robotics and assembly line monitoring
- Quality assurance in manufacturing
- Object recognition and tracking
- Pharmaceutical and food processing inspections
| Lens Type | Fixed Focal Length Lens |
| Image Size | 2/3" (8.8 x 6.6 x 11mm) |
| Focal Length | 100mm |
| Iris Range (F-Stop) | F2.8 - F32 |
| Minimum Focus Distance | 2.0m |
| Mount | C-Mount |
| Angle of View 2/3" (Hor. x Ver. x Dia.) | 5.0 x 3.8 x 6.3° |
| Angle of View 1/1.8" (Hor. x Ver. x Dia.) | 4.1 x 3.1 x 5.2° |
| Angle of View 1/2" (Hor. x Ver. x Dia.) | 3.7 x 2.8 x 4.6° |
| Field of View at M.O.D. 2/3" (Hor. x Ver. x Dia.) | 168.8 x 126.6 x 211.2mm |
| Field of View at M.O.D. 1/1.8" (Hor. x Ver. x Dia.) | 138.1 x 103.6 x 172.7mm |
| Field of View at M.O.D. 1/2" (Hor. x Ver. x Dia.) | 122.8 x 92.1 x 153.5mm |
| TV Distortion | -0.05% |
| Flange Back | 17.526mm in air |
| Back Focus | 19.0mm in air |
| Filter Thread Size | M40.5 x P0.5 |
| Front / Rear Effective Diameter | Front Φ35.2mm / Rear Φ11.2mm |
| Exit Pupil Location | -31.0mm |
| Temperature Range | -10°C ~ +50°C |
| Storage Temperature Range | -20°C ~ +60°C |
| Resolution: Center / Corner | Center 100lp/mm / Corner 40lp/mm |
| Weight | 140g |
