USA Security Systems

LM12FC24M

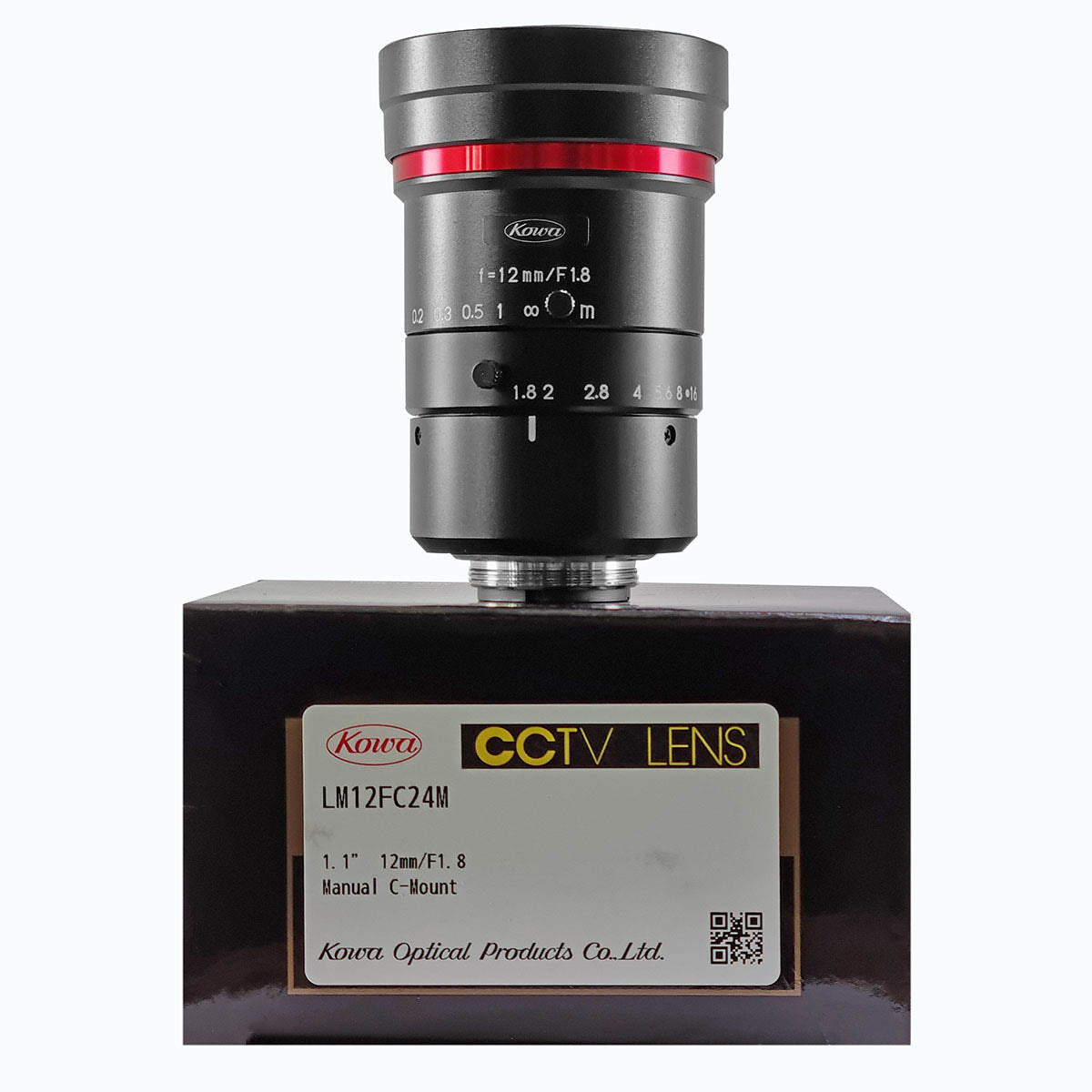

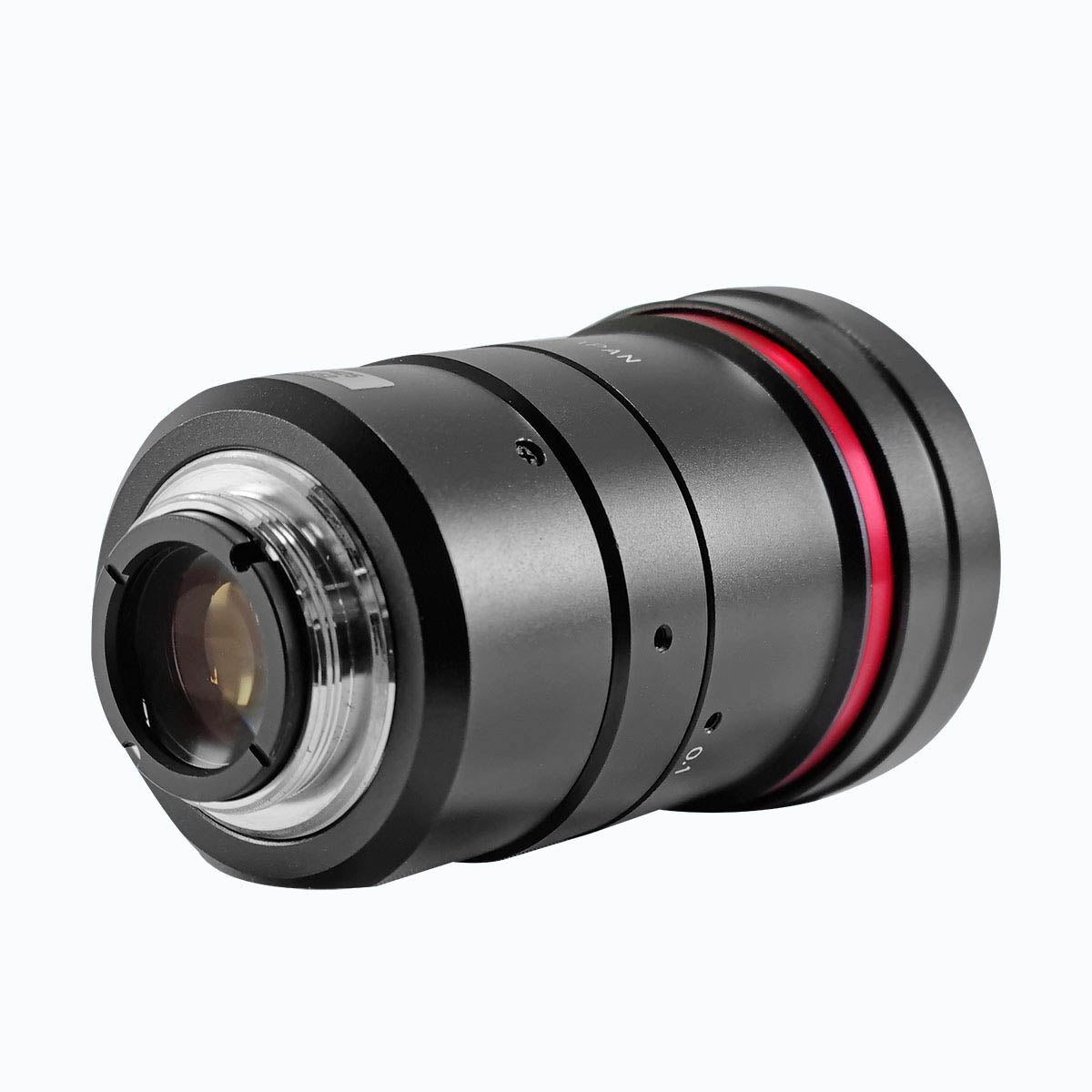

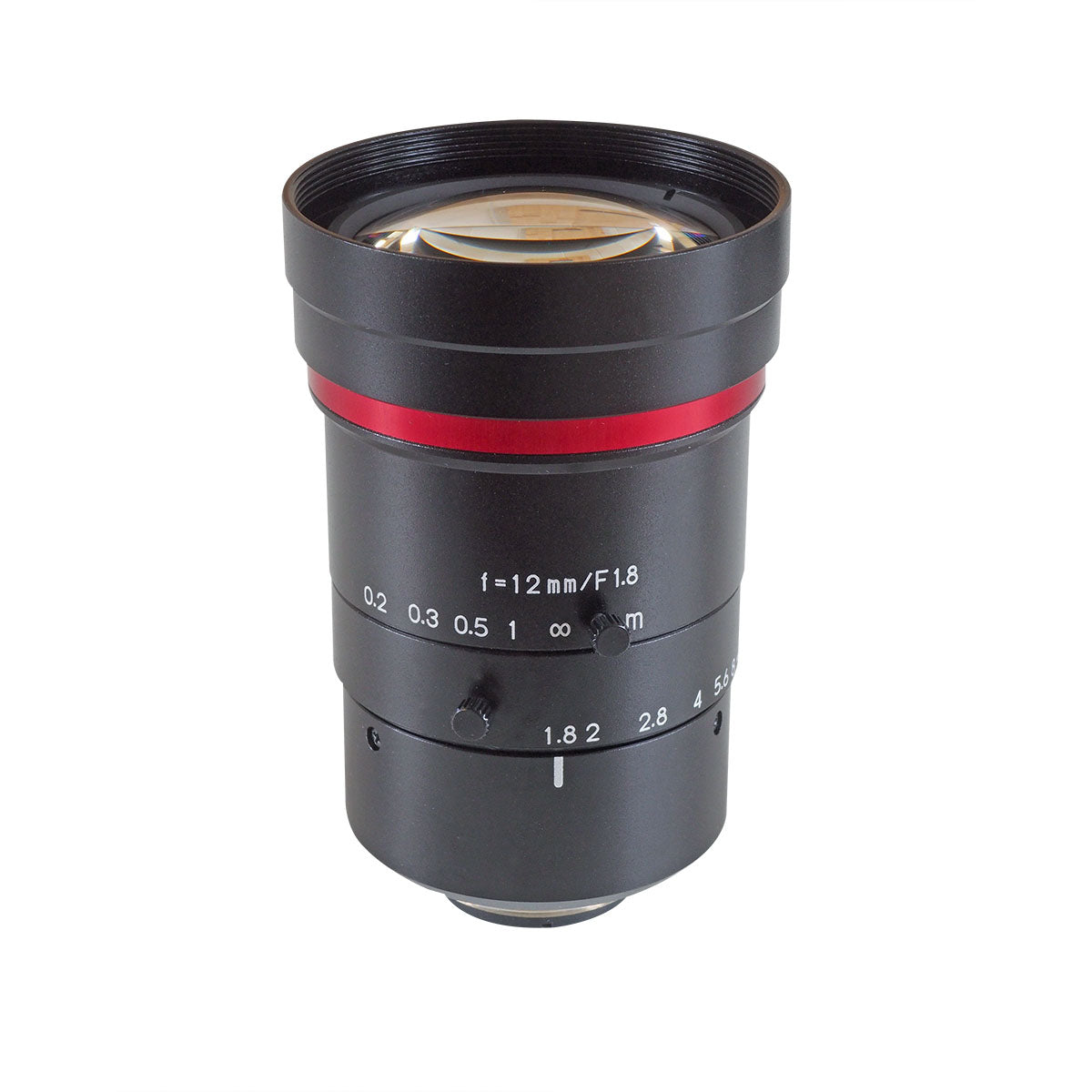

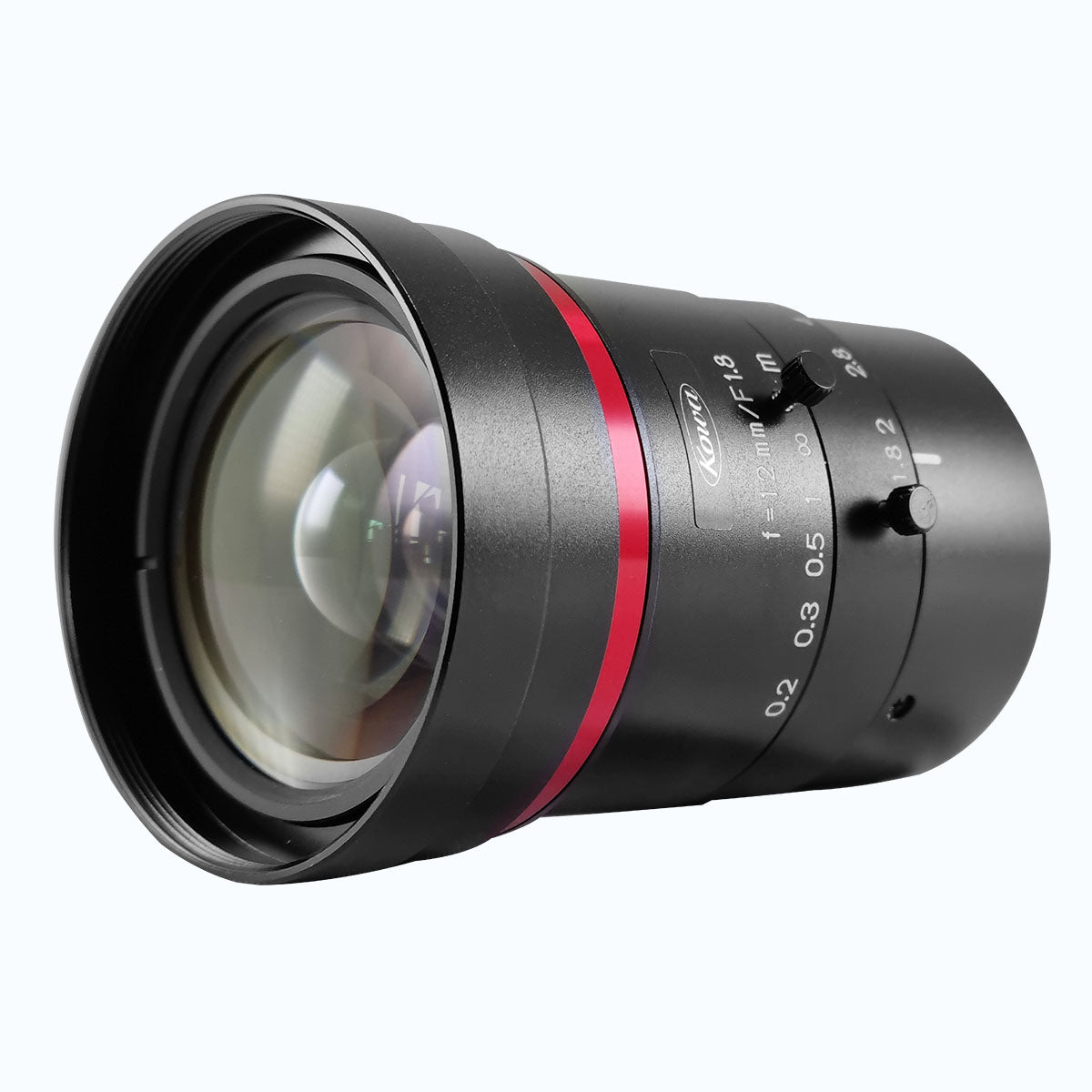

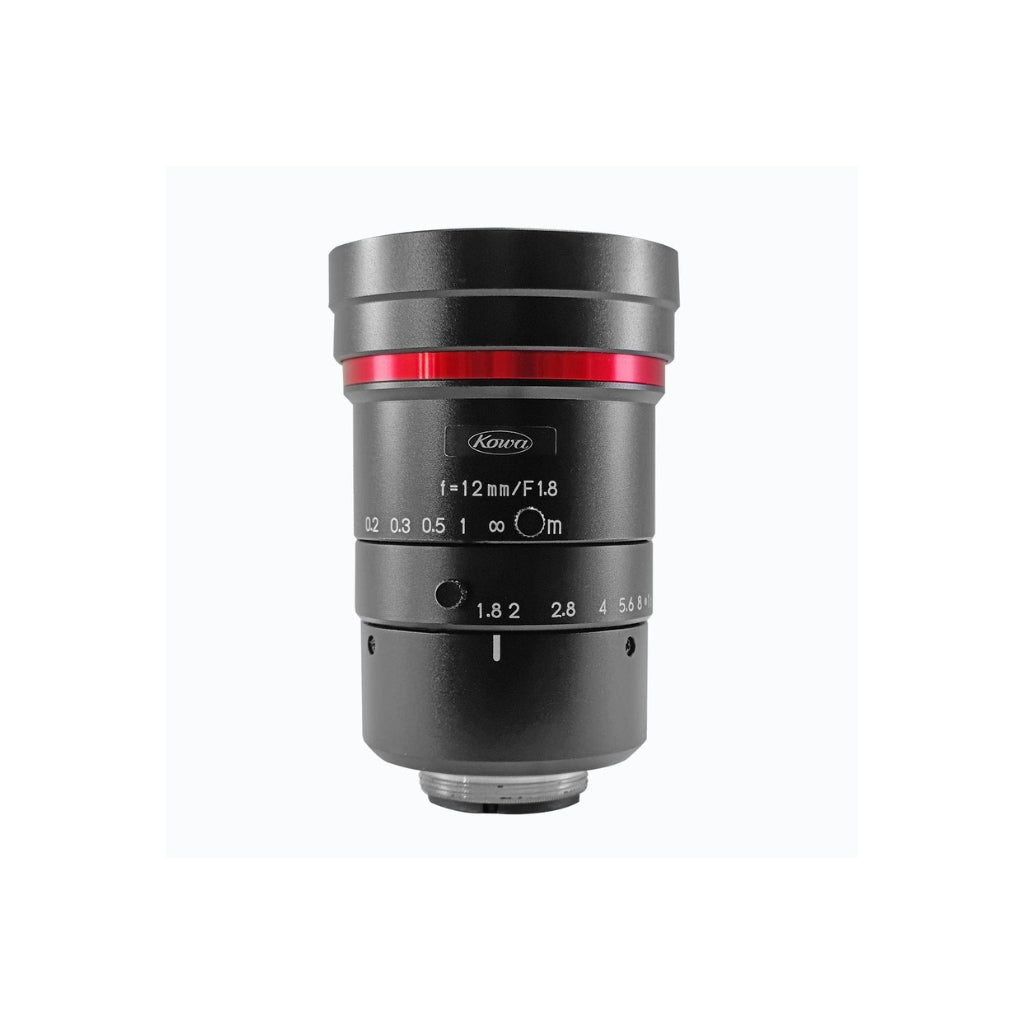

Kowa LM12FC24M 1.1" 12mm 24MP C-Mount Lens Compatible With Sony IMX183, IMX530/540, IMX531/541, IMX253/304 sensors and many others

Kowa LM12FC24M 1.1" 12mm 24MP C-Mount Lens Compatible With Sony IMX183, IMX530/540, IMX531/541, IMX253/304 sensors and many others

SKU:LM12FC24M

Regular price $688.00 USD
Regular price Sale price $688.00 USD
Sale Sold out
Tax included. Shipping calculated at checkout.

Unlock Precision Imaging with Kowa LM12FC24M C-Mount Lens

In the realm of industrial and machine vision applications, precision imaging is paramount. Enter Kowa LM12FC24M, a cutting-edge C-mount lens designed to elevate your imaging experience. Engineered with meticulous attention to detail, this lens is tailored to meet the exacting demands of modern industrial and machine vision systems.

With a 12mm focal length and compatibility with sensors boasting a pixel size of 2.5μm or more, the Kowa LM12FC24M delivers exceptional clarity and resolution, ideal for capturing intricate details in high-resolution imaging. Whether it's Sony IMX183, IMX530/540, IMX531/541, IMX253/304 sensors, or numerous others, this lens ensures compatibility with a wide array of sensor types, providing versatility and flexibility in your imaging setup.

Featuring manual iris control and a broad band coating extending from 380nm to 1000nm, the Kowa LM12FC24M offers precise control over light intake and superior image quality across various wavelengths. Its robust construction and temperature range of -10°C to +50°C make it suitable for operation in diverse industrial environments.

From broadcast and traffic control to machine vision and quality inspection, the applications of the Kowa LM12FC24M lens are as varied as they are impactful. Invest in precision optics today and unlock the full potential of your industrial imaging endeavors with Kowa LM12FC24M.

Features:

  • Compatible with Sony sensors
  • 24MP resolution
  • Manual iris control
  • Broad band coating for enhanced clarity
  • Precision optics for quality imaging

Applications:

  • Machine vision systems
  • Industrial automation
  • Quality control inspections
  • Robotics
  • Traffic monitoring systems

LM12FC24M Spec Sheet

Aperture (F-stop) 1.8 - 16
Aperture (control) Manual
Application field Broadcast, ITS/Traffic Control, Machine Vision
Back focus in air (mm) 14.5
Control (focus) Manual
Field of view at minimum working distance, horizontal (mm) 135
Field of view at minimum working distance, vertical (mm) 101
Filter size (mm) M49 x P0.75
Focal length (mm) 12
Focus range (m) 0.1 - ∞
Megapixel 24
Mount C-mount
Pixel size (µm) 2.5
Resolution, centre (lp/mm) 200
Resolution, margin (lp/mm) 100

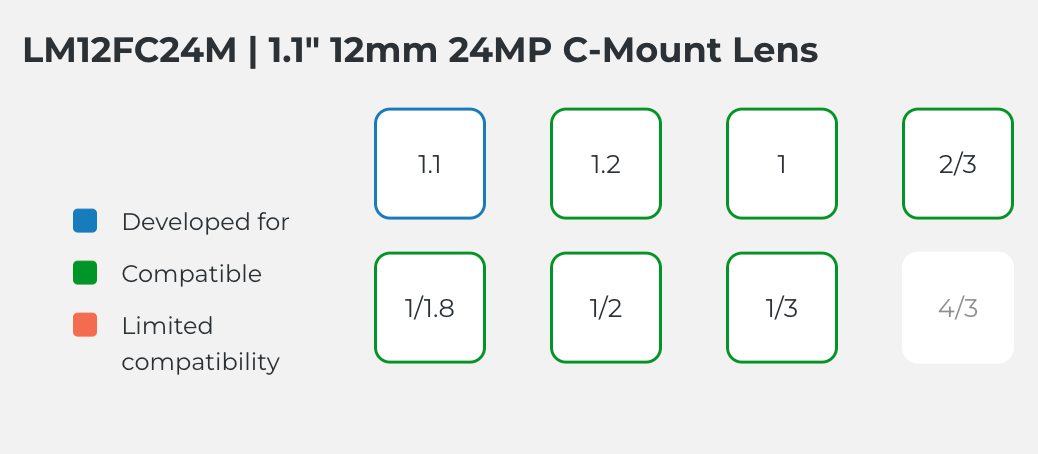

Sensor size 1.1"

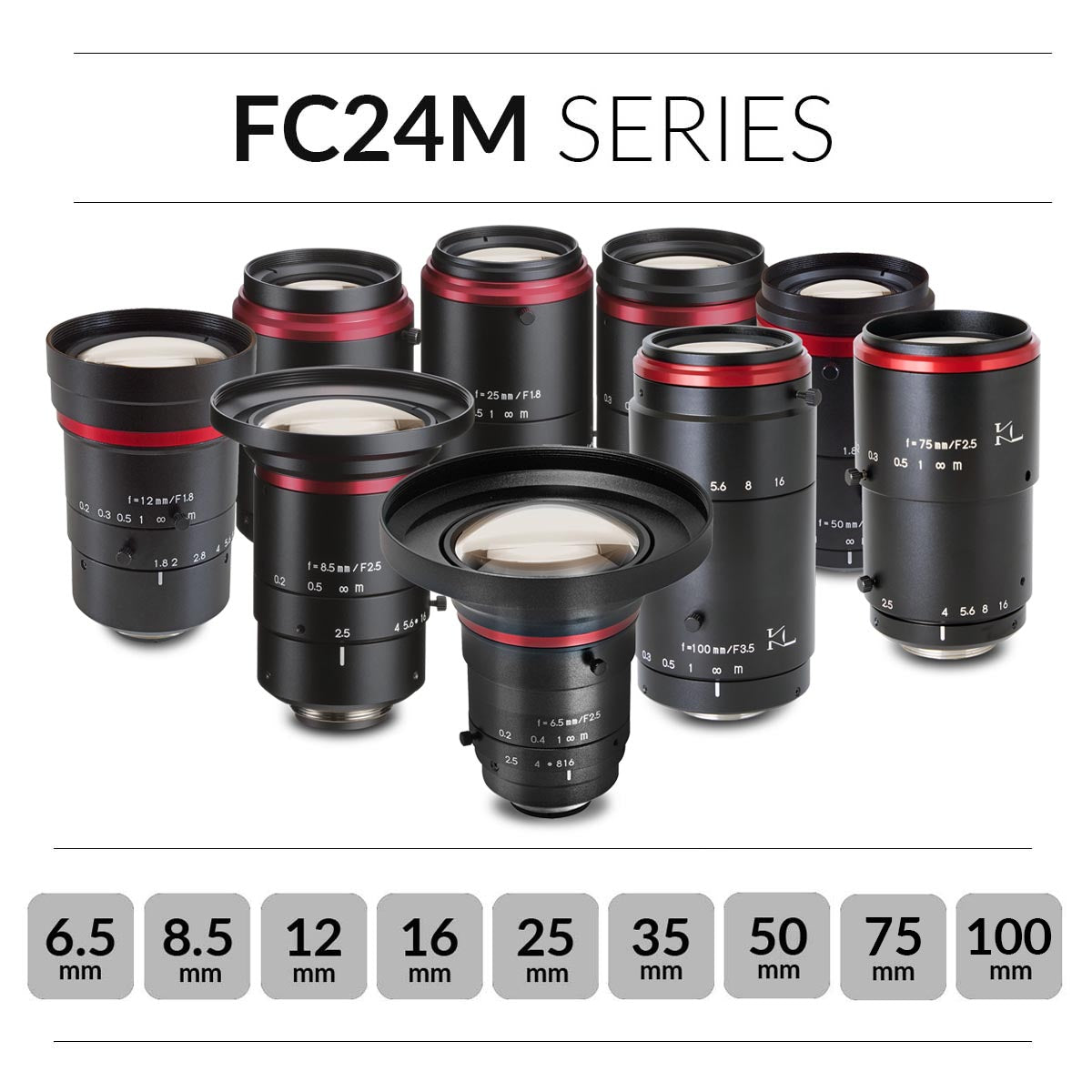

Series FC24M

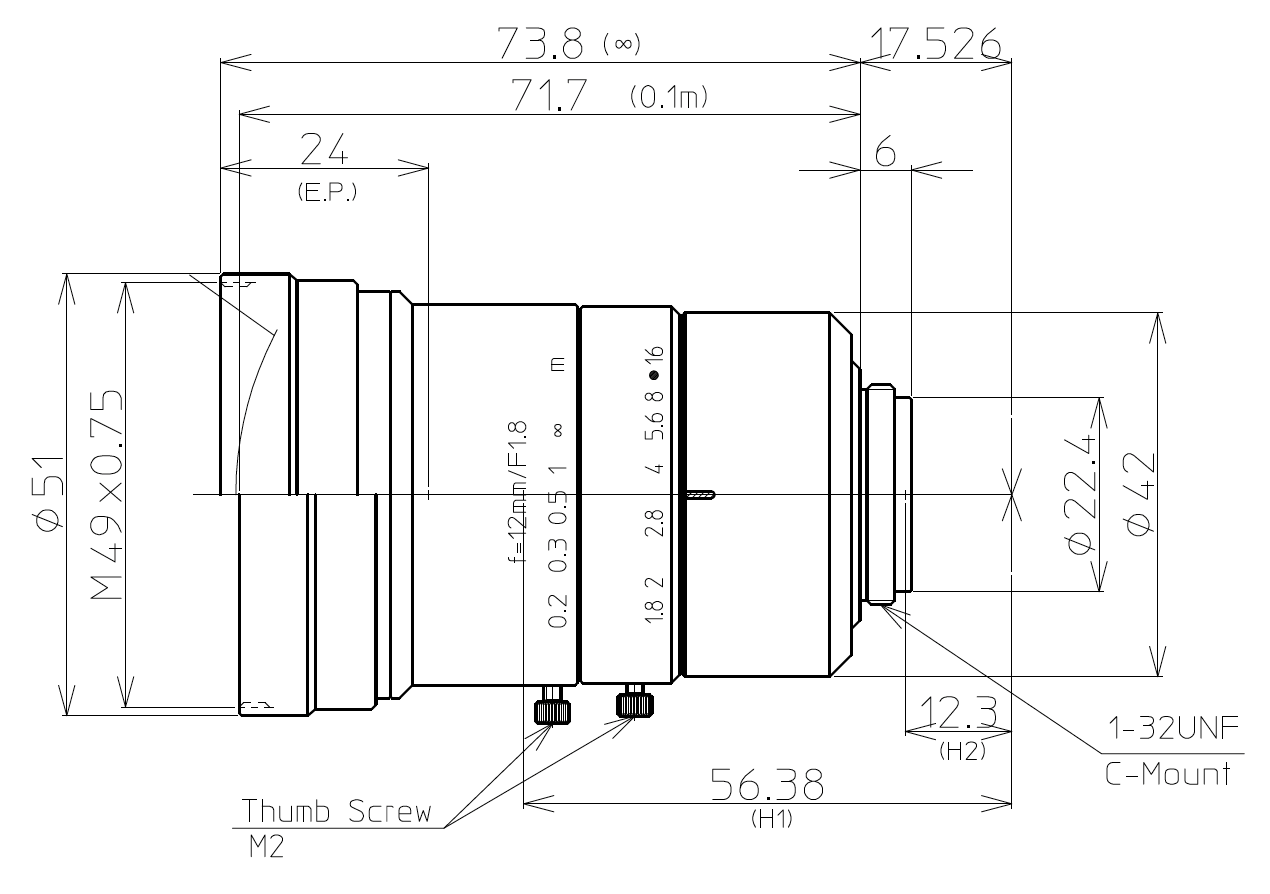

Size (mm) Ø51 x 73.8
TV distortion (%) 0.26
Temperature range (℃) -10°C - +50°C
Type of lens Fixed Focal Lens
Wavelength range Broad Band Coating (400nm – 1000nm), Peak Coating (400nm – 1000nm)
Weight (g) 260
