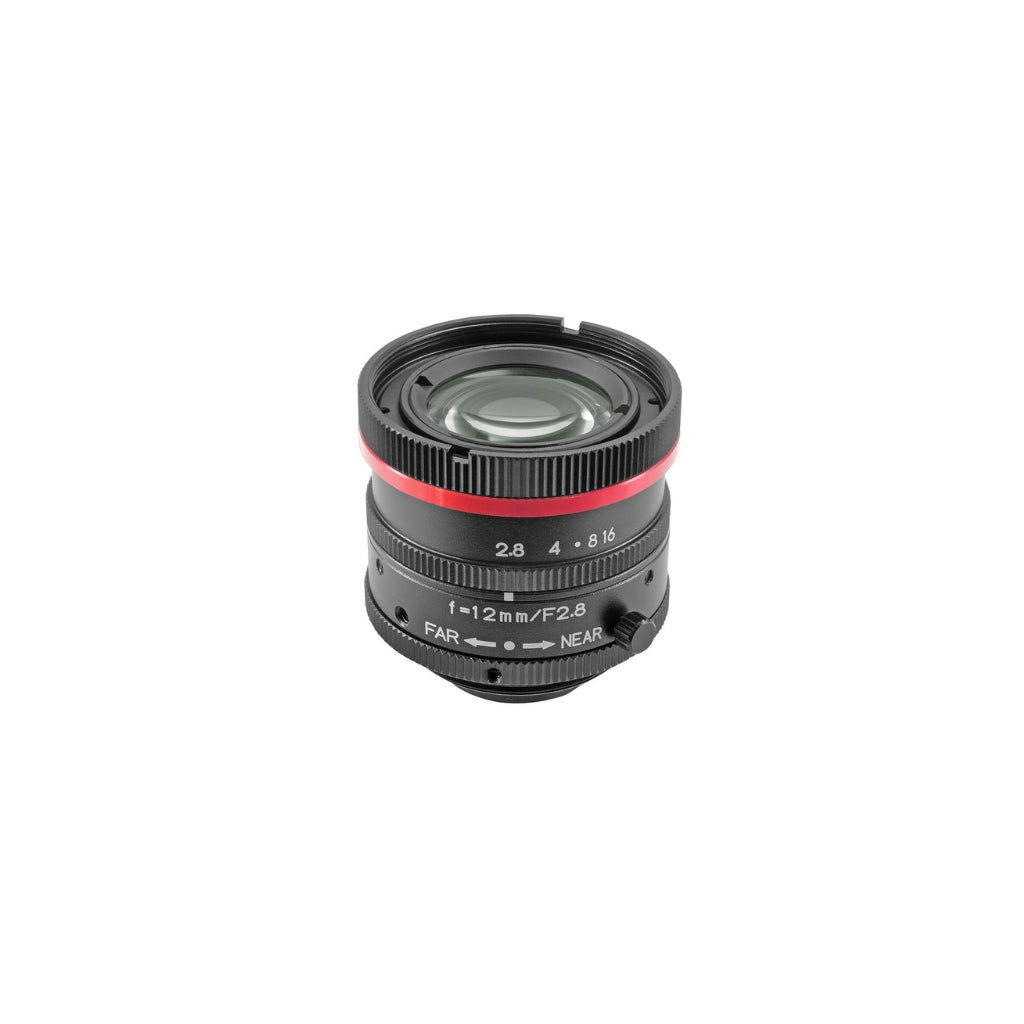

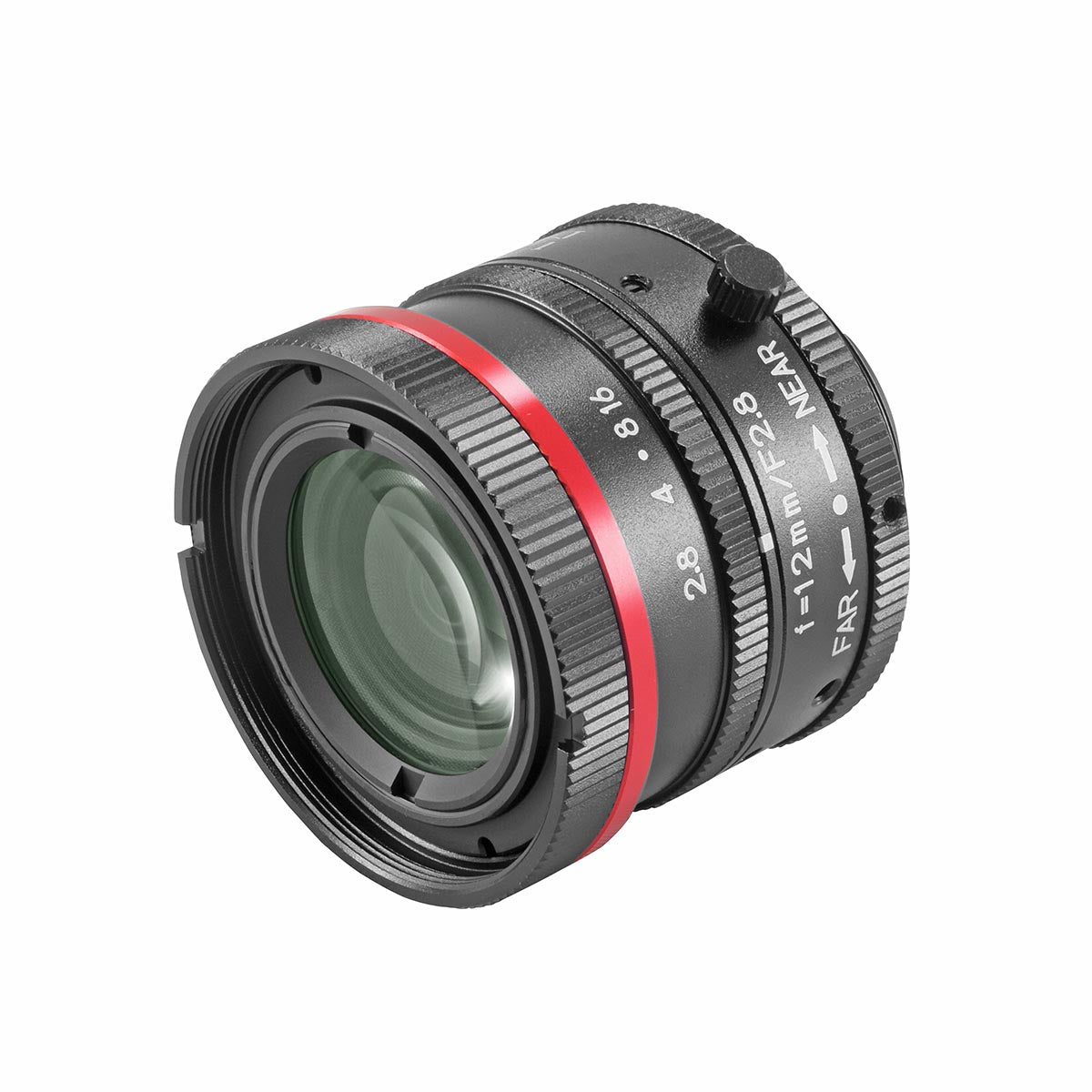

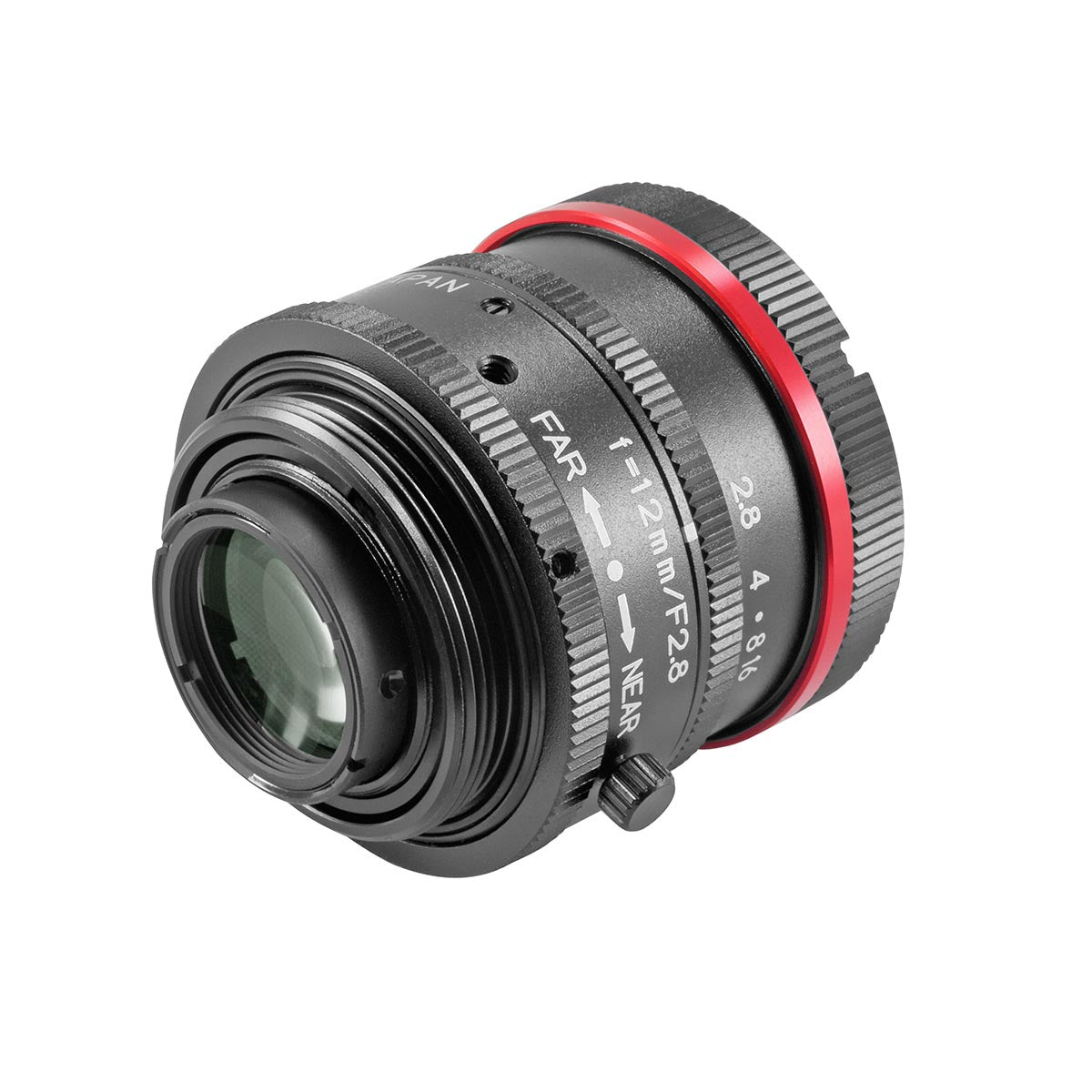

Kowa LM12JC5MC-WP 2/3" 12mm 5MP Ultra Compact Waterproof Lens
Kowa LM12JC5MC-WP 2/3" 12mm 5MP Ultra Compact Waterproof Lens
SKU:LM12JC5MC-WP
Couldn't load pickup availability
Advanced Imaging Solutions: Introducing Kowa's Ultra-Compact Waterproof Lens
Kowa's LM12JC5MC-WP 2/3" 12mm 5MP Ultra Compact Waterproof Lens redefines imaging capabilities in industrial settings. Designed with precision and innovation, this lens embodies the pinnacle of machine vision technology. Its compact form factor belies its robustness and performance, making it ideal for demanding industrial applications.

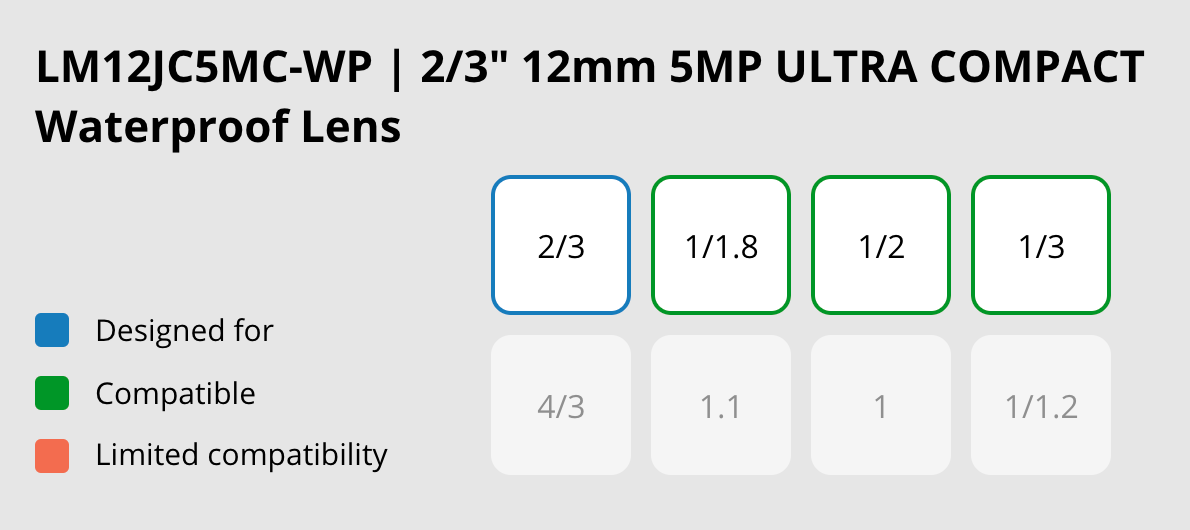

Crafted to accommodate sensors with a pixel size of 3.5μm or greater, the LM12JC5MC-WP is compatible with a range of sensors, including Sony's IMX250, IMX252, IMX264, and IMX265. This versatility ensures seamless integration into existing setups, providing users with unparalleled flexibility.
Featuring an IP67 waterproof rating, this lens is impervious to dust and moisture, ensuring reliable operation even in harsh environments. Its vibration-resistant and shockproof construction further enhances its durability, guaranteeing consistent performance in demanding conditions.
The click-type iris mechanism allows for easy adjustment of the F-number position, catering to varying lighting conditions and imaging requirements. With clicks set at F2.8, F4, F5.6, F8, and F16, users can fine-tune their imaging setup with precision and ease.
Whether used in industrial automation, quality control, robotics, or other machine vision applications, the LM12JC5MC-WP delivers exceptional imaging quality and reliability. Elevate your imaging capabilities with Kowa's Ultra-Compact Waterproof Lens and experience unparalleled performance in the most challenging environments.
Features:
- Ultra-compact design
- 2/3" 12mm lens
- 5MP resolution
- IP67 waterproof rating
- Vibration-resistant and shockproof construction
- Click-type iris mechanism for easy F-number adjustment
- Compatible with Sony IMX250, IMX252, IMX264, IMX265 sensors
Applications:
- Industrial automation
- Quality control
- Robotics
- Object recognition
- Surveillance systems
- Inspection systems
- Automotive manufacturing
- Electronics manufacturing
- Pharmaceutical production
- Agricultural monitoring
| Focal Length (mm) | 12 |
| F-Number | F=2.8-16 |
| Picture Size | 6.6 x 8.8mm / 5.4 x 7.2mm / 4.8 x 6.4mm |
| Angle Of View | VER. ANGLE: 31.2° / 25.6° / 22.8° HOR. ANGLE: 41.0° / 33.9° / 30.3° DIA. ANGLE: 50.2° / 41.9° / 37.5° |
| Distortion (TV) | -0.43% / -0.46% / -0.42% |
| Field Of View | VERTICAL: 118mm / 96mm / 86mm HORIZONTAL: 159mm / 129mm / 115mm DIAMETER: 200mm / 163mm / 144mm |
| Minimum Focus Distance | 0.2m |
| Flange Back | 17.526mm in air |
| Back Focus | 12.6mm in air |
| Filter Screw Size | M30.5x0.5 |
| Front/Rear Effective Diameter | FRONT Ø18.5mm REAR Ø13.5mm |
| Mount | C-Mount |
| Exit Pupil | -58.7mm |
| Temperature Range | -10°C - +50°C |
| Storage Temperature Range | -20°C - +60°C |
| Resolution Center/Corner | CENTER 160lp/mm CORNER 100lp/mm |
| Weight | 52g |
