LM12JCMV
Kowa LM12JCM-V 2/3" Ruggedized 12mm 2MP C-mount Lens Compatible With OnSemi Python500, e2v EV76C570 and Aptina MT9M131 sensors and many more
Kowa LM12JCM-V 2/3" Ruggedized 12mm 2MP C-mount Lens Compatible With OnSemi Python500, e2v EV76C570 and Aptina MT9M131 sensors and many more
SKU:LM12JCM-V
Couldn't load pickup availability
Discover the Kowa LM12JCM-V: Engineered for Reliable Machine Vision
In the realm of machine vision and industrial applications, precision and durability are paramount. Enter the Kowa LM12JCM-V, a 2/3" ruggedized C-mount lens designed to meet the exacting demands of industrial environments. Boasting a focal length of 12mm and compatibility with sensors such as OnSemi Python500, e2v EV76C570, and Aptina MT9M131, this lens delivers exceptional clarity and performance.
Built to withstand strong vibrations and shocks, the Kowa LM12JCM-V is the epitome of reliability in challenging conditions. Its manual iris control allows for precise adjustments, ensuring optimal image quality across various lighting conditions. With a wide VIS wavelength range spanning from 380nm to 780nm, this lens offers versatility for a multitude of industrial applications.
Whether utilized in quality control systems, robotics, inspection machinery, or manufacturing automation, the Kowa LM12JCM-V excels in providing high-resolution imaging with minimal distortion. Its rugged construction and shock-resistant design make it ideal for use in environments where durability is essential.
Experience the next level of machine vision clarity and reliability with the Kowa LM12JCM-V. Elevate your industrial imaging capabilities and unlock new possibilities for precision and efficiency in your operations.
Features:
- Ruggedized design for harsh environments
- Compatible with OnSemi Python500, e2v EV76C570, and Aptina MT9M131 sensors
- Manual iris control for precise adjustments
- Wide VIS wavelength range for versatile applications
Applications:
- Quality control
- Robotics
- Inspection systems
- Manufacturing automation
| Focal Length (mm) | 12 mm |
| Sensor Size | 2/3" |
| Pixel Size (µm) | 4,5 |
| Mount | C-Mount |
| Iris Control | Manual |
| Iris Range (F-Stop) | F1.4 / F4 / F8 / F16 |
| Lens Type | Fixed Focal Lens |
| Wavelength Range | VIS (380nm - 780nm) |
| Focusing range (m) | 0,15 - ∞ |
| Focus Control | Manual |
| Shooting range at MOD, horizontal (mm) | 110 |
| Shooting range at MOD, vertical (mm) | 82,5 |
| Resolution (Center, Corner) | 120lp/mm,100lp/mm |
| Megapixel | 2 |
| TV Distortion (%) | -0,07 |
| Back Focus in Air (mm) | 11,7 |
| Filter Size (mm) | M27 x P0,5 |

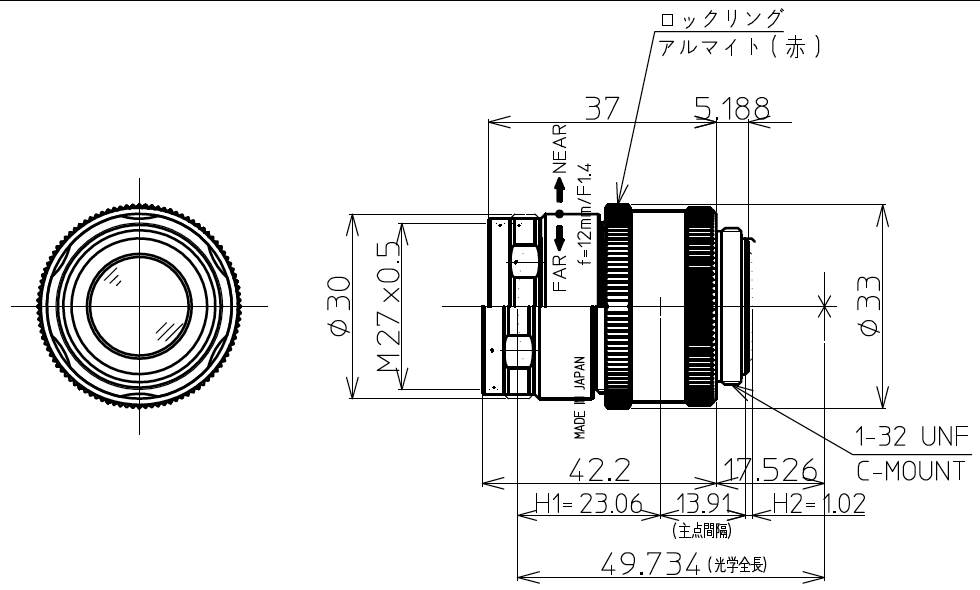

| Size (mm) | Ø33 X 37 |
| Weight | 75 |
| Temperature Range | -10°C - +50°C |
| Series | JCM-V |
| Application | Machine Vision |
