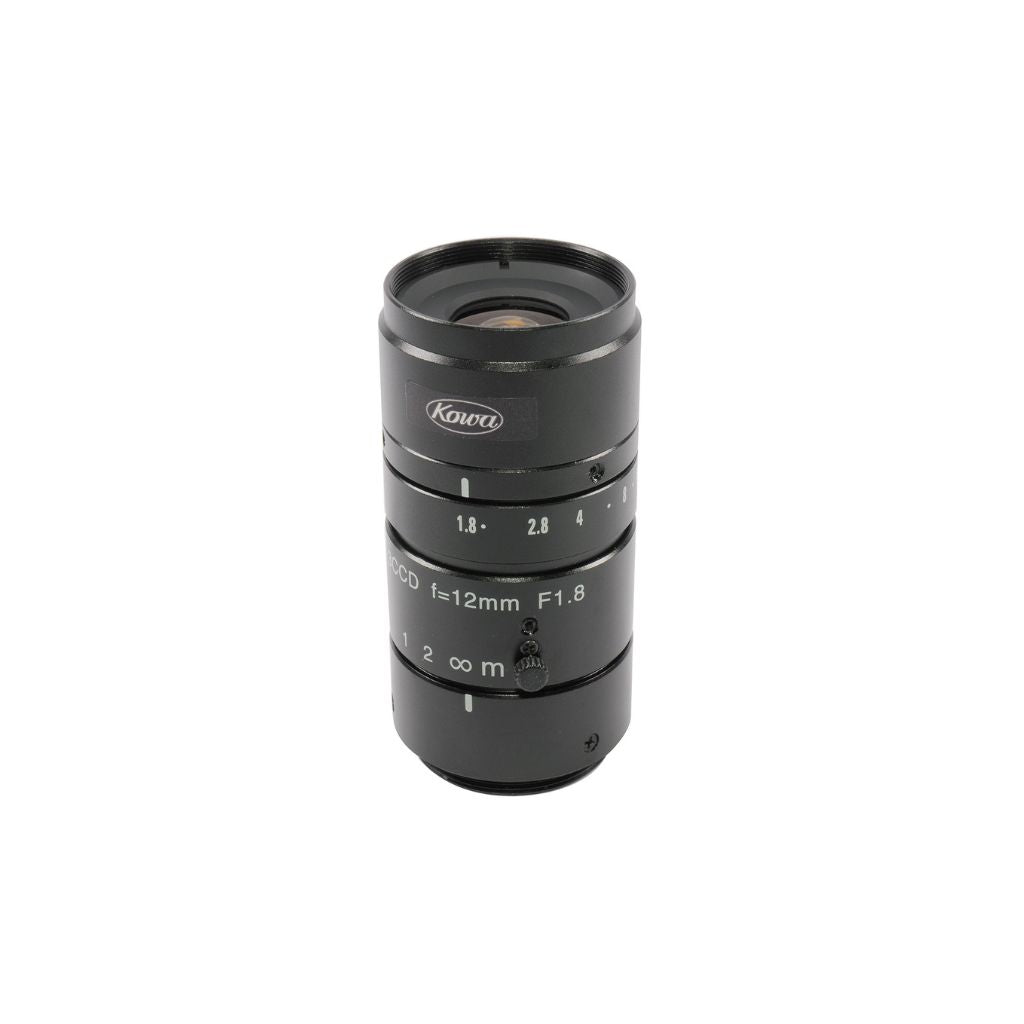

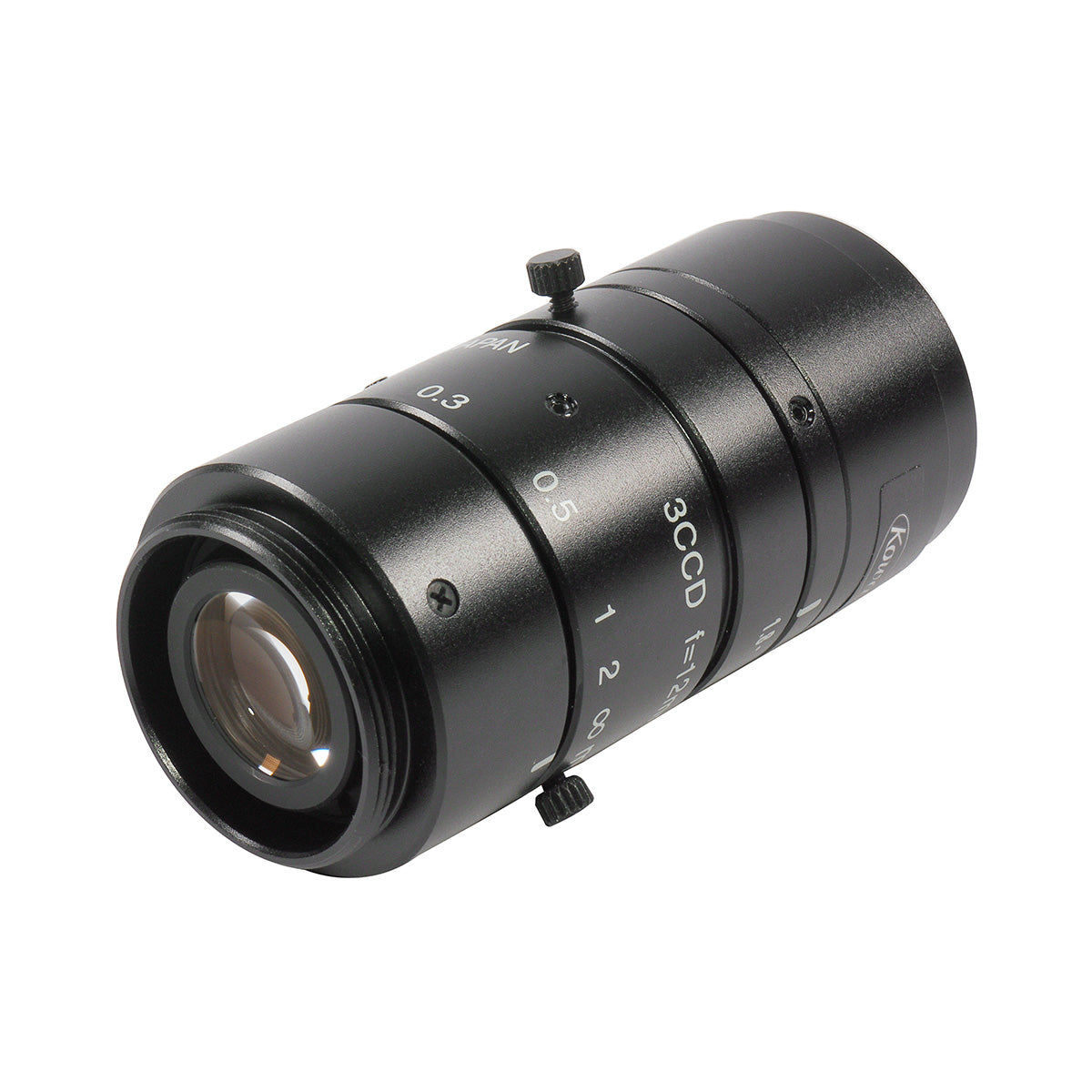

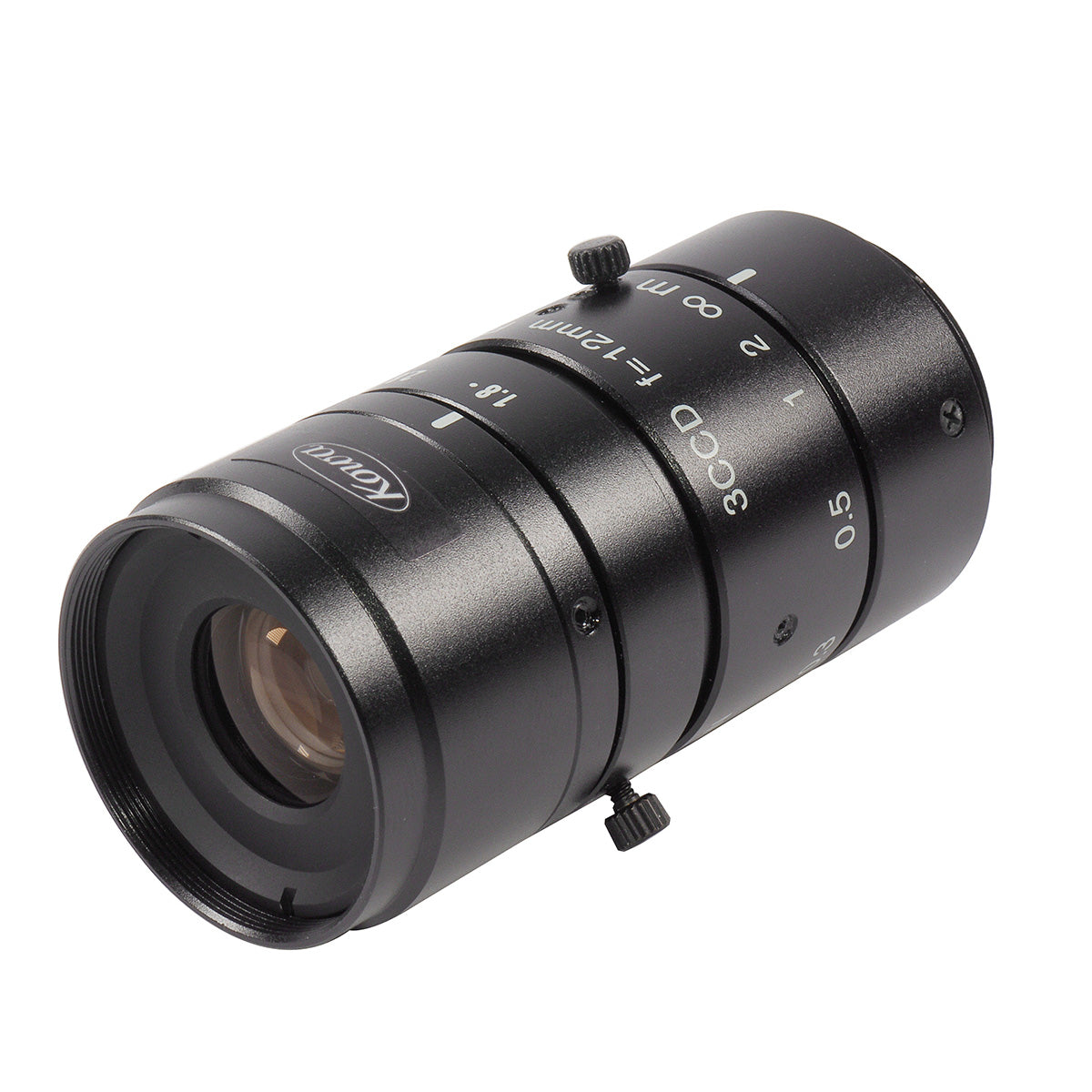

Kowa LM12NC3 1/2" 12mm 3CCD Megapixel Lens

Kowa LM12NC3 12mm 3CCD Megapixel Lens: A High-Precision Solution for Industrial and Machine Vision Applications

The Kowa LM12NC3 12mm 3CCD Megapixel Lens is engineered for superior performance in industrial and machine vision applications. Known for precision and durability, this fixed focal lens is equipped with a 12mm focal length and supports 1/2" 3CCD sensors, delivering high-resolution images with minimal distortion. Featuring manual iris and focus control, users can fine-tune their settings to meet specific imaging requirements.

The robust metal housing and locking screws for iris and focus ensure stability and durability in harsh environments, making it ideal for use in manufacturing, quality control, and automated inspection systems. Its metal mount guarantees secure attachment and prolonged usability in high-stress conditions.

The lens offers a broad aperture range from F1.8 to F16, allowing it to perform well under various lighting conditions. With a TV distortion of -0.9%, the LM12NC3 maintains image accuracy even at wide angles, making it a preferred choice for demanding machine vision applications.

Designed with a wavelength range of 400nm to 1000nm, this lens is highly versatile, offering excellent performance across the visible spectrum. For businesses looking to enhance their imaging systems, the Kowa LM12NC3 is an optimal solution.

Features:

• 12mm fixed focal length
• 1/2" 3CCD Megapixel sensor support
• Manual iris and focus control
• Metal housing with locking screws
• Wide aperture range (F1.8 - F16)
• Low TV distortion (-0.9%)
• Peak coating from 400nm – 1000nm

Applications:

• Automated inspection systems
• Manufacturing quality control
• Robotics and automation
• Surface and product inspection
• Precision measurement systems
• Scientific imaging applications
