LM16JC

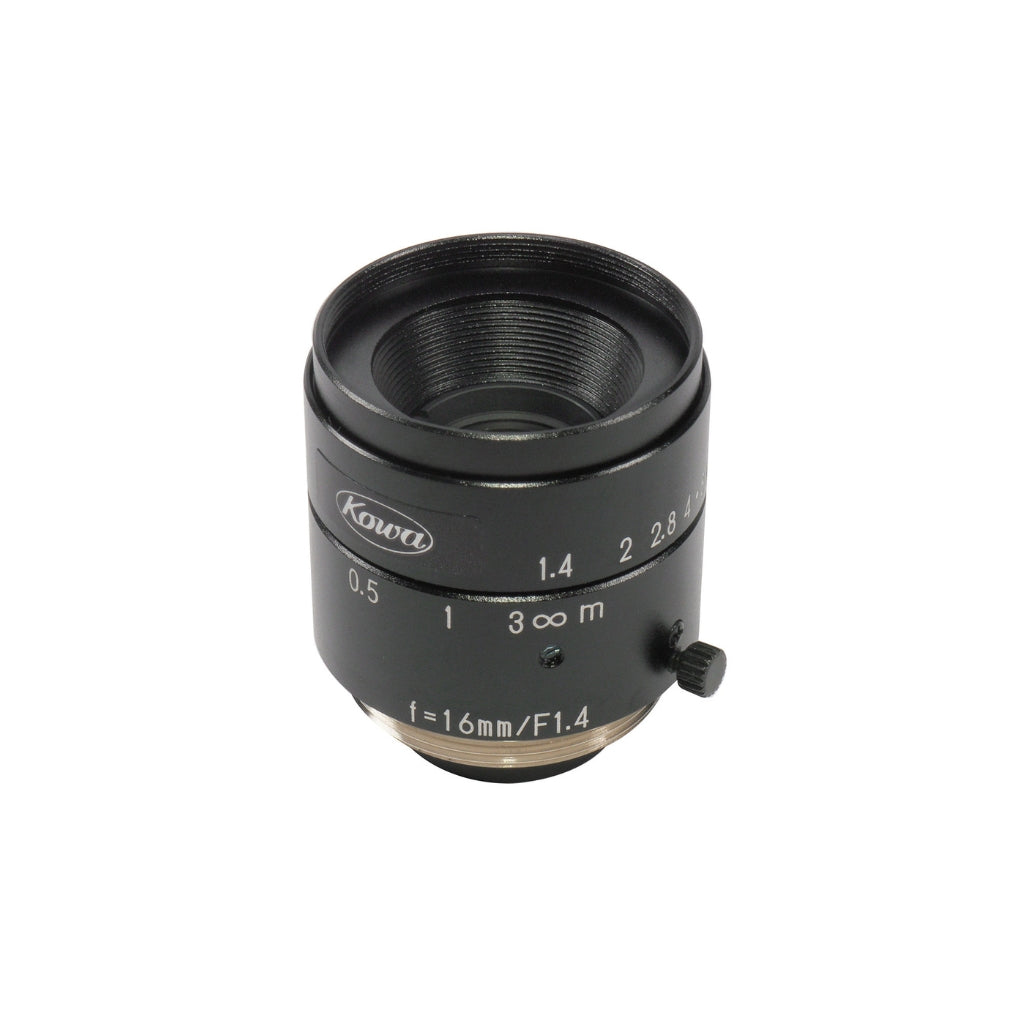

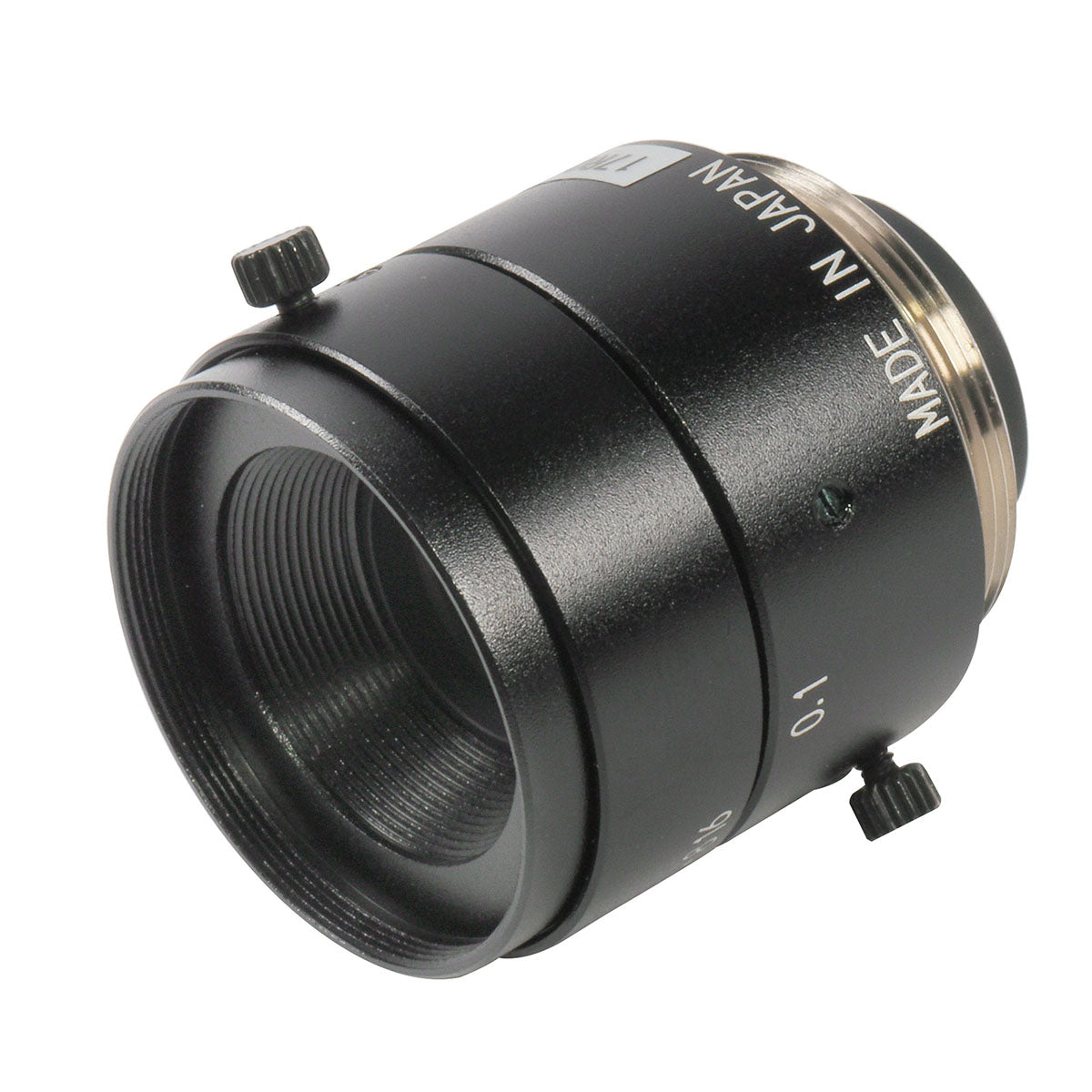

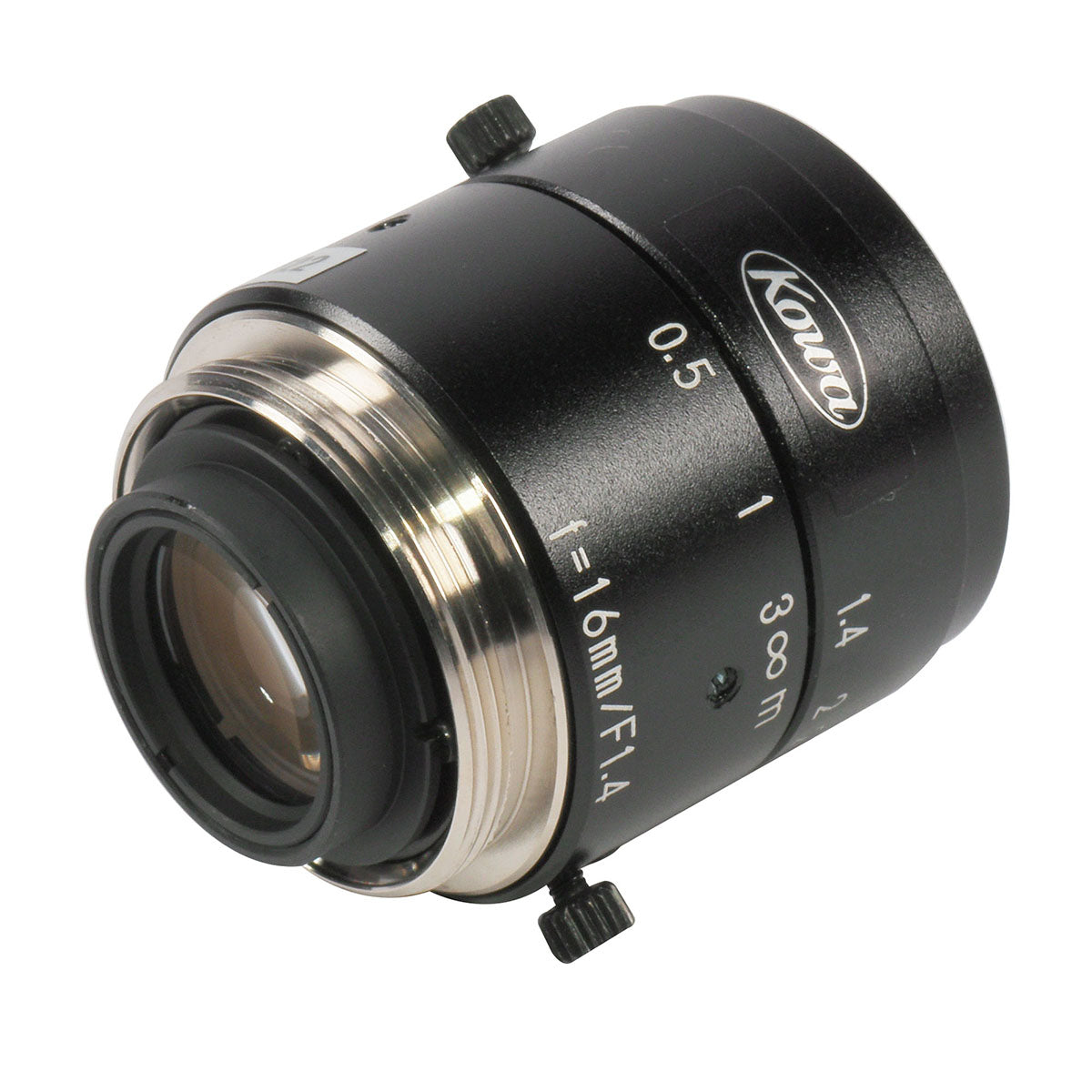

Kowa LM16JC 2/3" 16mm MP C-Mount Lens Compatible With e2v EV76C560, CMOSIS CMV2000 and Aptina MT9M001 sensors and many more
Kowa LM16JC 2/3" 16mm MP C-Mount Lens Compatible With e2v EV76C560, CMOSIS CMV2000 and Aptina MT9M001 sensors and many more
SKU:LM16JC
Couldn't load pickup availability
Experience the Power of Kowa LM16JC 2/3" 16mm MP C-Mount Lens
In the realm of machine vision and industrial imaging, precision and reliability are paramount. Enter the Kowa LM16JC 2/3" 16mm MP C-Mount Lens, a cutting-edge solution designed to elevate your imaging capabilities to new heights. Boasting a focal length of 16mm and compatibility with sensors featuring a pixel size from 5.0μm, this lens is meticulously crafted to meet the demanding needs of modern industrial applications.
With manual iris control and an iris range from f/1.4 to f/16, users can achieve unparalleled precision in adjusting the aperture, ensuring optimal light conditions for every scenario. The lens's wide wavelength range of visible light (380nm - 780nm) further enhances its versatility, making it suitable for a myriad of machine vision tasks.
Built with quality construction and precision optics, the Kowa LM16JC lens delivers exceptional resolution, with a center resolution of 100 lp/mm and corner resolution of 60 lp/mm. Its compact design and lightweight build ensure seamless integration into any machine vision setup, while its temperature range of -10°C to +50°C guarantees reliable performance even in challenging environments.
From automated inspection systems to robotics and beyond, the Kowa LM16JC lens empowers users across various industries to achieve superior imaging results. Whether you're engaged in quality control, object recognition, or PCB inspection, this lens sets a new standard for excellence in industrial imaging. Elevate your machine vision capabilities today with the Kowa LM16JC 2/3" 16mm MP C-Mount Lens.
Features:
- Compatible with e2v, CMOSIS, Aptina sensors & more
- Manual iris control for precision adjustments
- Wide wavelength range for diverse applications
- Compact design for easy integration
- High resolution imaging with quality optics
Applications:
- Automated inspection
- Quality control
- Robotics
- Object recognition
- PCB inspection
| Focal Length (mm) | 16 mm |

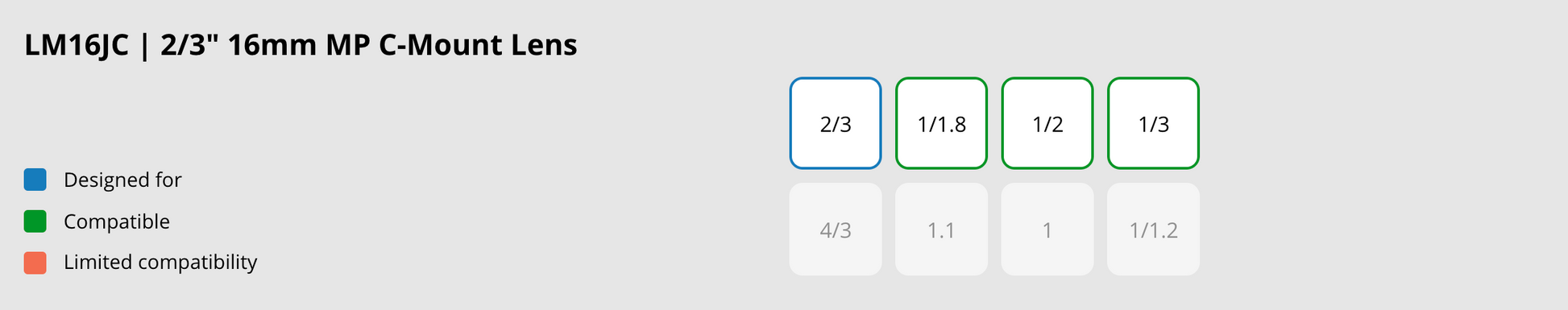

| Sensor Size | 2/3" |
| Pixel Size (µm) | 5 |
| Mount | C-Mount |
| Iris Control | Manual |
| Iris Range (F-Stop) | 1,4 - 16 |
| Lens Type | Fixed Focal Lens |
| Wavelength Range | VIS (380nm - 780nm) |
| Focusing range (m) | 0,2 - ∞ |
| Focus Control | Manual |
| Shooting range at MOD, horizontal (mm) | 111,8 |
| Shooting range at MOD, vertical (mm) | 82,6 |
| Resolution (Center, Corner) | 100lp/mm,60lp/mm |
| TV Distortion (%) | -1,5 |
| Back Focus in Air (mm) | 12,15 |
| Filter Size (mm) | M27 x P0,5 |

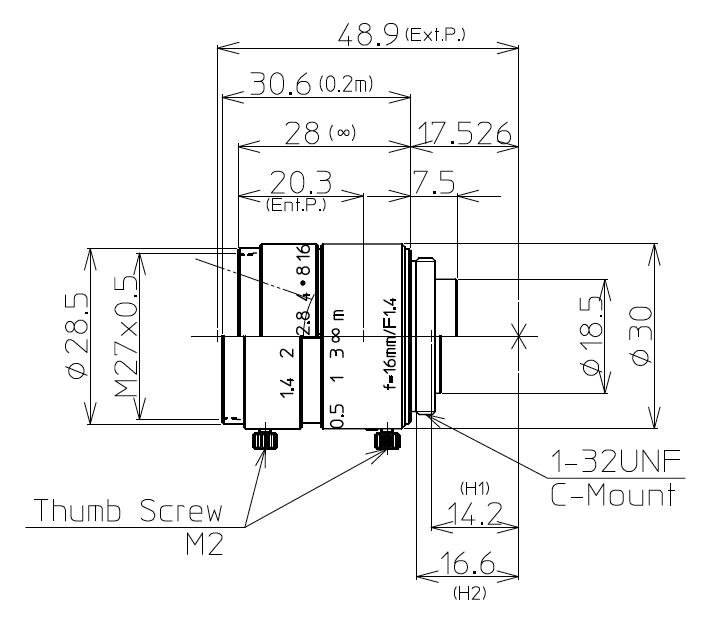

| Size (mm) | Ø30 X 28 |
| Weight | 55 |
| Temperature Range | -10°C - +50°C |

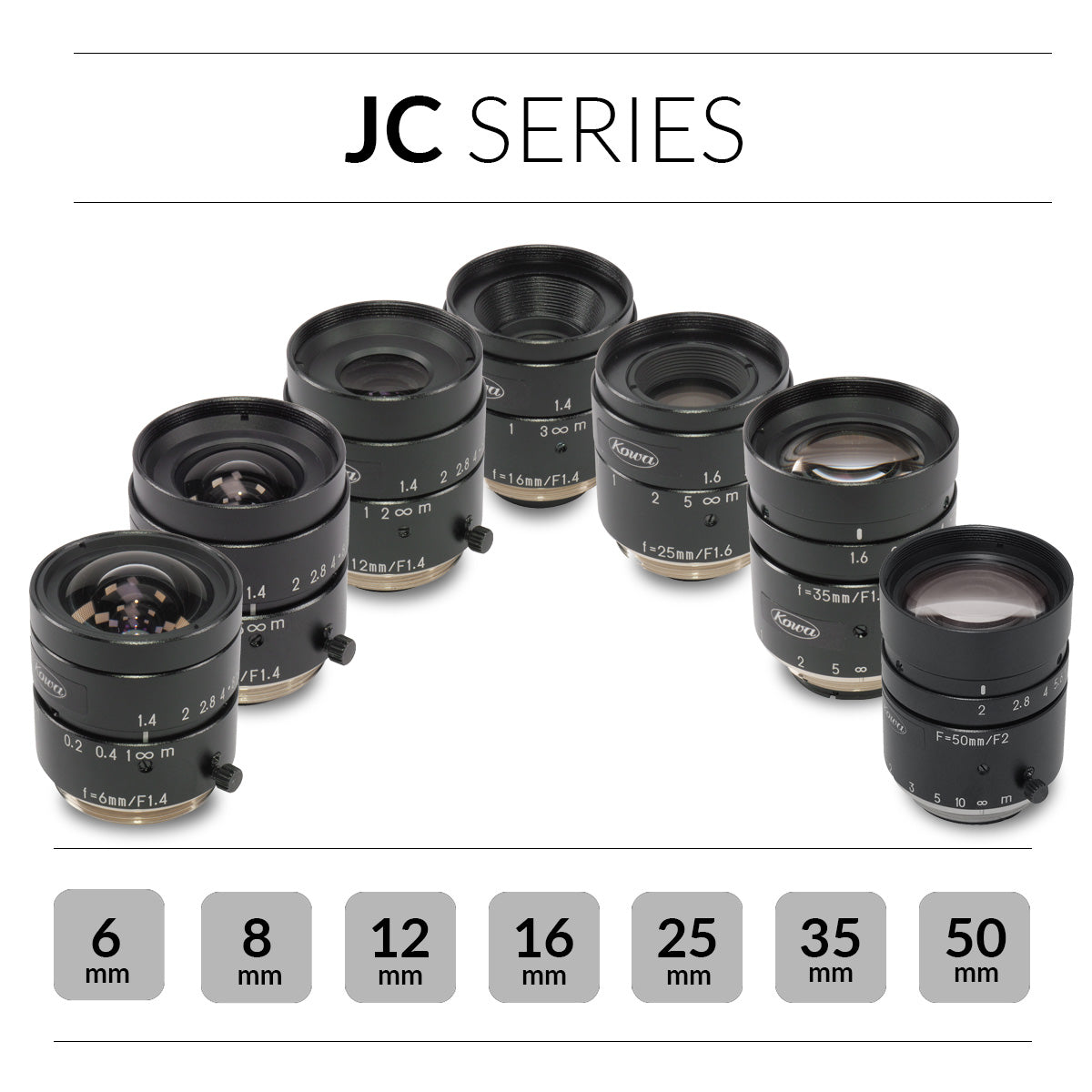

| Series | JC |
| Application | Machine Vision |
