LM16JC5M2

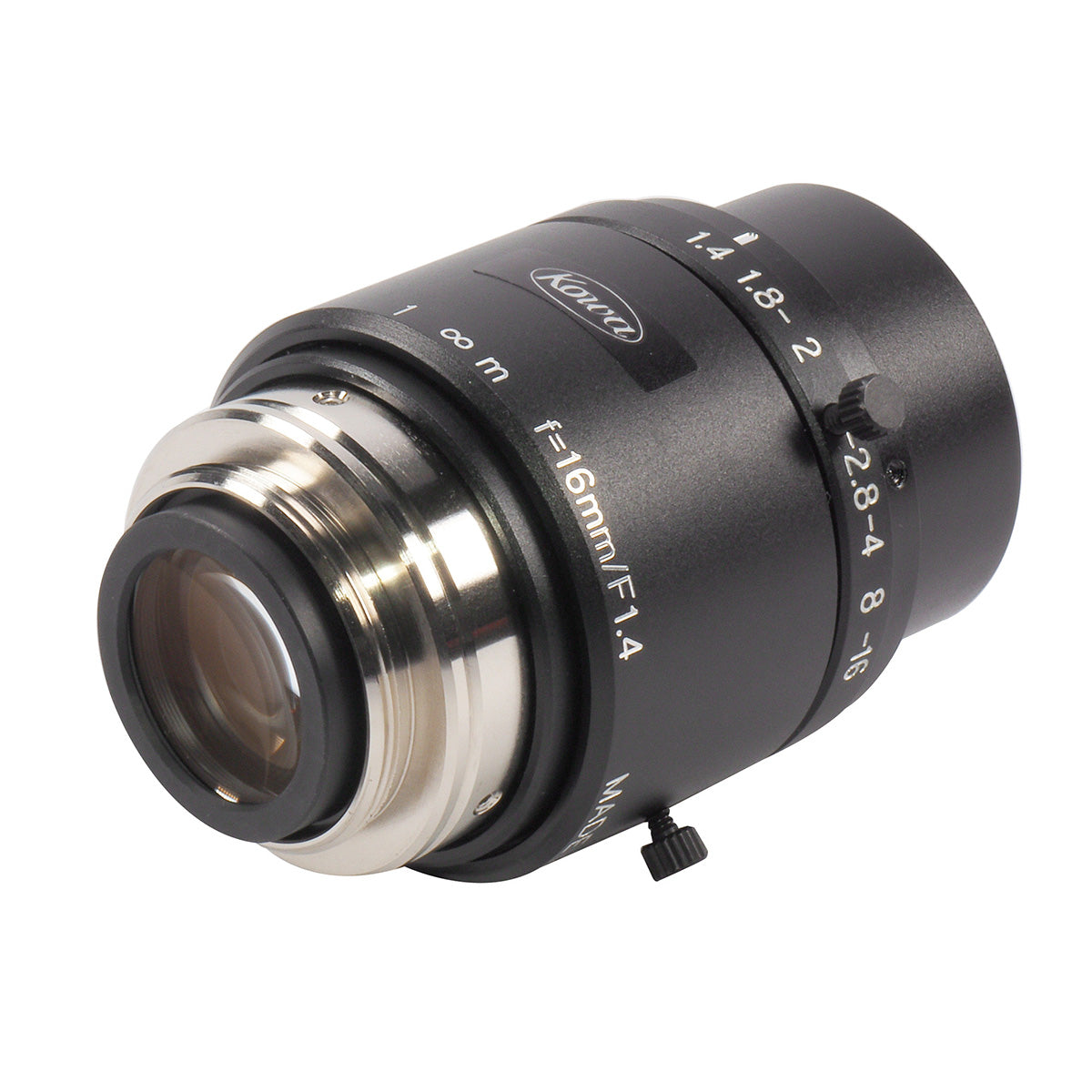

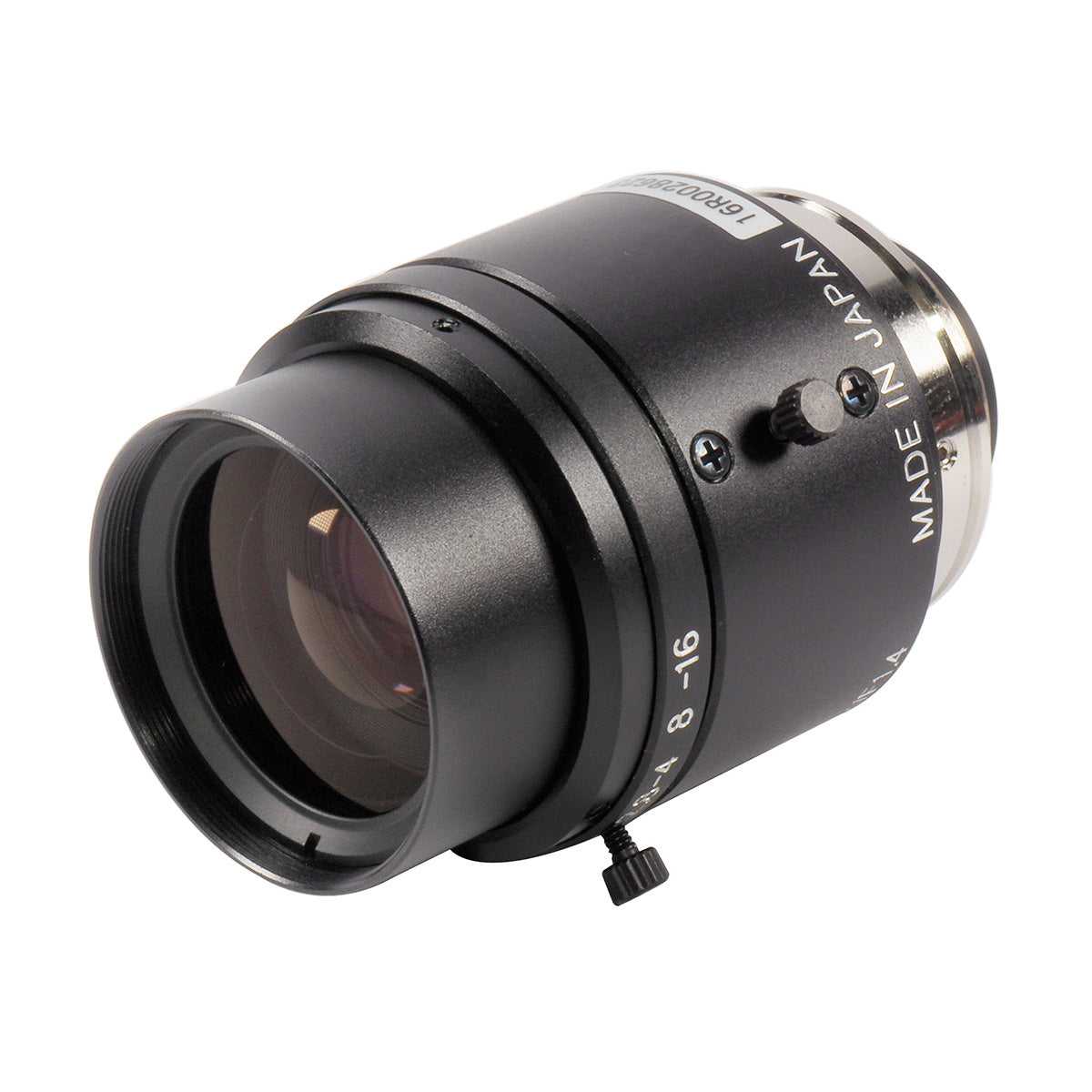

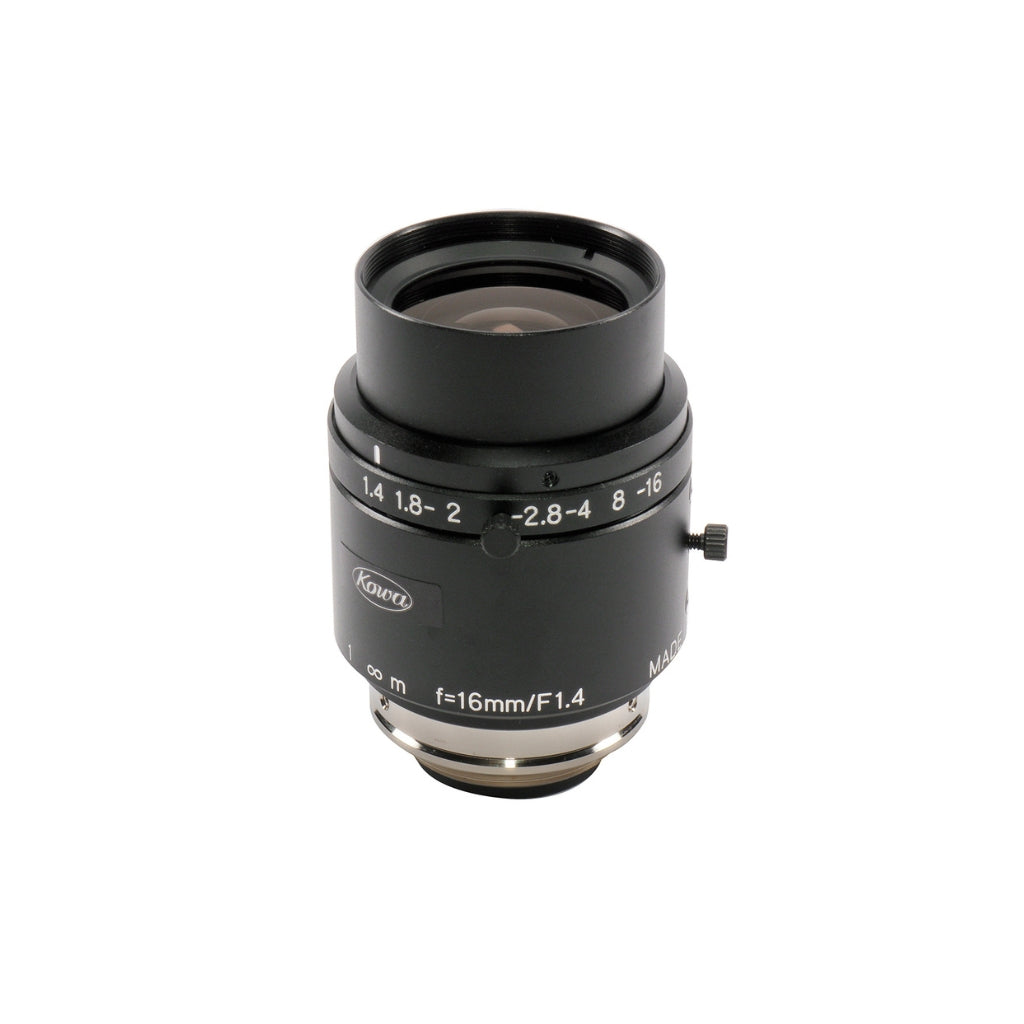

Kowa LM16JC5M2 2/3" 16mm 5MP C-Mount Lens Compatible With Sony IMX174, Sony IMX252 and Sony IMX273 sensors and many more
Kowa LM16JC5M2 2/3" 16mm 5MP C-Mount Lens Compatible With Sony IMX174, Sony IMX252 and Sony IMX273 sensors and many more
SKU:LM16JC5M2
Couldn't load pickup availability
Enhance Your Industrial Imaging with Kowa LM16JC5M2 Lens
In the realm of industrial imaging, where precision is paramount, Kowa stands as a beacon of excellence. The Kowa LM16JC5M2 2/3" 16mm 5MP C-mount Lens embodies the pinnacle of their commitment to cutting-edge optics and technological innovation. Crafted with meticulous attention to detail, this lens is tailored for seamless compatibility with an array of sensors, including the esteemed Sony IMX174, IMX252, and IMX273 series.
With its manual iris control, operators can fine-tune settings with precision, ensuring optimal performance in diverse lighting conditions. The broad band coating further enhances its adaptability, delivering consistent results across varying environments. Sporting a focal length of 16mm and boasting a resolution of 5 megapixels, this lens captures intricate details with unparalleled clarity and sharpness.
From machine vision systems orchestrating complex manufacturing processes to traffic control and surveillance applications safeguarding our cities, Kowa lenses excel in reliability and performance. Each component is meticulously crafted to meet the rigorous demands of industrial environments, ensuring longevity and uncompromising quality. Elevate your imaging capabilities with Kowa LM16JC5M2 lens and witness a new standard of excellence in industrial vision technology.
Features:

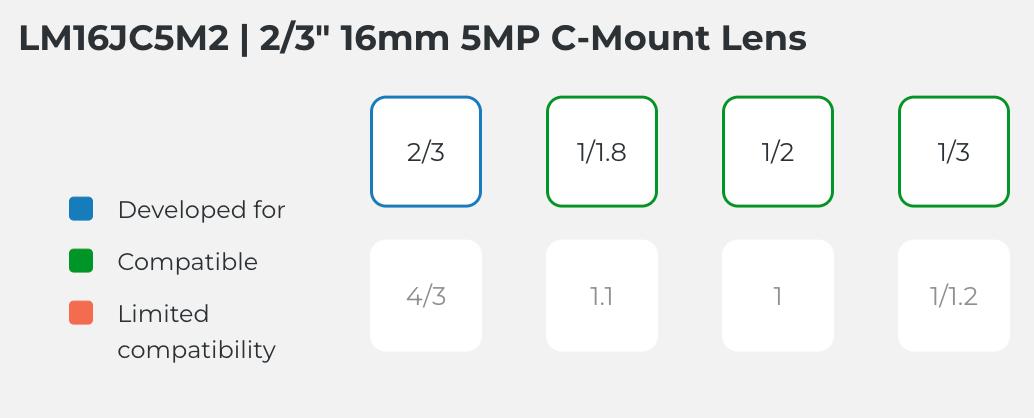

- Compatible with Sony IMX174, IMX252, and IMX273 sensors
- Manual iris control for precise adjustments
- Broad band coating for optimal performance in varying lighting conditions
- 16mm focal length with 5MP resolution
- High-quality optics for impeccable image quality
Applications:
- Machine vision systems
- Traffic control and ITS
- Surveillance and security systems
| Focal Length | 16mm |
| Focal Length Sort Order | 016 |
| Lens Type | Fixed Focal Length |
| Image Size | 2/3" (8.8 x 6.6 x 11mm) |
| Iris Range (F-Stop) | F1.4 - 16 |
| Angle of View 1/2" (Hor. x Ver. x Dia.) | 22.0 x 16.6 x 27.3° |
| Angle of View 1/1.8" (Hor. x Ver. x Dia.) | 24.7 x 18.6 x 30.6° |
| Angle of View 2/3" (Hor. x Ver. x Dia.) | 29.9 x 22.7 x 36.9° |
| TV Distortion |
0.03% |
| Minimum Object Focus Distance (1/2") (Hor. x Ver. x Dia.) |
47.0 x 35.2 x 58.8mm |
| Minimum Object Focus Distance (1/1.8") (Hor. x Ver. x Dia.) | 52.9 x 39.6 x 66.3mm |
| Minimum Object Focus Distance (2/3") (Hor. x Ver. x Dia.) | 64.6 x 48.4 x 81.1mm |
| Focusing Range | 0.1m |

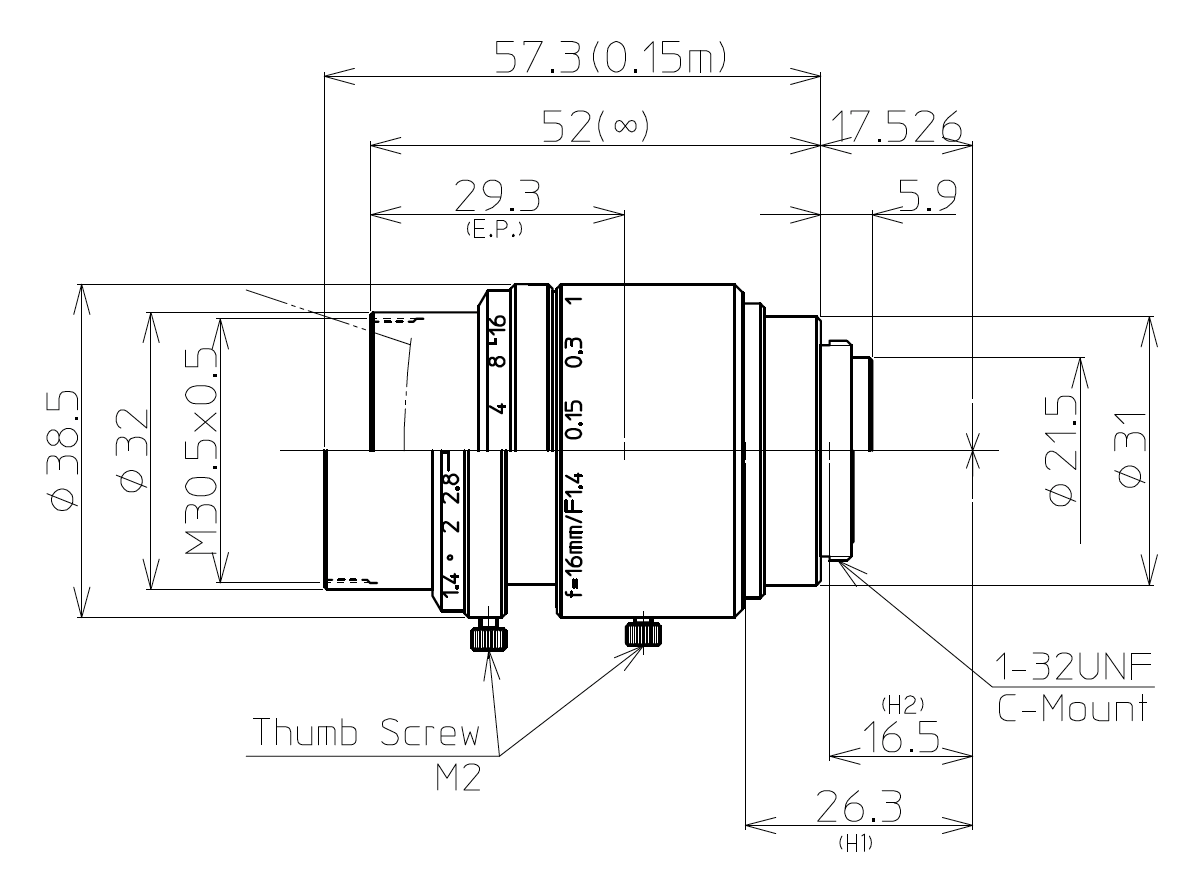

| Flange Back | 17.526mm in air |
| Back Focus | 11.6mm in air |
| Filter Thread Size | M30.5x0.5 |
| Front/Rear Effective Diameter | Front Φ24.5mm / Rear Φ16.6mm |
| Mount | C-Mount |
| Exit Pupil Location | -105.7mm |
| Temperature Range | -10°C ~ +50°C |
| Storage Temperature Range | -20°C ~ +60°C |
| Resolution: Center/Corner | Center 160lp/mm / Corner 100lp/mm |
| Weight | 125g |
