Kowa LM18VM42 2" ø32mm 50MP Lens Compatible With Sony IMX342, CMOSIS CMV12000, CMV20000 & CMV50000

Kowa LM18VM42 2" ø32mm 50MP Lens Compatible With Sony IMX342, CMOSIS CMV12000, CMV20000 & CMV50000

SKU:LM18VM42

Regular price $1,252.00 USD
Regular price Sale price $1,252.00 USD
Sale Sold out
Tax included. Shipping calculated at checkout.

Kowa LM18VM42 Machine Vision Lens: Enhancing Industrial Imaging

Kowa, a renowned name in machine vision lenses, presents the LM18VM42, engineered for precision in industrial imaging. With a focal length of 18mm and a large 2" sensor size, it's optimized for sensors with a pixel size of 3.1μm or more, ensuring compatibility with leading sensors like Sony IMX342 and CMOSIS CMV series.

This fixed focal lens boasts a high resolution of 50MP, delivering exceptional clarity across the image circle of ø32mm. Manual iris control allows for precise adjustments, while the wide aperture range from f/2.8 to f/16 ensures versatility in various lighting conditions. The lens offers a distortion of just 1.25%, maintaining accuracy in imaging tasks.

Designed for industrial applications, the Kowa LM18VM42 is suitable for use in automated inspection, robotics, quality control, and more. Its robust construction withstands demanding environments, with a temperature range from -10°C to +50°C. Whether you're in automotive, electronics, or pharmaceuticals, this lens elevates your machine vision capabilities, ensuring unparalleled performance and reliability.

Features:

  • 18mm focal length
  • 2" sensor size
  • Manual iris control

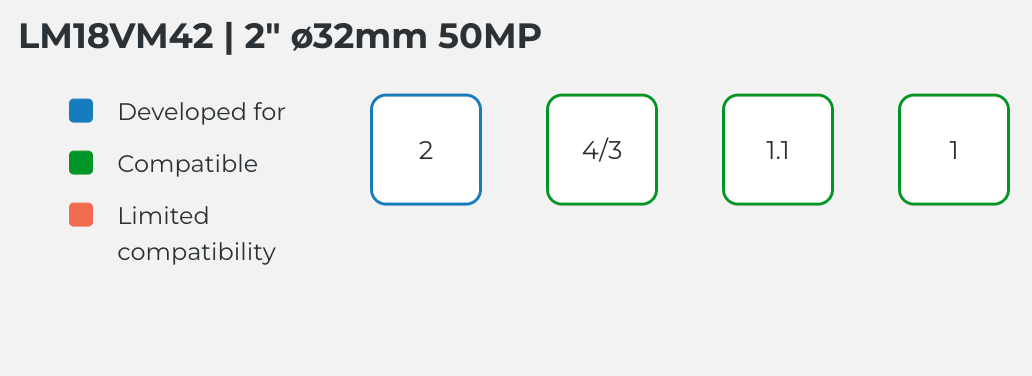

  • Compatible with Sony IMX342, CMOSIS CMV12000, CMV20000 & CMV50000
  • Wide aperture range from f/2.8 to f/16

Applications:

  • Automated inspection
  • Robotics
  • Quality control
  • Electronics manufacturing
