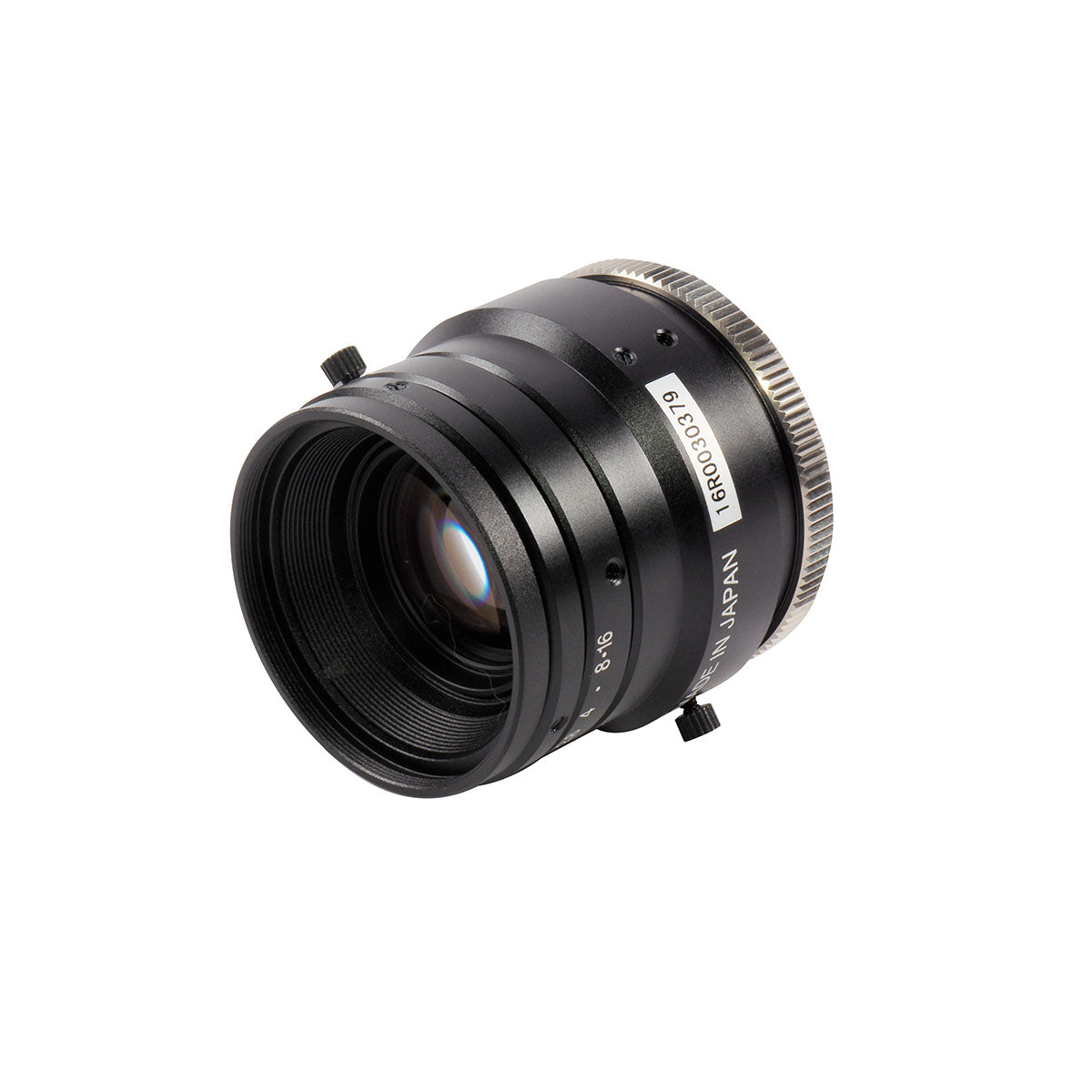

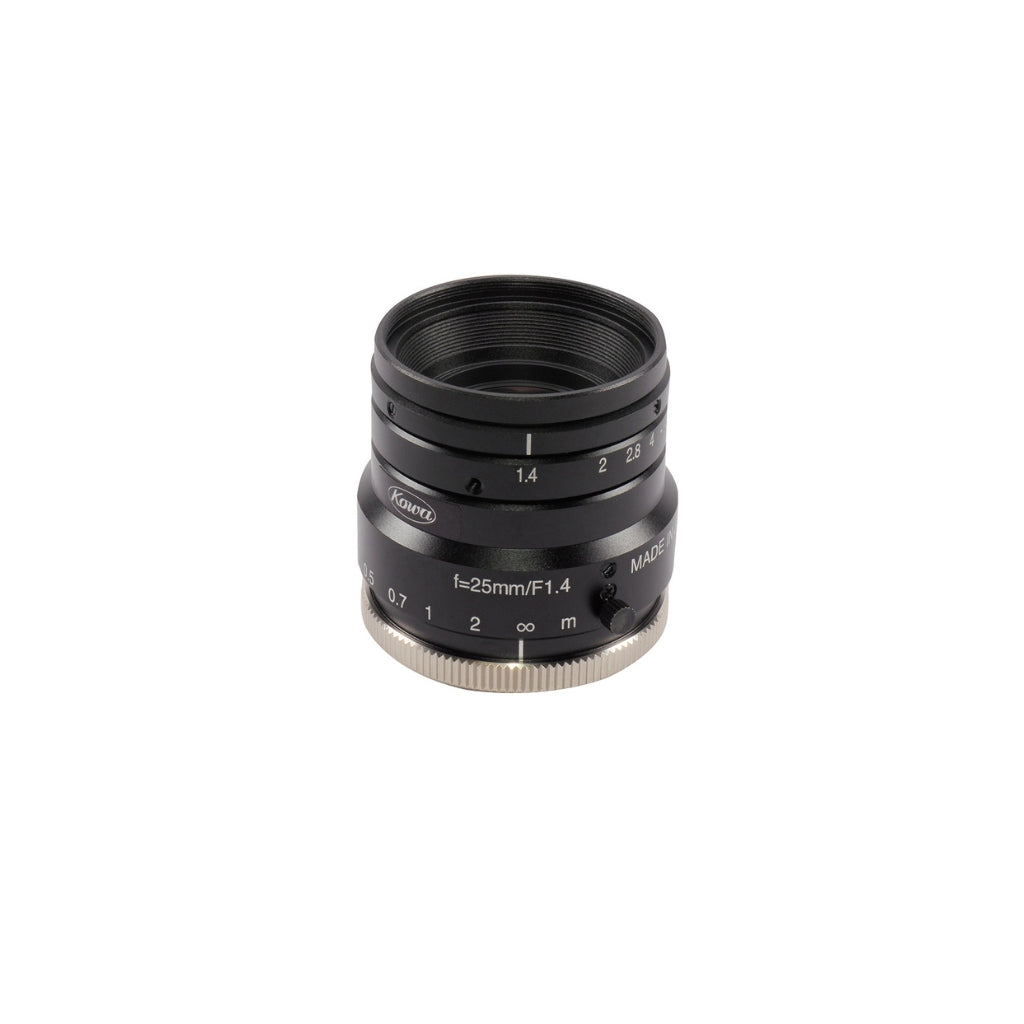

Kowa LM25HC 1" 25mm 5MP C-Mount Lens Compatible With Sony IMX174, CMOSIS CMV4000 and Sony IMX249 sensors and many more

Kowa LM25HC 1" 25mm 5MP C-Mount Lens Compatible With Sony IMX174, CMOSIS CMV4000 and Sony IMX249 sensors and many more

SKU:LM25HC

Regular price $210.00 USD
Regular price Sale price $210.00 USD
Sale Sold out
Tax included. Shipping calculated at checkout.

Elevate Industrial Imaging with Our Kowa LM25HC 1" 25mm 5MP C-Mount Lens

At USA Security Systems Inc., we present the pinnacle of industrial imaging technology with our Kowa LM25HC 1" 25mm 5MP C-Mount Lens. Crafted for precision and reliability, this lens is the cornerstone of cutting-edge machine vision systems. Boasting compatibility with sensors like Sony IMX174, CMOSIS CMV4000, and Sony IMX249, it ensures seamless integration into your existing setup. With a focal length of 25mm and manual iris control, it delivers unparalleled clarity and control, even in challenging environments.

Our lens stands as a testament to superior engineering, offering high resolution and minimal distortion for pixel-perfect imaging. Its compact design and durable construction make it a versatile solution for a wide range of industrial applications, from broadcast to traffic control and beyond. Whether you're capturing intricate details or monitoring vast areas, our Kowa lens empowers your vision system to excel. Elevate your industrial imaging capabilities today with the Kowa LM25HC 1" 25mm 5MP C-Mount Lens from USA Security Systems Inc.

Features:

  • Compatible with Sony IMX174, CMOSIS CMV4000, and Sony IMX249 sensors
  • Manual iris control for precision
  • Fixed focal lens design
  • High-resolution imaging
  • Compact and durable construction

Applications:

  • Broadcast
  • ITS/Traffic Control
  • Machine Vision

LM25HC Spec Sheet

Focal Length (mm) 25 mm

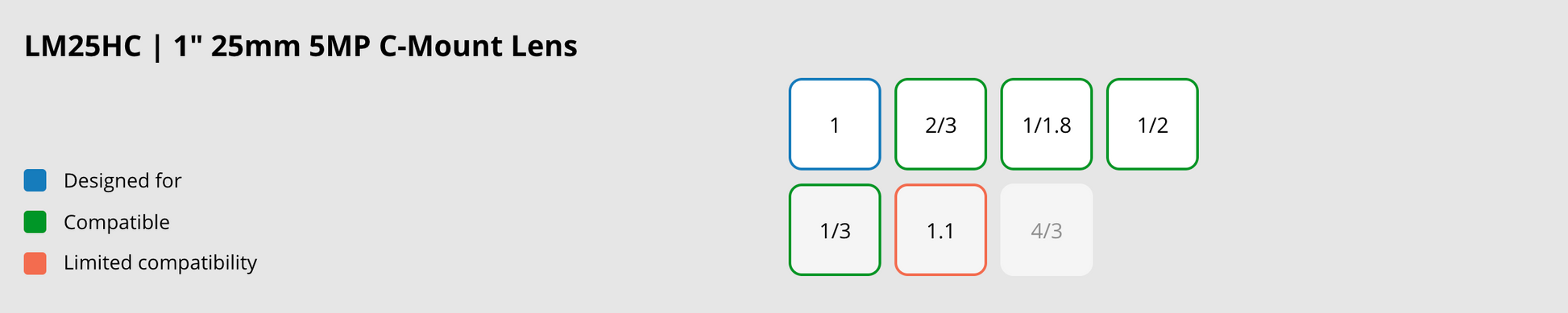

Sensor Size 1"
Pixel Size (µm) 5

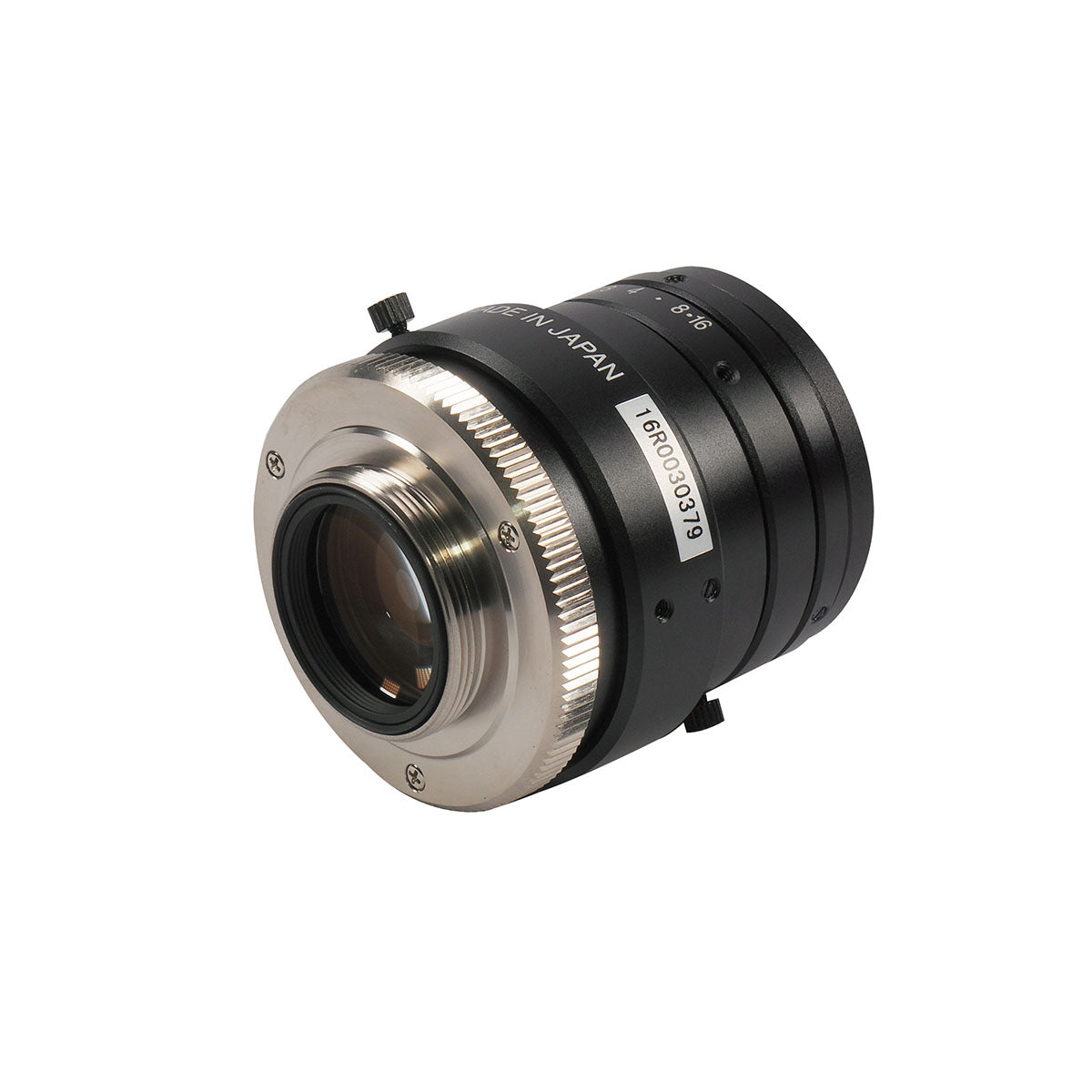

Mount C-Mount
Iris Control Manual
Iris Range (F-Stop) 1,4 - 16
Lens Type Fixed Focal Lens
Wavelength Range VIS (380nm - 780nm)
Focusing Range (m) 0,3 - ∞
Focus Control Manual
Shooting range at MOD, horizontal (mm) 160,7
Shooting range at MOD, vertical (mm) 119,2
Resolution, Center (lp/mm) 120
Resolution, Corner (lp/mm) 80
Megapixel 5
Distortion (TV) (%) -1
Back focus in air (mm) 16,5
Filter Size (mm) M35,5 x P0,5

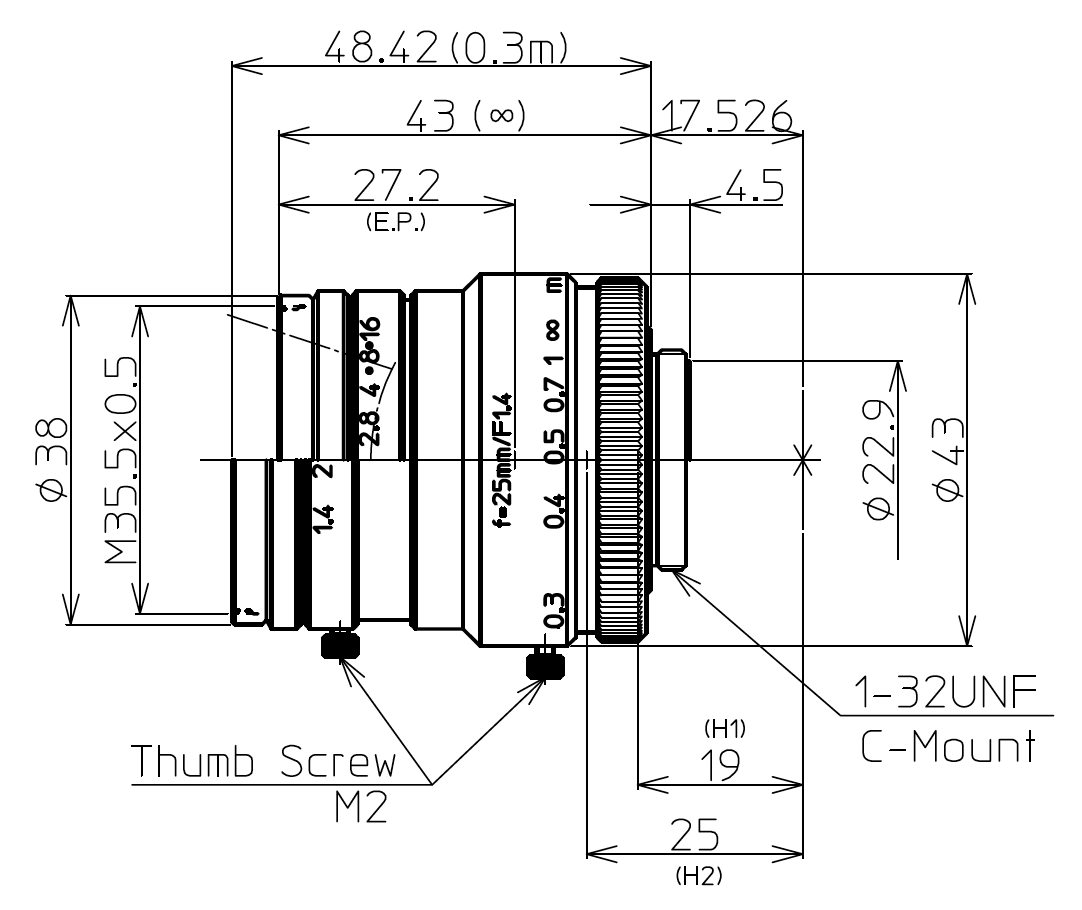

Size (mm) Ø43 X 43
Weight (g) 135
Temperature Range (℃) -10°C - +50°C

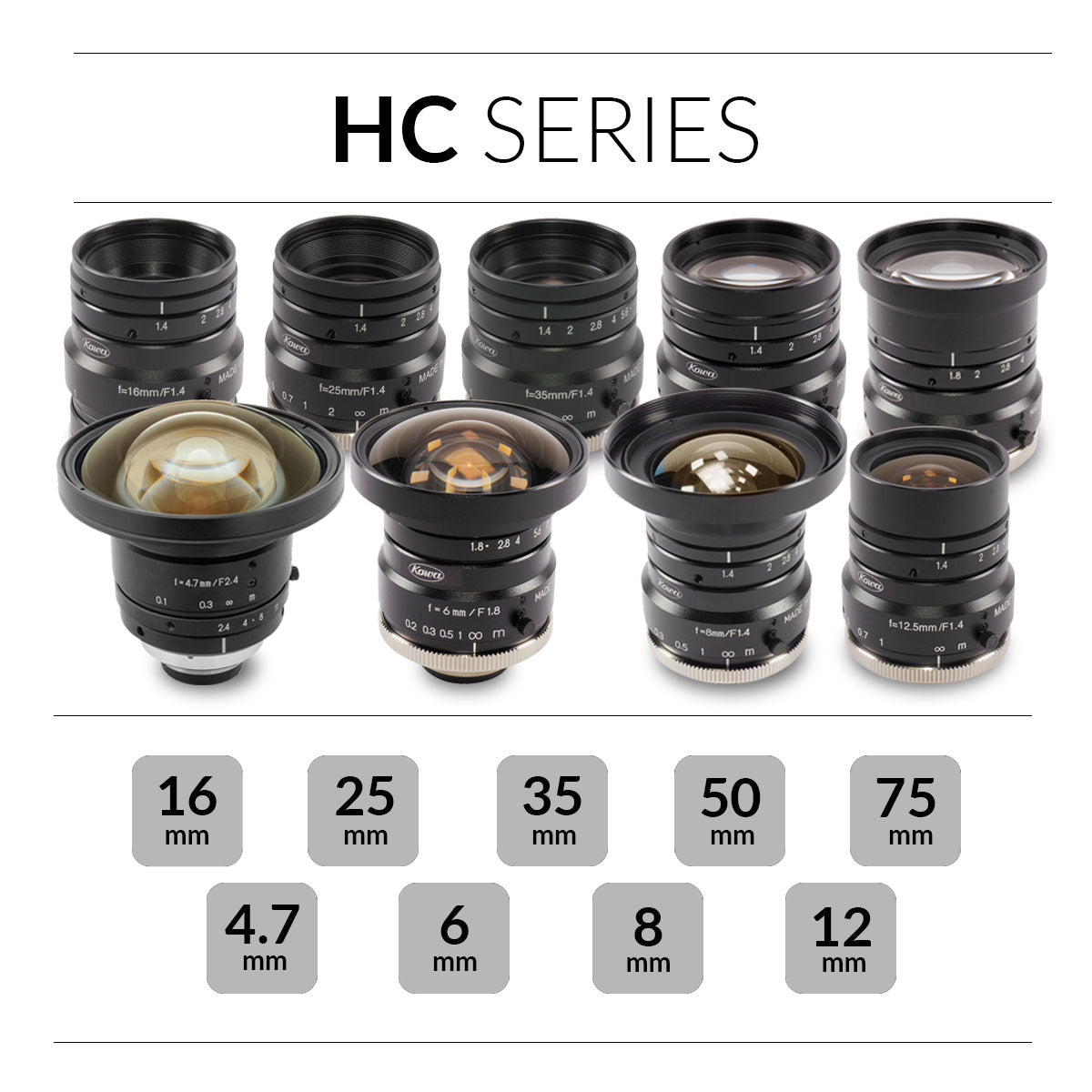

Series HC
Application Broadcast, ITS/Traffic Control, Machine Vision
