Kowa LM25HC-SW 1" 25mm SWIR C-Mount Lens

Unlocking Precision Vision with Kowa LM25HC-SW 1" 25mm SWIR C-Mount Lens

In the realm of machine vision and industrial optics, Kowa stands as a beacon of precision and reliability, epitomizing the cutting-edge technology required for modern imaging solutions. The Kowa LM25HC-SW 1" 25mm SWIR C-mount lens represents the pinnacle of optical engineering, meticulously crafted to meet the exacting demands of industrial imaging applications.

With a focal length of 25mm and compatibility with 1" sensors, this lens is tailor-made for capturing intricate details with unparalleled clarity. Its manual iris control, offering a versatile range from F-stop 1.4 to 16, ensures optimal light management for varying imaging conditions. Moreover, designed for sensors with a pixel size of 5.0μm or more, it seamlessly integrates with leading sensor technologies such as Sony IMX174, CMOSIS CMV4000, and Sony IMX249, among others.

The Kowa LM25HC-SW excels in diverse industrial environments, from broadcast imaging systems to ITS/traffic control cameras, enabling precise monitoring and analysis. Its compact design, measuring Ø43 x 43mm and weighing only 135g, ensures seamless integration into any setup without compromising performance. Whether used for industrial automation, precision inspection, or surveillance applications, this lens empowers businesses to elevate their imaging capabilities to new heights.

Invest in the Kowa LM25HC-SW 1" 25mm SWIR C-mount lens today and unlock a world of precision vision for your industrial applications.

Features:

• 25mm focal length
• 1" sensor size compatibility
• Manual iris control (F-stop range: 1.4 - 16)
• Suitable for sensors with a pixel size of 5.0μm or more
• Wavelength range: VIS (380nm - 780nm)
• Manual focus control with a range from 0.3m to infinity
• Megapixel resolution: 5MP
• Distortion (TV): -1%
• Temperature range: -10°C to +50°C

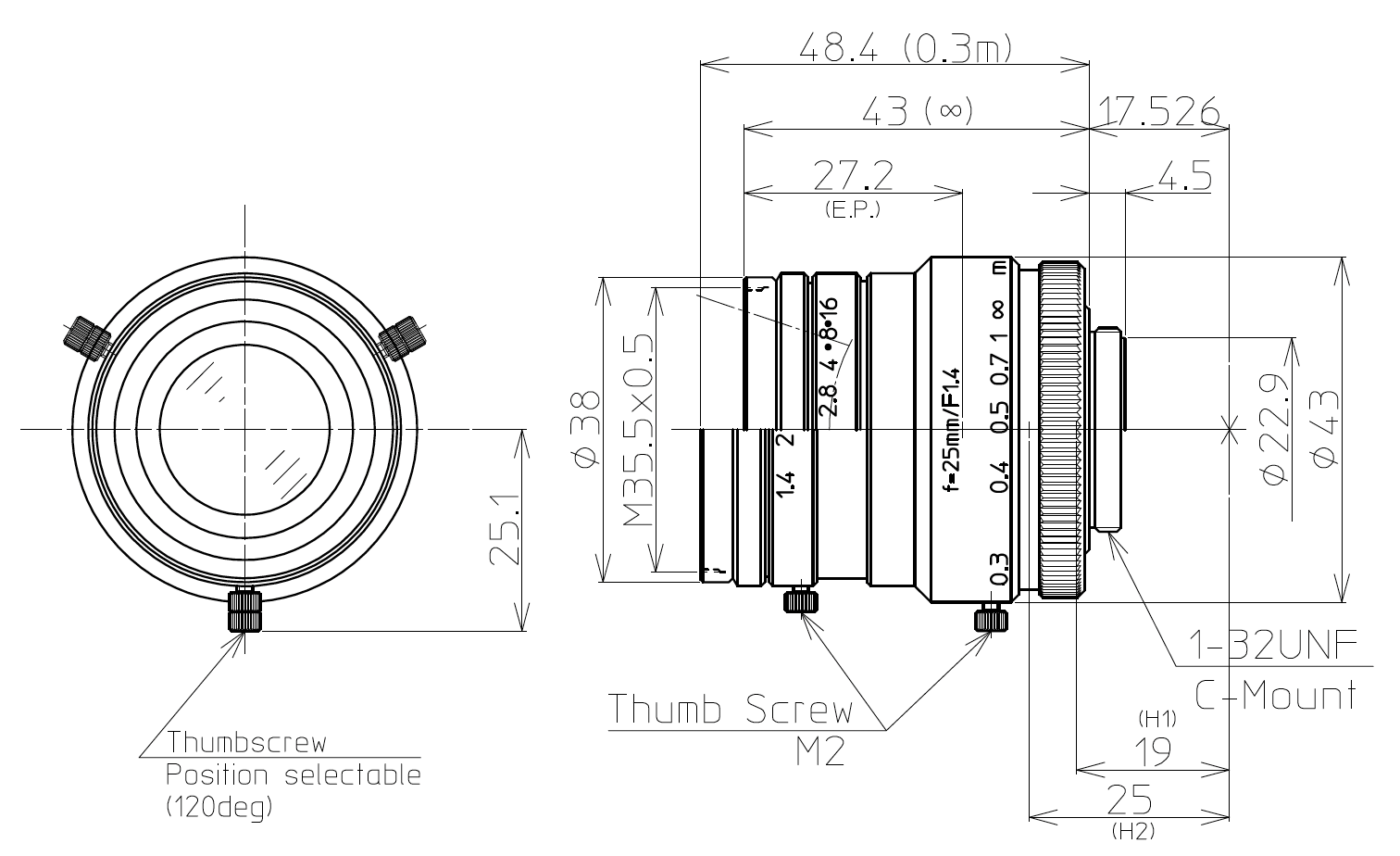

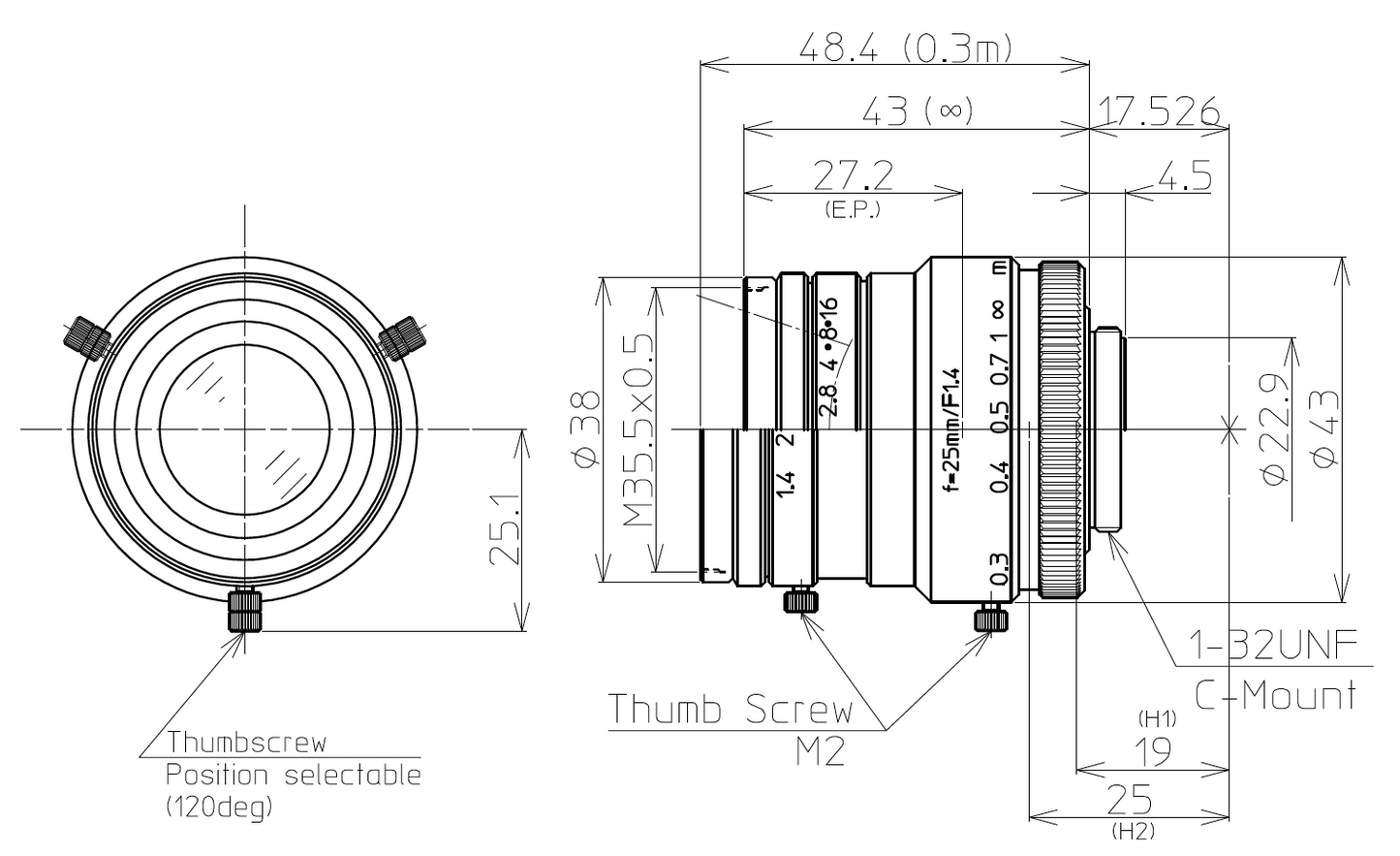

• Compact size: Ø43 x 43mm, lightweight: 135g

Applications:

• Broadcast imaging systems
• ITS/traffic control cameras
• Precision machine vision setups
• Industrial automation and inspection
• Surveillance and security systems

LM25HC-SW Spec Sheet
