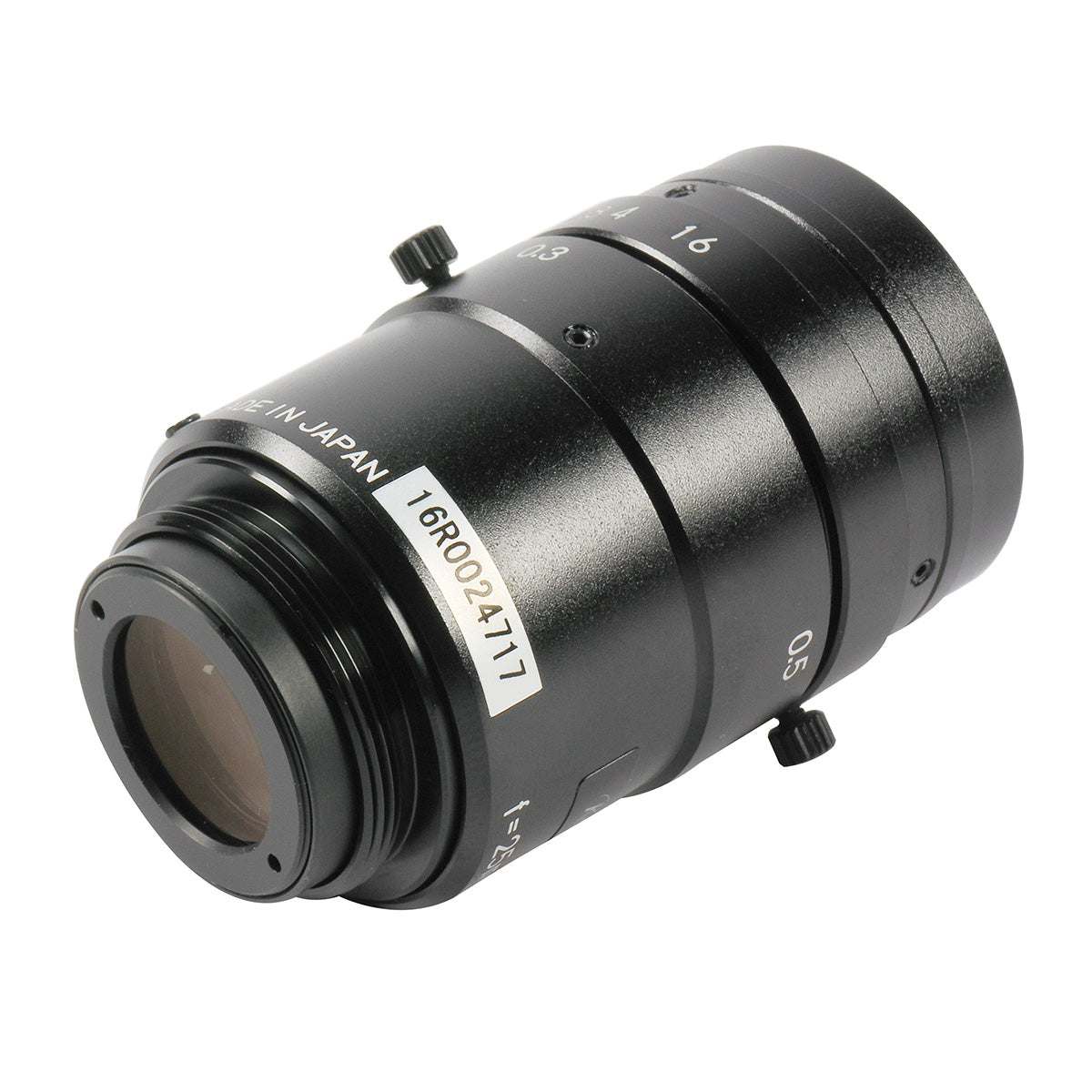

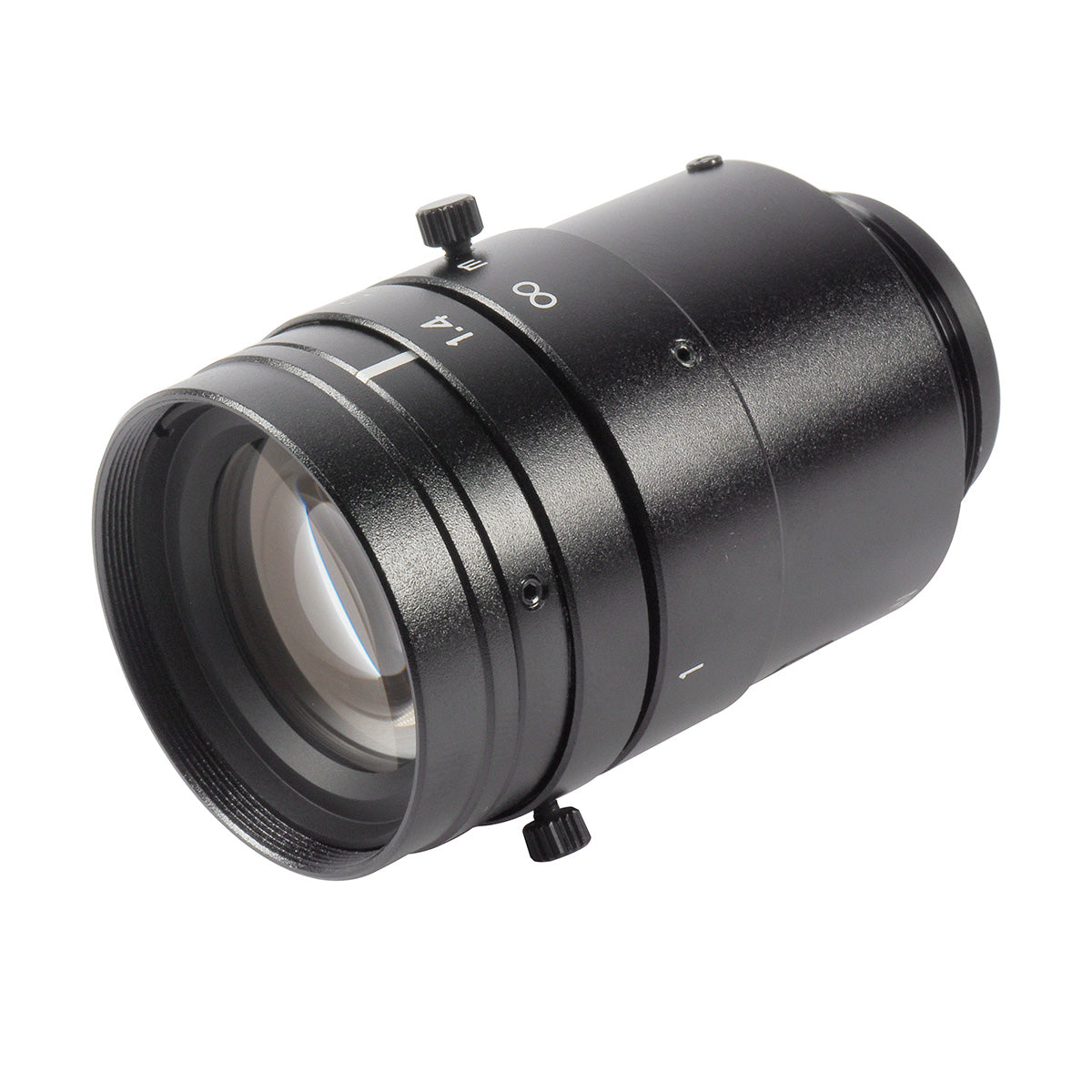

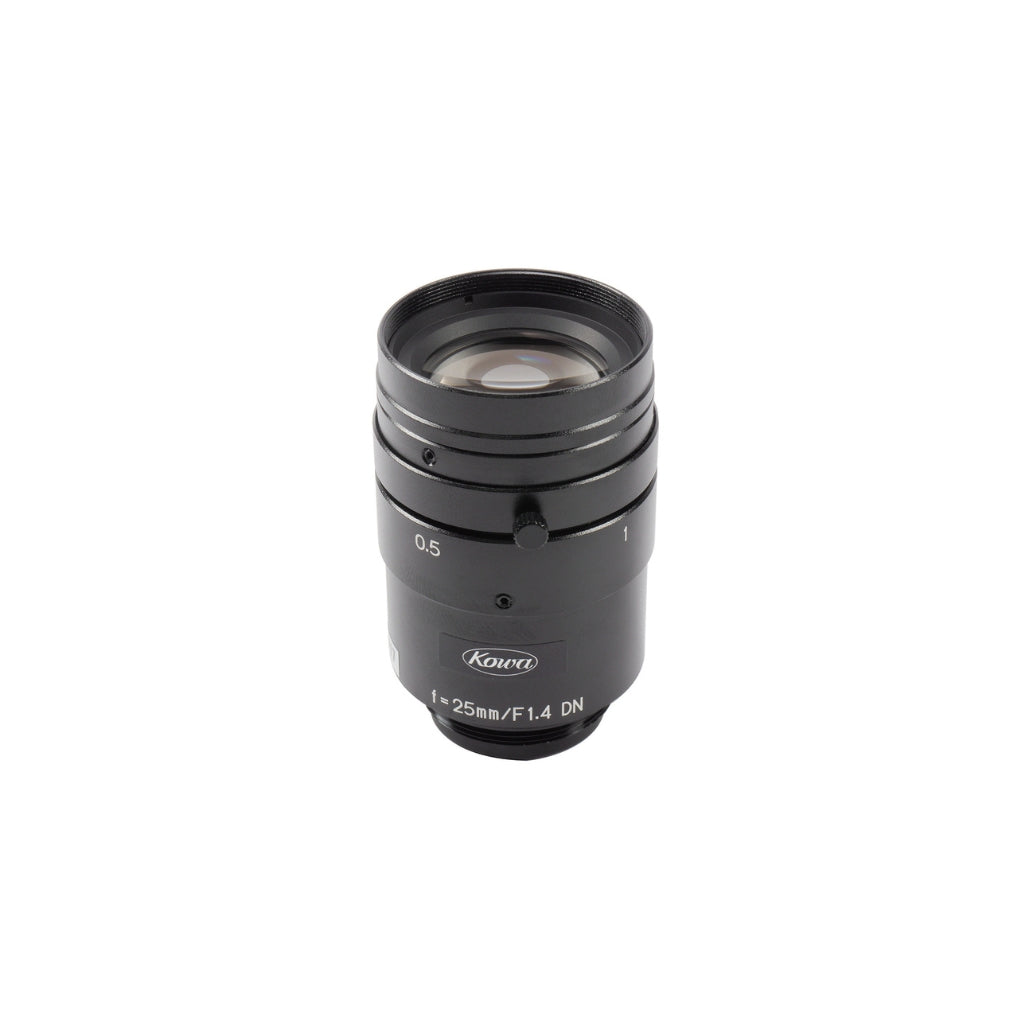

Kowa LM25JC5M-IR 2/3" 25mm 5MP IR Corrected Lens
Kowa LM25JC5M-IR 2/3" 25mm 5MP IR Corrected Lens
SKU:LM25JC5M-IR
Couldn't load pickup availability
Experience Enhanced Vision with Kowa LM25JC5M-IR Lens
Delve into the world of cutting-edge industrial imaging with Kowa, renowned for its precision-engineered machine vision lenses. The Kowa LM25JC5M-IR lens stands as a beacon of excellence, offering unparalleled clarity and performance in the realm of machine vision applications.
Crafted with meticulous attention to detail, this lens boasts IR correction, ensuring optimal performance in both day and night conditions. Its 5MP resolution delivers crisp, high-definition images, vital for demanding industrial environments. With a sturdy metal mount and housing, it guarantees durability and reliability, even in harsh conditions.
Ideal for ITS (Intelligent Transportation Systems) and traffic control applications, the Kowa LM25JC5M-IR lens excels in capturing detailed images with exceptional accuracy. Its manual iris control allows for precise adjustments, catering to diverse imaging requirements.
Features:
- IR corrected for day & night vision
- 5MP resolution for high-definition imaging
- Sturdy metal mount and housing for durability
- Manual iris control for precise adjustments
Applications:
- Machine vision systems
- Traffic control cameras
- Industrial surveillance systems
| Focal Length (mm) | 25 mm |
| Image Size (mm) | 8.8x6.6 (Φ11) |
| Iris Range | F 1.4 -16 |
| Focusing range (m) | 0.3 - ∞ |
| Iris | Manual |
| Focus | Manual |
| Shooting range at MOD (mm) | 113.3 x 84.5 |

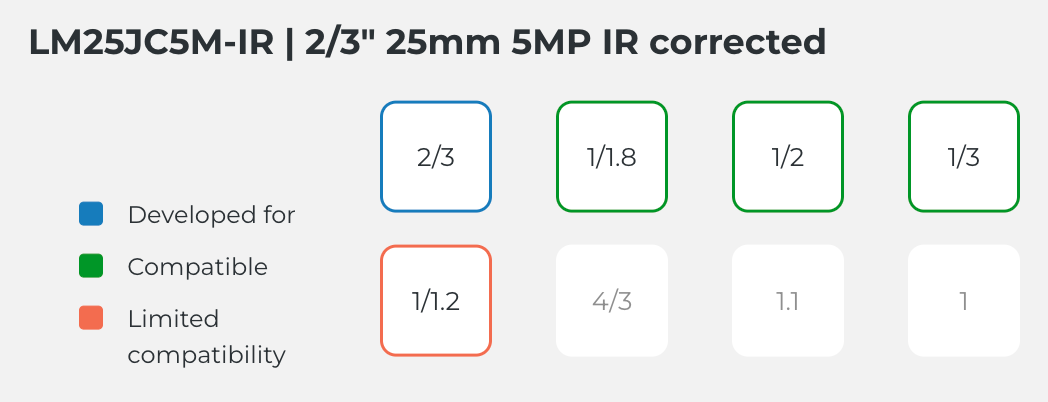

| Angle of View (Degrees) | 2/3": 20.1 x 15.1 1/1.8": 16.5 x 12.4 1/2": 14.6 x 11.0 |
| TV Distortion (%) | -0.3 |
| Back Focus in Air (mm) | 12 |
| Mount | C-Mount |
| Filter Thread (mm) | M30.5 x P0.5 |

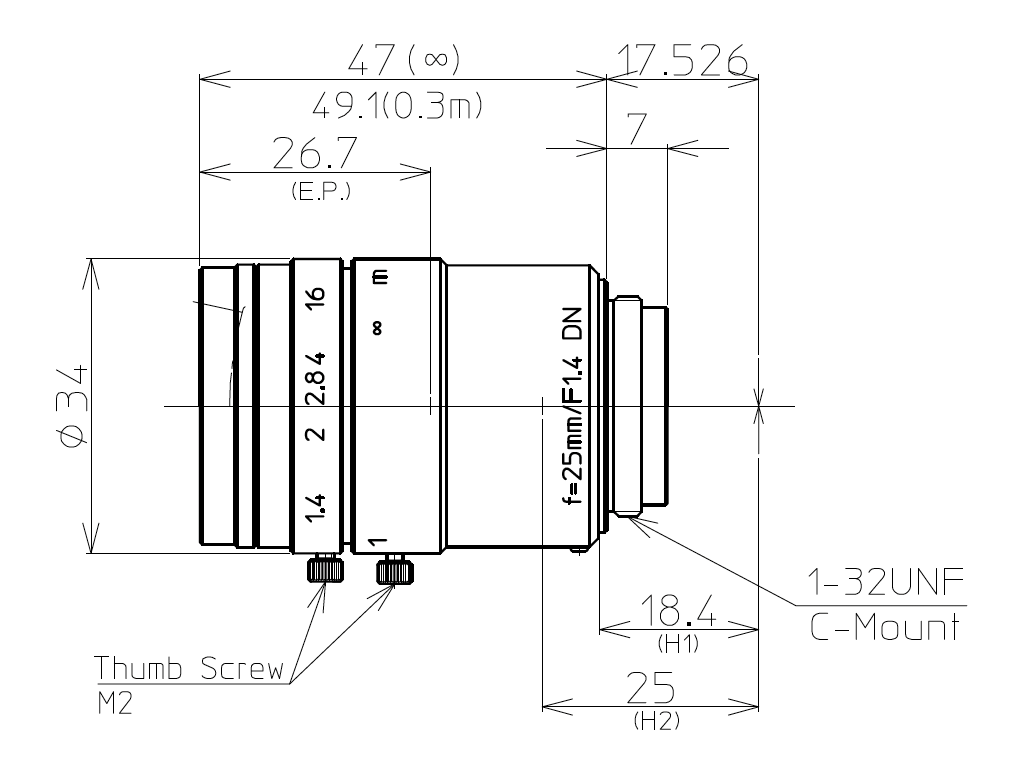

| Size (mm) | Φ34 x 47 |
| Weight | 110 |
| Temperature Range | -10°C - +50°C |
