LM25VM42
Kowa LM25VM42 2" ø32mm 50MP Lens Compatible With Sony IMX342, CMOSIS CMV12000, CMV20000 & CMV50000
Kowa LM25VM42 2" ø32mm 50MP Lens Compatible With Sony IMX342, CMOSIS CMV12000, CMV20000 & CMV50000
SKU:LM25VM42
Couldn't load pickup availability
Discover the Kowa LM25VM42: Precision in Industrial Imaging
The Kowa LM25VM42 stands as a paragon of precision and reliability in the realm of industrial and machine vision applications. Crafted with meticulous attention to detail, this lens is engineered to optimize performance with sensors featuring a pixel size of 3.1μm or more, making it ideal for use with high-resolution sensors like the Sony IMX342 and CMOSIS CMV series. With a focal length of 25mm and a generous ø32mm image circle, it offers unparalleled clarity and detail across the frame. Its manual iris control, ranging from f/2.8 to f/16, allows for precise adjustment to suit varying lighting conditions, ensuring consistent image quality.
The lens boasts a robust construction designed to withstand the rigors of industrial environments, with a temperature range of -10°C to +50°C. Its compatibility with APS-C format sensors further expands its versatility. Whether inspecting manufactured components, guiding robotic systems, or monitoring production lines, the Kowa LM25VM42 excels in delivering sharp, high-resolution images with minimal distortion. Trust in Kowa's legacy of optical excellence for your industrial imaging needs.
Experience precision imaging with the Kowa LM25VM42 lens. Compatible with Sony IMX342 & more, it's perfect for industrial applications. Upgrade your vision today!
Features:
- Compatible with high-resolution sensors
- Manual iris control for precise adjustment
- Robust construction for industrial environments
- Wide temperature range: -10°C to +50°C
- ø32mm image circle for comprehensive coverage
Applications:
- Quality control and inspection in manufacturing processes
- Robotics guidance and navigation
- Automated product sorting and packaging
- Object recognition and identification
- Surface defect detection
- Barcode and label reading
- Measurement and metrology
- Optical character recognition (OCR)
- 3D scanning and modeling
- Industrial automation and assembly verification
| Focal Length (mm) | 25 mm |
| Image Size (mm) | (Φ32) |
| Iris Range | F2.8 - F16 |
| Focusing range (m) | 0.1 - ∞ |
| Iris | Manual |
| Focus | Manual |
| Shooting range at MOD (mm) | 125 x 93 |
| Angle of View (Degrees) | 2": 54.0 x 42.0 APS-C Inch: 48.0 x 37.0 4/3": 40.4 x 30.9 |
| Resolution (Center, Corner) | 160lp/mm,100lp/mm |
| TV Distortion (%) | 0.59 |
| Back Focus in Air (mm) | 20.3 |
| Flange Focus in Air (mm) | 17.526 |
| Mount | M42-mount |
| Filter Thread (mm) | M55xP0.75 |

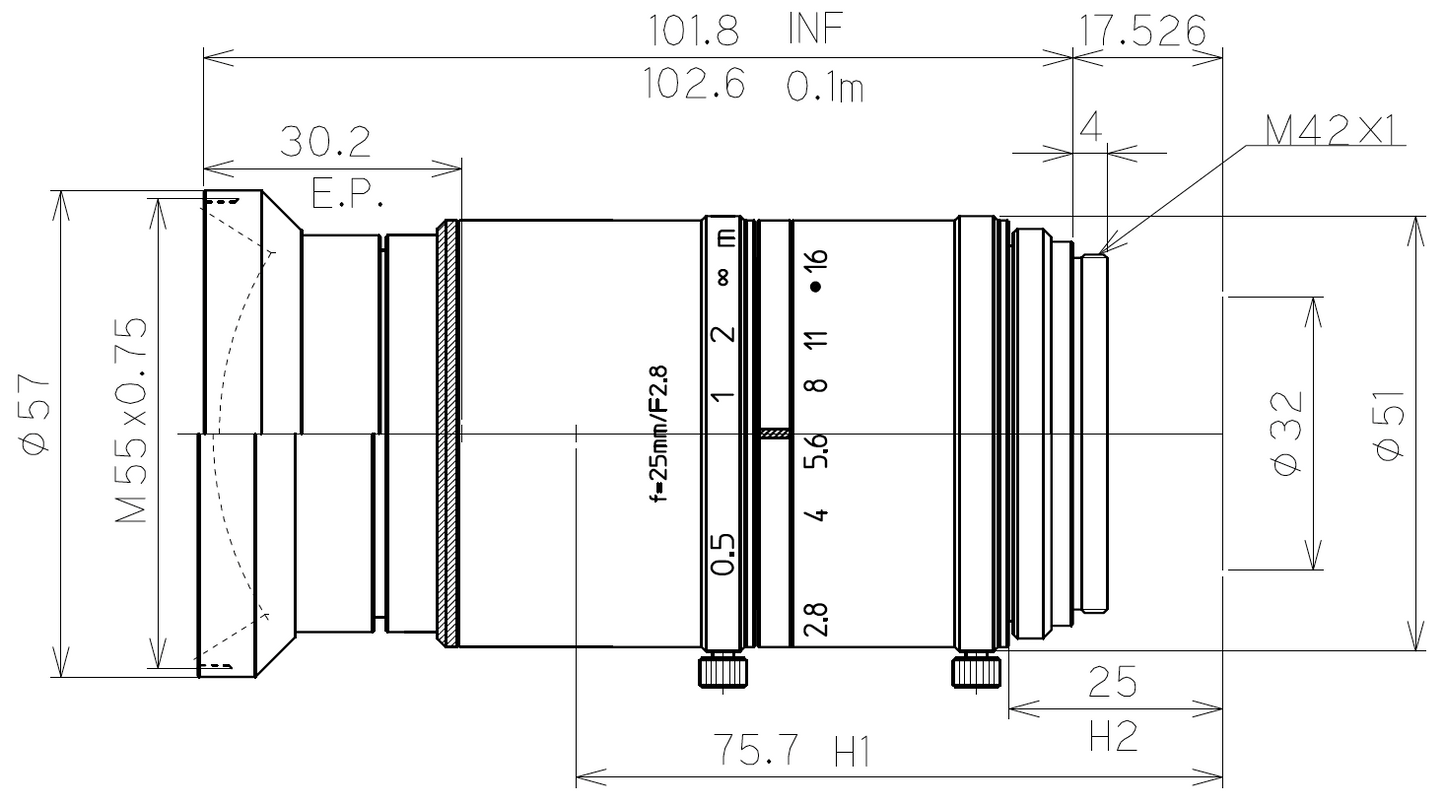

| Size (mm) | Φ57 x 101.8 |
| Weight | 400 |
| Temperature Range | -10°C - +50°C |
