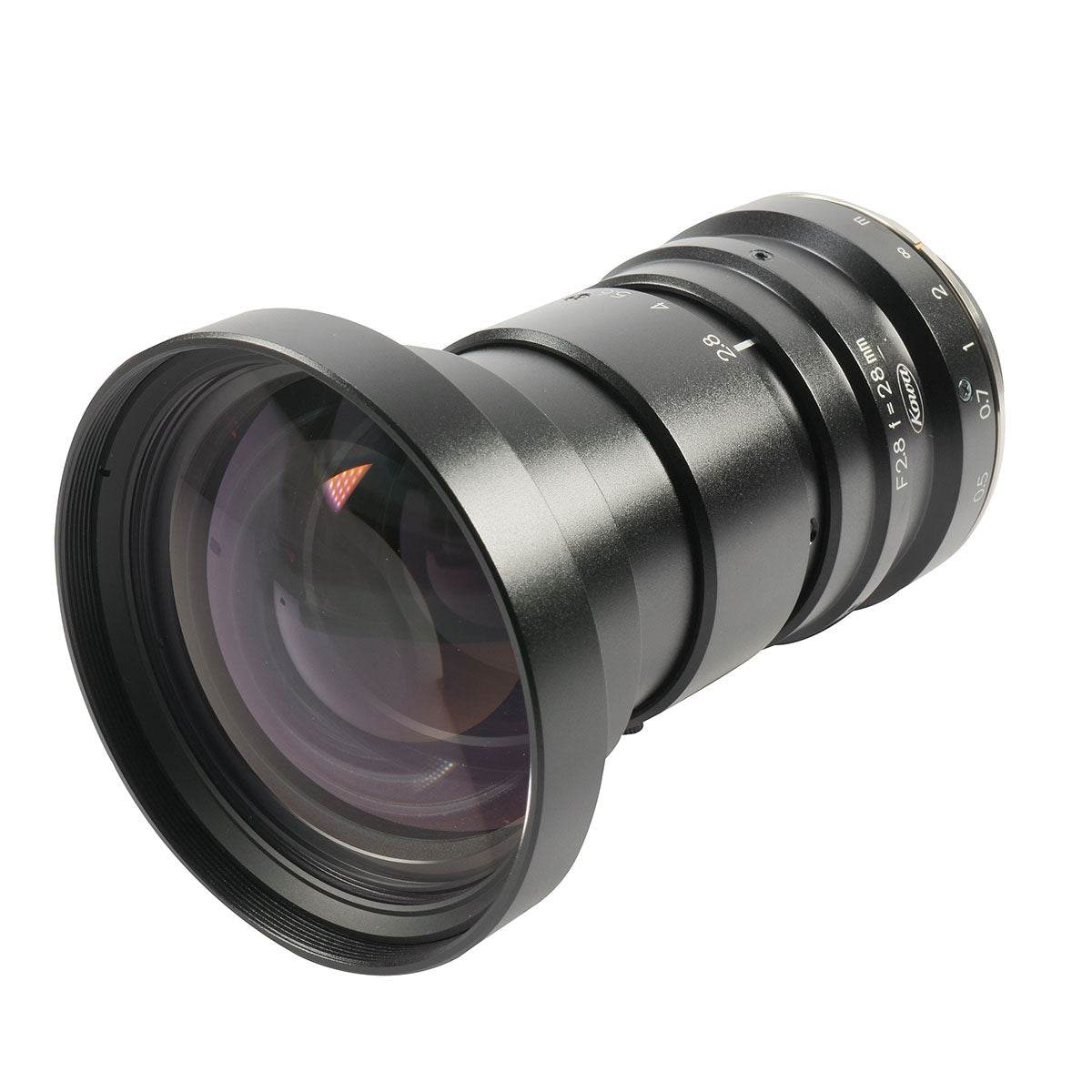

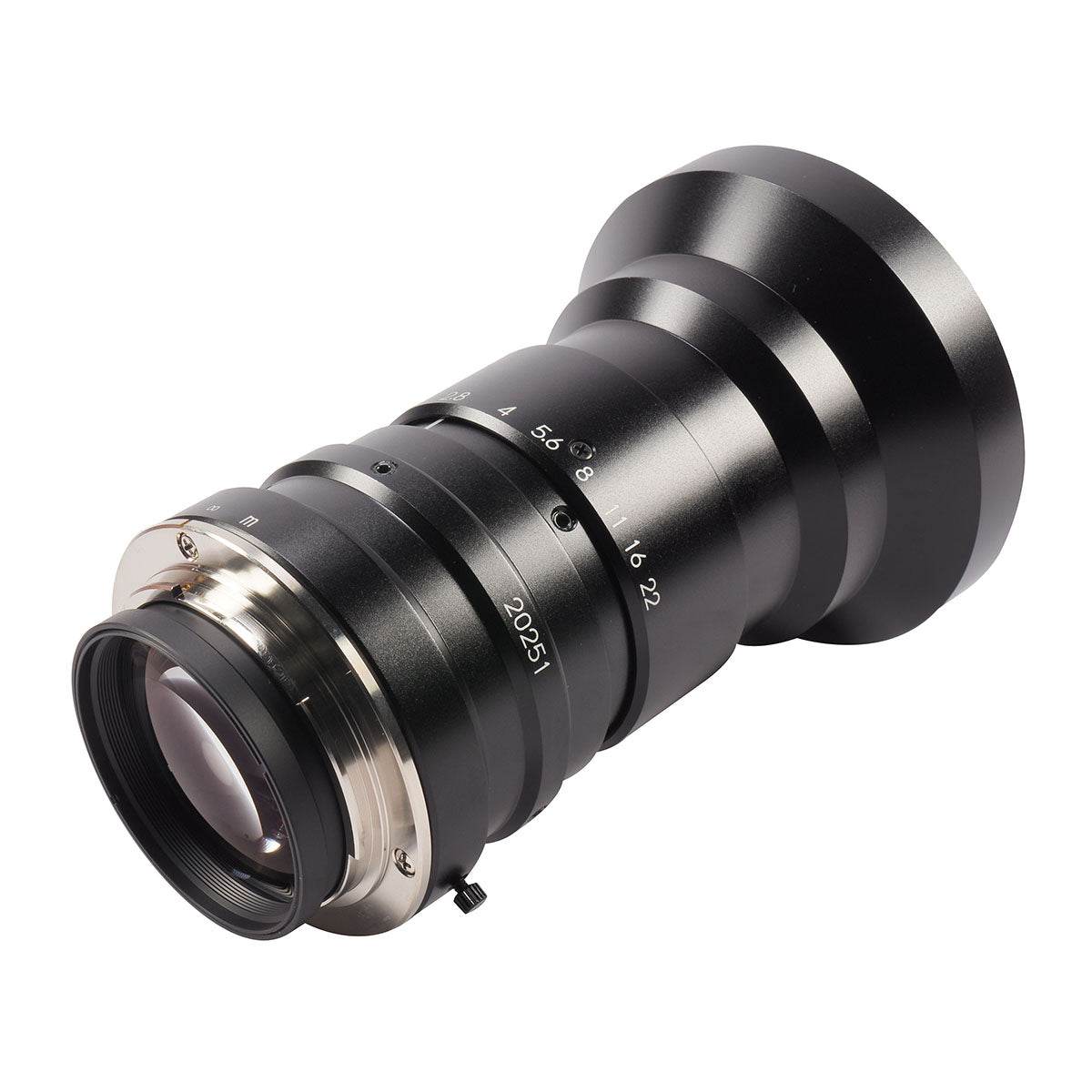

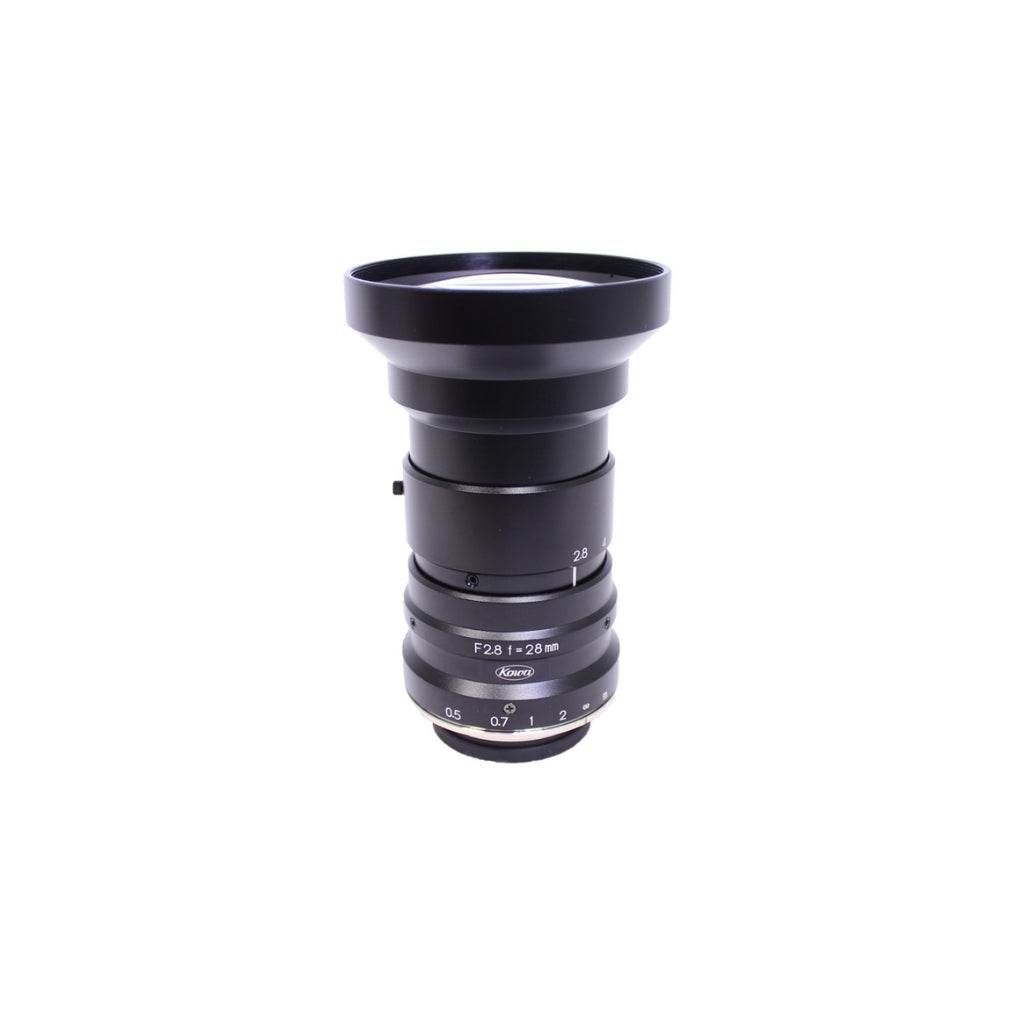

Kowa LM28CLS 28mm F-Mount Color Line Scan Lens
Kowa LM28CLS 28mm F-Mount Color Line Scan Lens
SKU:LM28CLS
Couldn't load pickup availability
Unlocking Precision with Kowa LM28CLS 28mm F-Mount Color Line Scan Lens
Dive into the world of precision imaging with Kowa, a leading brand in machine vision and industrial lenses. The Kowa LM28CLS 28mm F-Mount Color Line Scan Lens exemplifies excellence in optical engineering, designed specifically for demanding industrial applications. With a focal length of 28mm and a large image circle of 23mm, this lens delivers ultra-high resolution images suitable for sensors with pixel sizes as small as 7.5μm.
Manufactured with meticulous attention to detail, the Kowa LM28CLS boasts manual iris control with an impressive range from f/2.8 to f/22. Its superior optical performance is evident with a resolution of 160 lp/mm at the center and 63 lp/mm at the corner, ensuring exceptional image clarity across the frame. With minimal distortion (-0.1%) and a wide temperature range (-10°C to +50°C), this lens excels in diverse industrial environments.
This lens finds its application in various industries including broadcast, automotive, electronics, and pharmaceuticals. Whether it's precision inspection, quality control, or automation tasks, the Kowa LM28CLS delivers unmatched imaging solutions, empowering businesses to optimize processes and enhance productivity.
Experience precision imaging with Kowa LM28CLS 28mm F-Mount Color Line Scan Lens. Unlock exceptional clarity for industrial applications. Optimize your vision today!
Features:
- Focal length of 28mm
- Large image circle of 23mm
- Manual iris control (f/2.8 - f/22)
- Ultra-high resolution: 160 lp/mm (center), 63 lp/mm (corner)
- Minimal distortion (-0.1%)
- Wide temperature range: -10°C to +50°C
- Compatible with sensors with a pixel size of 7.5μm
- Robust construction for industrial environments
Applications:
- Precision inspection
- Quality control
- Automated manufacturing
- Surface defect detection
- Semiconductor inspection
- PCB inspection
- Pharmaceutical production
- Food and beverage packaging
- Automotive assembly
- Electronics manufacturing
| Focal Length (mm) | 28 mm |
| Sensor Size | 30mm |
| Pixel Size (µm) | 7,5 |
| Mount | F-Mount |
| Iris Control | Manual |
| Iris Range (F-Stop) | 2,8 - 22 |
| Lens Type | Fixed Focal Lens |
| Wavelength Range | VIS (380nm - 780nm) |
| Focusing Range (m) | 0,5 - ∞ |
| Focus Control | Manual |
| Shooting range at MOD, vertical (mm) | 317,9 |
| Resolution, Center (lp/mm) | 160 |
| Resolution, Corner (lp/mm) | 63 |
| Distortion (TV) (%) | -0,1 |
| Back focus in air (mm) | 37,2 |
| Filter Size (mm) | M72 x P0,75 |

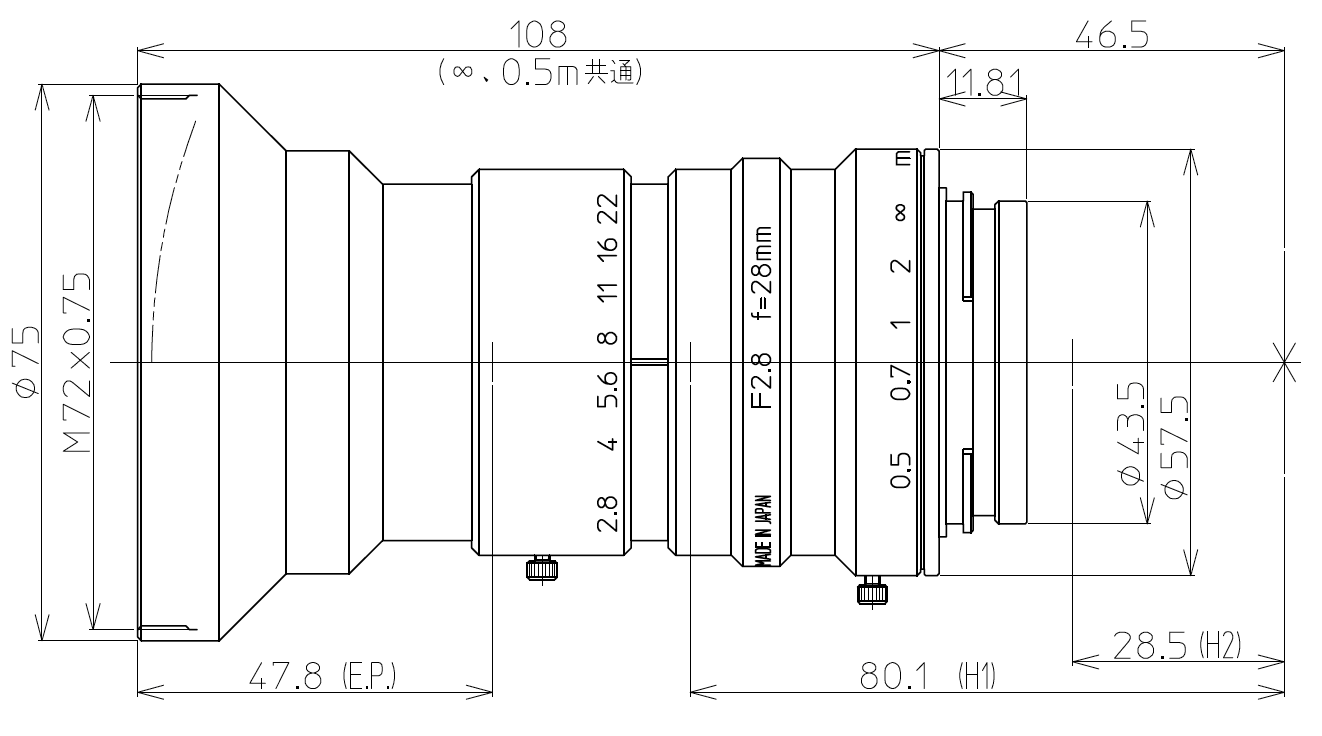

| Size (mm) | Ø75 X 108 |
| Weight (g) | 482 |
| Temperature Range (℃) | -10°C - +50°C |

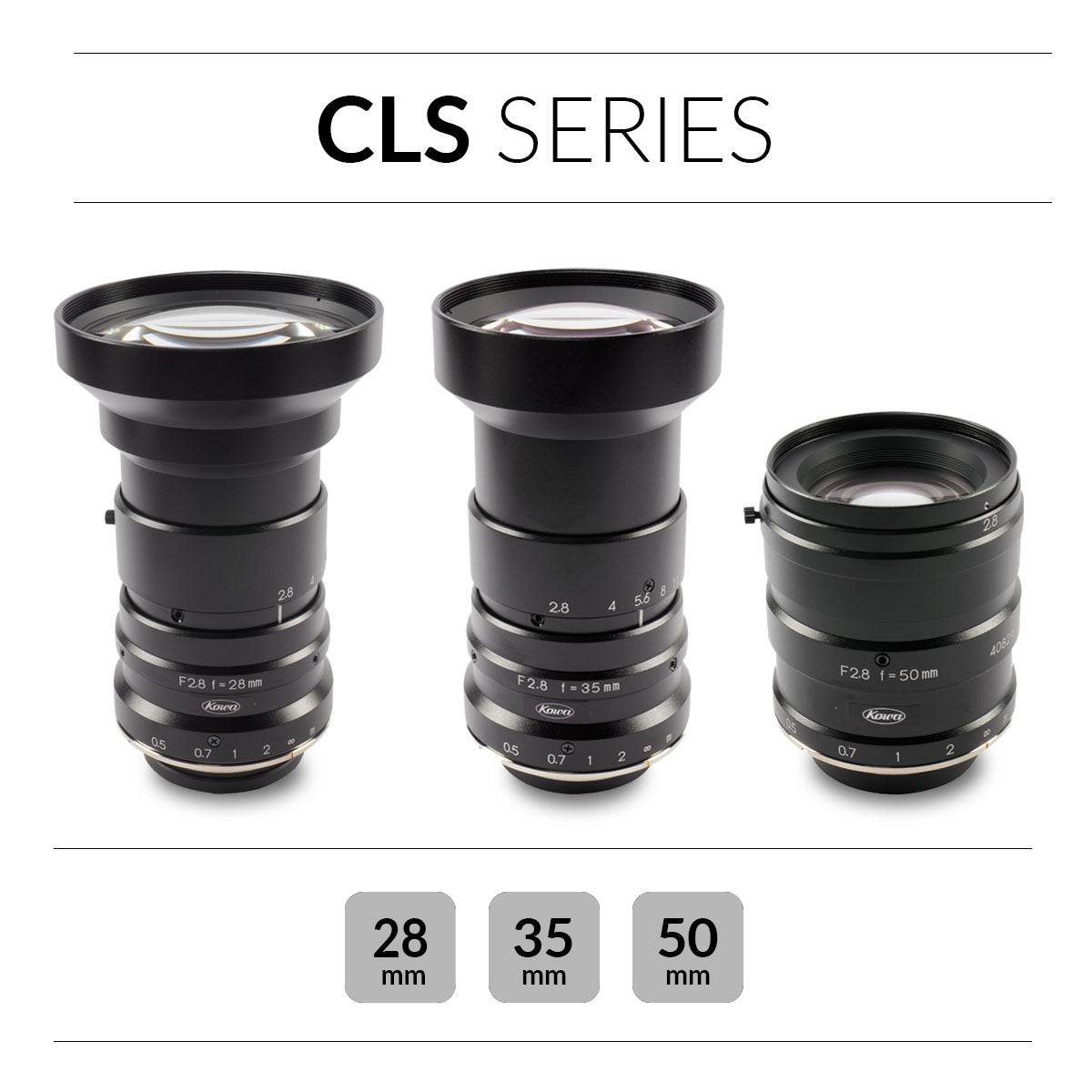

| Series | CLS |
| Application | Broadcast, Machine Vision |
