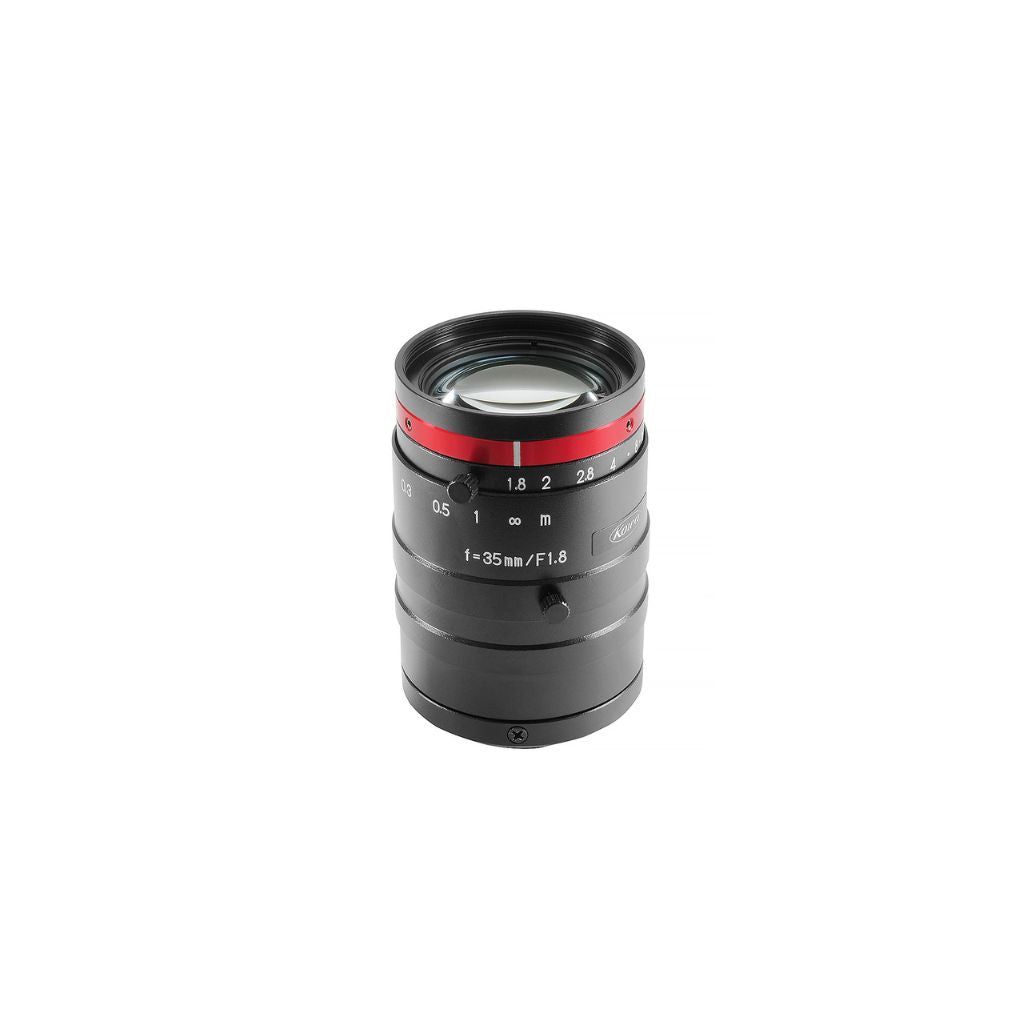

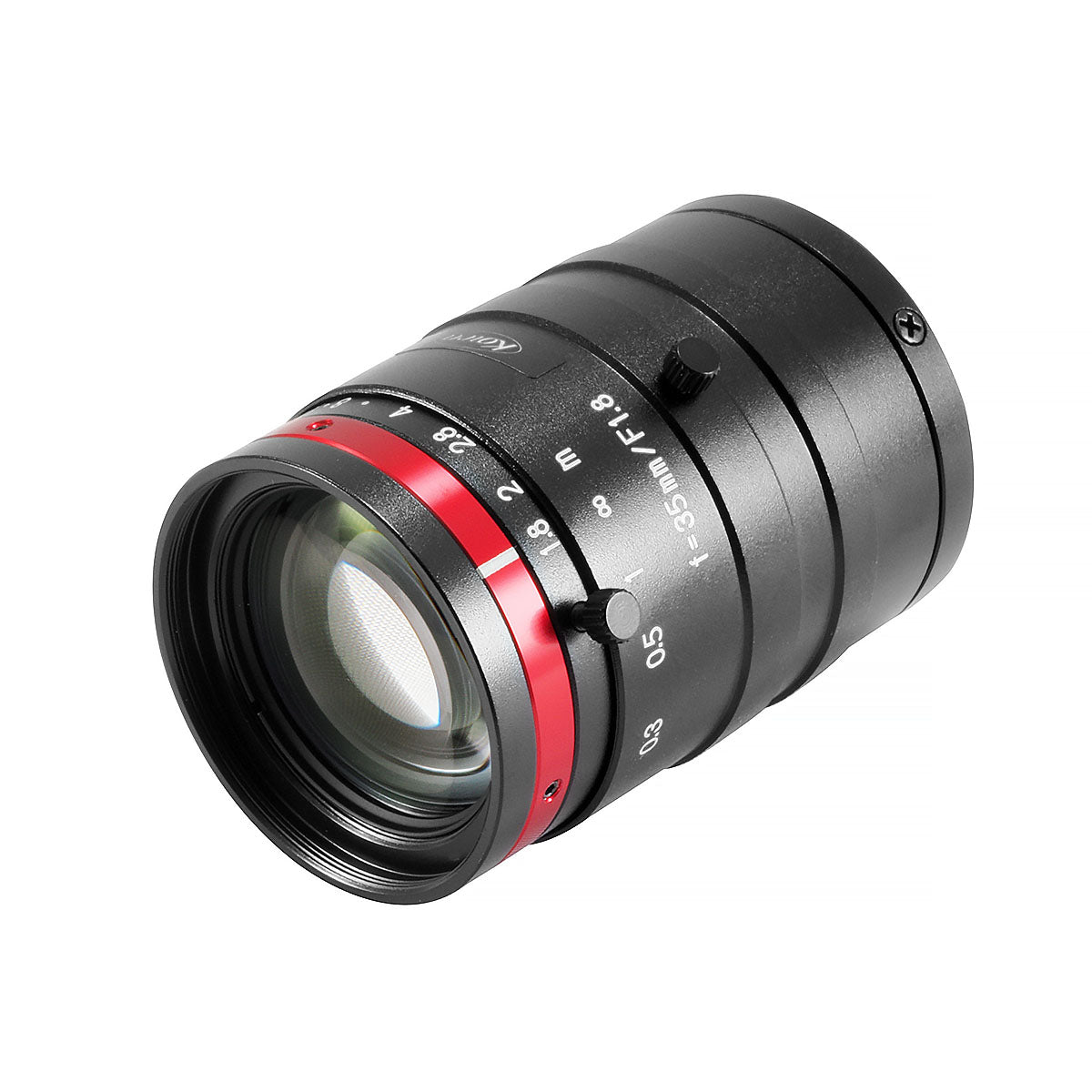

Kowa LM35HC-VIS-SW 1" 12 Megapixel IR-Corrected (VIS-SWIR) 3.1μm Lens

High-Performance Kowa LM35HC-VIS-SW 1" Lens for Industrial Applications

In the realm of machine vision and industrial cameras, Kowa's LM35HC-VIS-SW 1" 12 Megapixel IR-Corrected (VIS-SWIR) lens stands out as a pinnacle of technological advancement. Engineered with precision and expertise, this lens is tailored to meet the exacting demands of industrial and machine vision applications.

The LM35HC-VIS-SW lens boasts a maximum resolution of 12 megapixels and offers exceptional performance with a wavelength range of 3.1μm. One of its standout features is its IR-correction capability, ensuring that images remain sharp and in focus even as the wavelength transitions from visible to infrared or vice versa. This capability eliminates the common issue of focus shift experienced with standard lenses when there are changes in wavelength.

Moreover, this lens utilizes ultra wideband multi-coatings to maximize light transmission, enhancing image clarity and quality. Its construction incorporates special extra low dispersion (XD) glass, effectively minimizing chromatic aberration and delivering superior image fidelity.

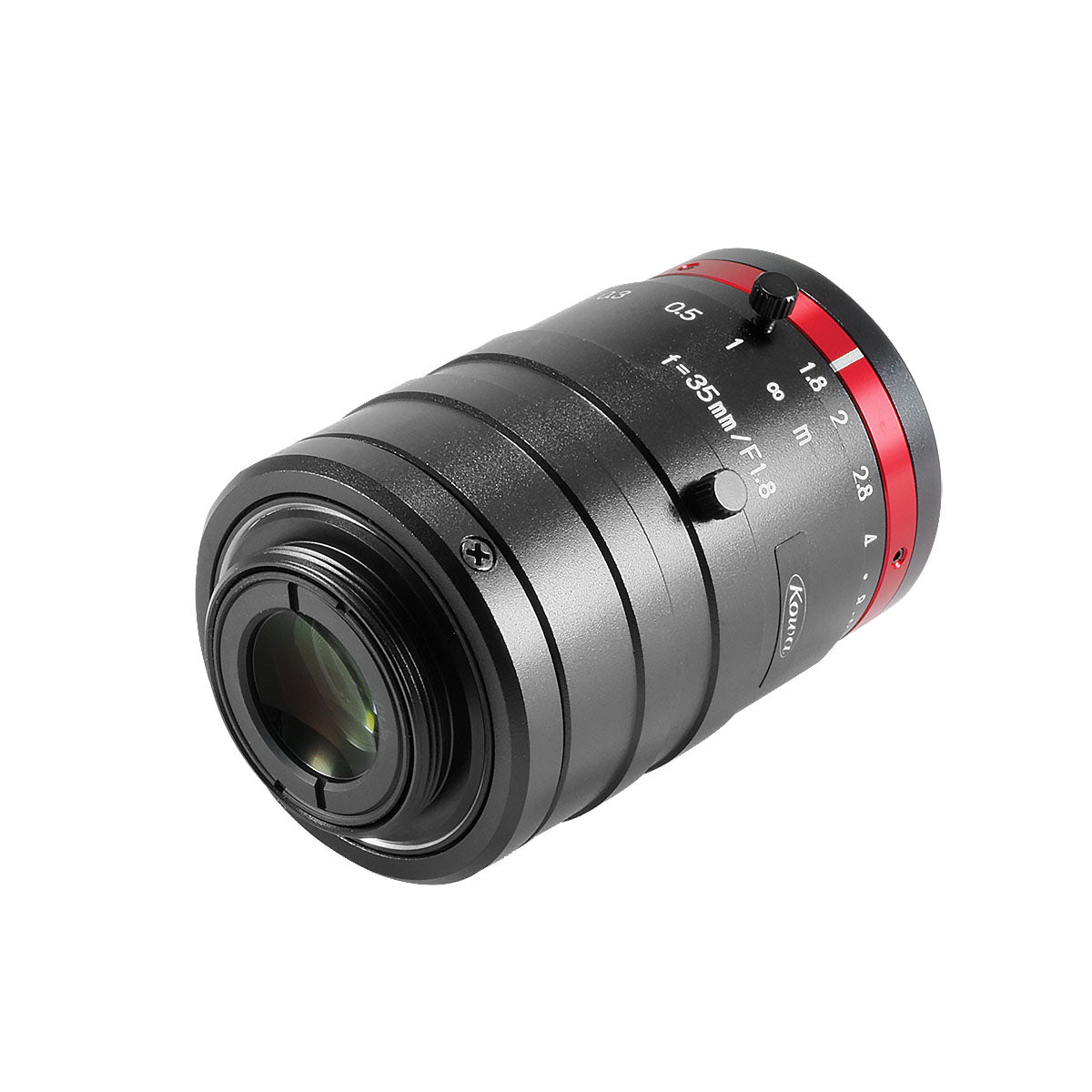

With its rugged design, including water and dust resistance, the LM35HC-VIS-SW lens is built to withstand harsh industrial environments, providing reliable performance in various conditions. It's compatible with C-Mount systems, offering versatility in setup and integration.

From security systems and surveillance to quality control and robotics, the applications of the Kowa LM35HC-VIS-SW lens are diverse and far-reaching. Whether you're in need of precise imaging for inspection tasks or reliable monitoring for security purposes, this lens delivers unparalleled performance and quality, elevating your industrial vision systems to new heights of efficiency and effectiveness.

Features:

• 12 megapixel and 3.1μm performance
• Virtually zero focus shift from visible to 2000nm wavelength range
• Ultra wideband multi-coatings for increased transmission
• Extra low dispersion (XD) glass reduces chromatic aberration

Applications:

• Security systems
• Surveillance
• Quality control
• Robotics
• Industrial inspection
