LM35JC5M2

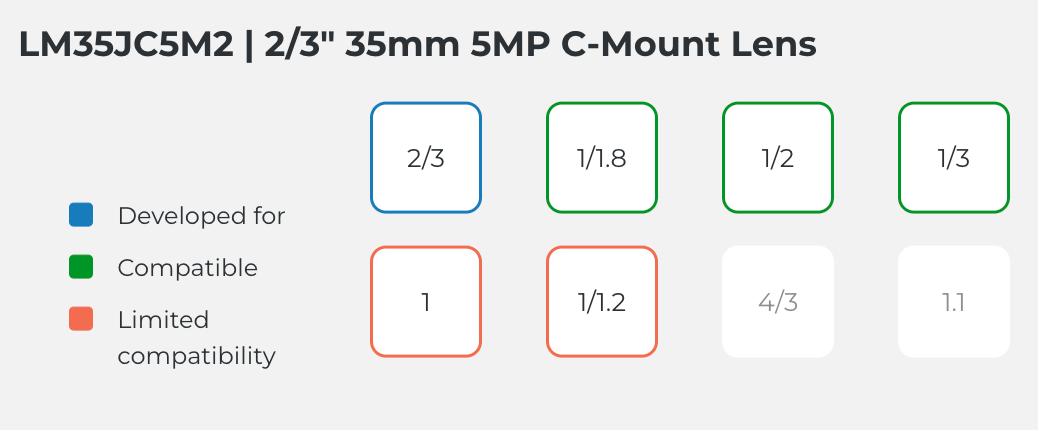

Kowa LM35JC5M2 2/3" 35mm 5MP C-Mount Lens Compatible With Sony IMX174, Sony IMX252 and Sony IMX273 sensors and many more
Kowa LM35JC5M2 2/3" 35mm 5MP C-Mount Lens Compatible With Sony IMX174, Sony IMX252 and Sony IMX273 sensors and many more
SKU:LM35JC5M2
Couldn't load pickup availability
Unveiling the Kowa LM35JC5M2 2/3" 35mm 5MP C-Mount Lens
Discover the pinnacle of industrial imaging with the Kowa LM35JC5M2 2/3" 35mm 5MP C-Mount Lens. Engineered for the demands of machine vision applications, this lens offers unparalleled optical precision and versatility. With a focal length of 35mm and compatibility with Sony IMX174, Sony IMX252, and Sony IMX273 sensors, it delivers exceptional image clarity and detail. The manual iris control allows for precise adjustments, while its broad wavelength range ensures optimal performance across various lighting conditions. Its compact design makes it ideal for integration into space-constrained setups. From quality control to robotics, automotive inspection to semiconductor manufacturing, the Kowa LM35JC5M2 lens empowers industries to achieve superior imaging results. Experience enhanced efficiency and accuracy in your machine vision systems with this cutting-edge lens from Kowa.
Elevate your industrial imaging with the Kowa LM35JC5M2 35mm 5MP C-Mount Lens. Experience precision and versatility for machine vision applications. Shop now!
Features:
- 35mm focal length
- 5MP resolution
- Manual iris control
- Broad wavelength range
- Compact design
Applications:
- Machine vision systems
- Quality control
- Robotics
- Automotive inspection
- Semiconductor manufacturing
| Focal Length | 35mm |
| Focal Length Sort Order | 035 |
| Lens Type | Fixed Focal Length |
| Image Size | 2/3" (8.8 x 6.6 x 11mm) |
| Iris Range (F-Stop) | F1.6 - 16 |
| Angle of View 1/2" (Hor. x Ver. x Dia.) | 10.4 x 7.8 x 13.0° |
| Angle of View 1/1.8" (Hor. x Ver. x Dia.) | 11.7 x 8.8 x 14.6° |
| Angle of View 2/3" (Hor. x Ver. x Dia.) | 14.3 x 10.8 x 17.5° |
| TV Distortion |
0.03% |
| Minimum Object Focus Distance (1/2") (Hor. x Ver. x Dia.) |
30.6 x 23.0 x 38.3mm |
| Minimum Object Focus Distance (1/1.8") (Hor. x Ver. x Dia.) | 34.4 x 25.8 x 43.1mm |
| Minimum Object Focus Distance (2/3") (Hor. x Ver. x Dia.) | 42.1 x 31.6 x 52.7mm |
| Focusing Range | 0.18m |
| Flange Back | 17.526mm in air |
| Back Focus | 12.2mm in air |
| Filter Thread Size | M30.5x0.5 |
| Front/Rear Effective Diameter | Front Φ23.5mm / Rear Φ14.5mm |
| Mount | C-Mount |
| Exit Pupil Location | -39.2mm |
| Temperature Range | -10°C ~ +50°C |
| Storage Temperature Range | -20°C ~ +60°C |
| Resolution: Center/Corner | Center 160lp/mm / Corner 125lp/mm |
| Weight | 120g |
