LM3NC1M
Kowa LM3NC1M 1/1.8" 3.5mm 2MP C-Mount Lens Compatible With SONY IMX421, SONY IMX429 and SONY IMX437 sensors and many more
Kowa LM3NC1M 1/1.8" 3.5mm 2MP C-Mount Lens Compatible With SONY IMX421, SONY IMX429 and SONY IMX437 sensors and many more
SKU:LM3NC1M
Couldn't load pickup availability

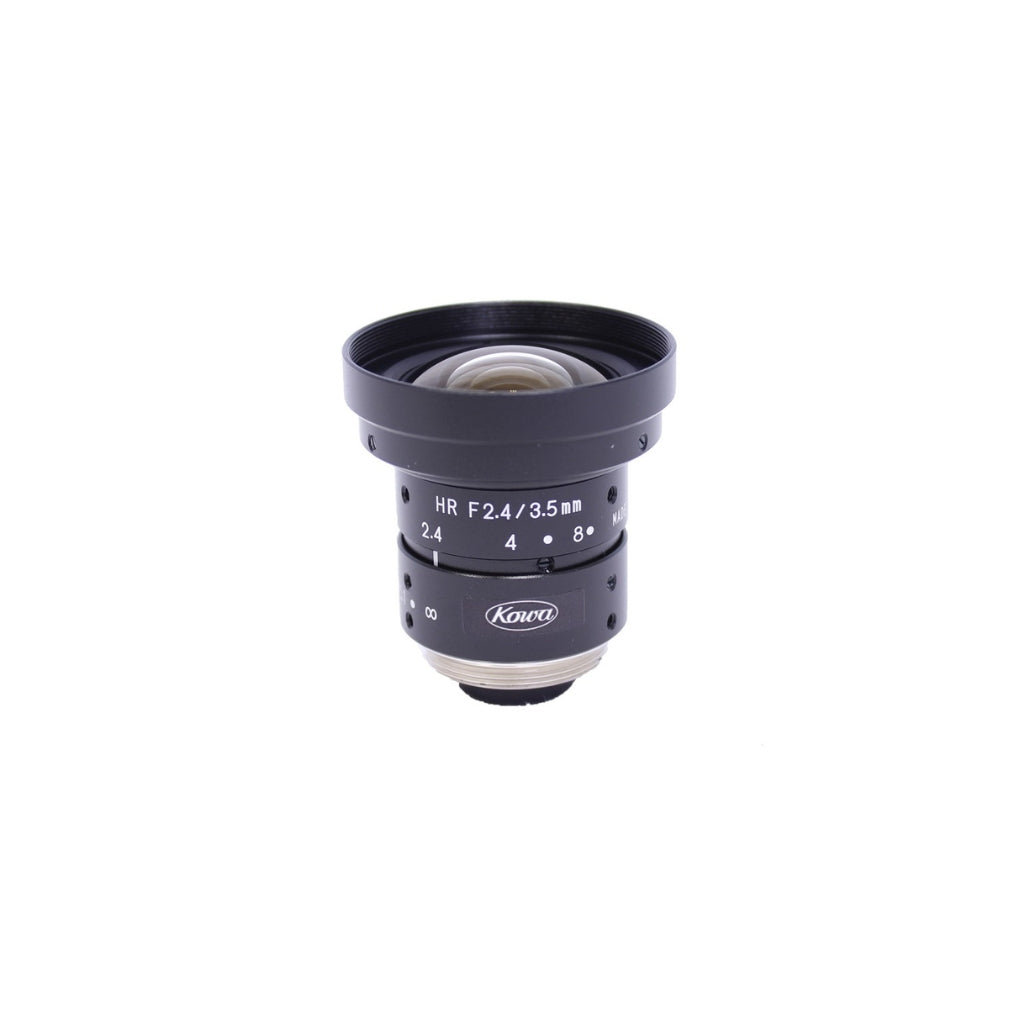

Explore the Kowa LM3NC1M C-Mount Lens
Kowa sets the benchmark in machine vision lenses with the LM3NC1M C-Mount Lens. With compatibility with SONY IMX421, IMX429, and IMX437 sensors, this lens offers exceptional clarity and precision for industrial and machine vision applications. Its wide-angle optical design ensures a large field of view, while the low distortion aspherical lens delivers high-definition images with minimal aberrations.
Resistant to vibration and shock, it thrives in challenging environments, guaranteeing consistent performance. Whether it's quality inspection, surveillance, or automation, the Kowa LM3NC1M lens empowers your vision system to excel. With clear resolution across the entire image and high transmission even in low light conditions, it's the perfect partner for megapixel cameras, unlocking new possibilities in imaging technology.
Upgrade your vision system with Kowa LM3NC1M C-Mount Lens. Achieve clarity and precision for industrial imaging. Invest in superior performance today!
Features:
- Low distortion aspherical lens
- Wide angle optical design
- Resistant to vibration and shock
- Compatible with SONY IMX sensors
- High transmission for low light conditions
Applications:
- Quality inspection
- Surveillance systems
- Automation
- Wide field of view imaging
- High-resolution imaging
| Focal Length (mm) | 3.5 |
| Lens Type | Fixed |
| Image Size (mm) | 1/1.8" (Φ9) |
| Iris Range (F-stop) | F2.4 ~ F14 |
| Focusing Range (m) | 0.1 ~ ∞ |
| Iris Control | Manual |
| Focus Control | Manual |
| Shooting Range at M.O.D. (mm) | 201(H) x 151(V) |
| Angle of View 1/2" (°) | 82.4 x 66.9 |
| Angle of View 1/3" (°) | 66.9 x 52.7 |
| Angle of View 1/1.8" (°) | 89 x 73.8 |
| Resolution (Center, Corner) | 120lp/mm, 100lp/mm |
| TV Distortion (%) | -0.5 (1/1.18") / 0.4 (1/2") |
| Back Focus in Air (mm) | 9.02 |
| Mount | C-Mount |
| Filter Thread Size (mm) | M40.5 x P0.5 |
| Minimum Focus Distance (m) | 0.10 |
| Size (mm) | Φ42 x 38.2 |
| Weight (g) | 85 |
| Temperature Range (°C) | -10 ~ +50 |
