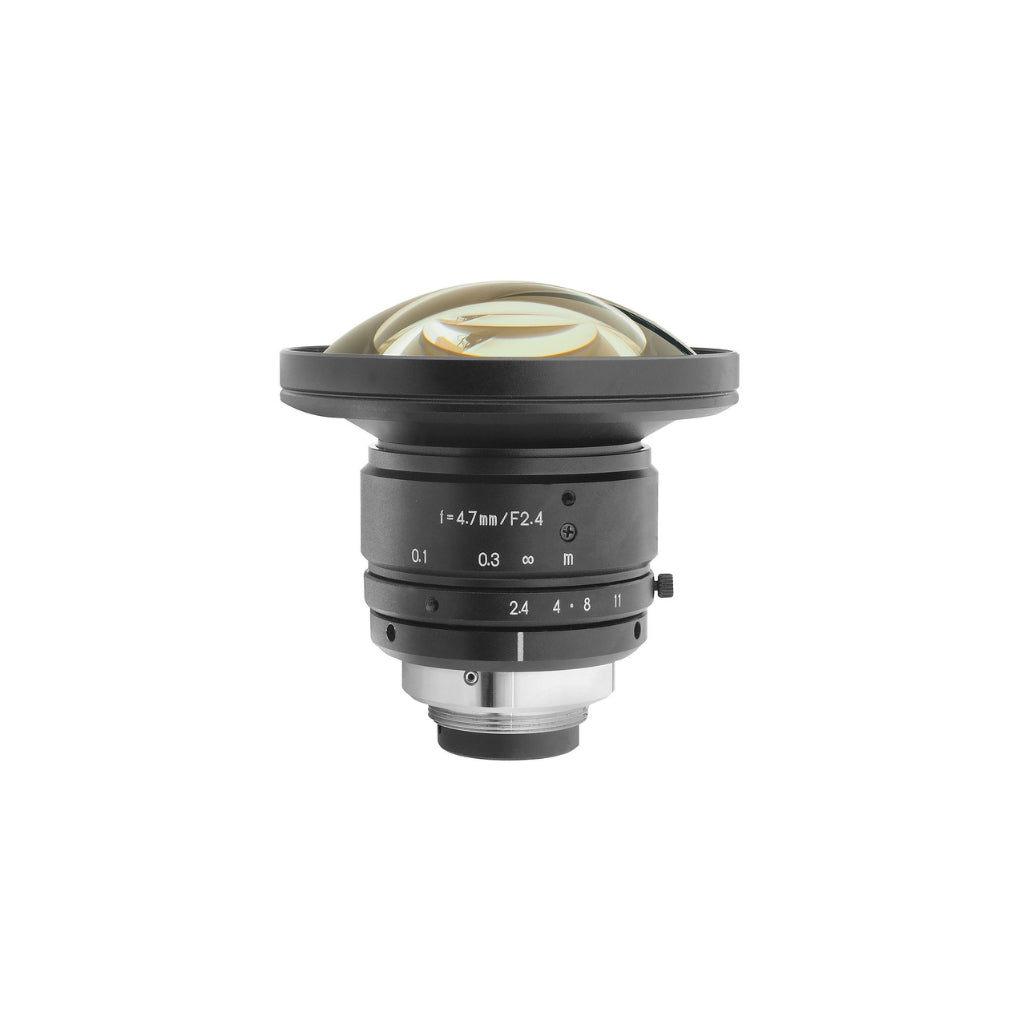

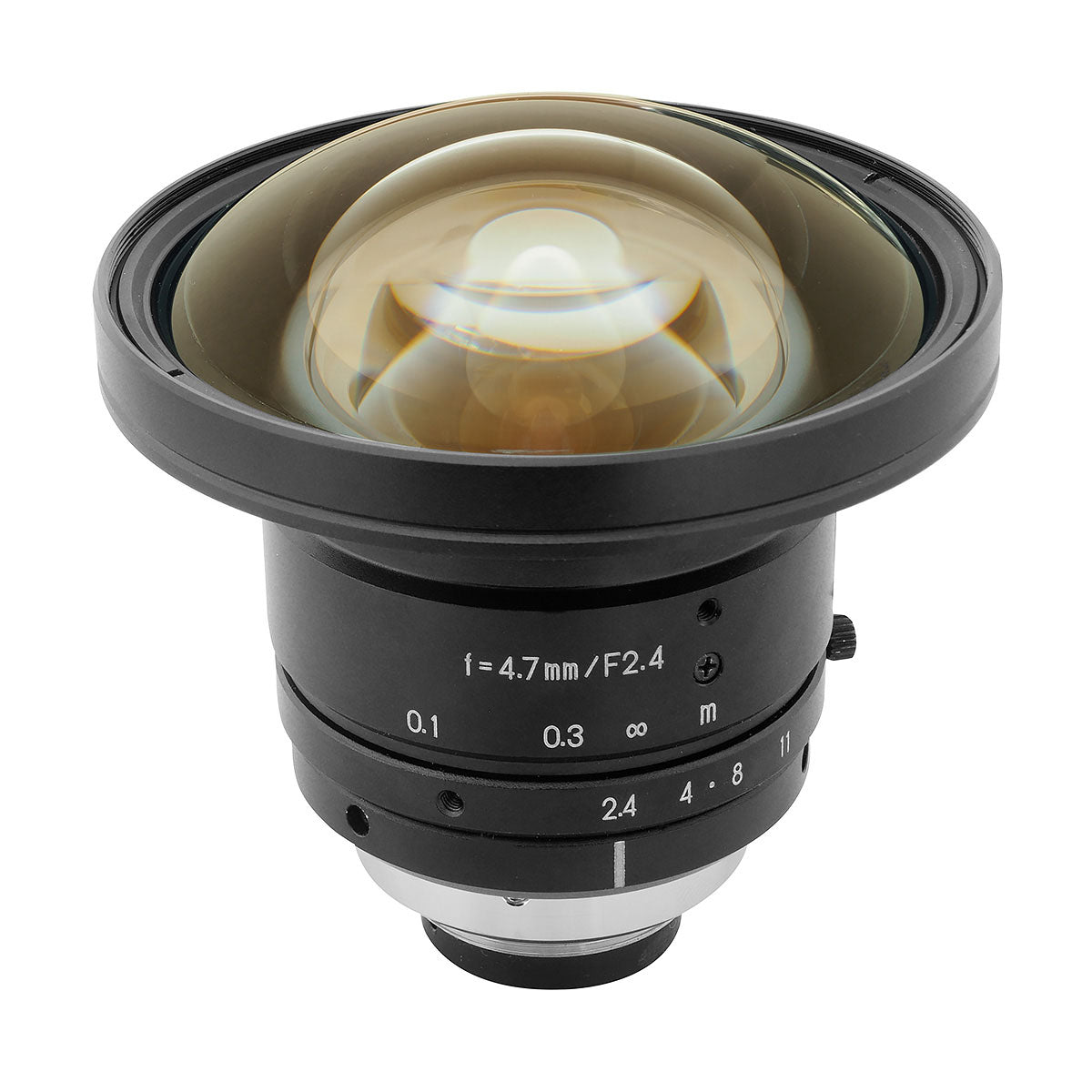

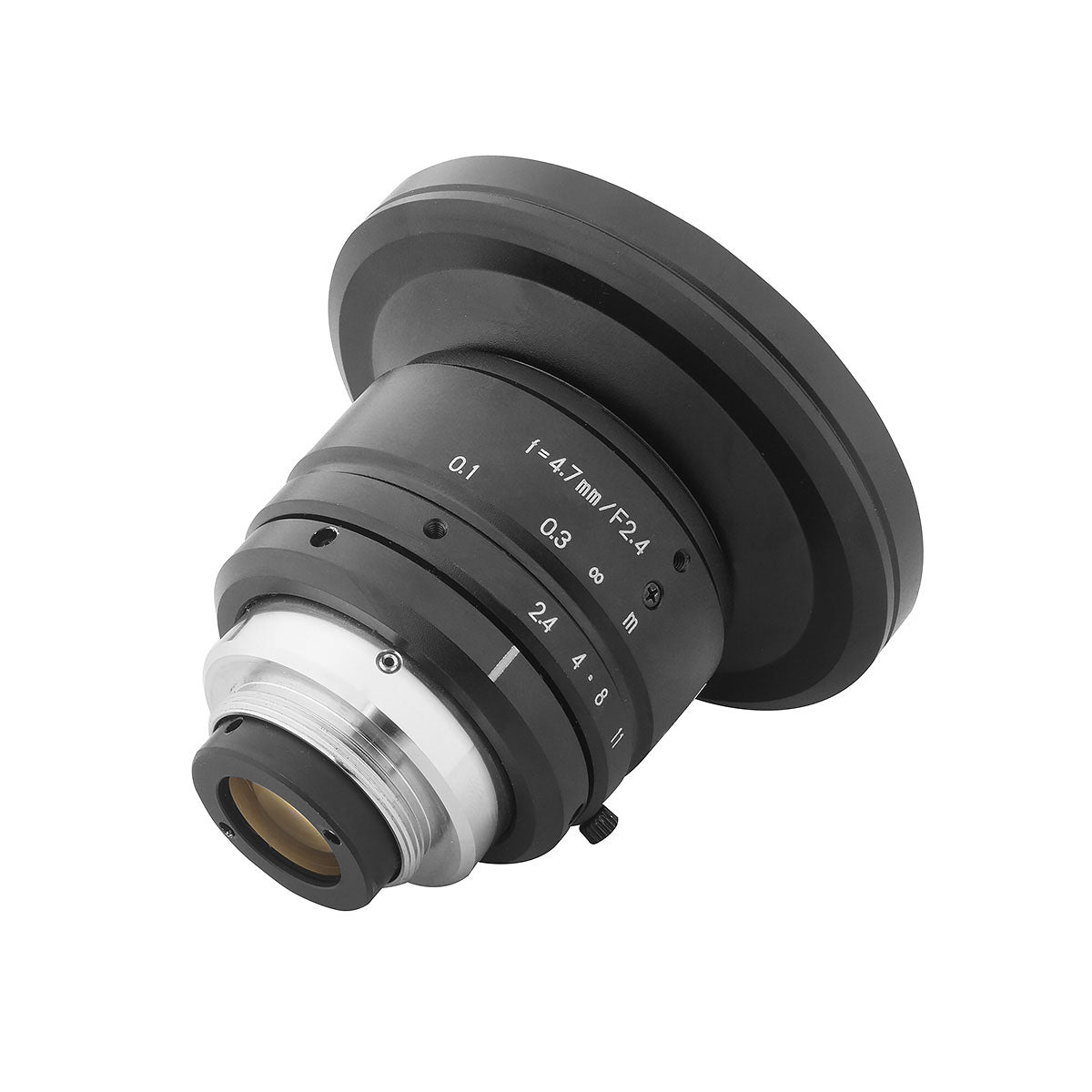

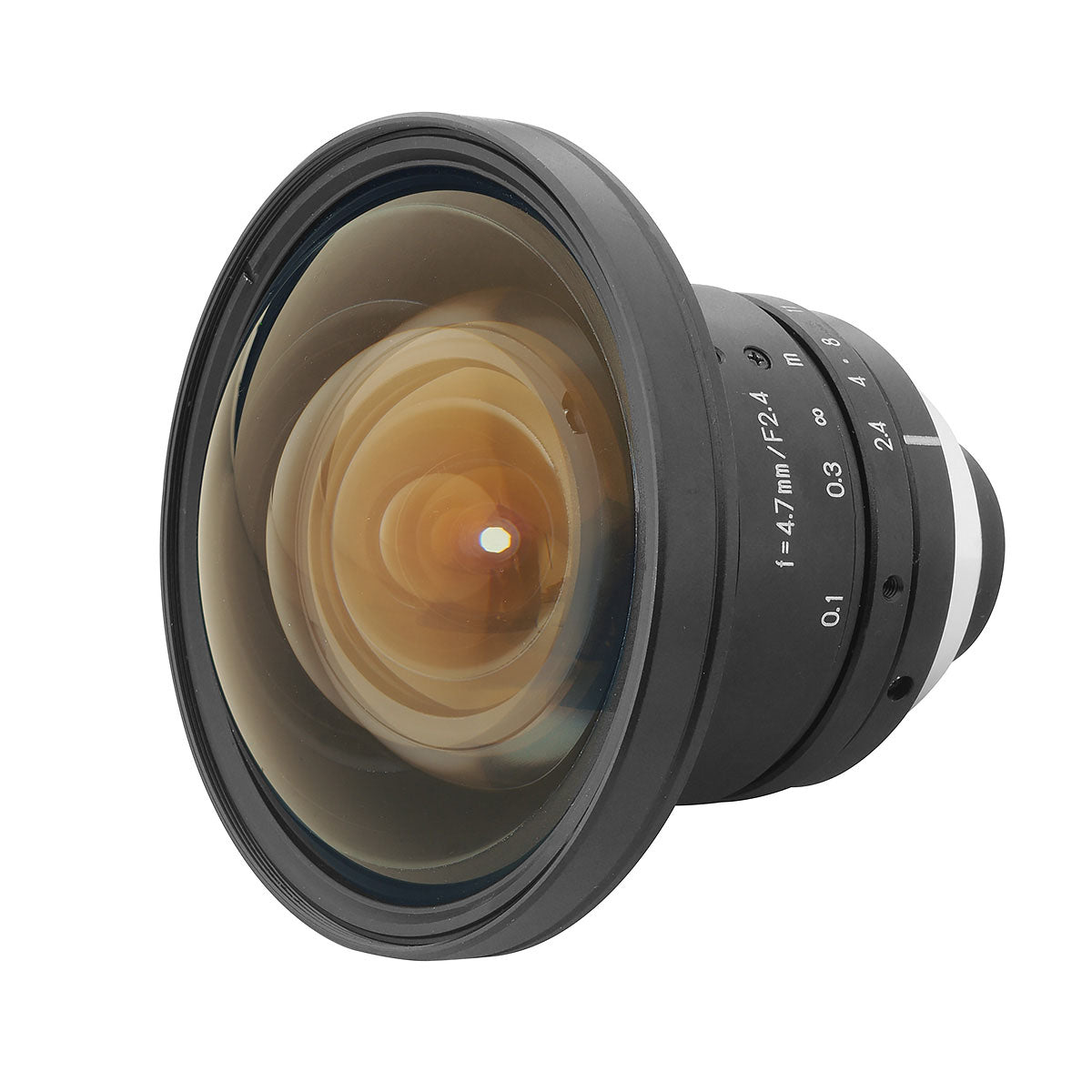

Kowa LM4HC 1" 4.7mm 5MP C-Mount Lens Compatible With Sony IMX174, CMOSIS CMV4000 and Sony IMX249 sensors and many more
Kowa LM4HC 1" 4.7mm 5MP C-Mount Lens Compatible With Sony IMX174, CMOSIS CMV4000 and Sony IMX249 sensors and many more
SKU:LM4HC
Couldn't load pickup availability
Unlock Precision Vision with Kowa LM4HC 1" 4.7mm 5MP C-Mount Lens
In the realm of industrial and machine vision, clarity and precision are paramount. Meet the Kowa LM4HC 1" 4.7mm 5MP C-Mount Lens, a technological marvel designed to elevate your vision systems to new heights of performance and accuracy. Engineered with meticulous attention to detail, this lens offers unparalleled versatility and reliability for a wide range of applications.
With its super wide-angle design and 4.7mm focal length, the Kowa LM4HC lens delivers expansive coverage and exceptional image quality, ensuring that every detail is captured with stunning clarity. Whether you're inspecting intricate components on a production line or monitoring traffic patterns on a bustling thoroughfare, this lens empowers you to see the bigger picture with unrivaled precision.
Equipped with manual iris control and compatible with sensors such as the Sony IMX174, CMOSIS CMV4000, and Sony IMX249, the Kowa LM4HC lens offers unparalleled flexibility and performance in any environment. From broadcast studios to manufacturing facilities to traffic control centers, this lens is the ultimate solution for demanding vision applications.
Experience the difference that precision optics can make in your vision systems. Upgrade to the Kowa LM4HC 1" 4.7mm 5MP C-Mount Lens and unlock a new world of clarity, accuracy, and performance. Elevate your vision today with Kowa and redefine what's possible in industrial and machine vision.
Features:
- Compatible with Sony IMX174, CMOSIS CMV4000, and Sony IMX249 sensors
- Super wide angle lens with 4.7mm focal length
- Manual iris control for precise adjustments
- High resolution with 5MP capabilities
- Designed for industrial imaging applications
Applications:
- Machine vision inspection
- Industrial automation
- Quality control systems
- Traffic monitoring systems
- Surveillance and security
| Image Size | 1" (12.8 x 9.6 x 16mm) |
| Focal Length | 4.7mm |
| Iris Range (F-Stop) | F2.4-F11 |
| Iris Control | Manual Iris |
| Minimum Focus Distance | 0.1m |
| Mount | C-Mount |
| Angle of View 1" | 112.2° x 95.4° x 123.0° |

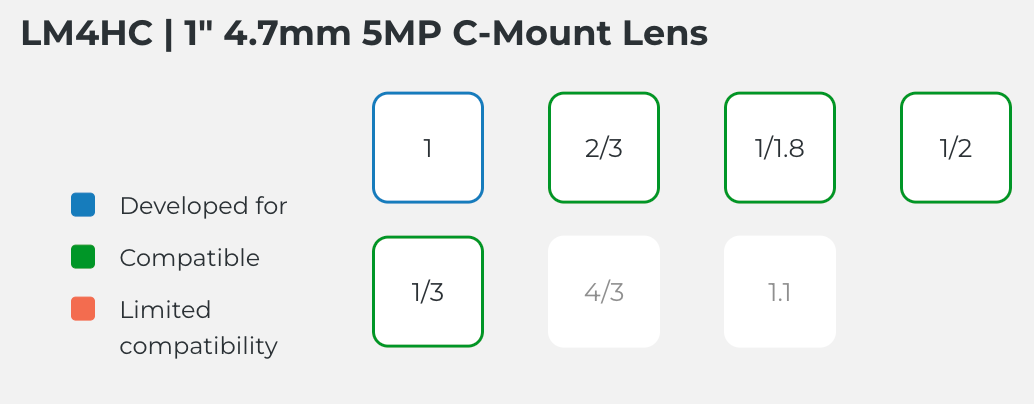

| Angle of View 2/3" | 90.0° x 72.2° x 103.7° |
| Angle of View 1/1.8" | 77.4° x 60.8° x 91.4° |
| Field of View at M.O.D. 1" | 375.6 x 272.1 x 480.5mm |
| Field of View at M.O.D. 2/3" | 246.6 x 178.8 x 317.3mm |
| Field of View at M.O.D. 1/1.8" | 196.8 x 143.6 x 253.0mm |
| TV Distortion | -0.58% |
| Flange Back | 17.526mm in air |
| Back Focus | 9.0mm in air |
| Temperature Range | -10°C ~ +50°C |
| Storage Temperature Range | -20°C ~ +60°C |
| Resolution | Center 100lp/mm / Corner 50lp/mm |
| Weight | 360g |
