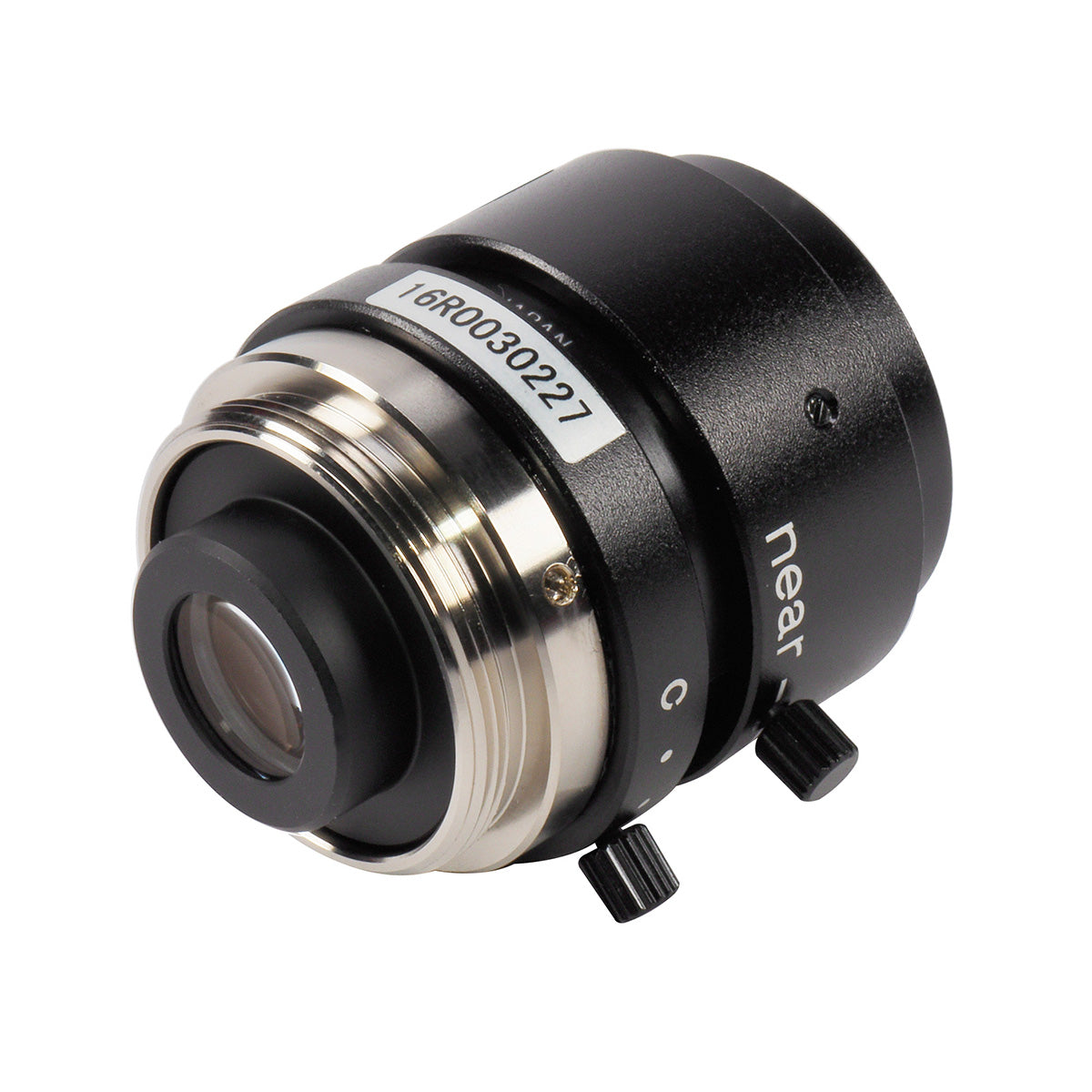

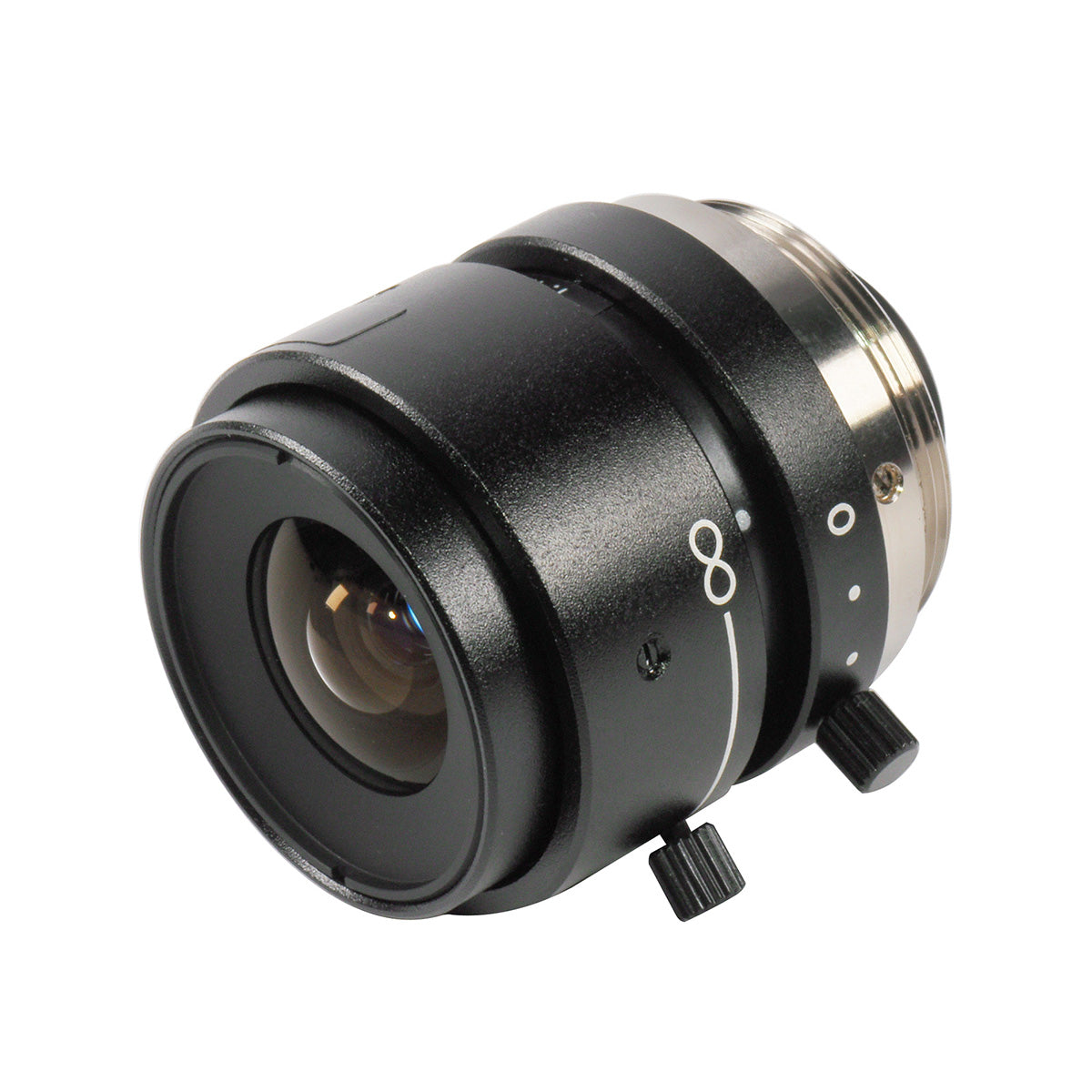

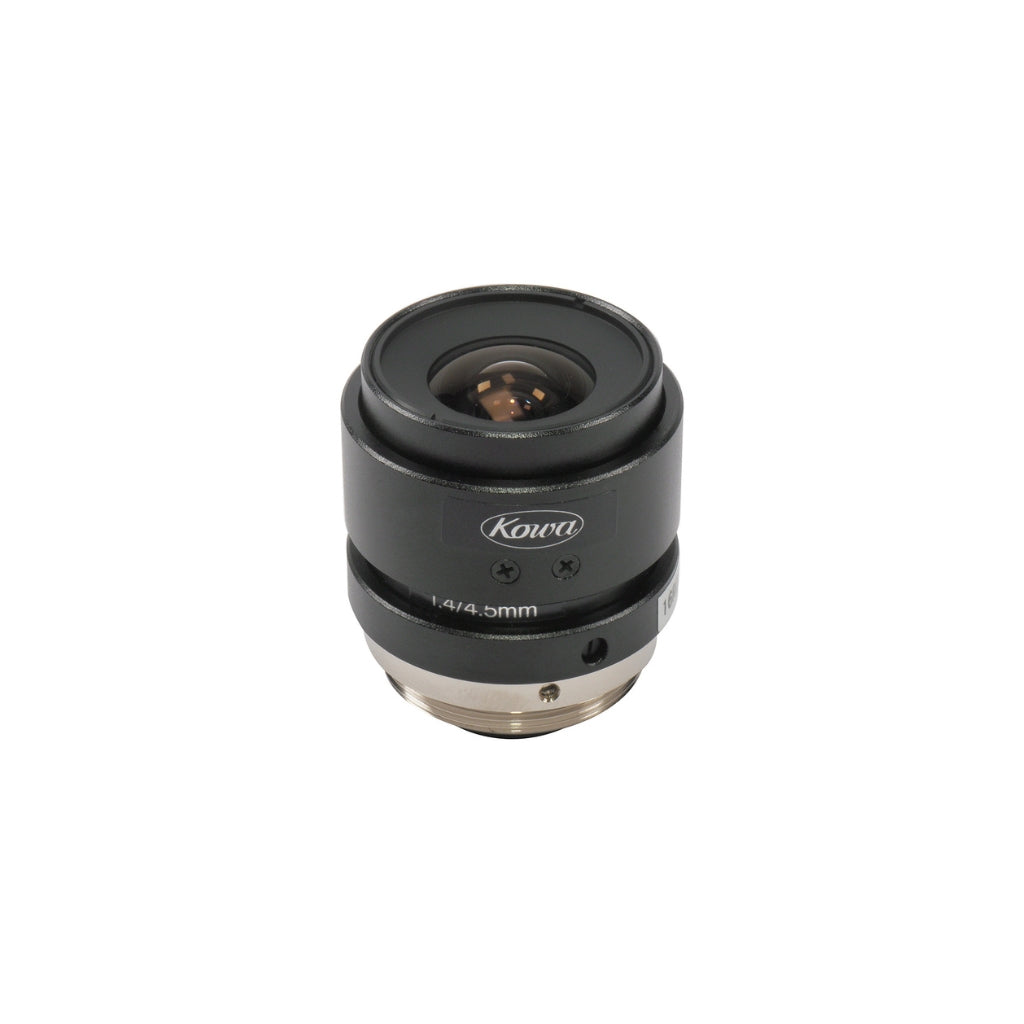

Kowa LM5NCL 1/1.8" 4.5mm C-Mount wide angle lens Compatible With OnSemi MT9M00, OnSemi PYTHON1300 and OnSemi VITA1300 sensors and many more
Kowa LM5NCL 1/1.8" 4.5mm C-Mount wide angle lens Compatible With OnSemi MT9M00, OnSemi PYTHON1300 and OnSemi VITA1300 sensors and many more
SKU:LM5NCL
Couldn't load pickup availability
Elevate Your Machine Vision with Kowa LM5NCL Lens
Experience unmatched precision and clarity in your machine vision applications with the Kowa LM5NCL 1/1.8" 4.5mm C-Mount wide angle lens. Crafted with expertise and precision, this lens is tailored to meet the demands of industrial imaging systems, ensuring optimal performance in various environments.

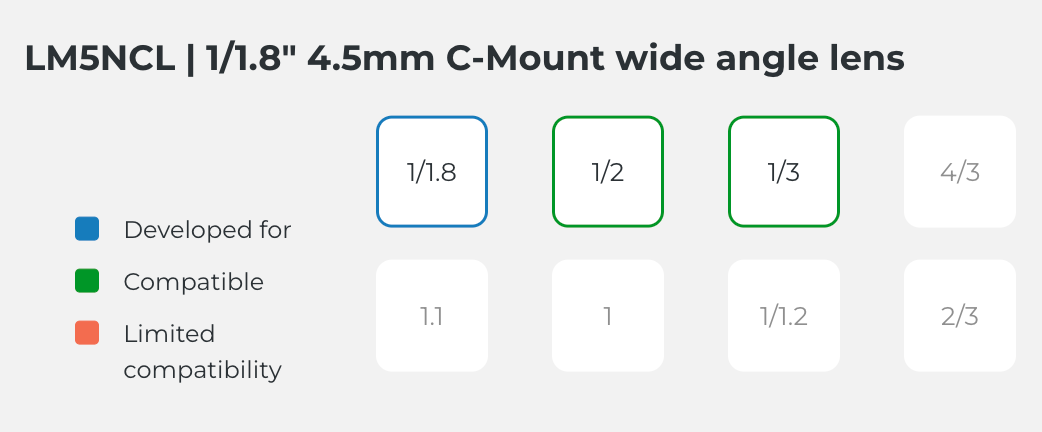

The Kowa LM5NCL lens boasts a focal length of 4.5mm, perfectly suited for sensors with a pixel size of 5.0μm or more. Its compatibility with OnSemi MT9M00, OnSemi PYTHON1300, OnSemi VITA1300 sensors, and more, makes it a versatile choice for diverse imaging setups.
With manual iris and focus control, this lens offers unparalleled flexibility and accuracy in capturing high-resolution images. Its wide wavelength range, from VIS (380nm - 780nm), ensures exceptional image quality across different lighting conditions.
Whether used in quality inspection, robotics, or surveillance, the Kowa LM5NCL lens delivers outstanding results, empowering businesses to achieve greater efficiency and precision in their operations.
Features:
- Compatible with various OnSemi sensors
- Wide angle 4.5mm focal length
- Manual iris and focus control
- High-resolution imaging
- Wide wavelength range for versatile applications
Applications:
- Quality inspection
- Robotics
- Surveillance
- Automated manufacturing
- Object recognition
| Focal Length (mm) | 4.5 |
| Lens Type | Fixed |
| Image Size (mm) | 1/2" (Φ8) |
| Iris Range (F-stop) | F1.4 ~ F16 |
| Focusing Range (m) | 0.2 ~ ∞ |
| Iris Control | Manual |
| Focus Control | Manual |
| Shooting Range at M.O.D. (mm) | 260(H) x 180(V) |
| Angle of View 2/3" (°) | - |
| Angle of View 1/2" (°) | 79.0 x 59.4 |
| Angle of View 1/3" (°) | 59.7 x 45.1 |
| Horizontal Angle of View (°) | 79.0° |
| Vertical Angle of View (°) | 59.4° |
| Diagonal Angle of View (°) | 98.2° |
| Horizontal Shooting Range at M.O.D. (mm) | 260 |
| Vertical Shooting Range at M.O.D. (mm) | 180 |
| Diagonal Shooting Range at M.O.D (mm) | 364 |
| Resolution (Center, Corner) | 100lp/mm, 60lp/mm |
| TV Distortion (%) | -17.5 |
| Back Focus in Air (mm) | 9.95 |
| Mount | C-Mount |
| Filter Thread Size (mm) | - |
| Minimum Focus Distance (m) | 0.2 |
| Flange Back in Air (mm) | 17.526 |
| Front/Rear Effective DIA (mm) | Φ15.1, Φ10.1 |
| Exit Pupil (mm) | -17.5 |

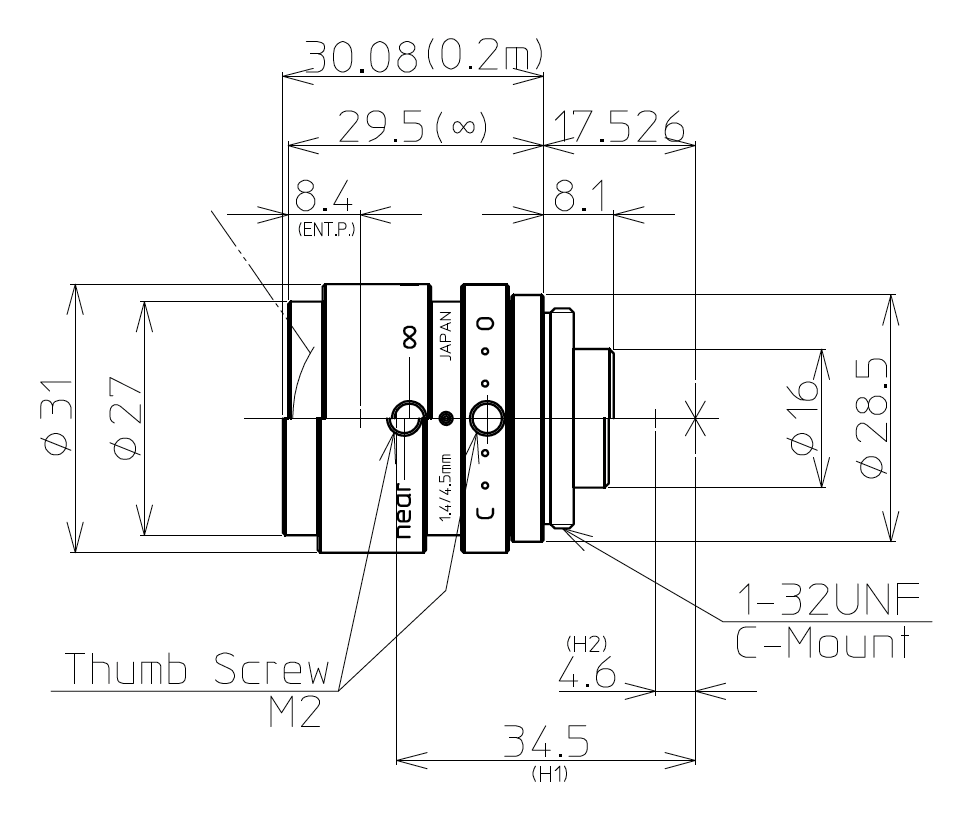

| Size (mm) | Φ31 x 29.5 |
| Weight (g) | 71 |
| Temperature Range (°C) | -10 ~ +50 |
