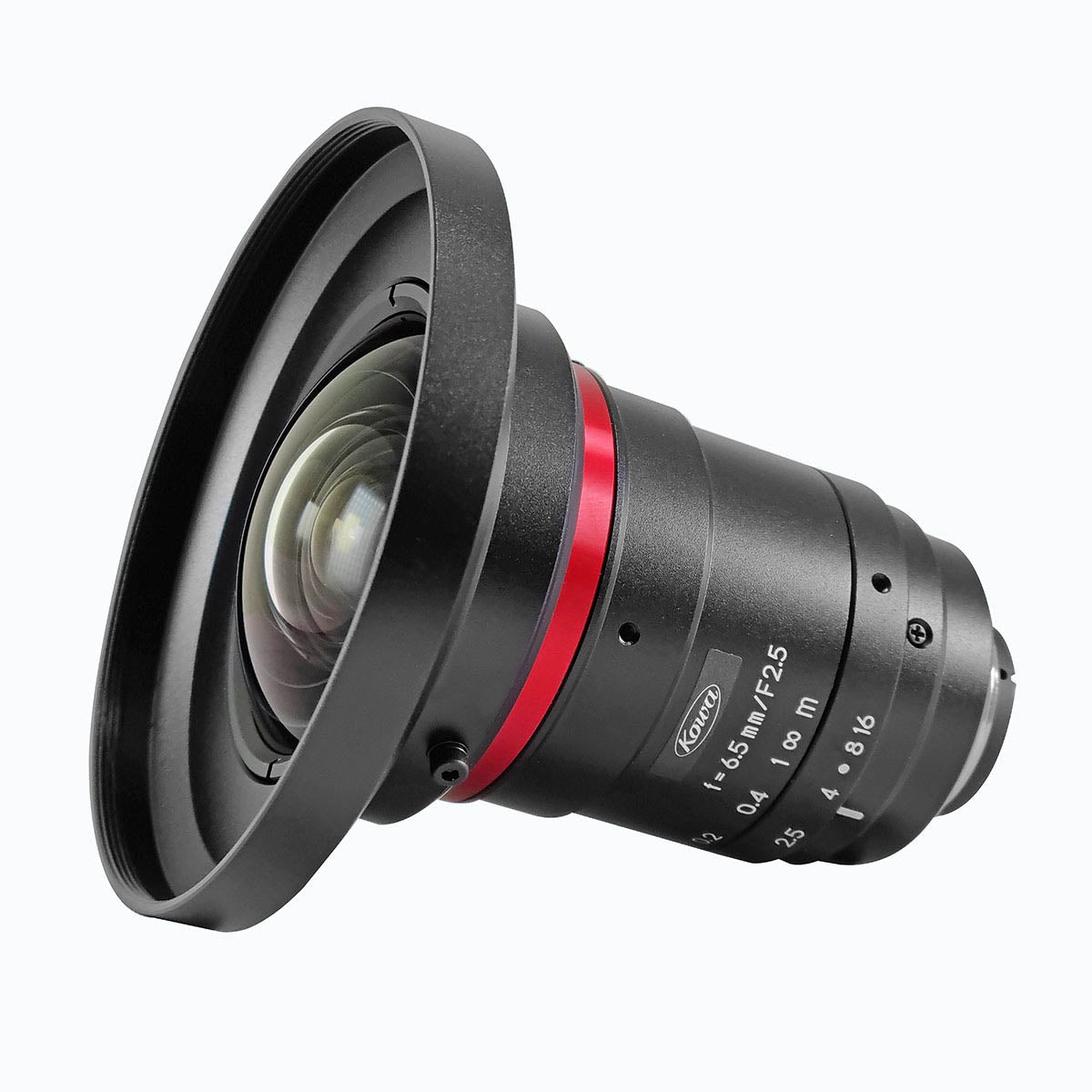

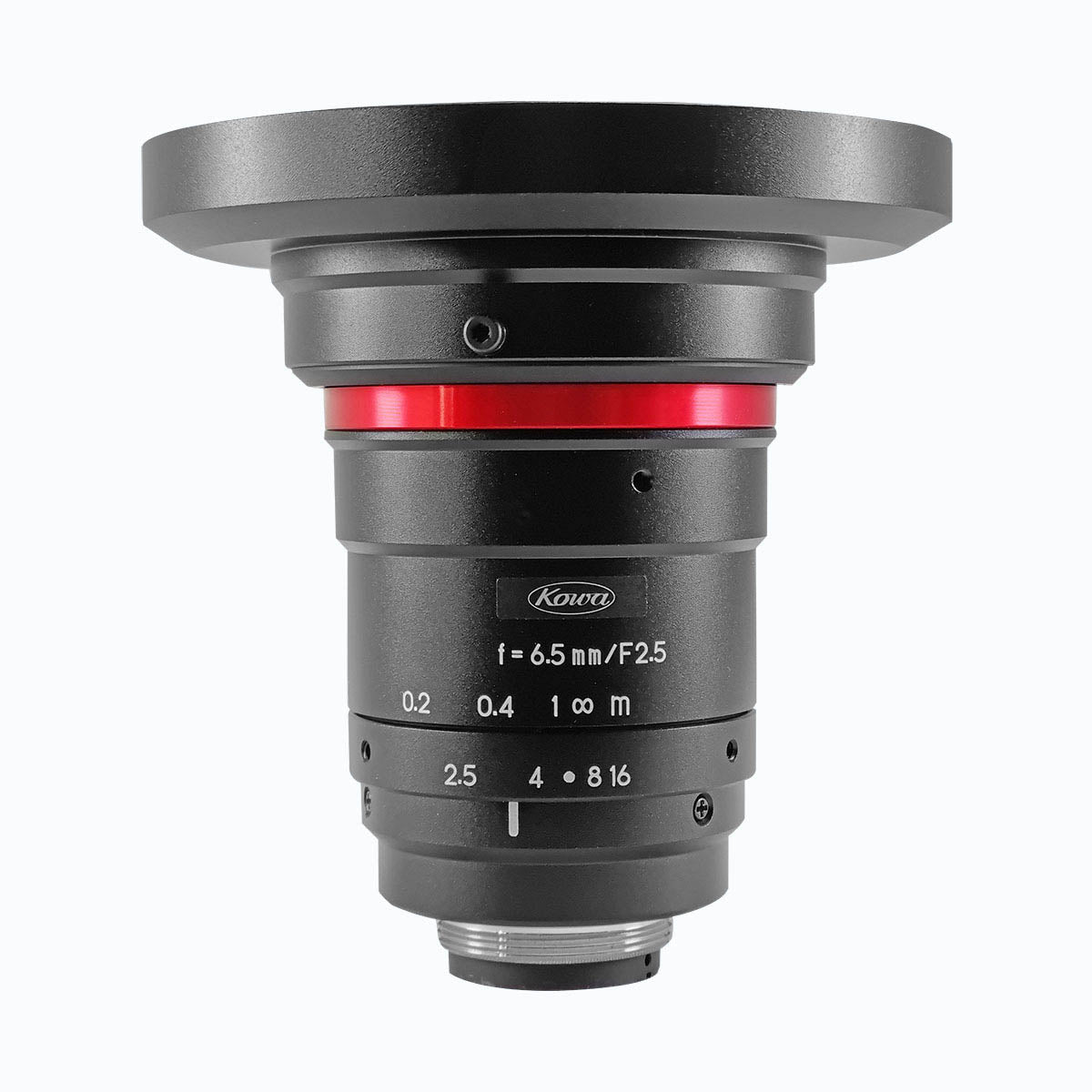

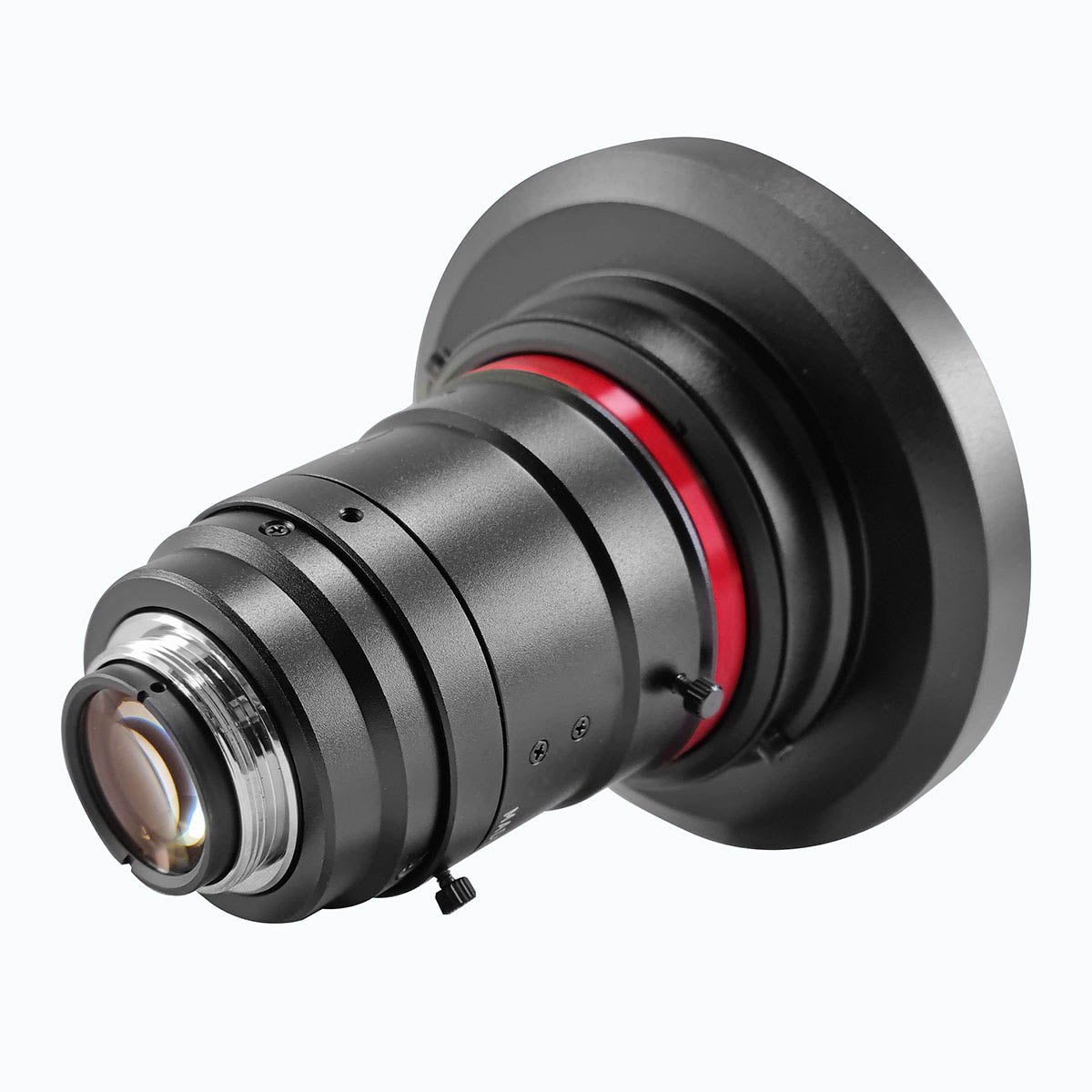

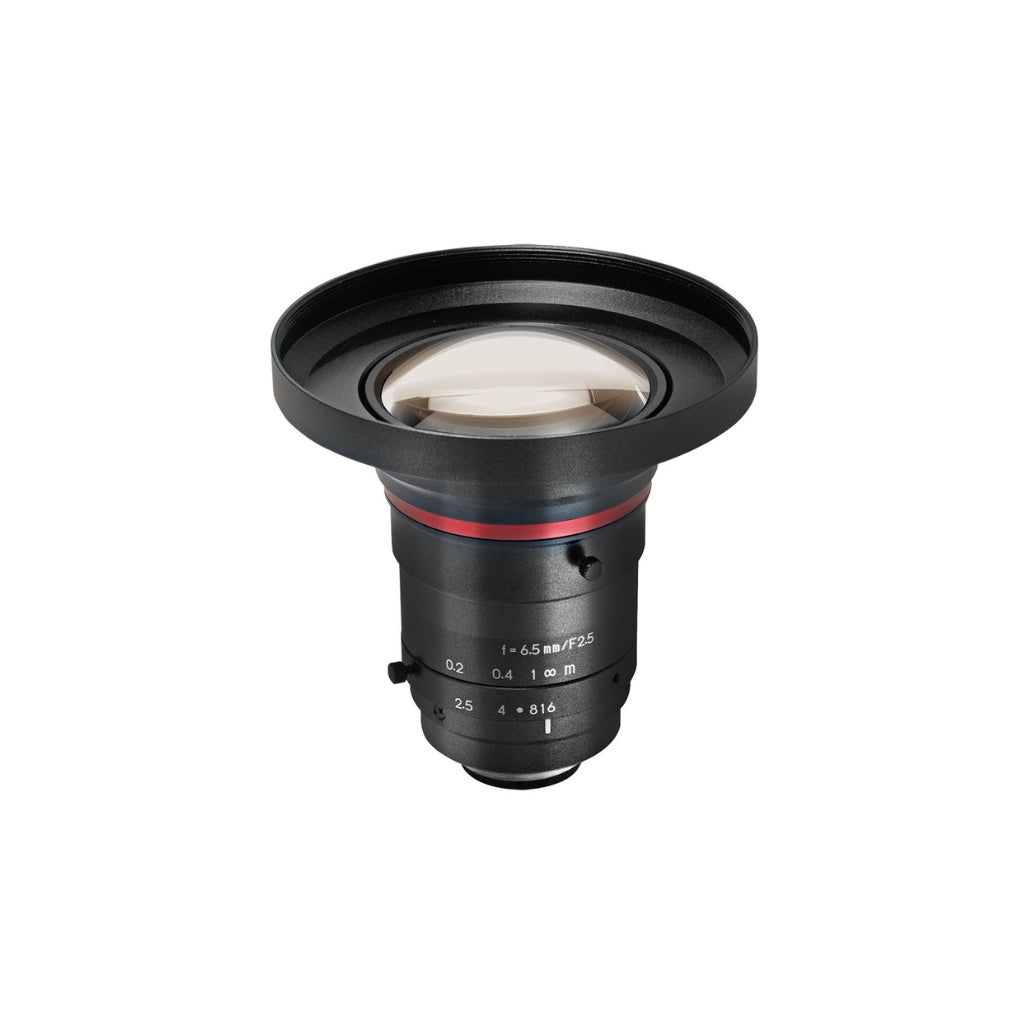

Kowa LM6FC24M 1.1" 6mm 24MP C-mount Lens Compatible With Sony IMX183, IMX530/540, IMX531/541, IMX253/304 sensors and many more

Kowa LM6FC24M 1.1" 6mm 24MP C-mount Lens Compatible With Sony IMX183, IMX530/540, IMX531/541, IMX253/304 sensors and many more

SKU:LM6FC24M

Regular price $1,123.80 USD
Regular price Sale price $1,123.80 USD
Sale Sold out
Tax included. Shipping calculated at checkout.

Discover Kowa LM6FC24M 1.1" 6mm 24MP C-mount Lens

In the realm of machine vision and industrial imaging, the Kowa LM6FC24M stands as a pinnacle of precision and clarity. Engineered to perfection, this 6mm fixed focal lens offers unparalleled performance, specifically tailored for high-resolution imaging systems. With a compatibility range spanning across various Sony IMX sensors, including IMX183, IMX530/540, IMX531/541, IMX253/304, and more, it ensures seamless integration into a myriad of industrial applications.

Crafted with meticulous attention to detail, the Kowa LM6FC24M boasts a wide range of features to meet the demands of modern imaging technologies. Its manual iris control allows for precise adjustment, while the broad band coating enhances performance across the visible spectrum and beyond. The lens's wide focusing range, from 0.1m to infinity, ensures versatility in capturing objects of varying distances with exceptional clarity.

Weighing in at just 300 grams and compactly designed with a Ø84 X 79.1mm size, the Kowa LM6FC24M offers both portability and robustness, making it an ideal choice for industrial automation, optical inspection, robotics guidance, and other machine vision applications. Whether it's quality control in manufacturing or enhancing efficiency in logistics, this lens empowers businesses with the tools they need to achieve unparalleled precision and reliability in their vision systems.

Features:

  • Compatible with Sony IMX sensors
  • High-resolution 24MP lens
  • Manual iris control
  • Broad band coating for enhanced performance
  • Wide focusing range from 0.1m to infinity

Applications:

  • Optical inspection
  • Industrial automation
  • Machine vision systems
  • Quality control
  • Robotics guidance

LM6FC24M Spec Sheet

Focal Length (mm) 6.5 mm
Image Size (mm) 14.1x10.6 (Φ17.6)
Iris Range F2.5 - F16
Focusing range (m) 0.1 - ∞
Iris Manual
Focus  Manual
Shooting range at MOD (mm) 256 x 190

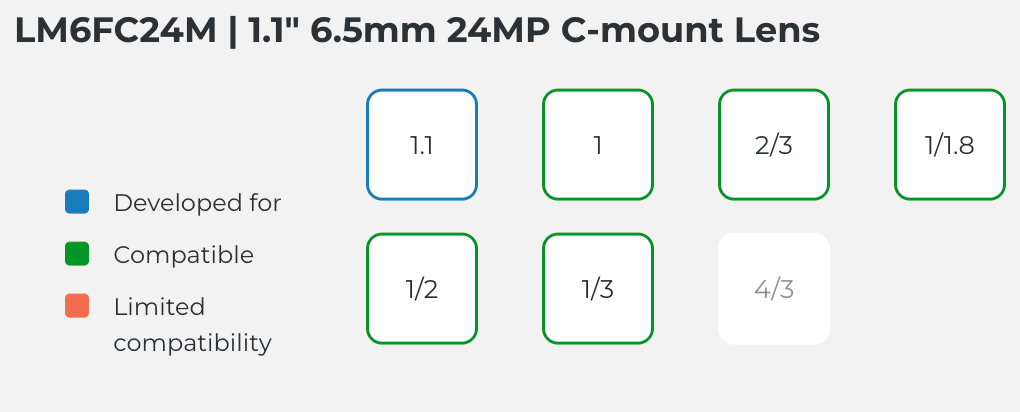

Angle of View (Degrees) 1.1": 95.7 x 78.7
1": 89.9 x 73.0
2/3": 68.1 x 53.5
Resolution (Center, Corner) 200lp/mm,100lp/mm
TV Distortion (%) -1.51
Back Focus in Air (mm) 10.9
Mount C-mount
Filter Thread (mm) M82xP0.75

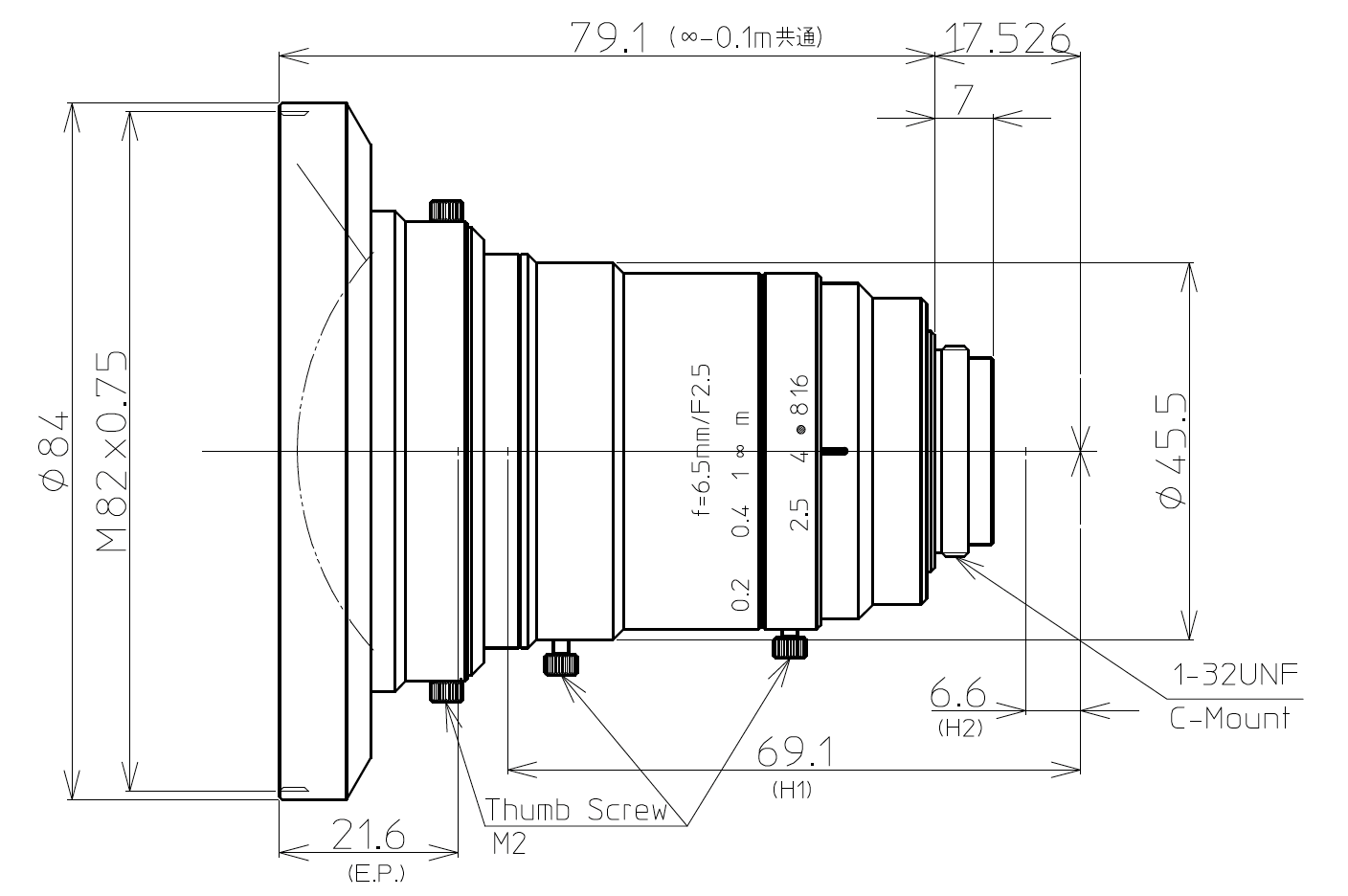

Size (mm) Φ84 x 79.1
Weight 300
Temperature Range -10°C - +50°C
