LM6NCL

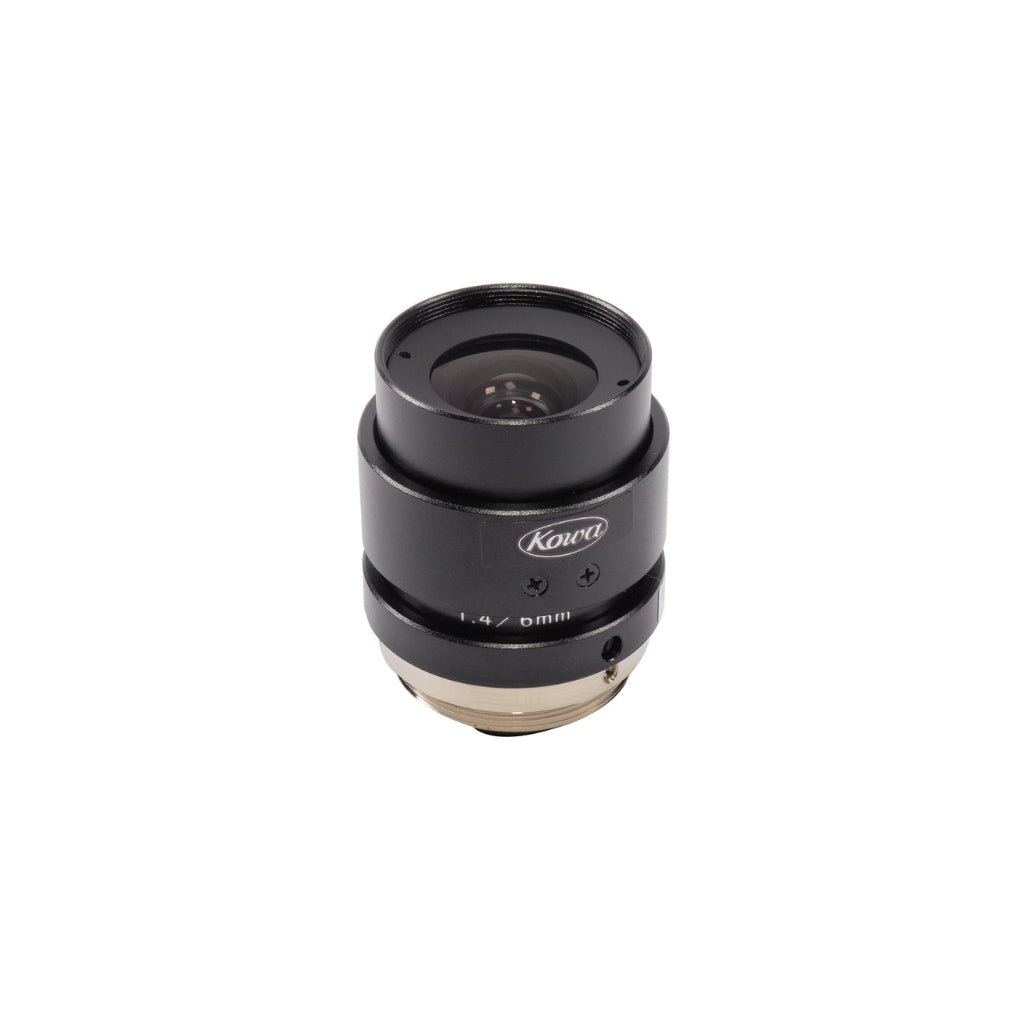

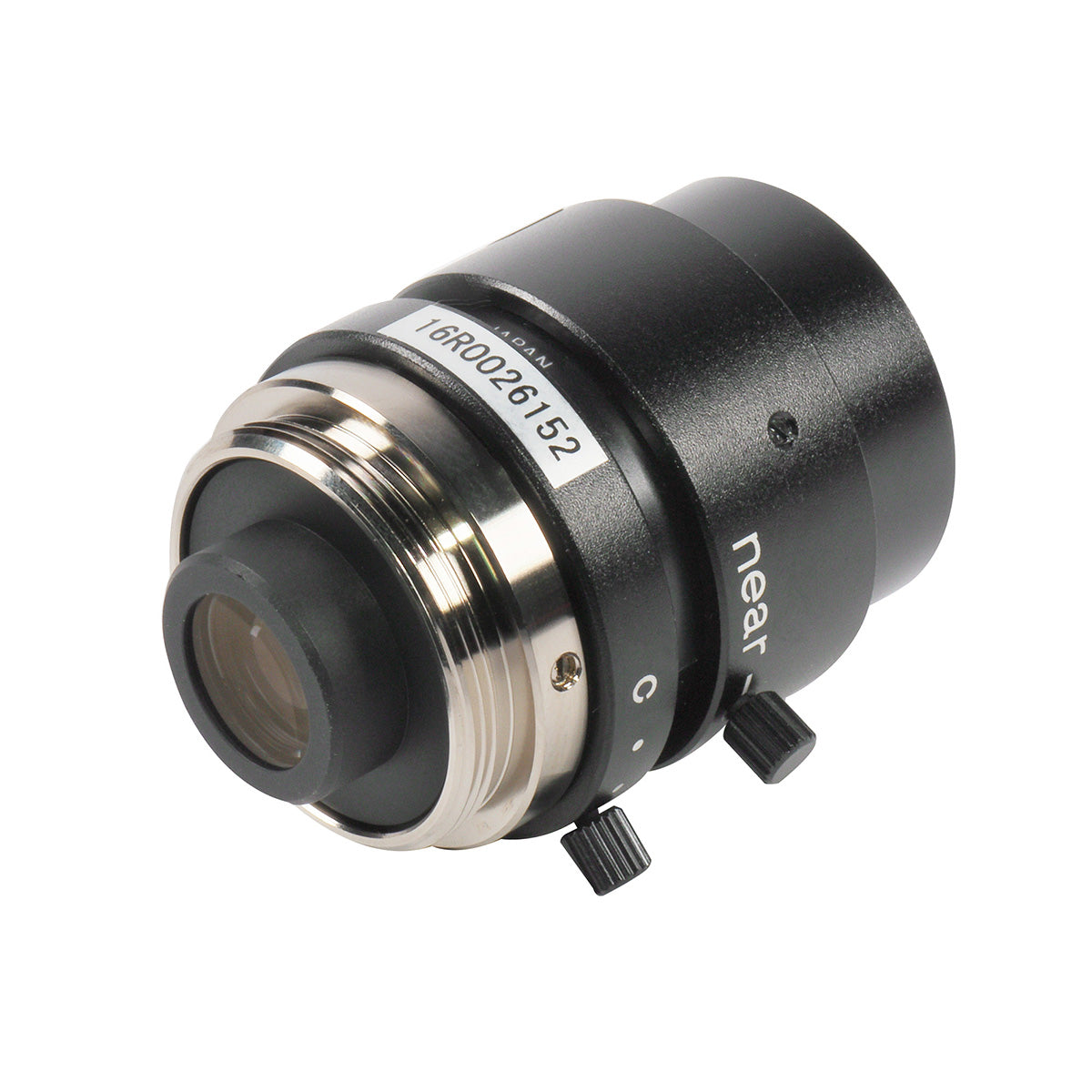

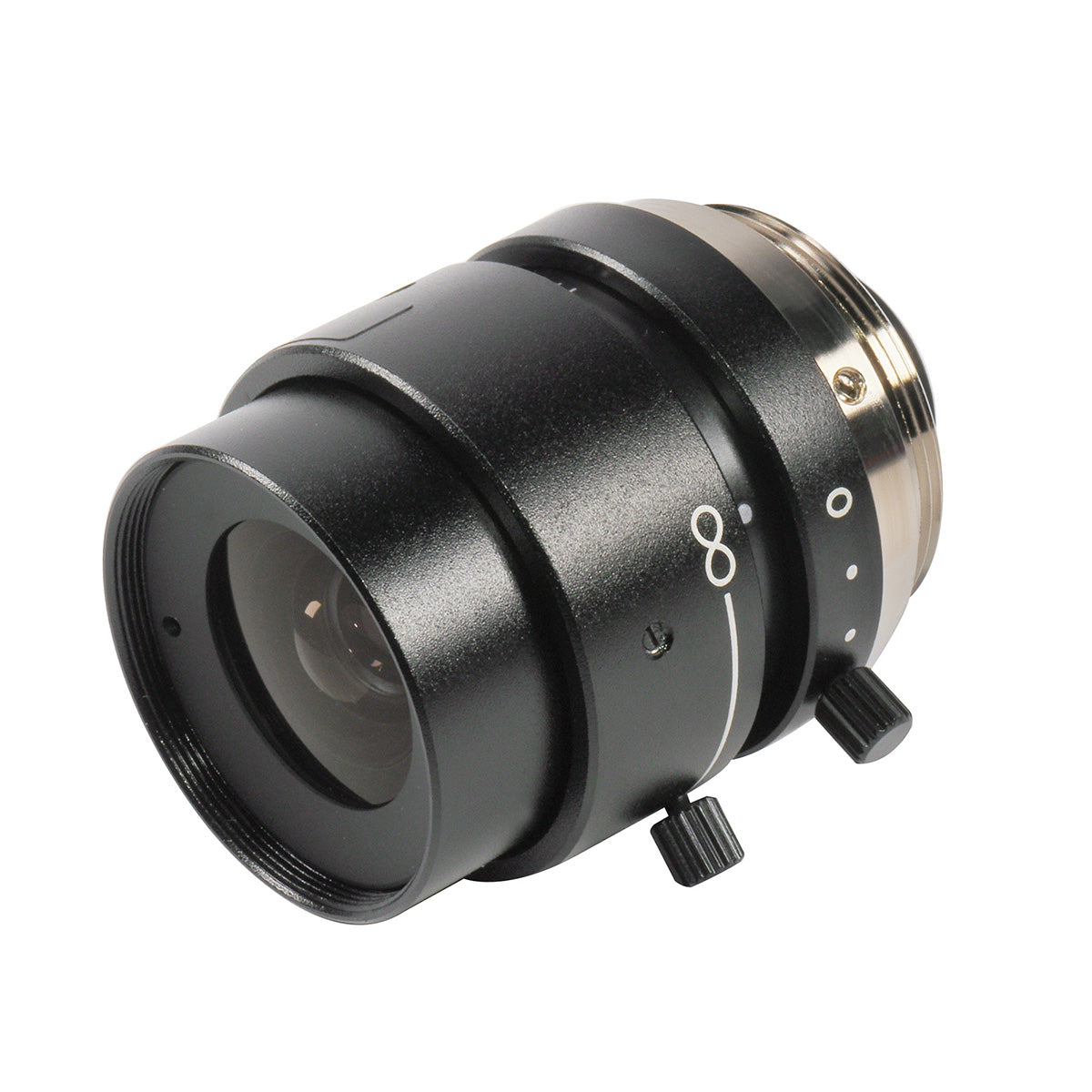

Kowa LM6NCL 1/1.8" 6mm C-Mount wide angle lens Compatible With OnSemi MT9M00, OnSemi PYTHON1300 and OnSemi VITA1300 sensors and many more
Kowa LM6NCL 1/1.8" 6mm C-Mount wide angle lens Compatible With OnSemi MT9M00, OnSemi PYTHON1300 and OnSemi VITA1300 sensors and many more
SKU:LM6NCL
Couldn't load pickup availability
Revolutionizing Industrial Imaging with Kowa LM6NCL Lens
In the realm of industrial imaging and machine vision, precision and reliability are paramount. Meet the Kowa LM6NCL 1/1.8" 6mm C-Mount wide angle lens, meticulously crafted to elevate your vision system to new heights of performance and efficiency. Designed specifically for compatibility with OnSemi MT9M00, OnSemi PYTHON1300, and OnSemi VITA1300 sensors, this lens ensures seamless integration and optimal functionality within your existing setup.
With a focal length of 6mm and a sensor size of 1/1.8", the Kowa LM6NCL lens offers a wide angle perspective, capturing expansive views with exceptional clarity and detail. Its manual iris control and focus adjustment allow for precise customization according to your specific imaging requirements, ensuring unparalleled accuracy in every application.
Crafted with the highest standards of optical precision, this lens delivers high-resolution images across the entire field of view. Whether you're engaged in quality inspection, industrial automation, or machine vision tasks, the Kowa LM6NCL lens empowers you to achieve superior results with confidence.
Compact and lightweight, yet robust and durable, this lens is built to withstand the rigors of industrial environments while maintaining consistent performance. From robotics and assembly line monitoring to optical metrology and measurement tasks, the versatility of the Kowa LM6NCL lens makes it an indispensable tool for a wide range of industrial imaging applications.
Upgrade your vision system today with the Kowa LM6NCL lens and experience the difference in precision, reliability, and performance.
Features:
- Wide angle lens for expansive views
- Compatible with OnSemi sensors
- High-resolution imaging
- Precision optical design
- Manual iris and focus control
- Compact and lightweight design
Applications:
- Quality inspection in manufacturing
- Industrial automation systems
- Machine vision applications
- Robotics and assembly line monitoring
- Optical metrology and measurement tasks
| Focal Length | 6mm |

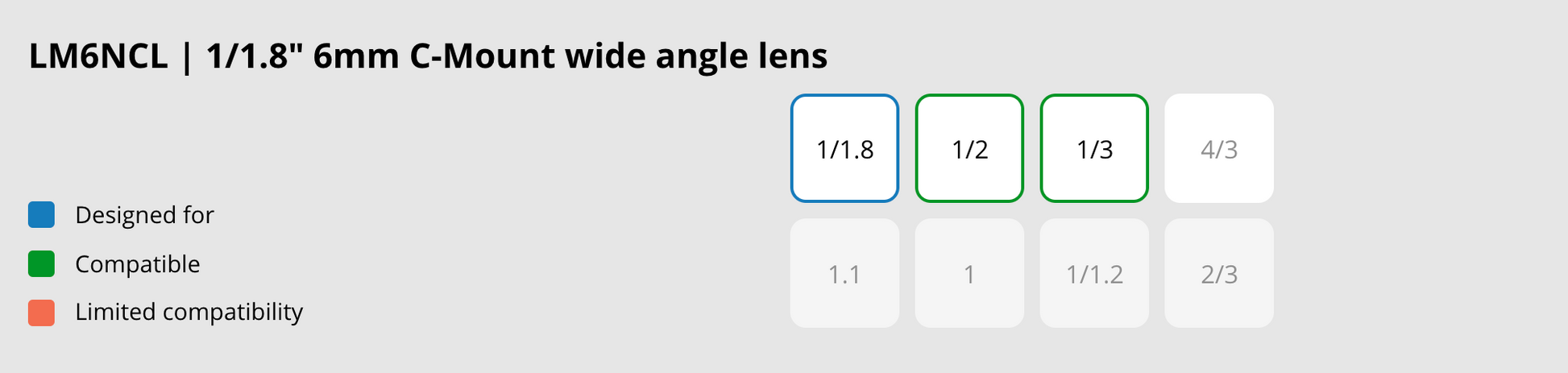

| Sensor Size | 1/1.8" |
| Pixel Size (µm) | 5 |
| Mount | C-mount |
| Iris Control | Manual |
| Iris Range (F-Stop) | 1,4 - 16 |
| Lens Type | Fixed Focal Lens |
| Wavelength Range | VIS (380nm - 780nm) |
| Focusing Range (m) | 0,2 - ∞ |
| Focus Control | Manual |
| Shooting range at MOD, horizontal (mm) | 255 |
| Shooting range at MOD, vertical (mm) | 188,7 |
| Resolution, Center (lp/mm) | 100 |
| Resolution, Corner (lp/mm) | 60 |
| Distortion (TV) (%) | -1 |
| Back focus in air (mm) | 9,5 |
| Filter Size (mm) | M25,5 x P0,5 |

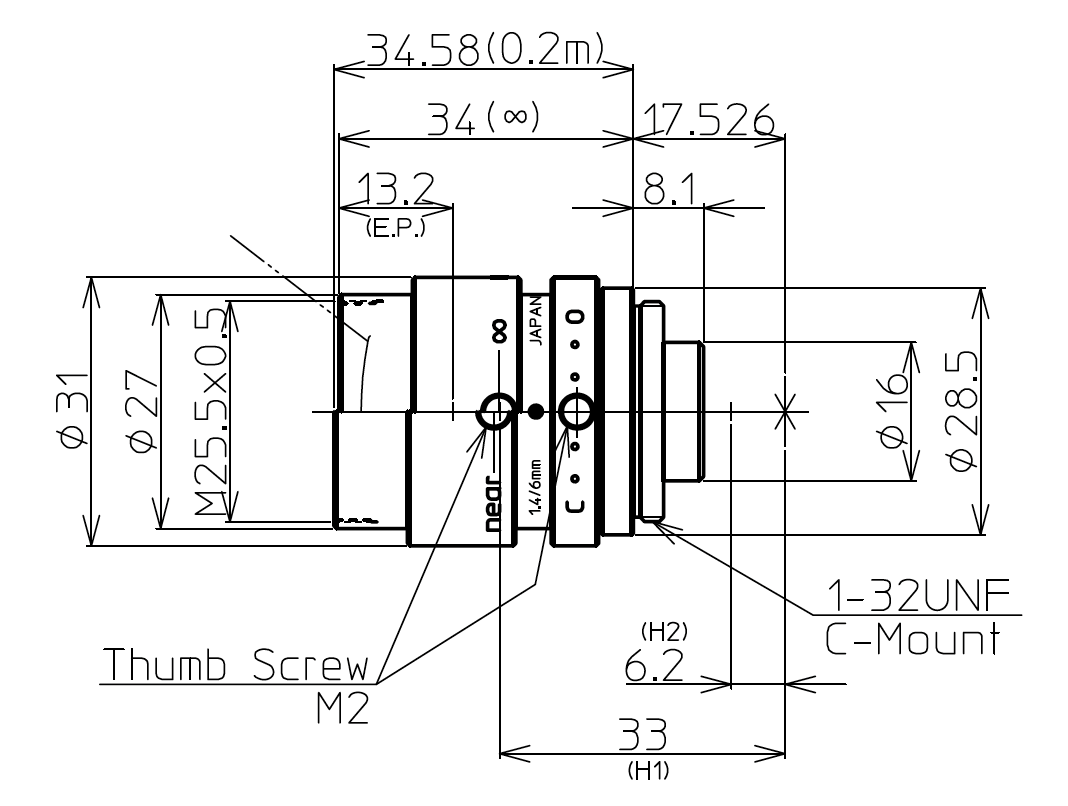

| Size (mm) | Ø31 X 34 |
| Weight (g) | 60 |
| Temperature Range (℃) | -10°C - +50°C |

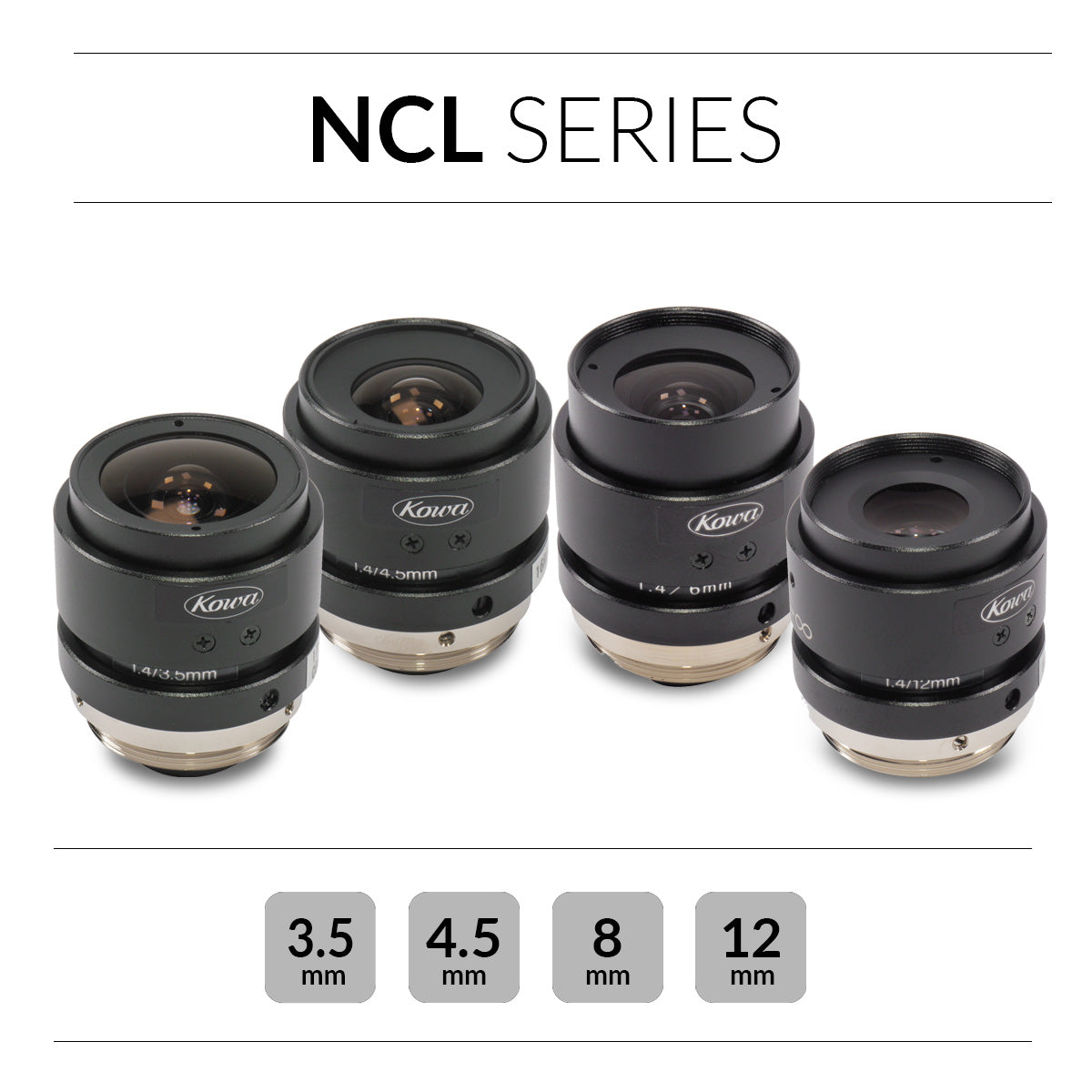

| Series | NCL |
| Application | Machine Vision |
