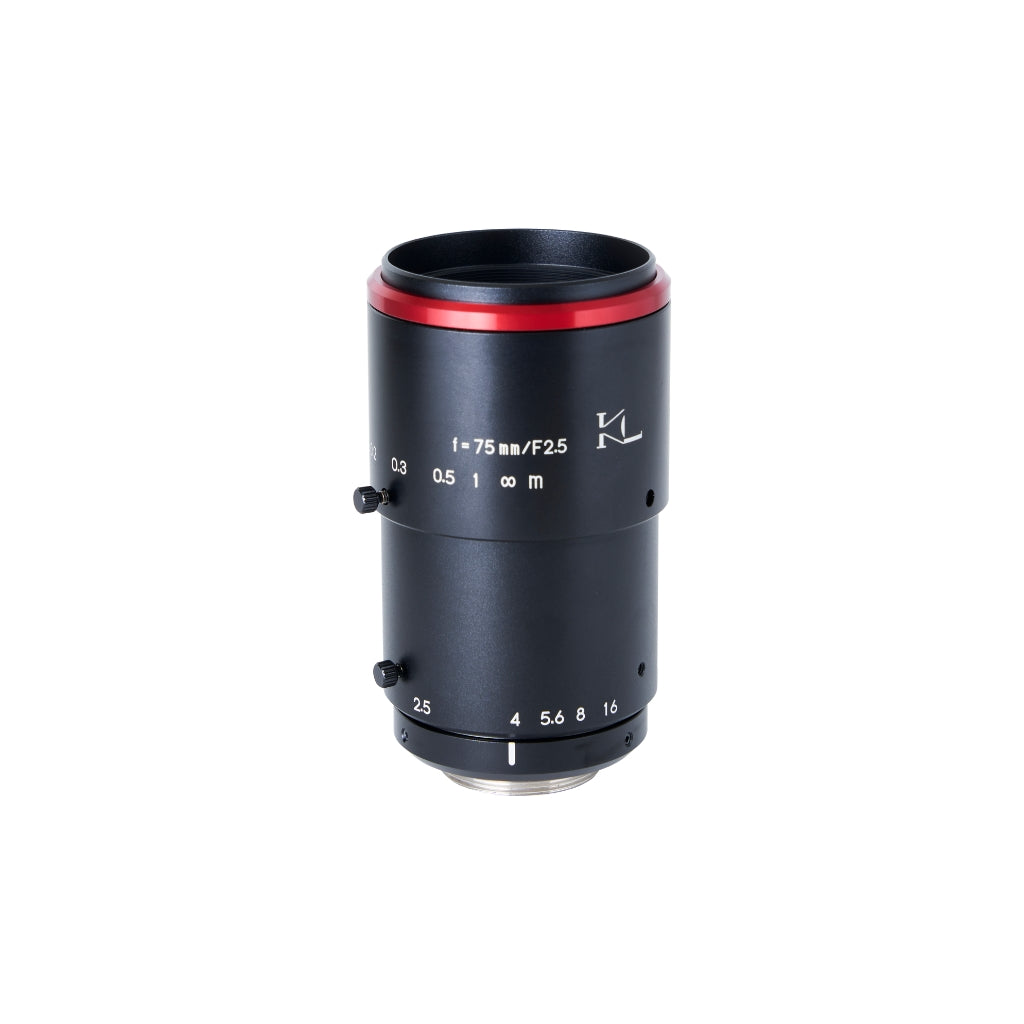

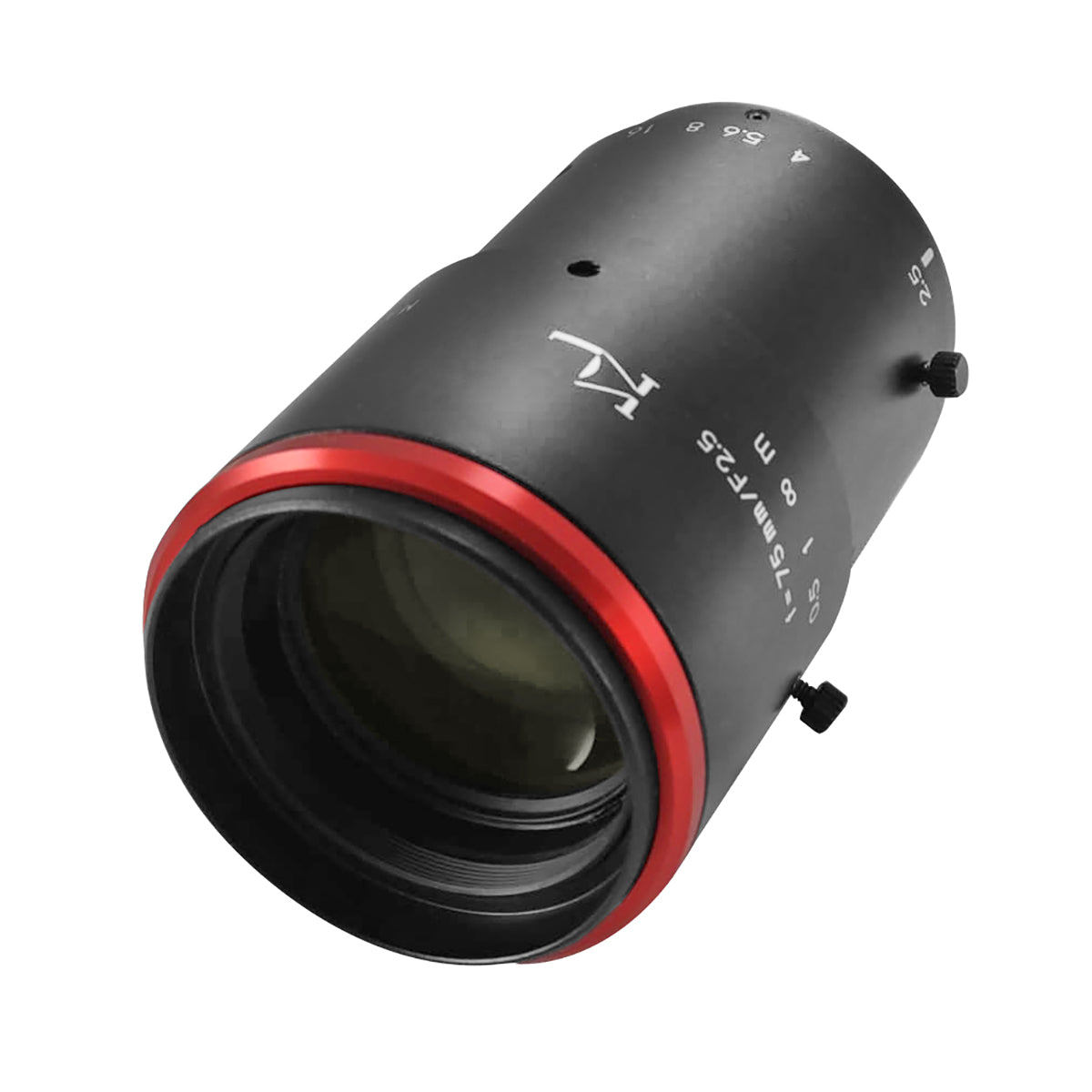

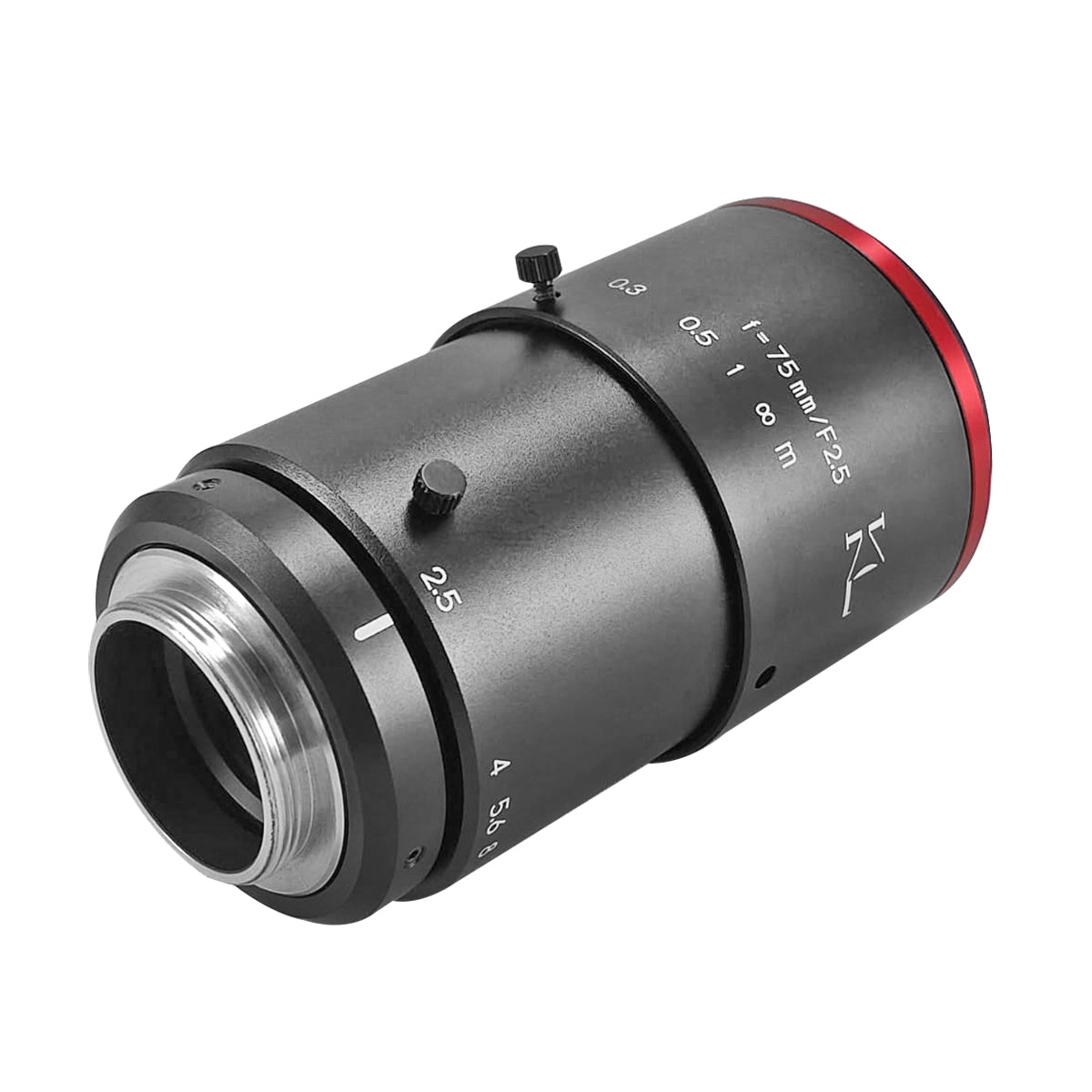

Kowa LM75FC24M 1.1", 75mm, F2.5-F16, C-Mount, 24 MP Macro Lens Compatible with Sony IMX531, IMX183 and IMX304 sensors and many more

Precision Redefined: Explore the Kowa LM75FC24M 1.1" Macro Lens

Delve into the realm of unparalleled precision with the Kowa LM75FC24M 1.1" Macro Lens, meticulously crafted to redefine the boundaries of optical excellence in machine vision and industrial imaging. This cutting-edge C-Mount lens is a testament to Kowa's commitment to delivering superior imaging solutions for the most demanding applications.

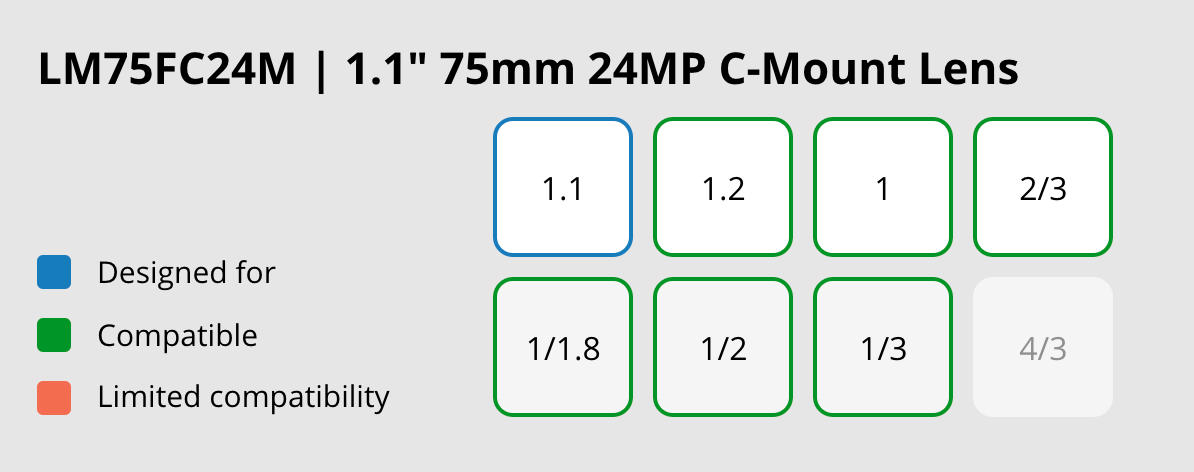

Engineered with precision in mind, the LM75FC24M boasts a 75mm focal length and a versatile aperture range from F2.5 to F16, allowing for exceptional control over depth of field and light intake. Its compatibility with 1.1-inch sensors, including the Sony IMX183, 530/540, 253, and IMX304, ensures optimal performance in a wide range of imaging scenarios. With a large image size of Φ17.6mm, it effortlessly captures intricate details with stunning clarity, while its ability to cover sensors up to 14.1mm x 10.6mm without vignetting ensures uniform image quality across the frame.

From quality control and inspection systems to surveillance and security applications, the Kowa LM75FC24M excels in various industrial settings, providing unmatched accuracy and reliability. Whether you're conducting precise measurements or monitoring critical processes, this lens offers the clarity and versatility needed to elevate your imaging capabilities to new heights. Experience precision redefined with the Kowa LM75FC24M 1.1" Macro Lens and unlock a world of endless possibilities in industrial imaging.

Features:

• Compatible with 1.2" format size
• High transmission from visible to NIR wavelengths
• Superior optical performance from distance to infinity
• Compatible with Sony Sensors IMX183, 530/540, 253, and IMX304

Applications:

• Quality control
• Inspection systems
• Surveillance and security
• Robotics
• Industrial automation

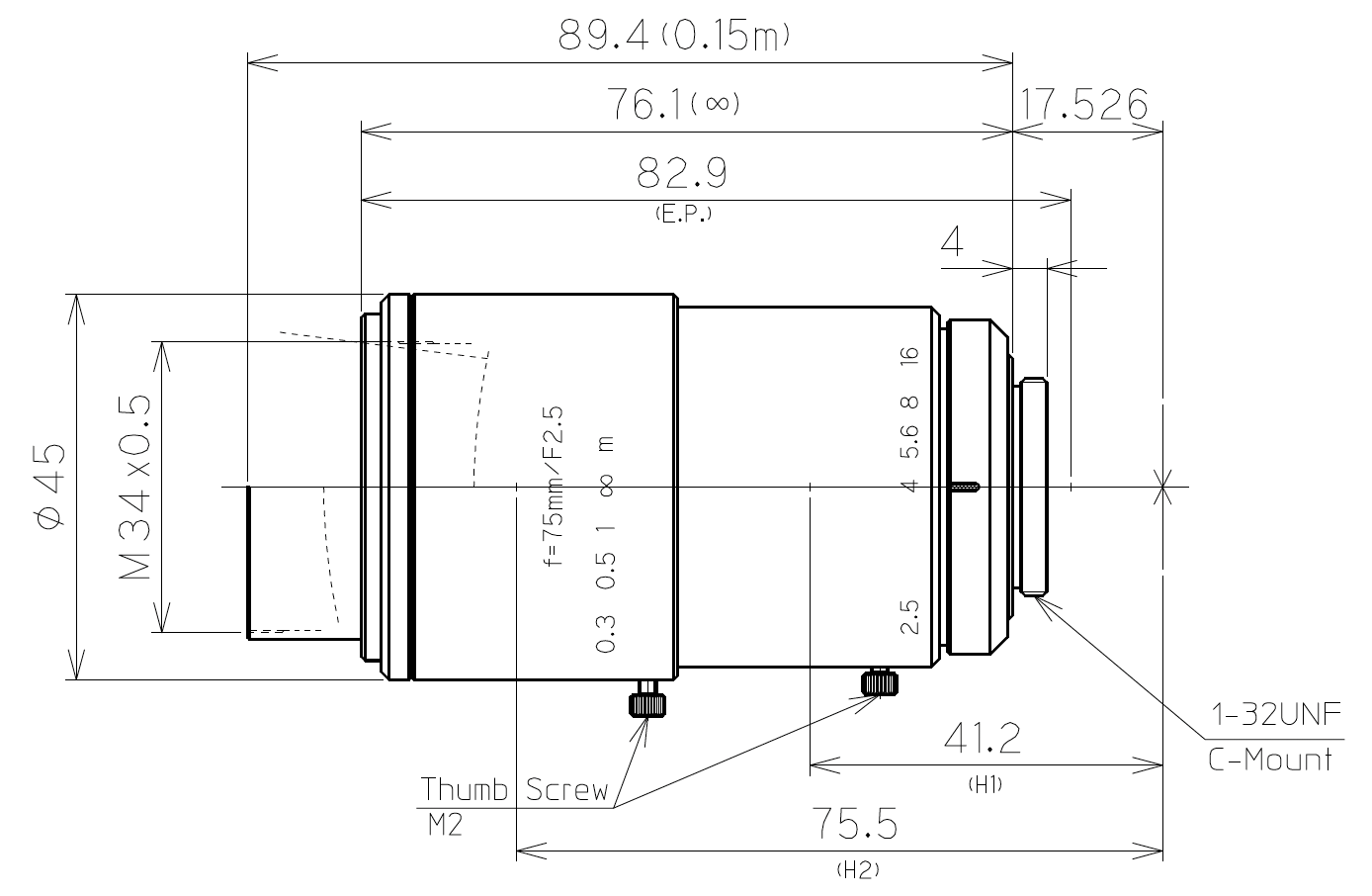

LM75FC24M Spec Sheet
