LM8JC1MS
Kowa LM8JC1MS 2/3" 8mm 2MP C-Mount Lens Compatible With OnSemi Python500, e2v EV76C570 and Aptina MT9M131 sensors and many more
Kowa LM8JC1MS 2/3" 8mm 2MP C-Mount Lens Compatible With OnSemi Python500, e2v EV76C570 and Aptina MT9M131 sensors and many more
SKU:LM8JC1MS
Couldn't load pickup availability
Experience Precision and Clarity with Kowa LM8JC1MS Lens
In the realm of machine vision and industrial applications, the Kowa LM8JC1MS 2/3" 8mm 2MP C-Mount Lens stands as a beacon of excellence. Engineered with meticulous attention to detail, this lens is tailored to meet the exacting demands of modern vision systems. With a focal length of 8mm and a 2/3" sensor size, it offers unparalleled clarity and precision, ensuring that every detail is captured with utmost accuracy.
Designed to accommodate sensors with a pixel size of 4.5μm, including popular models like the OnSemi Python500, e2v EV76C570, and Aptina MT9M131, this lens opens up a world of possibilities for machine vision applications. Its manual iris control allows for precise adjustments, while the wide VIS wavelength range ensures compatibility with diverse lighting conditions.
One of the standout features of the Kowa LM8JC1MS lens is its compact yet powerful design. Despite its small size, it delivers very good brightness in peripheral areas, thanks to advanced optical engineering. Additionally, it boasts very low distortion, guaranteeing accurate and reliable imaging across various industrial settings.
From automated inspection systems to robotics guidance and quality control applications, the Kowa LM8JC1MS lens excels in every scenario. Whether you're conducting object recognition tasks or monitoring surveillance feeds, this lens elevates the performance of your vision system to new heights. Experience the difference precision optics can make with the Kowa LM8JC1MS lens.
Features:
- Compatible with OnSemi, e2v, and Aptina sensors
- Compact design with low distortion
- Manual iris control for precise adjustments
- High resolution for detailed imaging
- Wide VIS wavelength range for versatile applications
Applications:
- Automated inspection
- Robotics guidance systems
- Quality control
- Object recognition
- Surveillance systems
| Focal Length (mm) | 8 mm |
| Sensor Size | 2/3" |
| Pixel Size (µm) | 4,5 |
| Mount | C-Mount |
| Iris Control | Manual |
| Iris Range (F-Stop) | 1,4 |
| Lens Type | Fixed Focal Lens |
| Wavelength Range | VIS (380nm - 780nm) |
| Focusing range (m) | 0,1 - ∞ |
| Focus Control | Manual |
| Shooting range at MOD, horizontal (mm) | 120.3 |
| Shooting range at MOD, vertical (mm) | 90.0 |
| Resolution (Center, Corner) | 120lp/mm,100lp/mm |
| Megapixel | 2 |
| TV Distortion (%) | -0,6 |
| Back Focus in Air (mm) | 9,74 |
| Filter Size (mm) | M27 x P0,5 |

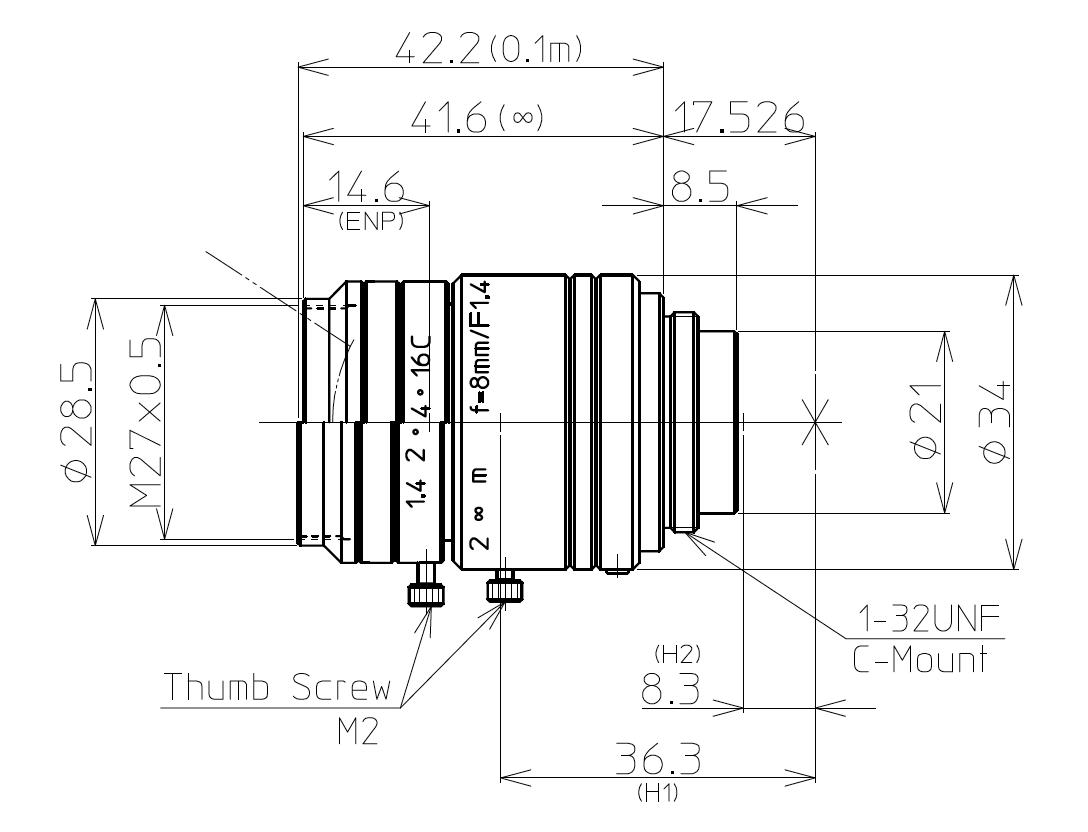

| Size (mm) | Ø34 X 41,6 |
| Weight | 90 |
| Temperature Range | -10°C - +50°C |
| Series | JC1MS |
| Application | Machine Vision |
