USA Security Systems

FLBC12209M

RICOH FL-BC1220-9M 1" 9MP 12mm Manual Iris Lens

RICOH FL-BC1220-9M 1" 9MP 12mm Manual Iris Lens

SKU:FL-BC1220-9M

Regular price $371.00 USD
Regular price Sale price $371.00 USD
Sale Sold out
Tax included. Shipping calculated at checkout.

Enhance Your Vision with the RICOH FL-BC1220-9M Lens

Discover the power of precision with the RICOH FL-BC1220-9M (FLBC12209M) 1" lens, expertly designed to meet the demanding needs of high-resolution imaging. Crafted by RICOH, a leader in imaging solutions, this lens is engineered to deliver exceptional clarity and detail, making it the perfect choice for industrial and machine vision applications where accuracy is paramount.

The RICOH FL-BC1220-9M lens boasts an impressive 9MP resolution and a 12mm focal length, ensuring sharp, detailed images even at close range. Its manual iris allows for precise control over the depth of field, giving you the flexibility to adapt to various lighting conditions. The versatile C-Mount design guarantees compatibility with a wide range of imaging systems, providing seamless integration into your existing setup.

Whether you're inspecting intricate electronic components or detecting surface defects on industrial materials, the RICOH FL-BC1220-9M lens excels in delivering the precision you need. Elevate your imaging capabilities and achieve unparalleled clarity with the RICOH FL-BC1220-9M lens. Don't settle for less—unlock the full potential of your vision system today.

Upgrade to the RICOH FL-BC1220-9M lens for top-tier imaging performance in industrial and machine vision applications. Experience the difference with 9MP resolution and a 12mm focal length.

Download Data Sheet

Description
  • Fixed focal length lens, high-resolution, compact 9 Megapixel lens, with locking screws, for C- and CS- Mount cameras
  • High resolving power of 135 lp/mm from centre to corners of the image
Specials Pixel Pitch: 3.69 µm
Format 1"
Mount C
Focal Length 12.0 mm
Iris Range F2 - 16
Iris Type Manual
Max. iris aperture 1:2.0
Focus control Manual
Minimum Object Distance 80 mm
Filter size in mm 40.5 x 0.5

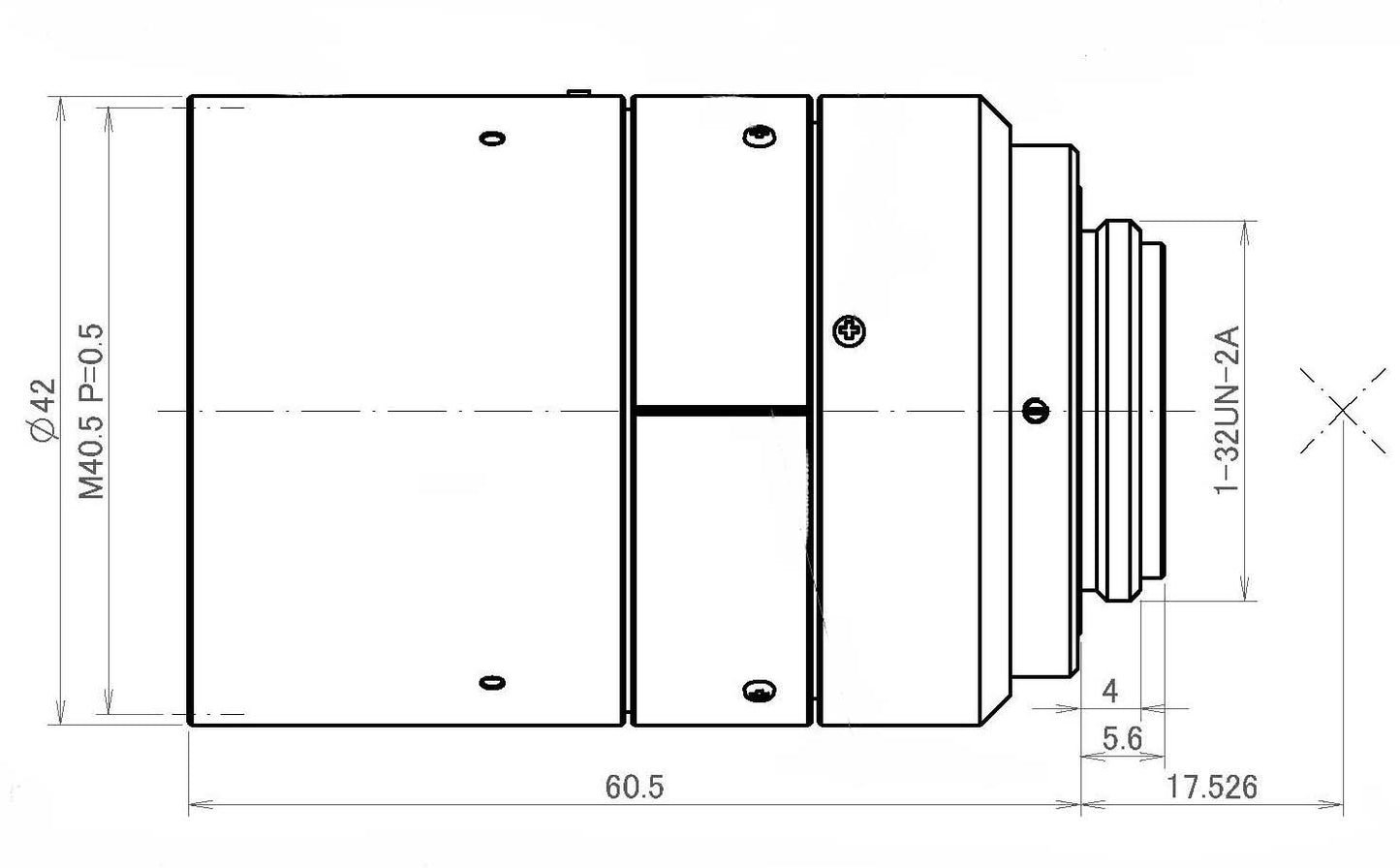

Dimensions in mm Ø42 x 60.5
Weight 156 g
Temperature range -10°C bis +50°C
Comment Back focal length: 14.5 mm
Horizontal Angle Of View 1/3" 22.7°
Horizontal Angle Of View 1/2" 30.0°
Horizontal Angle Of View 2/3" 40.6°
Horizontal Angle Of View 1" 57.0°
