RICOH FL-CC0814A-2M 2/3" 2MP 8mm Manual Iris Lens
RICOH FL-CC0814A-2M 2/3" 2MP 8mm Manual Iris Lens
SKU:FL-CC0814A-2M
Couldn't load pickup availability
The RICOH FL-CC0814A-2M Lens: High-Performance Precision for Industrial Imaging
The RICOH FL-CC0814A-2M lens is a superior solution for machine vision and industrial imaging applications. Designed for optimal performance with 2-megapixel CCD and CMOS sensors, this lens ensures sharp, high-resolution, and high-contrast imaging, making it the ideal choice for precision-driven tasks. The FL-CC0814A-2M is engineered to minimize degradation of resolution and contrast at the periphery, delivering consistent image quality across the entire frame — a critical advantage for machine vision applications where accuracy is essential.
Compact and lightweight, the FL-CC0814A-2M lens is perfect for factory automation (FA) and other industrial environments. It excels in settings where precision is key, effectively reducing distortion that can compromise image measurement and recognition tasks. Built to withstand challenging conditions, including vibrations and shocks, the lens features durable construction and user-friendly focus and iris locking mechanisms, ensuring reliable and consistent performance across a wide range of applications.
Enhance your imaging solutions with the RICOH FL-CC0814A-2M lens and experience exceptional clarity, precision, and durability in every frame. Whether for close-up imaging, quality control, or automated inspection, this lens is your go-to choice for superior industrial imaging performance. Elevate your machine vision capabilities today with the FL-CC0814A-2M!
Format Size | 2/3" format |
Focal length | 8 mm |
Maximum aperture ratio | 11.4 |
Iris range | 1.4-16 |
Mount | C |
Back focal length | 11.1 mm |
Filter size | 40.5 P=0.5 mm |
Dimensions | 42×36.7 mm |
Weight | 76 |
Remarks | Focus & Iris lock screws |

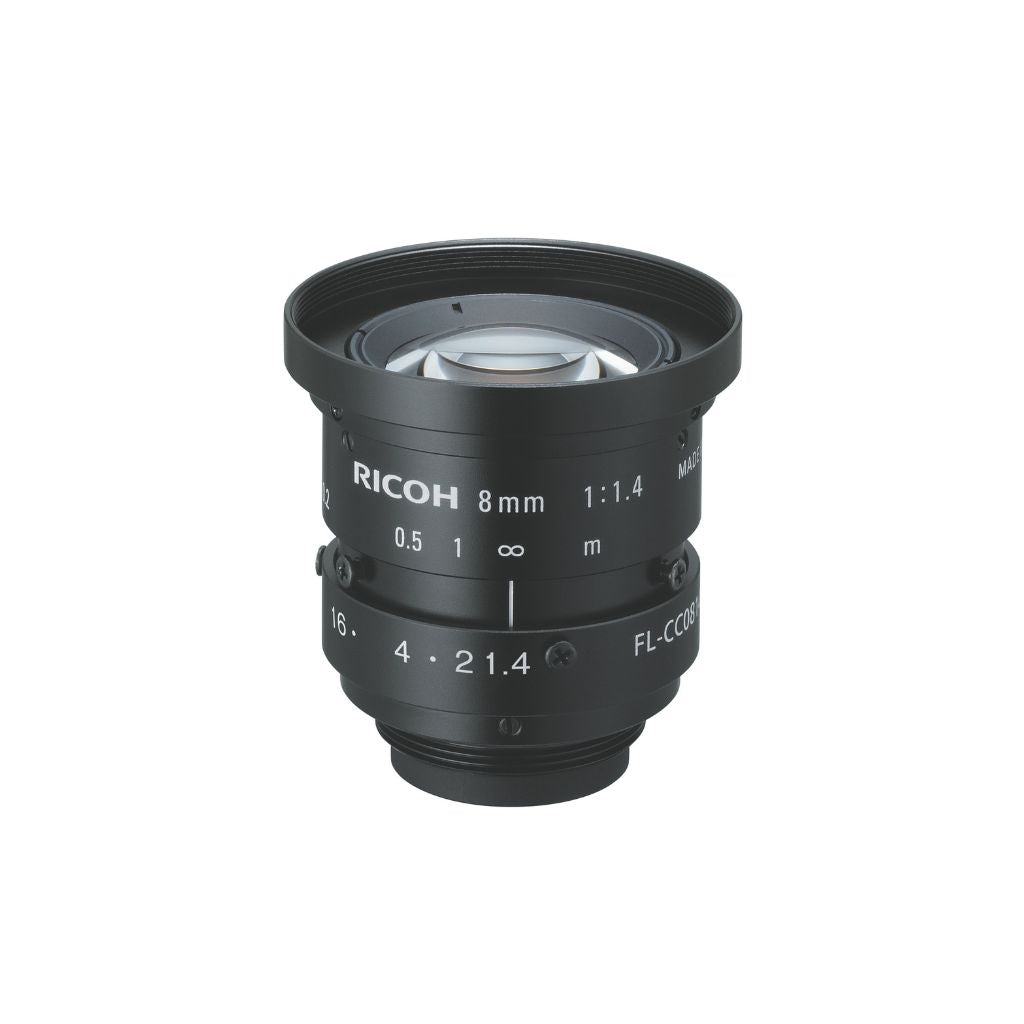

![FL-CC0814A-2M Front Angled View](http://www.usasecuritysystems.com/cdn/shop/files/FL-CC0814A-2M.jpg?v=1724881112&width=1445)

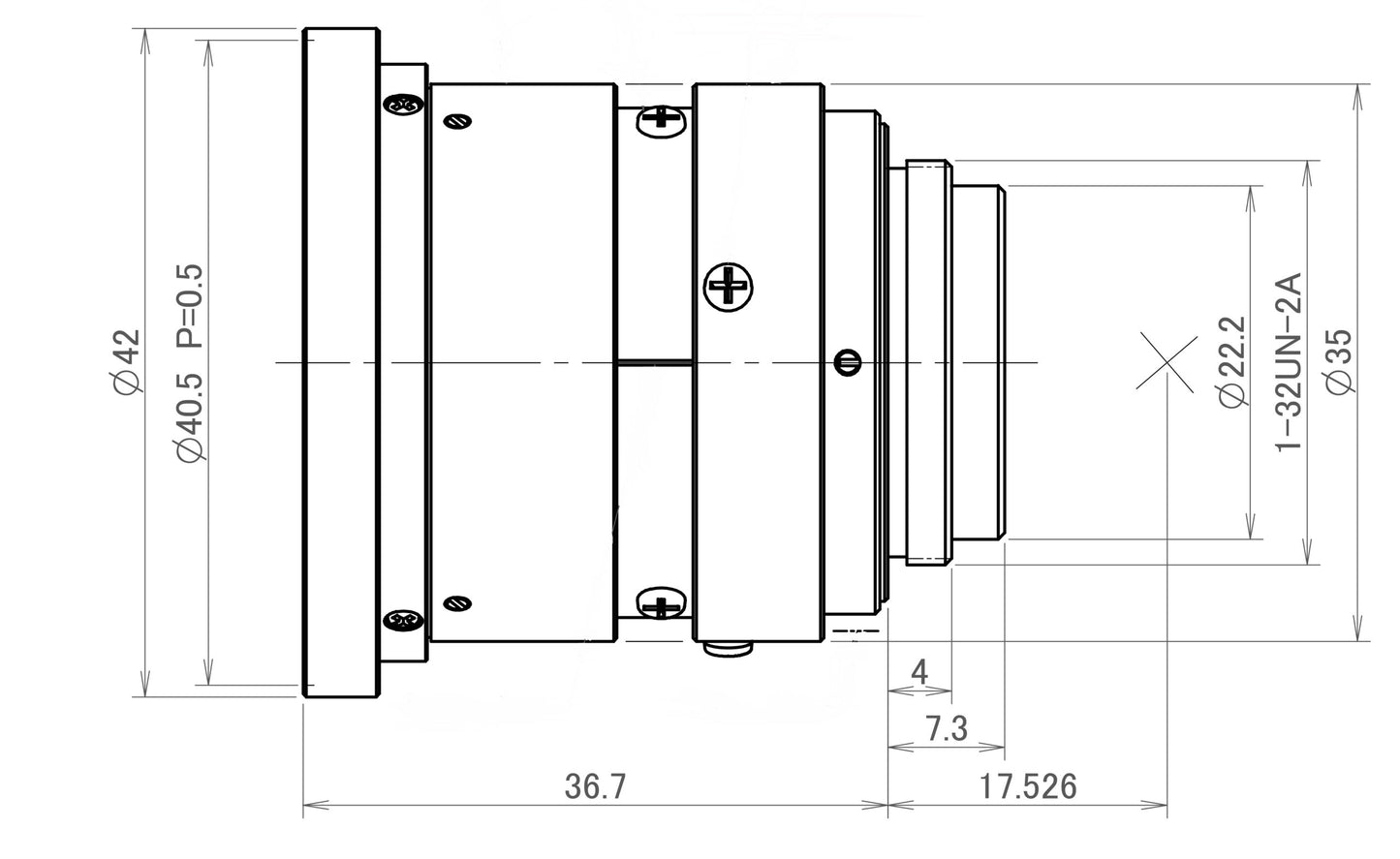

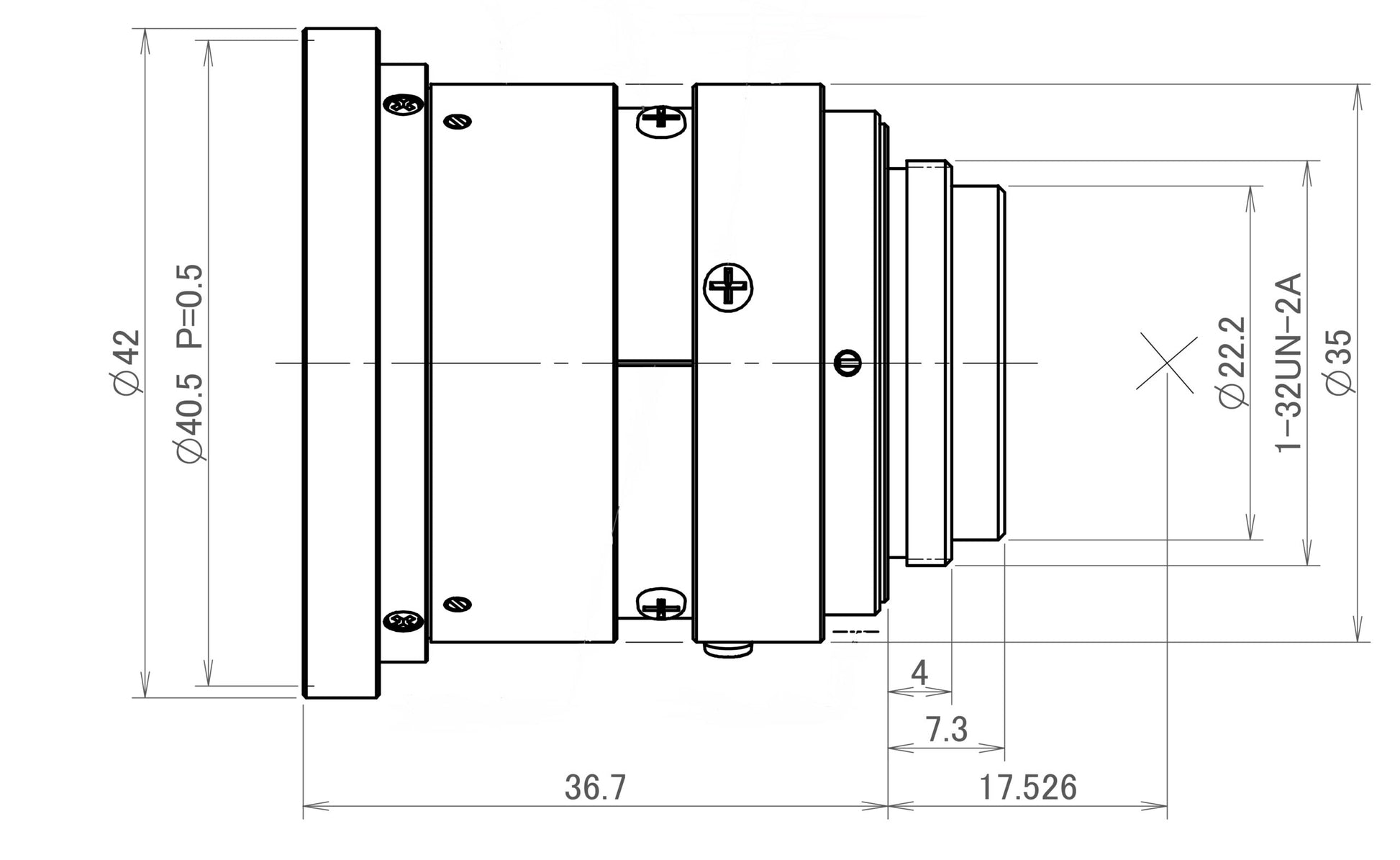

![FL-CC0814A-2M Dimensions Diagram](http://www.usasecuritysystems.com/cdn/shop/files/FL-CC0814A-2M_Dimensions.jpg?v=1724881134&width=1445)
