RICOH FL-CC0820-5MX 5 MP 8mm Wide-Angle Focal Length FA Camera Lens
RICOH FL-CC0820-5MX 5 MP 8mm Wide-Angle Focal Length FA Camera Lens
SKU:FL-CC0820-5MX
Couldn't load pickup availability
Unlock Superior Imaging with the RICOH FL-CC0820-5MX 5 MP FA Camera Lens
Elevate your machine vision capabilities with the RICOH FL-CC0820-5MX 5 MP 8mm Wide-Angle FA Camera Lens, available at Aegis Electronic Group Inc. Specifically engineered for industrial imaging and inspection applications, this lens provides outstanding performance with a 5-megapixel resolution that captures fine details with exceptional clarity and precision. Its compact 8mm wide-angle design enables flexible placement, making it ideal for tight spaces without sacrificing image quality.
The RICOH FL-CC0820-5MX is designed with extremely low distortion, delivering sharp and accurate imaging across the entire field of view. It offers superior brightness and clarity, ensuring high-resolution and high-contrast images from edge to edge. Perfect for inspecting LCD screens for pixel defects, identifying surface flaws in metal components, or performing detailed checks in food and pharmaceutical production, this lens supports a broad range of industrial applications.
Choose the RICOH FL-CC0820-5MX lens for its advanced optical performance, rugged construction, and reliability. Trusted by professionals, it is the ultimate solution for achieving unparalleled image quality in machine vision and industrial inspection tasks. Invest in precision and dependability with this high-performance lens today.
Resolution | over 5 Mega-Pixel | |
Format size | 2/3" format | |
Focal length | 8mm | |
Maximum aperture ratio | 1:2.0 | |
Iris range | 2.0~16 | |
Mount | C | |
Horizontal angle of view |
1/3" format | 33.6° |
1/2" format | 44.0° | |
1/1.8" format | 49.0° | |
2/3" format | 58.5° | |
Minimum object distance | 0.1m | |
Back focal length | 13.0mm | |
Filter size | 30.5 P=0.5mm | |
Dimensions | φ33×43mm | |
Weight | 78g | |
Remarks | Focus & Iris lock screw |

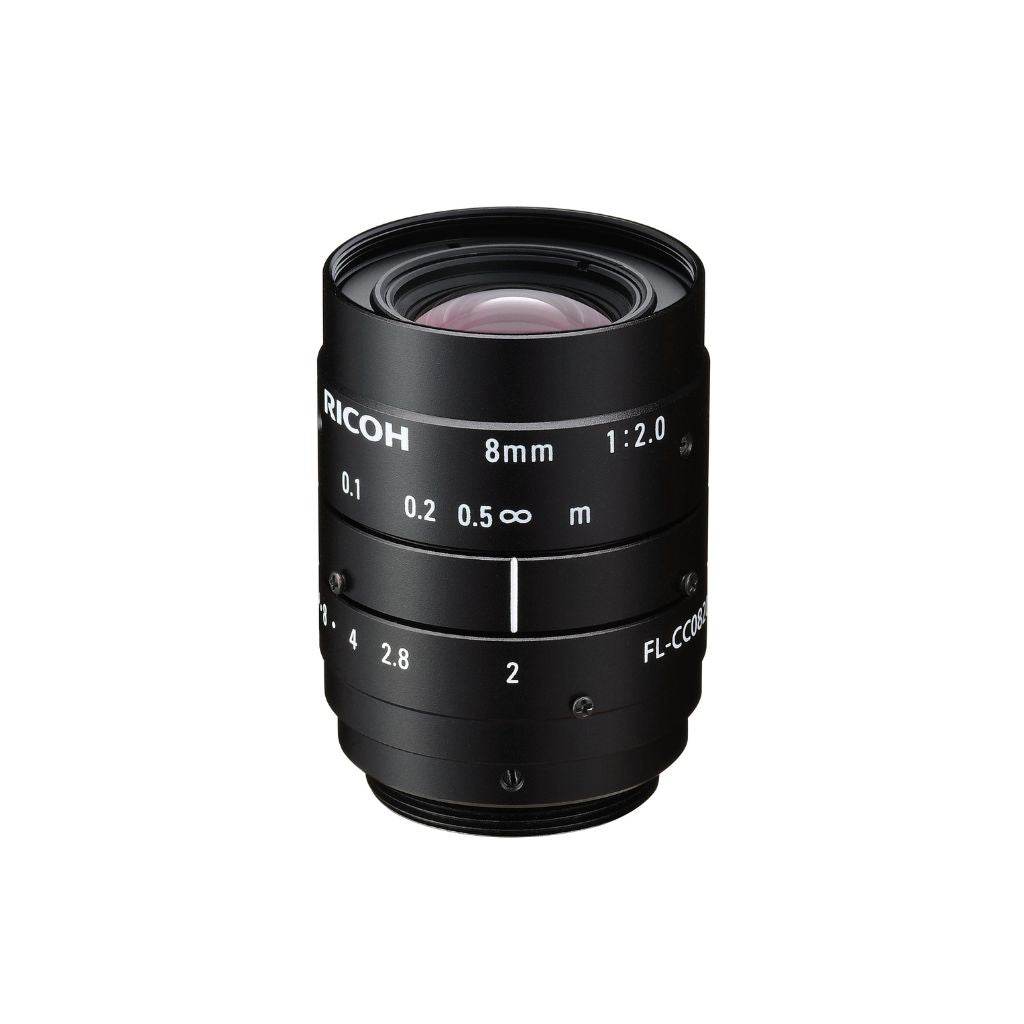

![FL-CC0820-5MX Front Angled View](http://www.usasecuritysystems.com/cdn/shop/files/FL-CC0820-5MX.jpg?v=1724882519&width=1445)

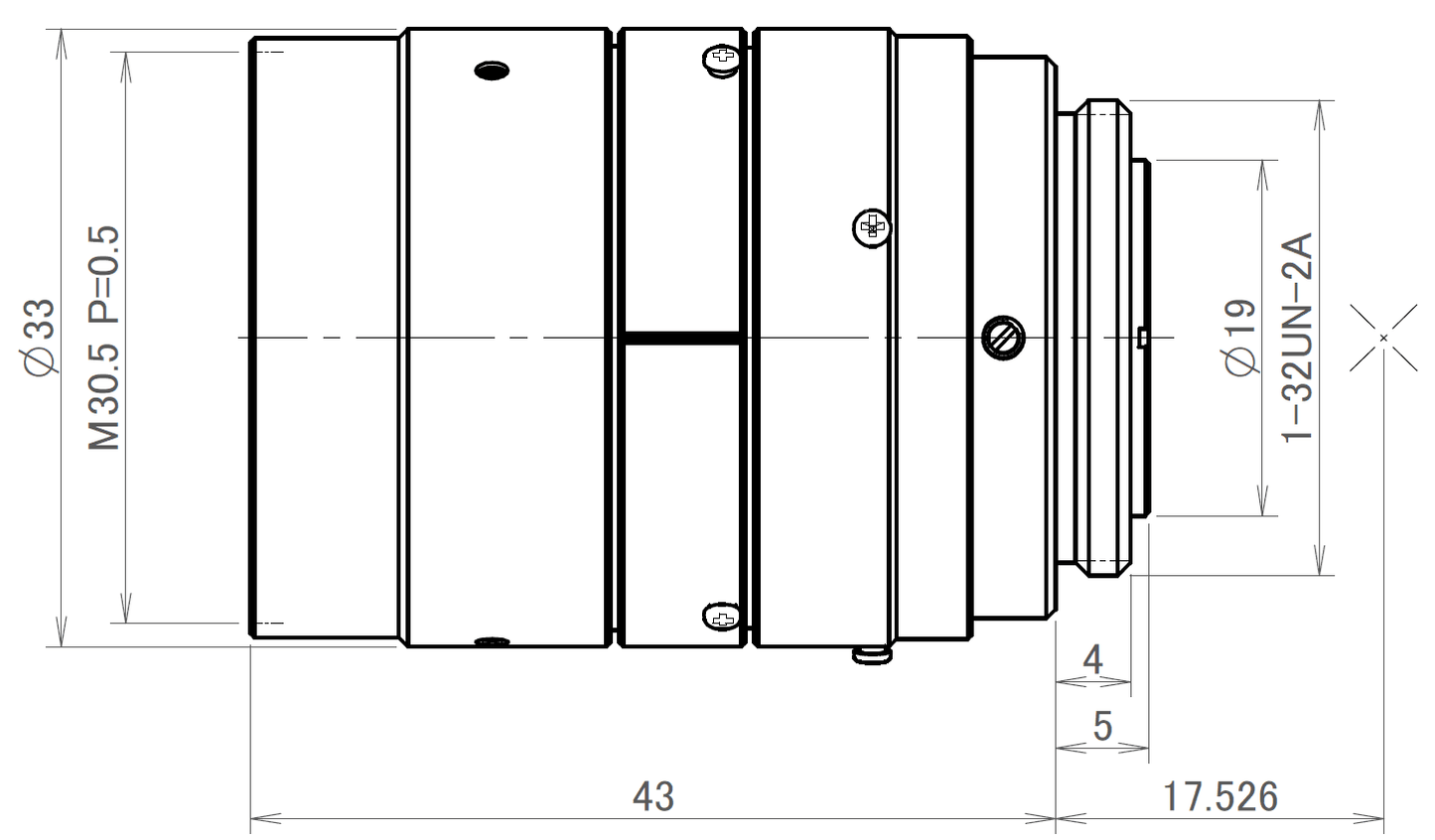

![FL-CC0820-5MX Dimensions Diagram](http://www.usasecuritysystems.com/cdn/shop/files/FL-CC0820-5MX_Dimensions.png?v=1724882588&width=1445)
