RICOH FL-CC1214-2M 2/3" 2MP 12 mm Manual Iris Lens
RICOH FL-CC1214-2M 2/3" 2MP 12 mm Manual Iris Lens
SKU:FL-CC1214-2M
Couldn't load pickup availability
Boost Your Industrial Imaging with the RICOH FL-CC1214-2M Lens
When it comes to industrial imaging, the RICOH FL-CC1214-2M lens is a standout choice for those seeking precision and performance. As a 2/3" 2MP 12mm Manual Iris Lens, the FL-CC1214-2M is engineered to deliver sharp, clear images even in challenging environments. With its 12mm focal length and aperture range of 1.4-16, this lens is ideal for applications requiring detailed imaging, such as factory automation, quality control, and machine vision tasks.
The RICOH FL-CC1214-2M lens is built to integrate easily with existing systems, featuring a robust C mount that ensures compatibility and durability. Its versatile design makes it suitable for diverse industrial settings, whether you're conducting detailed inspections on a production line or monitoring complex machinery operations. Elevate your industrial imaging capabilities with the RICOH FL-CC1214-2M and experience exceptional clarity and accuracy in every frame. This lens is not just a tool but a critical component to achieve superior imaging results in demanding applications.
Choose the RICOH FL-CC1214-2M to ensure high-quality performance, reliability, and precision for all your industrial imaging needs.
Format | 1/2" |
Mount | C |
Focal Length | 12.0mm |
Iris Range | F1.4 - 16 |
Iris Type | Manual |
Focus Control | Manual |
Horizontal Angle Of View | 28.9° |
Minimum Object Distance | 0.25m |
Filter Size in MM | 27 x 0.5 |
Dimensions in mm | 29.5 x 28.5 |
Weight | 55g |
Temperature range | -20°C to 50°C |
Comment | Diameter 29,5mm, KP: 3 lock screws each for aperture and focus plus 2 thumbed screws in the additional packaging; old part no.: C61232KP/H1214-M (KP) |

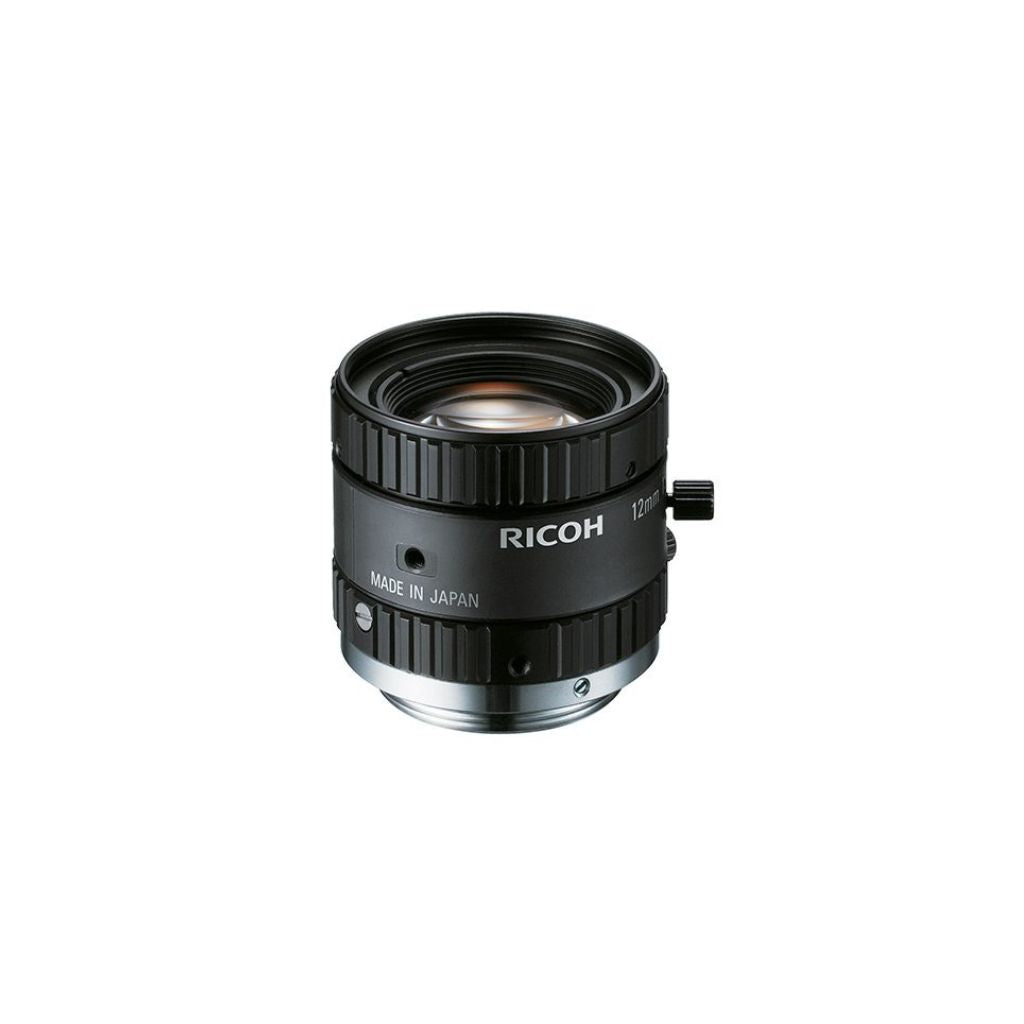

![FL-CC1214-2M Front Angled View](http://www.usasecuritysystems.com/cdn/shop/files/FL-CC1214-2M_Front_Angled_View_fdcdefbb-9c9e-403e-a0b4-f0726286ef83.jpg?v=1714669107&width=1445)

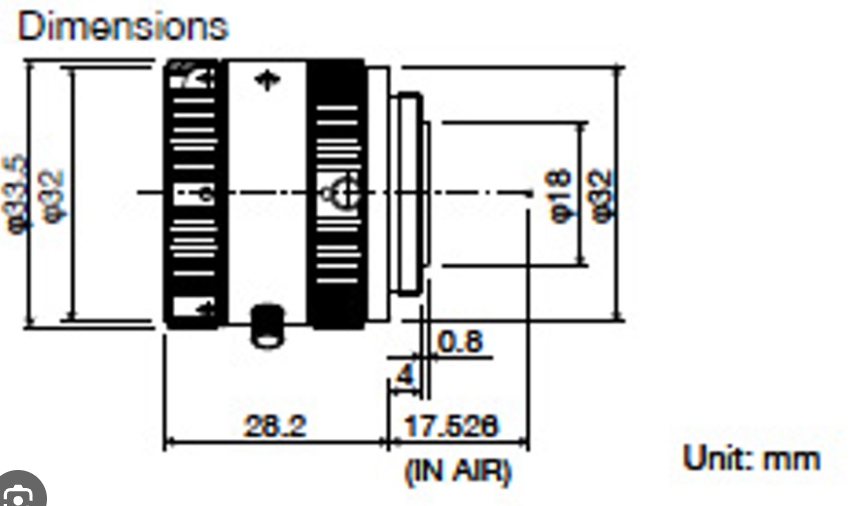

![FL-CC1214-2M Dimensions Diagram](http://www.usasecuritysystems.com/cdn/shop/files/FL-CC1214-2M_Dimensions.png?v=1724883465&width=1445)
