RICOH FL-CC1214A-2M 2/3" 2MP 12mm Manual Iris Lens
RICOH FL-CC1214A-2M 2/3" 2MP 12mm Manual Iris Lens
SKU:FL-CC1214A-2M
Couldn't load pickup availability

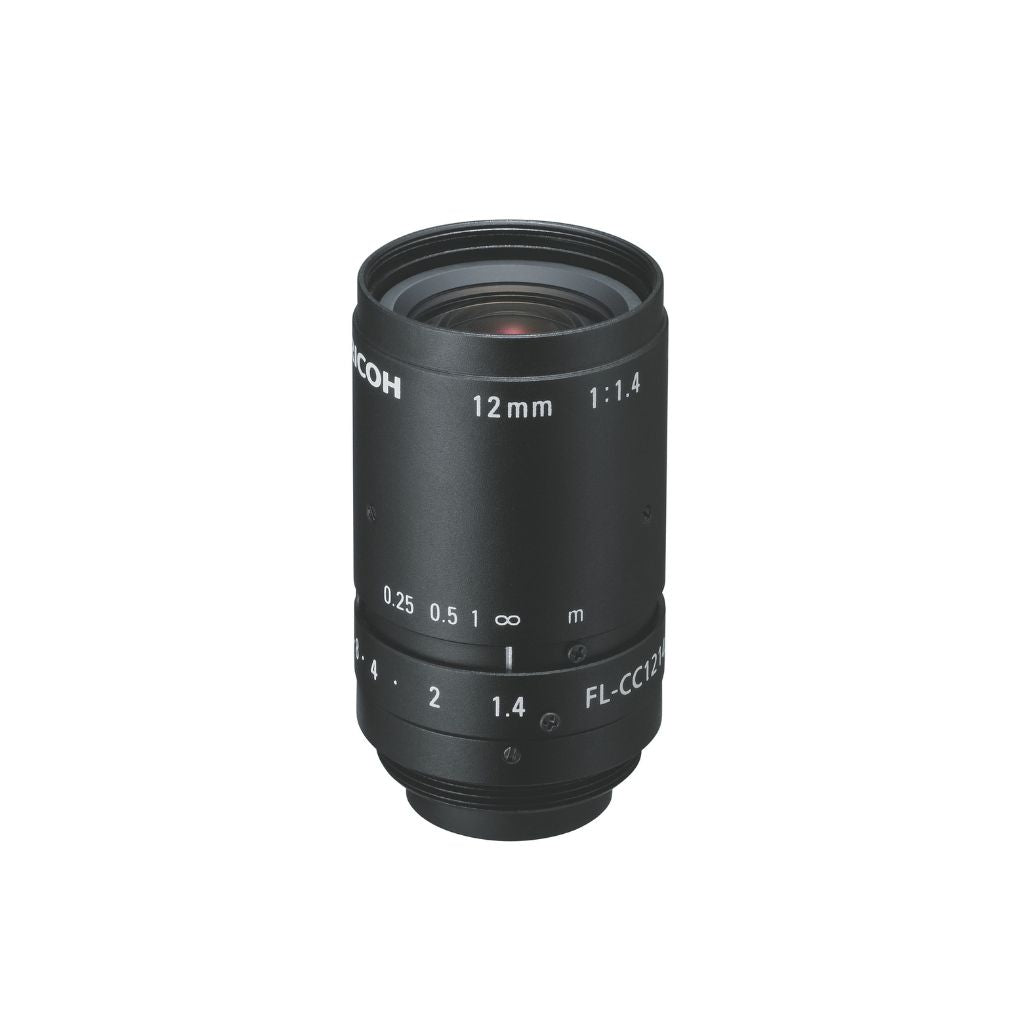

FL-CC1214A-2M Lens: High-Precision Ricoh Lens for Machine Vision and Industrial Applications
The Ricoh FL-CC1214A-2M lens is specifically designed to meet the rigorous demands of machine vision and industrial imaging. This high-performance lens offers exceptional resolution, ensuring clear, high-contrast images for precise inspection tasks. With a focal length of 12mm and a maximum aperture of f/1.4, the FL-CC1214A-2M is ideal for close-up inspections where accuracy is critical.
Engineered for durability, the Ricoh FL-CC1214A-2M lens is built to withstand challenging industrial environments. Its robust design includes secure focus and iris locking mechanisms to maintain stability even in vibration-prone settings, ensuring consistent performance. The advanced optical construction of this lens minimizes distortion and aberrations, making it perfect for applications such as defect detection, high-precision measurement, and automated quality control.
Whether you are enhancing a machine vision system or upgrading your industrial imaging equipment, the FL-CC1214A-2M lens delivers unmatched clarity, reliability, and performance. Choose the Ricoh FL-CC1214A-2M for your next project and experience the difference in quality and precision.
| Format | 1/2" |
| Mount | C |
| Focal Length | 12.0mm |
| Iris Range | F1.4 - 16 |
| Iris Type | Manual |
| Focus Control | Manual |
| Horizontal Angle Of View | 28.9° |
| Minimum Object Distance | 0.25m |
| Filter Size in MM | 27 x 0.5 |

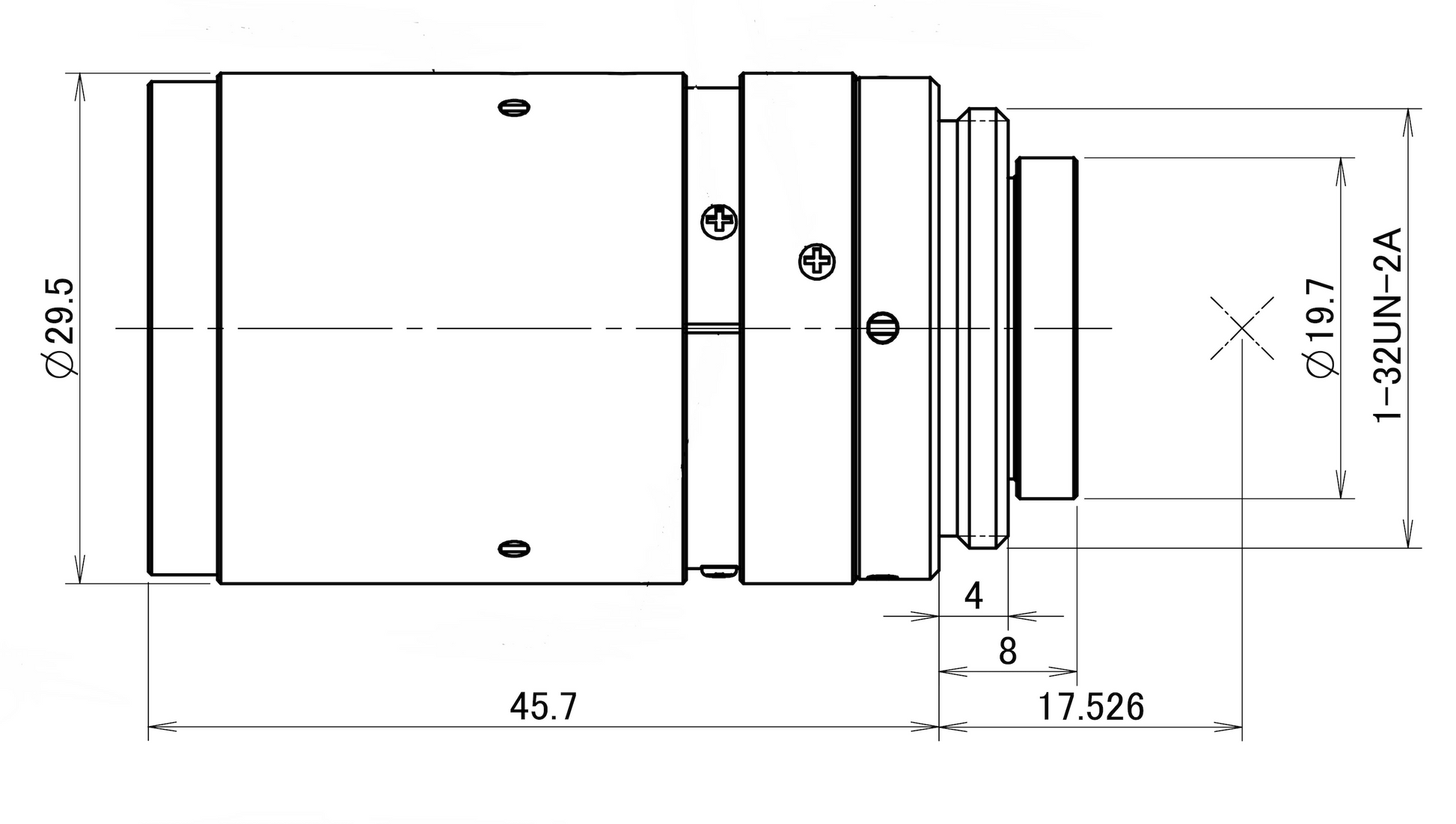

| Dimensions in mm | 29.5 x 28.5 |
| Weight | 55g |
| Temperature range | -20°C to 50°C |
| Comment | Diameter 29,5mm, KP: 3 lock screws each for aperture and focus plus 2 thumbed screws in the additional packaging; old part no.: C61232KP/H1214-M (KP) |
