RICOH FL-CC1218-5MX 5MP 12mm FA Camera Lens
RICOH FL-CC1218-5MX 5MP 12mm FA Camera Lens
SKU:FL-CC1218-5MX
Couldn't load pickup availability
Discover the RICOH FL-CC1218-5MX 5MP 12mm FA Camera Lens: The Ultimate Tool for Industrial Imaging
Experience top-tier machine vision with the RICOH FL-CC1218-5MX 5MP 12mm FA Camera Lens, designed to set new standards in industrial imaging. This lens, crafted to meet the rigorous JIIA standards and featuring an S-Rank classification, excels in delivering exceptional image quality. The FL-CC1218-5MX lens ensures high-resolution clarity from the center to the edges of the field of view, minimizing distortion and maximizing accuracy for critical inspection tasks.
Featuring a sleek, compact design and a floating focusing mechanism, the FL-CC1218-5MX integrates seamlessly into a variety of industrial environments. Its superior optical performance is ideal for detailed inspections, including detecting missing pixels in LCD screens, identifying hairline cracks in metal components, and performing thorough evaluations of food and pharmaceutical products. This lens scrutinizes shape, color, and surface quality with precision, making it a vital asset for any high-stakes inspection application.
Elevate your imaging capabilities and ensure flawless results with the RICOH FL-CC1218-5MX 5MP 12mm FA Camera Lens.
Resolution | over 5 Mega-Pixel | |
Format size | 2/3" format | |
Focal length | 12mm | |
Maximum aperture ratio | 1:1.8 | |
Iris range | 1.8~16 | |
Mount | C | |
Horizontal angle of view |
1/3" format | 22.7° |
1/2" format | 30.0° | |
1/1.8" format | 33.6° | |
2/3" format | 40.5° | |
Minimum object distance | 0.1m | |
Back focal length | 13.2mm | |
Filter size | 30.5 P=0.5mm | |
Dimensions | φ33×47mm | |
Weight | 85g | |
Remarks | Focus & Iris lock screw |

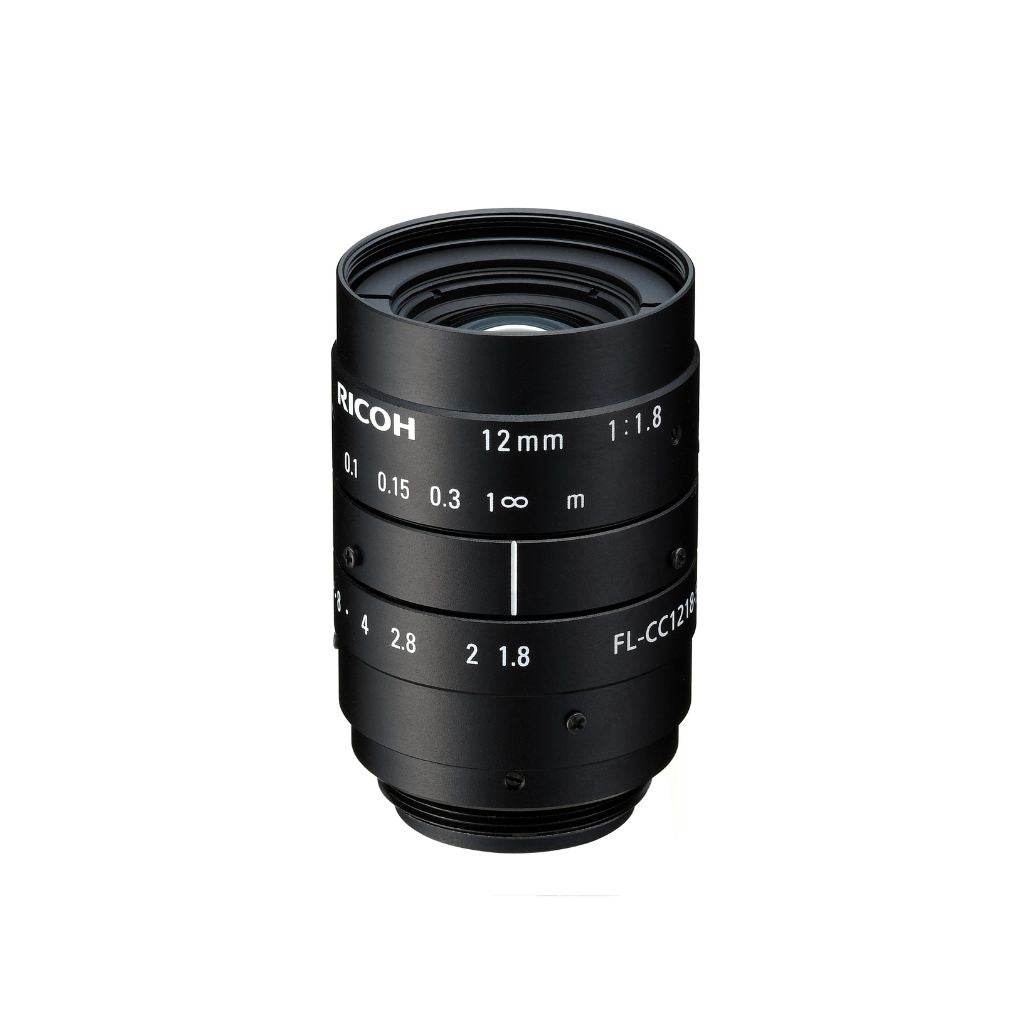

![FL-CC1218-5MX Front Angled View](http://www.usasecuritysystems.com/cdn/shop/files/FL-CC1218-5MX.jpg?v=1724885322&width=1445)

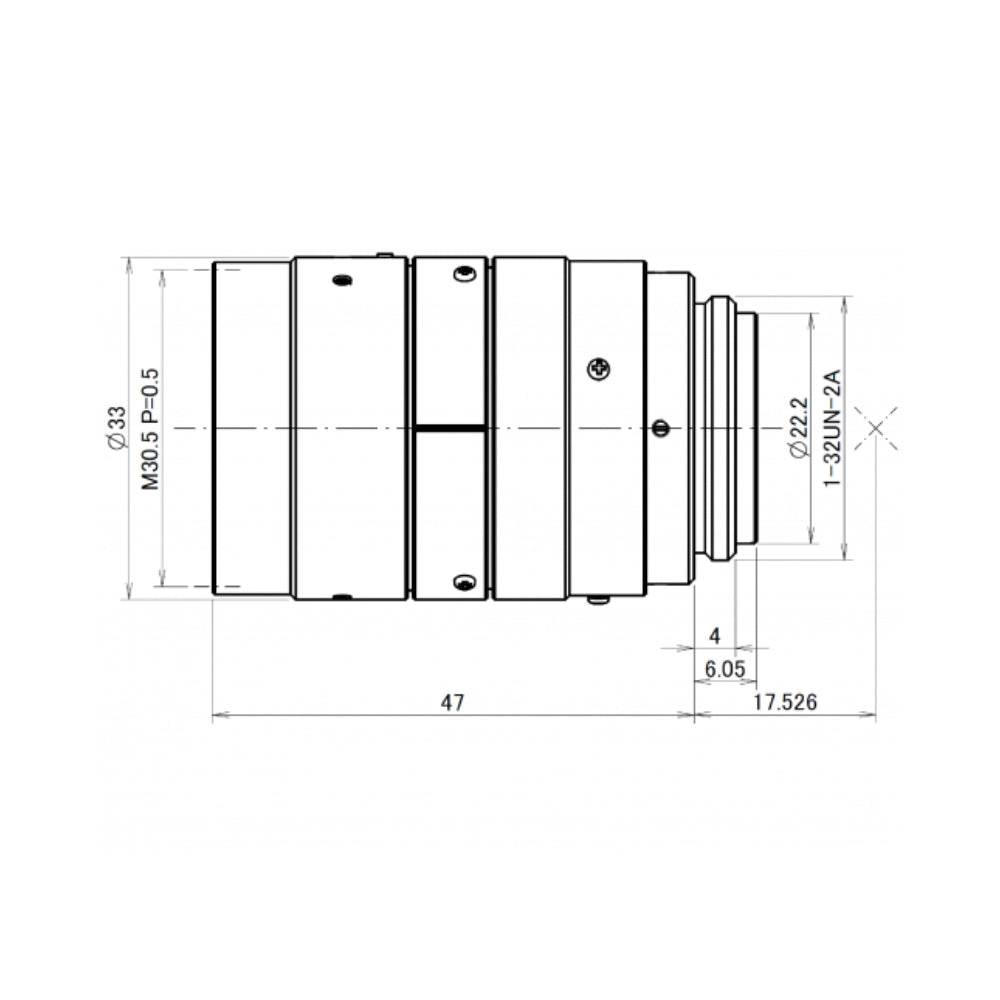

![FL-CC1218-5MX Dimensions Diagram](http://www.usasecuritysystems.com/cdn/shop/files/FL-CC1218-5MX_Dimensions.jpg?v=1724885359&width=1445)
