RICOH FL-CC1614-2M (C31634KP) 2/3" 2MP 16 mm Manual Iris Lens
RICOH FL-CC1614-2M (C31634KP) 2/3" 2MP 16 mm Manual Iris Lens
SKU:FL-CC1614-2M
Couldn't load pickup availability
Optimize Your Machine Vision with the RICOH FL-CC1614-2M Lens
The RICOH FL-CC1614-2M lens is a top-tier choice for anyone looking to enhance their machine vision systems. Designed specifically for industrial applications, this C-Mount lens offers a 16mm focal length and manual iris control, making it an ideal solution for achieving precise and clear imaging in a wide range of settings.
Industries such as semiconductor manufacturing, electronics inspection, and quality control can greatly benefit from the superior imaging performance of the FL-CC1614-2M. This lens is perfectly suited for inspecting chip mounters, wafers, and electronic substrates, delivering exceptional clarity and detail. Its compatibility with 2/3" format sensors ensures versatility and adaptability to various machine vision setups.
RICOH, known for its advanced optical technology, has engineered the FL-CC1614-2M to meet the rigorous demands of modern industrial environments. This lens not only improves image quality but also enhances the efficiency and accuracy of inspection processes.
Upgrade your machine vision system with the RICOH FL-CC1614-2M lens today. Experience the difference that precision optics can make in your industrial automation efforts. Don’t settle for less—choose the lens that delivers clarity, control, and consistent performance.
Format Size | 2/3" |
Focal Length | 16 mm |
Maximum aperture ratio |
1:1.4 |
Iris Range | 1.4-16 |
Mount | C |
Horizontal Angle of View 1/3" Format | 17.1° |
Horizontal Angle of View 1/2" Format | 22.7° |
Horizontal Angle of View 1 1/8" Format | 25.5° |
Horizontal Angle of View 2/3" Format | 31.0° |
Min. Object Distance | 0.25 mm |
Back Focal Length | 14.61 mm |
Filter Size | 27 P=0.5 mm |
Dimensions | φ29.5×33.2 mm |
Weight | 63 g |
Comments | Focus & Iris lock screws |

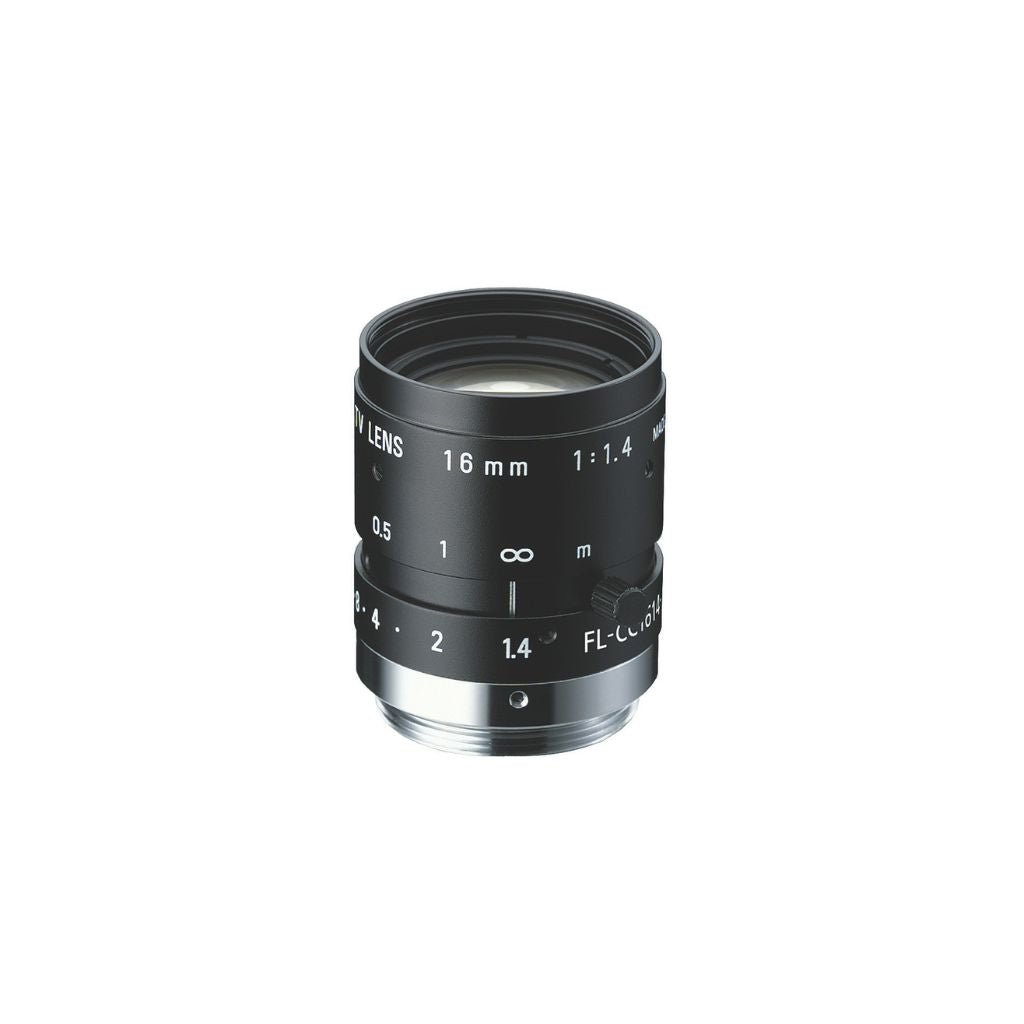

![FL-CC1614-2M Front Angled View](http://www.usasecuritysystems.com/cdn/shop/files/FL-CC1614-2M.jpg?v=1725396781&width=1445)

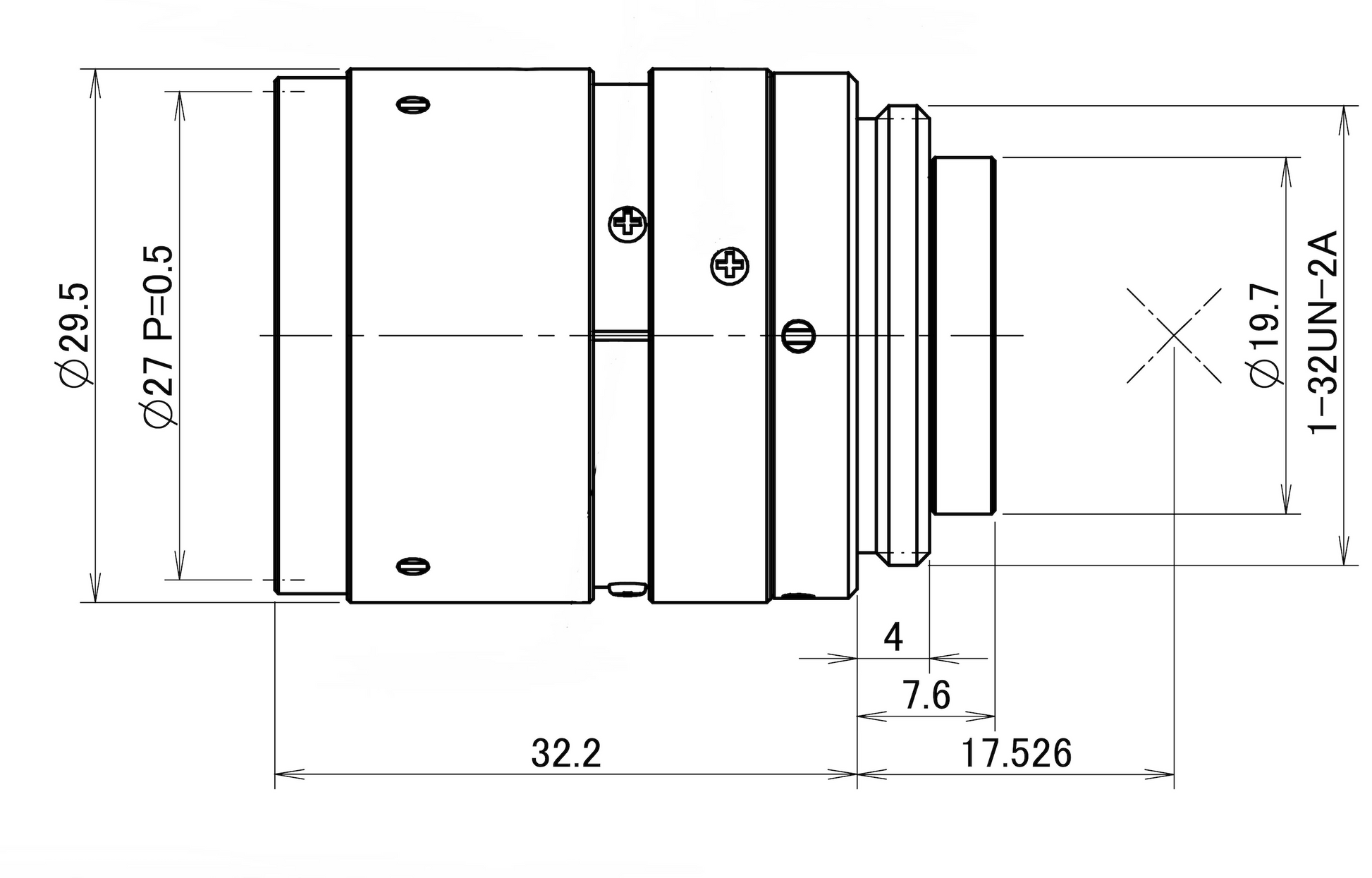

![FL-CC1614-2M Dimensions Diagram](http://www.usasecuritysystems.com/cdn/shop/files/FL-CC1614-2M_Dimensions.png?v=1725396807&width=1445)
