RICOH FL-CC1614A-2M 2/3" 2MP 16mm Manual Iris Lens
RICOH FL-CC1614A-2M 2/3" 2MP 16mm Manual Iris Lens
SKU:FL-CC1614A-2M
Couldn't load pickup availability
Discover the Precision of the RICOH FL-CC1614A-2M Lens with USA Security Systems
At USA Security Systems, we proudly offer the RICOH FL-CC1614A-2M lens, a premier choice for industrial and machine vision applications. Known for its exceptional optical performance, the FL-CC1614A-2M lens is meticulously designed to deliver sharp, high-resolution images with unparalleled clarity and contrast. Its compact and lightweight build, coupled with robust construction, makes it an ideal solution for high-precision tasks such as manufacturing inspections, chip mounting, wafer inspection, and electronic substrate imaging.
The RICOH FL-CC1614A-2M lens is engineered to minimize distortion, ensuring consistent image quality across its entire field of view. It features advanced focus and iris locking mechanisms that provide stability and ease of use, even in environments prone to vibration. Whether you're in the automotive, electronics, or pharmaceutical sectors, this lens ensures precise and reliable results, enhancing your machine vision and industrial processes.
Elevate your imaging precision with the RICOH FL-CC1614A-2M lens from USA Security Systems. Perfect for demanding industrial and machine vision applications. Shop now for superior performance and reliability!
Format size |
2/3" format |
|
Focal length |
16 mm |
|
Maximum aperture ratio |
1:1.4 |
|
Iris range |
1.4-16 |
|
Mount |
C |
|
Horizontal |
1/3" format |
17.1° |
1/2" format |
22.6° |
|
1/1.8" format |
25.3° |
|
2/3" format |
30.7° |
|
Minimum object distance |
0.1 m |
|
Back focal length |
10.7 mm |
|
Filter size |
27 P=0.5 mm |
|
Dimensions |
φ29.5×32.2 mm |
|
Weight |
54 g |
|
Remarks |
Focus & Iris lock screws |

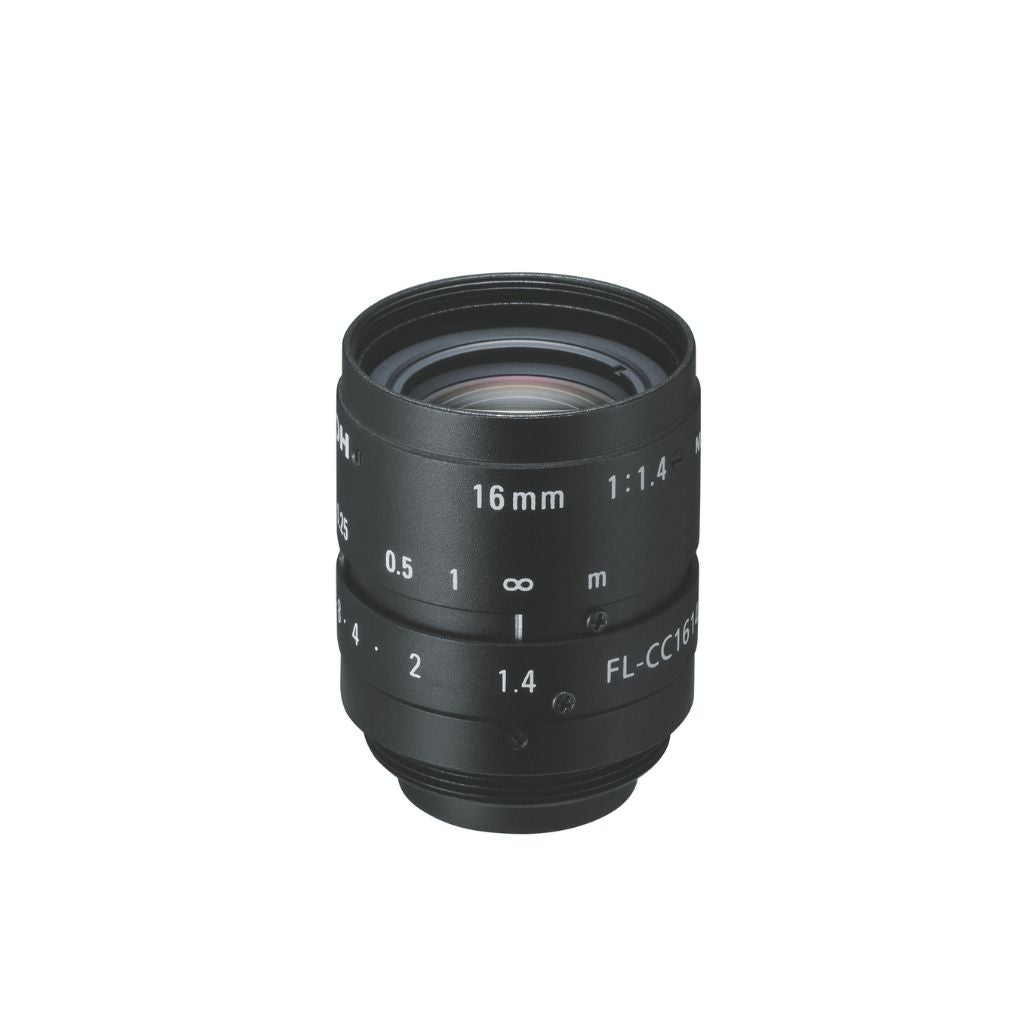

![RICOH FL-CC1614A-2M 2/3" 2MP 16mm Manual Iris Lens](http://www.usasecuritysystems.com/cdn/shop/files/FL-CC1614A-2M.jpg?v=1725654214&width=1445)

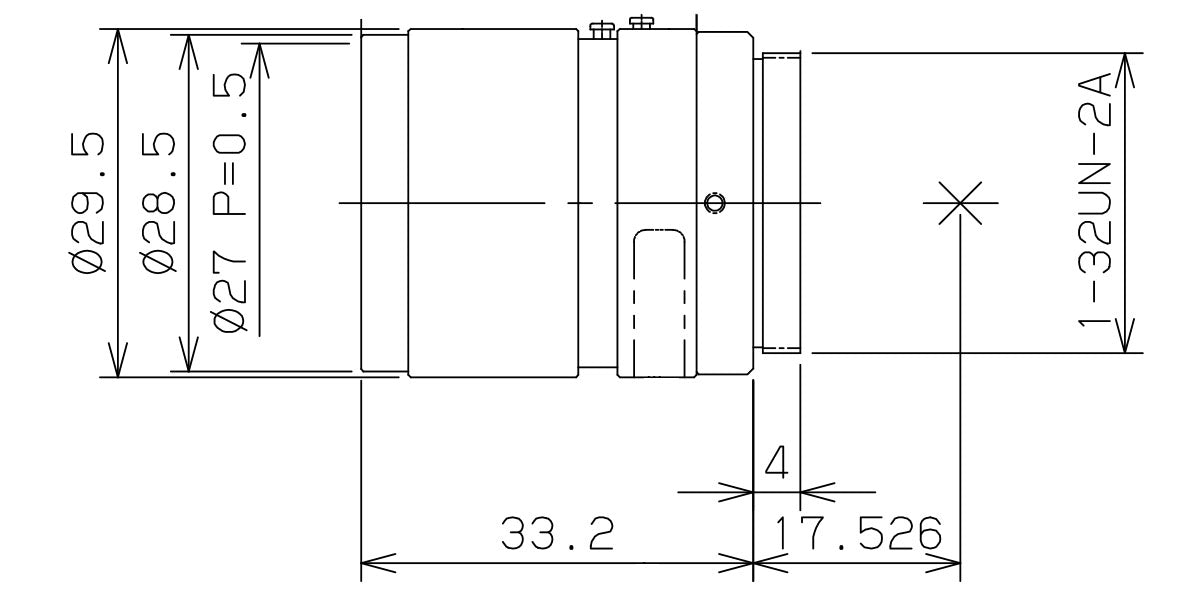

![FL-CC1614A-2M Dimensions](http://www.usasecuritysystems.com/cdn/shop/files/FL-CC1614A-2M_Dimensions.jpg?v=1725654299&width=1445)
