RICOH FL-CC2514A-2M 2/3" 2MP 25 mm Manual Iris Lens
RICOH FL-CC2514A-2M 2/3" 2MP 25 mm Manual Iris Lens
SKU:FL-CC2514A-2M
Couldn't load pickup availability
Unleashing the Potential of the RICOH FL-CC2514A-2M Manual Iris Lens
The RICOH FL-CC2514A-2M manual iris lens stands as a benchmark in industrial imaging, expertly crafted by RICOH, a leader in advanced lens technology. Designed specifically to enhance the capabilities of 2-megapixel CCD and CMOS sensors, this lens offers an exceptional combination of precision, durability, and optical clarity, making it a top choice for professionals in the industrial and machine vision sectors.
One of the key attributes of the FL-CC2514A-2M is its ability to deliver high-resolution images with outstanding contrast. This lens is engineered to maintain sharpness and detail from the center to the periphery, minimizing resolution loss and ensuring that every aspect of the image is captured with unparalleled accuracy. This makes it an ideal solution for tasks that require meticulous attention to detail, such as inspecting wafers, electronic substrates, or chip mounters.
Built to endure the rigors of industrial environments, the FL-CC2514A-2M lens features a robust construction that can withstand vibrations, fluctuating temperatures, and other challenging conditions. Despite its durability, it maintains a compact and lightweight design, offering ease of integration and flexibility in a variety of applications. Additionally, the reliable focus and iris locking mechanisms simplify the operation, ensuring consistent and repeatable performance over time.
For close-up imaging tasks that demand the highest level of precision, the FL-CC2514A-2M lens excels with its distortion reduction capabilities. This feature is critical for applications where accurate image measurement and recognition are essential. Whether deployed in high-precision manufacturing, quality inspection, or advanced machine vision systems, the FL-CC2514A-2M consistently delivers superior image quality, making it an indispensable tool for professionals seeking reliability and excellence in industrial imaging.
Format Size | 2/3" |
Focal Length | 25 mm |
Maximum aperture ratio | 1:1.4 |
Iris Range | 1.4~16 |
Mount | C |
Horizontal Angle of View 1/3" Format | 10.7° |
Horizontal Angle of View 1/2" Format | 14.2° |
Horizontal Angle of View 1 1/8" Format | 16.0° |
Horizontal Angle of View 2/3" Format | 19.5° |
Min. Object Distance | 0.1 m |
Back Focal Length | 12.1 mm |
Filter Size | 30.5 P=0.5 mm |
Dimensions | φ32.0×38.0 mm |
Weight | 63 g |
Comments | Focus & Iris lock screws |

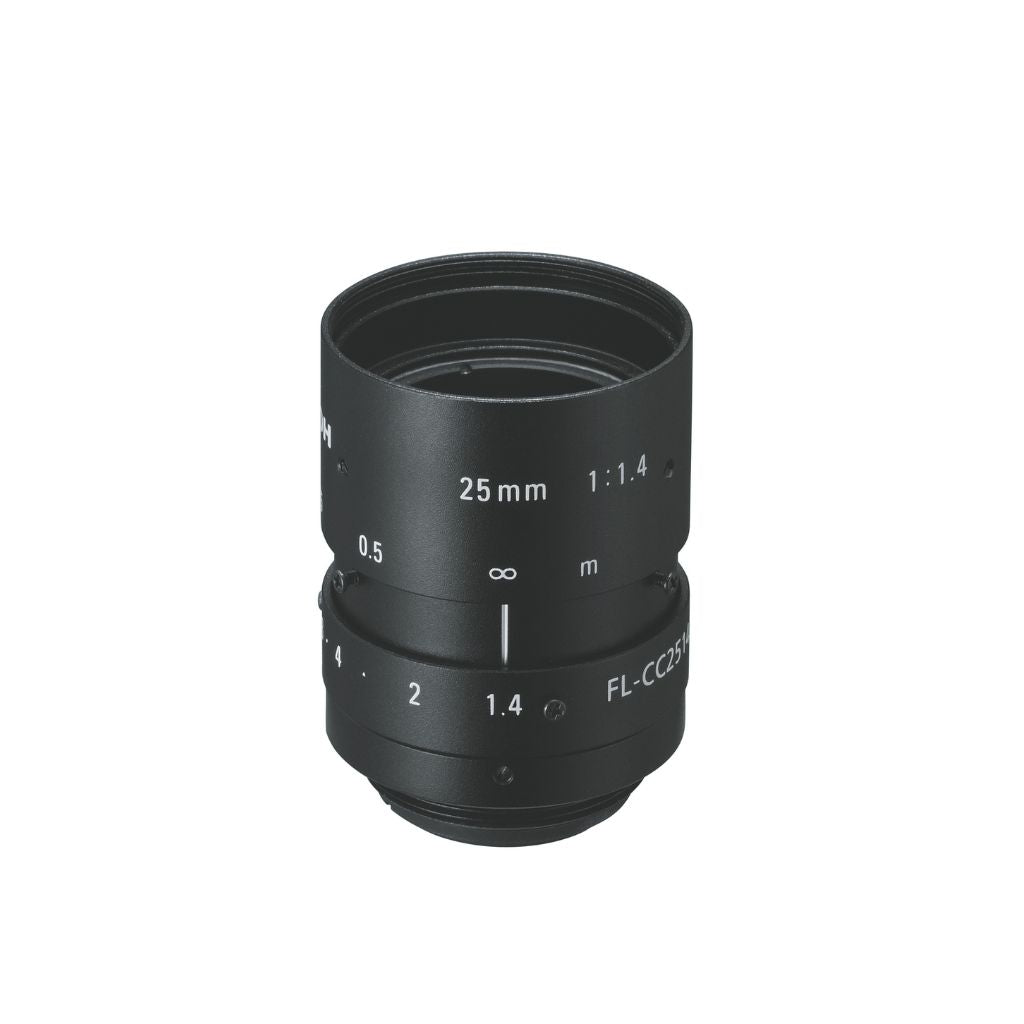

![FL-CC2514A-2M Front Angled View](http://www.usasecuritysystems.com/cdn/shop/files/FL-CC2514A-2M.jpg?v=1725662266&width=1445)

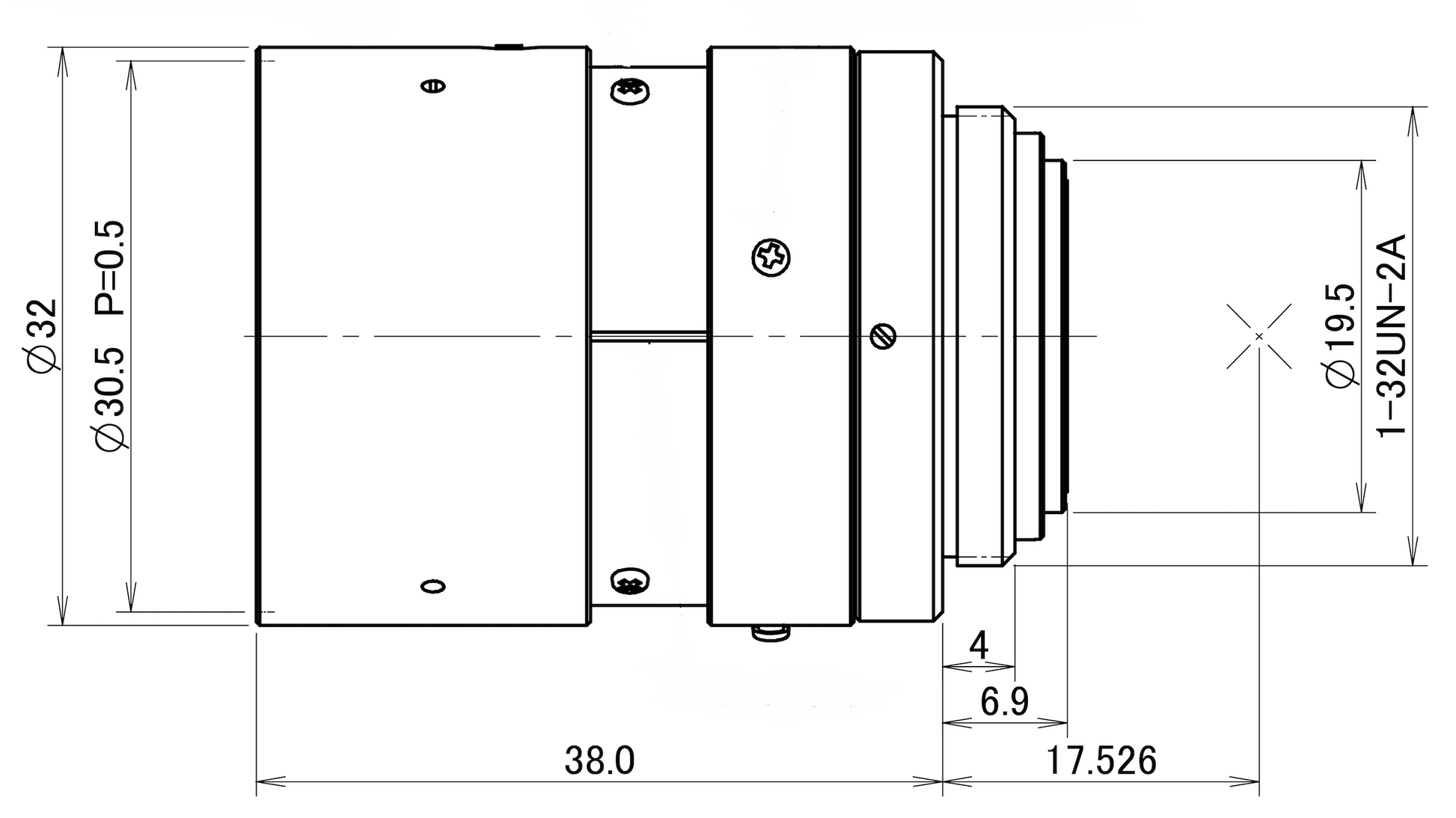

![FL-CC2514A-2M Dimensions Diagram](http://www.usasecuritysystems.com/cdn/shop/files/FL-CC2514A-2M_Dimensions.png?v=1725662368&width=1445)
