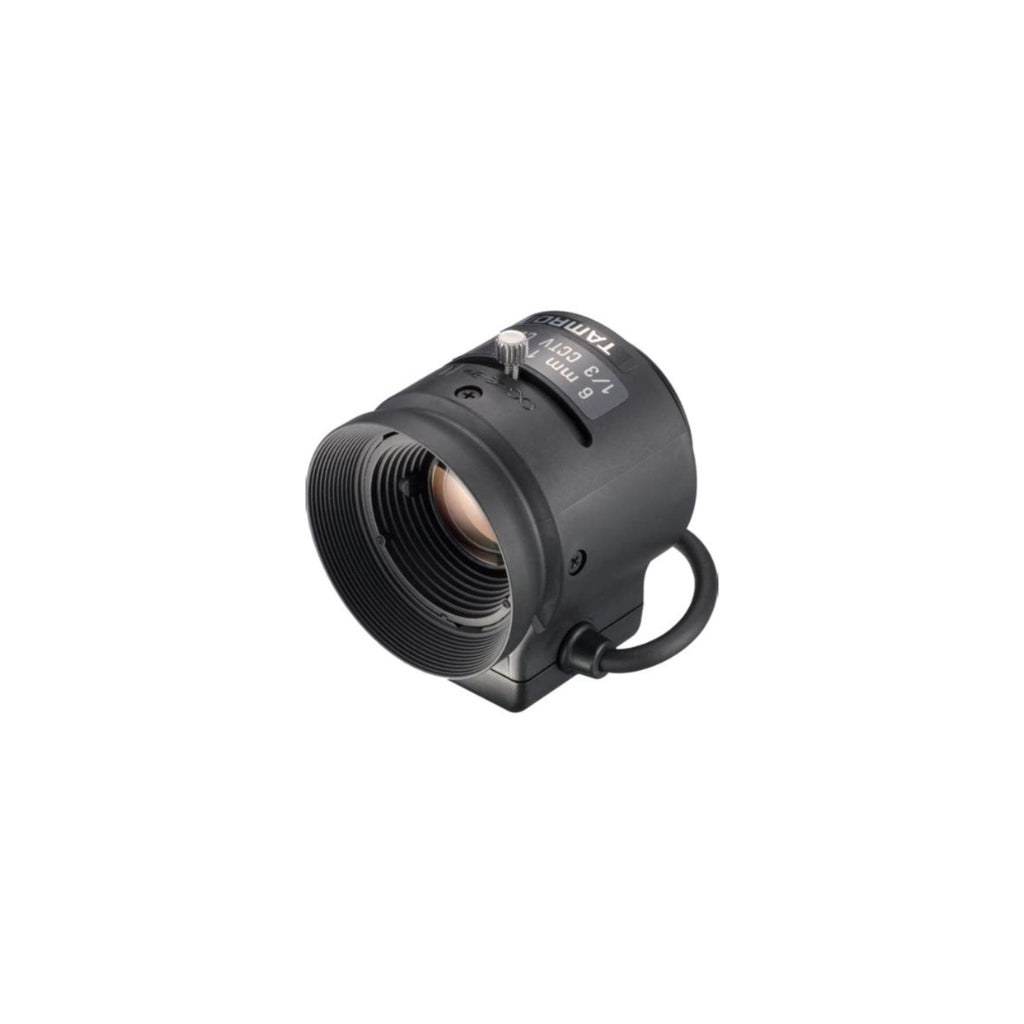

Tamron 13FG06IR-SQ 1/3" 6mm F/1.2 CS-Mount Auto-Iris Lens

Tamron 13FG06IR-SQ Lens: Enhancing Precision in Machine Vision

The Tamron 13FG06IR-SQ is a specialized 6mm F/1.2 CS-Mount Auto-Iris Lens designed to meet the rigorous demands of machine vision and industrial imaging applications. Known for its exceptional clarity and precision, this lens offers a wide aperture range from F/1.2 to 360, ensuring optimal performance in various lighting conditions. Its manual focus with lock and DC auto-iris capabilities provide flexibility and reliability, crucial for maintaining sharp focus and exposure control in dynamic environments.

Engineered with a robust build and weighing only 38g, the Tamron 13FG06IR-SQ is lightweight yet durable, making it ideal for integration into compact industrial systems. With an operating temperature range from -20°C to +60°C, it performs reliably in both extreme cold and heat. The lens supports 1/3" imagers and features a versatile field of view angle of 46.5° x 34.6°, suitable for detailed imaging tasks across various industrial sectors.

Features:

• 6mm focal length with 1/3" imager size
• F/1.2 - 360 aperture range
• Manual focus with lock and DC auto iris
• Lightweight design (38g) for easy integration
• Wide operating temperature range (-20°C to +60°C)

Applications:

• Machine vision systems
• Industrial automation
• Robotics
• Quality control
• Surveillance and security

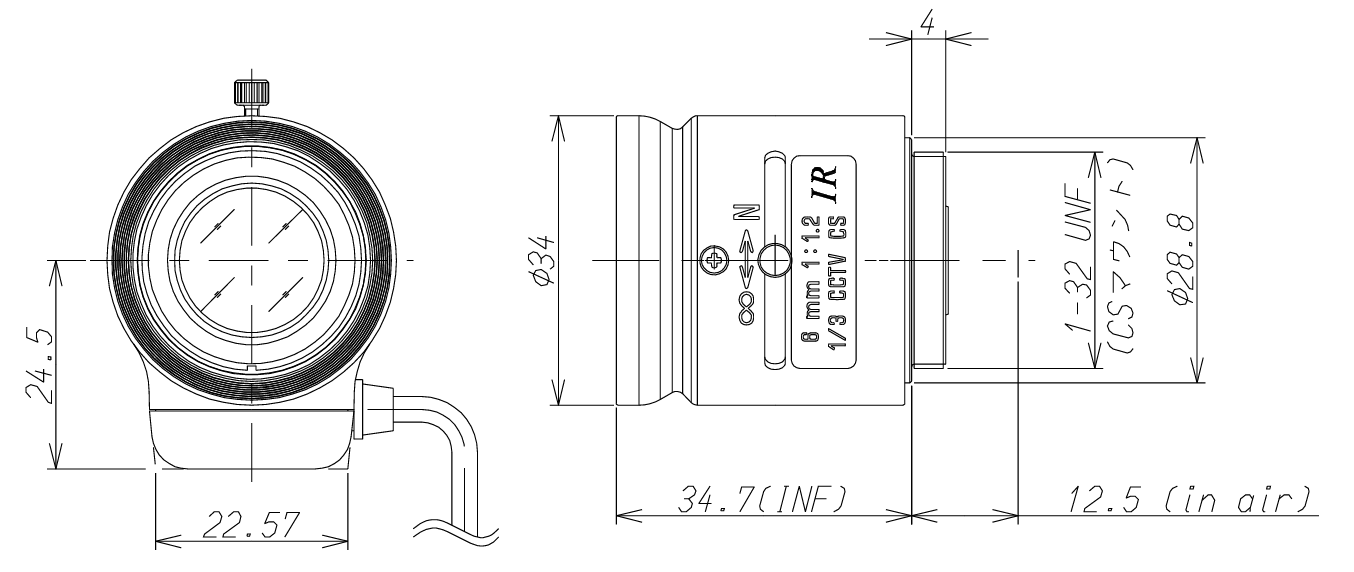

13FG06IR-SQ Spec Sheet
