USA Security Systems

13FG22IRSQ

Tamron 13FG22IR-SQ 1/3" 2.2mm F/1.2 Compact CS-Mount Lens with Auto Iris DC, Focus Lock

Tamron 13FG22IR-SQ 1/3" 2.2mm F/1.2 Compact CS-Mount Lens with Auto Iris DC, Focus Lock

SKU:13FG22IR-SQ

Regular price $64.00 USD
Regular price Sale price $64.00 USD
Sale Sold out
Tax included. Shipping calculated at checkout.

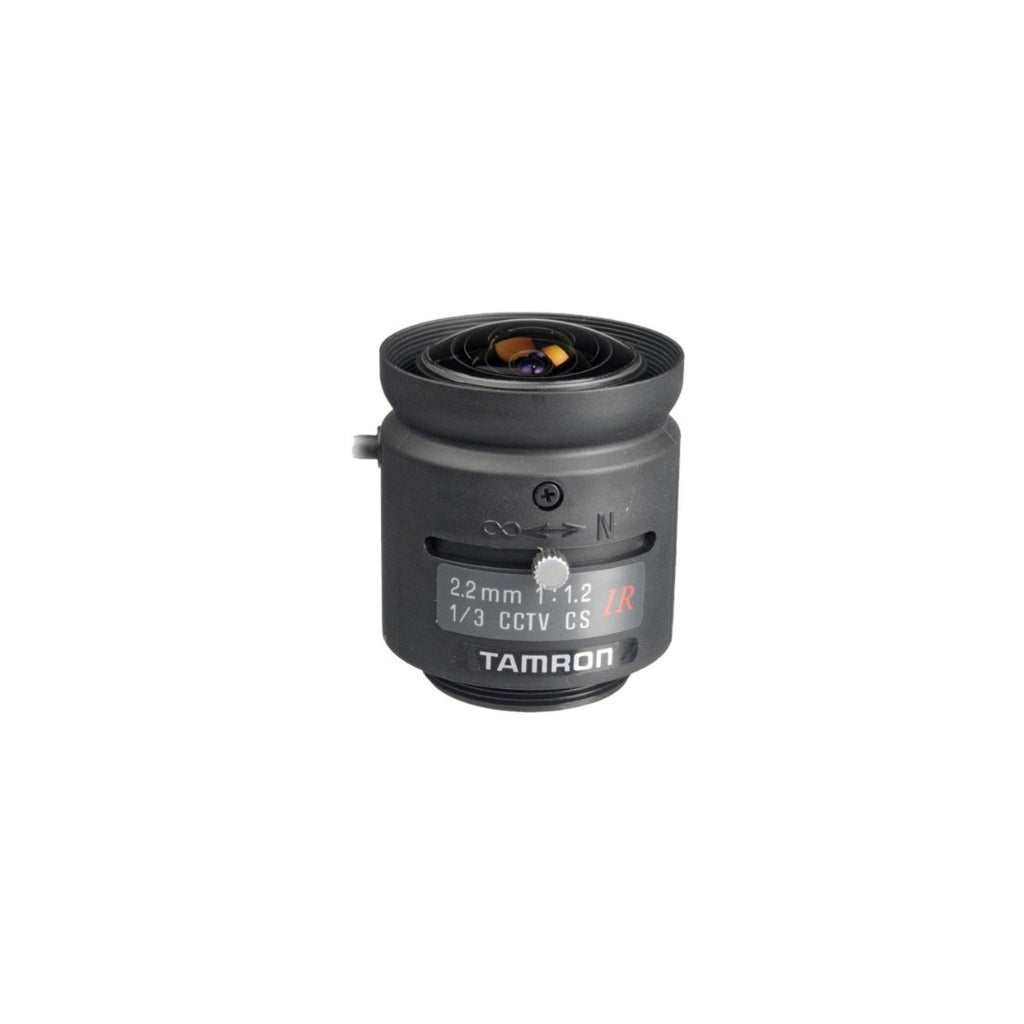

Tamron 13FG22IR-SQ 2.2mm F/1.2 Compact CS-Mount Lens

Discover the Tamron 13FG22IR-SQ 2.2mm F/1.2 Compact CS-Mount Lens, crafted for optimal performance in industrial and machine vision applications. Renowned for its precision and clarity, this lens features a fast F/1.2 aperture and auto iris DC for dynamic lighting conditions, ensuring sharp imaging in various environments. With a manual focus lock mechanism, it secures precise focal settings critical for consistent image quality. Weighing just 49g, it’s designed for convenience without compromising robustness, operating flawlessly in temperatures ranging from -20°C to +60°C.

This lens is ideal for tasks requiring high-definition image capture such as quality control, automated inspection, and surveillance within industrial settings. Whether integrated into robotics, automated assembly lines, or security systems, the Tamron 13FG22IR-SQ excels in delivering detailed, reliable visual data. Elevate your industrial automation and vision systems with the Tamron quality trusted by professionals worldwide.

Features:

  • Compact CS-mount lens
  • Focal length of 2.2mm
  • Fast F/1.2 aperture
  • Auto iris DC for variable lighting
  • Manual focus with lock
  • Lightweight design (49g)

Applications:

  • Machine vision systems
  • Industrial automation
  • Quality control inspection
  • Robotics and assembly lines
  • Surveillance and security systems

13FG22IR-SQ Spec Sheet

Imager Size 1/3
Mount Type CS
Focal Length 2.2mm
Aperture Range 1.2 - 360
Field of View Angle (Horizontal x Vertical) 1/3 118.6° x 90.0°
Field of View Angle (Horizontal x Vertical) 1/4 90.0° x 67.9°
Operation Focus Manual with Lock
Iris DC Auto Iris
Filter Size --
Back Focus (in air) 7.58mm
Operating Voltage Open 2.5V, Close 0.5V
Weight 49g
Operating Temperature -20°C to +60°C
