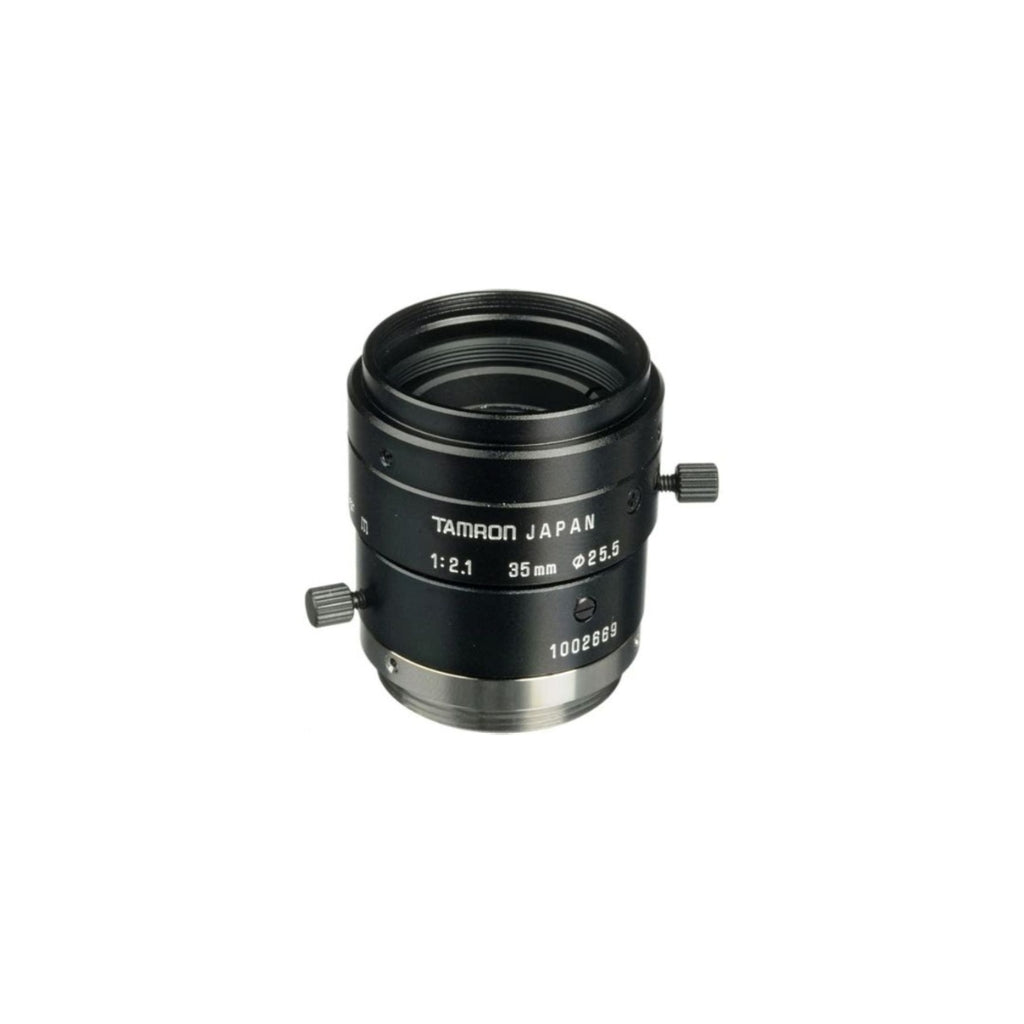

Tamron 23FM35L 2/3" 35mm F/2.1 High Resolution C-Mount Lens with Lock

Enhance Your Machine Vision Systems with Tamron 23FM35L C-Mount Lens

Download Data Sheet

USA Security Systems Inc. is proud to offer the Tamron 23FM35L 2/3" 35mm F/2.1 High Resolution C-Mount Lens, a premium choice for machine vision and industrial applications. Tamron, renowned for its high-quality optics, delivers exceptional performance with this lens, ensuring sharp and clear imaging for critical tasks. The 23FM35L features a 35mm focal length and an aperture range from F/2.1 to F/22, providing excellent versatility for various lighting conditions. Its manual focus and iris, both equipped with locks, guarantee precise adjustments and stability during operation.

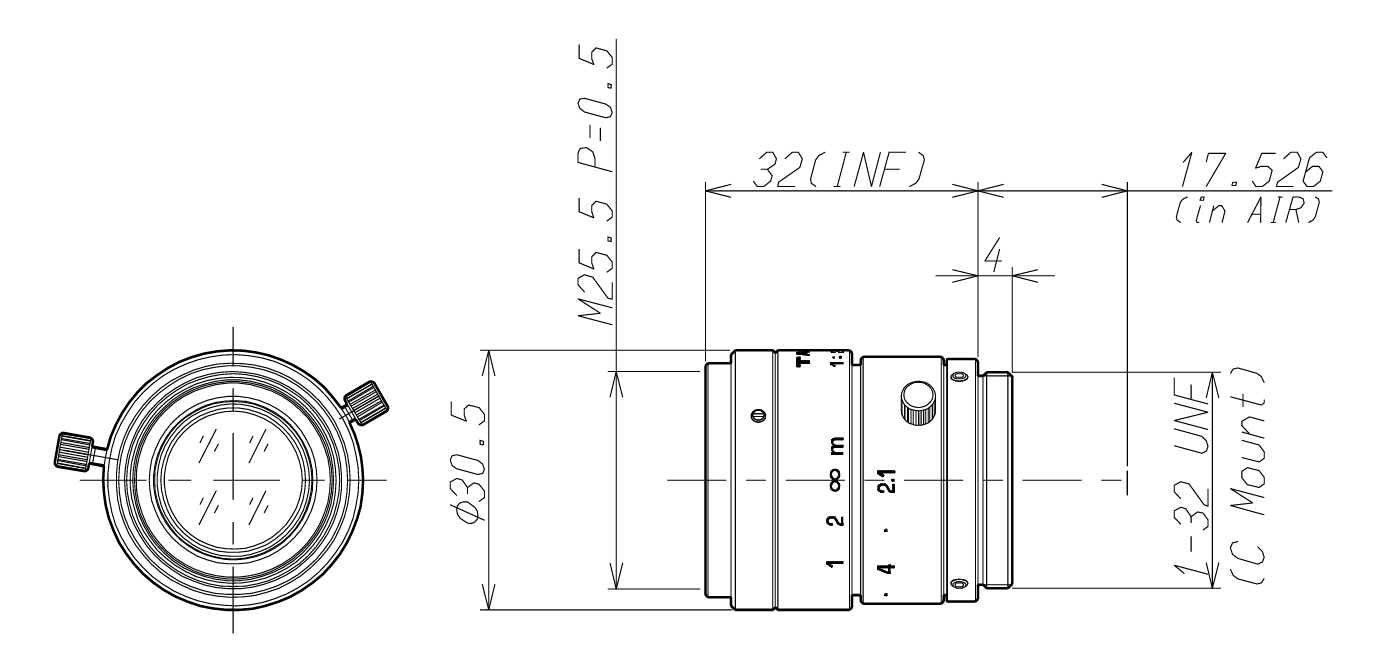

This lens is particularly suited for high-resolution imaging systems where accuracy is paramount. With an effective diameter of Ø16.0mm at the front and Ø10.3mm at the rear, and a compact design with a maximum diameter of 1.2 inches and overall length of 1.25 inches, it fits seamlessly into most setups. The lens also boasts a minimum object distance of 11.8 inches and a field of view that ranges from 7.8° x 5.9° (1/3") to 14.3° x 10.8° (2/3").

Ideal for use in security systems, industrial inspection, robotics, and automated production lines, the Tamron 23FM35L ensures reliability and superior image quality. Enhance your machine vision capabilities with this top-tier lens from Tamron.

Features:

• 2/3" sensor size compatibility
• 35mm focal length
• Aperture range: F/2.1 - F/22
• Manual focus and iris with lock
• Compact design: 1.2" diameter, 1.25" length
• Minimum object distance: 11.8 inches
• Field of view: up to 14.3° x 10.8°
• Lightweight at 44g
• Filter size: M25.5 P=0.5

Applications:

• Security systems
• Industrial inspection
• Robotics
• Automated production lines
• High-resolution imaging systems
• Quality control
• Machine vision setups
