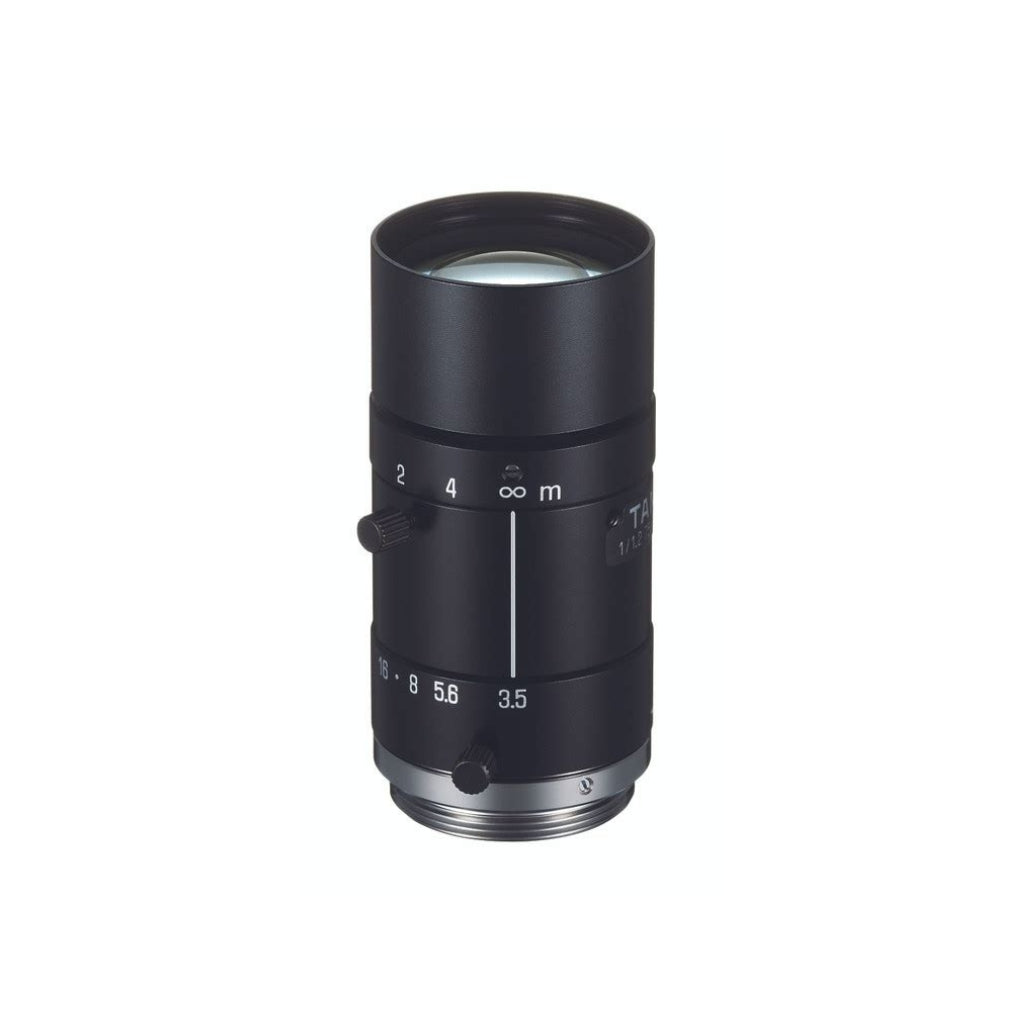

Tamron M112FM75 1/1.2" 75mm F/3.5 Aspherical Mega-Pixel Fixed-Focal Lens
Tamron M112FM75 1/1.2" 75mm F/3.5 Aspherical Mega-Pixel Fixed-Focal Lens
SKU:M112FM75
Couldn't load pickup availability
Tamron M112FM75 75mm F/3.5 Aspherical Mega-Pixel Fixed-Focal Lens
Tamron is renowned in the machine vision industry for delivering high-quality optics, exemplified by the M112FM75 75mm F/3.5 Aspherical Mega-Pixel Fixed-Focal Lens. This lens is tailored for demanding industrial and machine vision applications, offering exceptional clarity and precision.
With a focal length of 75mm and an aperture range from F/3.5 to F/16, it supports various imaging formats including 1/1.2" and 2/3", ensuring versatility across different setups. The lens features manual focus and iris controls with locking mechanisms, enabling stable performance in rugged environments from -20°C to +60°C. Weighing just 81g, it is lightweight yet durable, suitable for integration into automated systems.
Enhance your machine vision with the Tamron M112FM75 75mm F/3.5 Aspherical Mega-Pixel Fixed-Focal Lens. Ideal for industrial applications. Contact us today!
Features:
- 75mm focal length
- F/3.5 - 16 aperture range
- Aspherical design for improved image quality
- Manual focus and iris with lock
- Lightweight at 81g
Machine Vision/Industrial Applications:
- Quality inspection
- Robotics guidance
- Object measurement
- Automated assembly
- Surveillance
| Imager Size | 1/1.2" |
| Mount Type | C |
| Focal Length | 75mm |
| Aperture Range | F/3.5 - F/16 |
| Field of View Angle (1/1.2", 4:3) | 8.1° x 6.1° |
| Field of View Angle (1/1.2", 16:9) | 8.9° x 5.0° |
| Field of View Angle (2/3", 4:3) | 6.7° x 5.0° |
| Field of View Angle (2/3", 16:9) | 7.3° x 4.1° |
| Focus Range | 0.7m - ∞ |
| Focus Operation | Manual w/lock |
| Iris Operation | Manual w/lock |
| Filter Size | M27 P=0.5mm |
| Wavelength | Visible Light |
| TV Distortion | 0.03% (*) |
| Weight | 81g |
| Operating Temperature | -20°C - +60°C |
