USA Security Systems

M118VM413IRCS

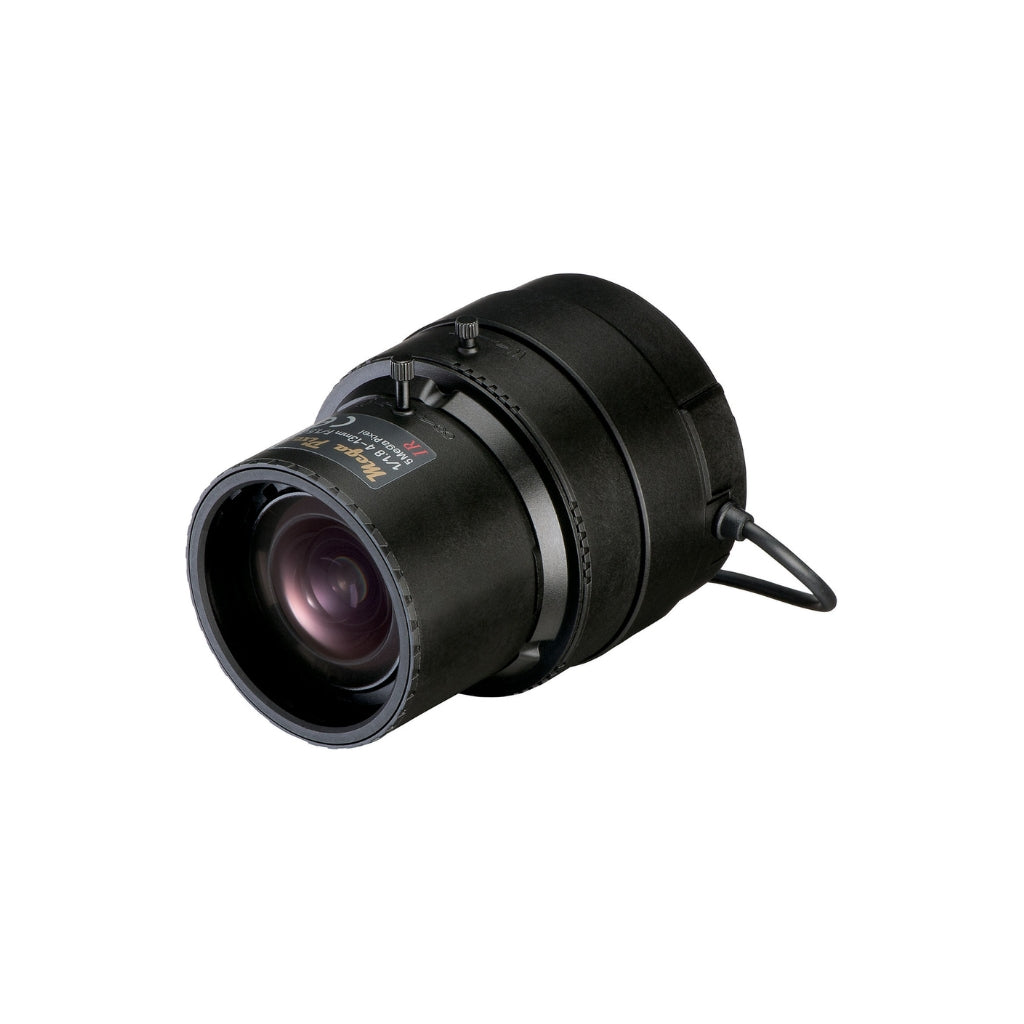

Tamron M118VM413IRCS 1/1.8" 4-13mm F/1.5 Aspherical Mega Pixel Vari-Focal Lens

Tamron M118VM413IRCS 1/1.8" 4-13mm F/1.5 Aspherical Mega Pixel Vari-Focal Lens

SKU:M118VM413IRCS

Regular price $313.64 USD
Regular price Sale price $313.64 USD
Sale Sold out
Tax included. Shipping calculated at checkout.

Enhance Precision with Tamron M118VM413IRCS 4-13mm F/1.5 Aspherical Vari-Focal Lens

Tamron is renowned for its advanced optics, and the M118VM413IRCS exemplifies their commitment to quality in machine vision and industrial applications. This 4-13mm vari-focal lens with a fast F/1.5 aperture ensures exceptional clarity and detail, crucial for high-resolution imaging tasks. Its aspherical design minimizes optical aberrations, delivering precise imaging across varying focal lengths.

Ideal for environments requiring detailed inspection or surveillance, the Tamron M118VM413IRCS offers manual adjustments for focus, zoom, and iris, providing flexibility in setup and operation. With compatibility for 1/1.8" imagers and CS mounts, it supports a wide range of cameras and vision systems. The lens operates effectively in both visible light and near-infrared spectra, making it versatile for day-night applications.

Applications include quality control in manufacturing, automated inspection systems, and surveillance in challenging environments. Whether monitoring production lines or enhancing security systems, the Tamron M118VM413IRCS ensures reliable performance in demanding industrial settings.

Enhance your machine vision capabilities with the Tamron M118VM413IRCS 4-13mm F/1.5 Aspherical Mega Pixel Vari-Focal Lens. Perfect for precision imaging in industrial applications. Contact us for more details!

Features:

  • 4-13mm vari-focal lens
  • F/1.5 aperture for low-light performance
  • Aspherical design for optical clarity
  • Manual focus, zoom, and iris control
  • CS mount compatible
  • Near-infrared capability

Applications:

  • Industrial automation
  • Vision inspection
  • Surveillance systems

M118VM413IRCS Spec Sheet

Imager Size 1/1.8"
Mount CS
Focal Length 4 to 13 mm
Aperture Range F/1.5 - Close
Angle of View (1/1.8") Wide: 105.4° x 77.6°, Tele: 33° x 24.8°
Angle of View (1/2") Wide: 91.7° x 67.9°, Tele: 29° x 21.8°
Angle of View (1/3") Wide: 67.9° x 50.6°, Tele: 21.8° x 16.3°
Focus Range 0.3m to infinity
How to Use (Focus) With manual lock
How to Use (Zoom) With manual lock
How to Use (Iris) With manual lock
Back Focus (in air) 15.235mm
Compatible Wavelengths Visible light to near infrared range
Operating Voltage N/A
Weight 172g (with 5g soil)
Operating Temperature Range -20℃ to +60℃
