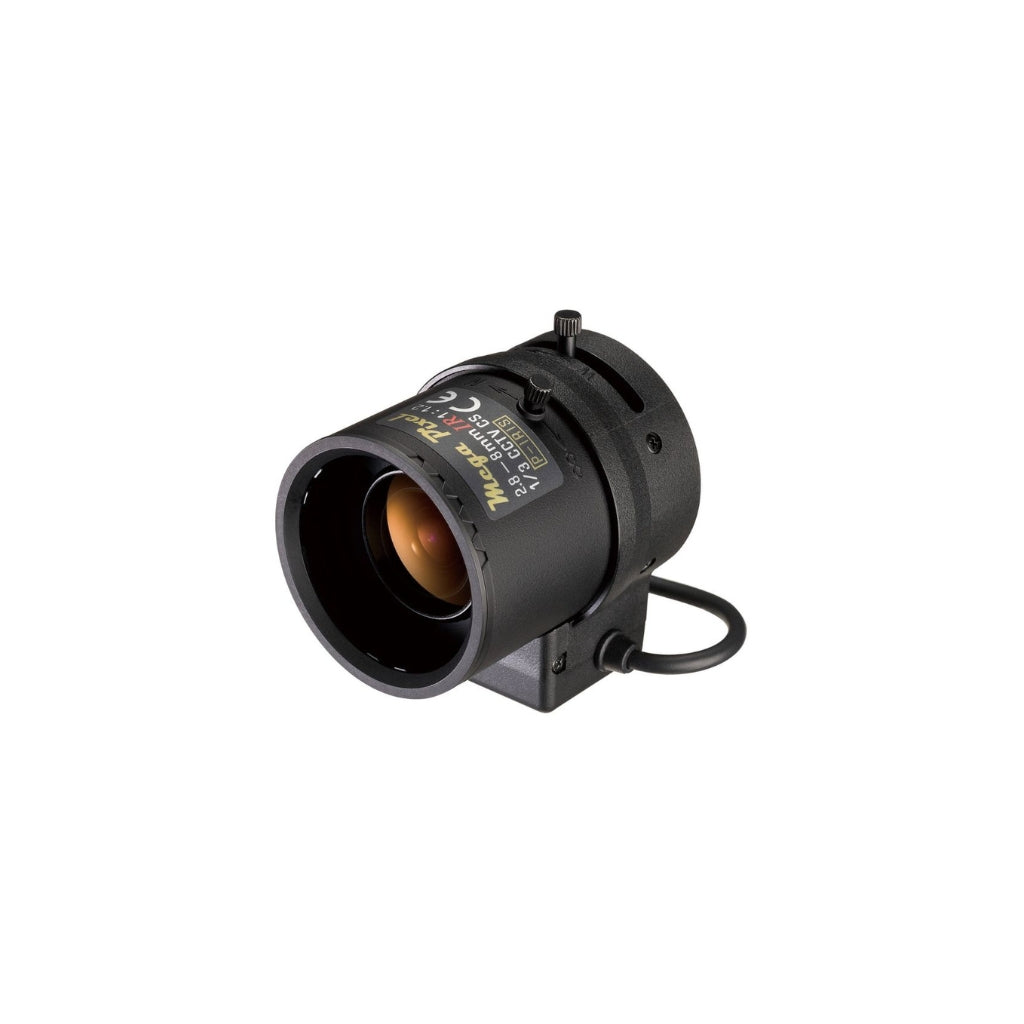

The Tamron M13VP288IR is a versatile double vari-focal lens designed for demanding industrial and machine vision applications. Featuring a CS mount and a focal length range of 2.8-8mm, this lens supports 3 Mega Pixel resolution and is IR corrected for accurate imaging even in low light conditions. The P-Iris control ensures optimal depth of field and image clarity by dynamically adjusting the aperture, while manual focus and zoom with lock mechanisms offer precise control over the imaging setup.

Ideal for use with 1/3" imagers (also applicable for 1/2.7" and 1/2.8" imagers), the lens provides a wide field of view ranging from 100.1° x 72.9° in wide angle to 35.8° x 26.8° in telephoto settings. It operates effectively in temperatures from -20°C to +60°C, making it suitable for diverse industrial environments.

Features:

• Double vari-focal 2.8-8mm lens
• CS mount, manual focus, and zoom with lock
• IR corrected for near infrared imaging
• P-Iris control for optimal aperture adjustment
• Compatible with 1/3" imagers, with wide angle to telephoto field of view options

Applications:

• Industrial inspection
• Robotics guidance systems
• Quality control
• Surveillance and security
• Traffic monitoring

Download Data Sheet
