Tamron MA23F35V 2/3" 35mm F/2.4 Fixed-Focal Lens Fully Compatible with IMX536/IMX546/IMX566 and others

Tamron MA23F35V: Superior Precision for Machine Vision and Industrial Applications

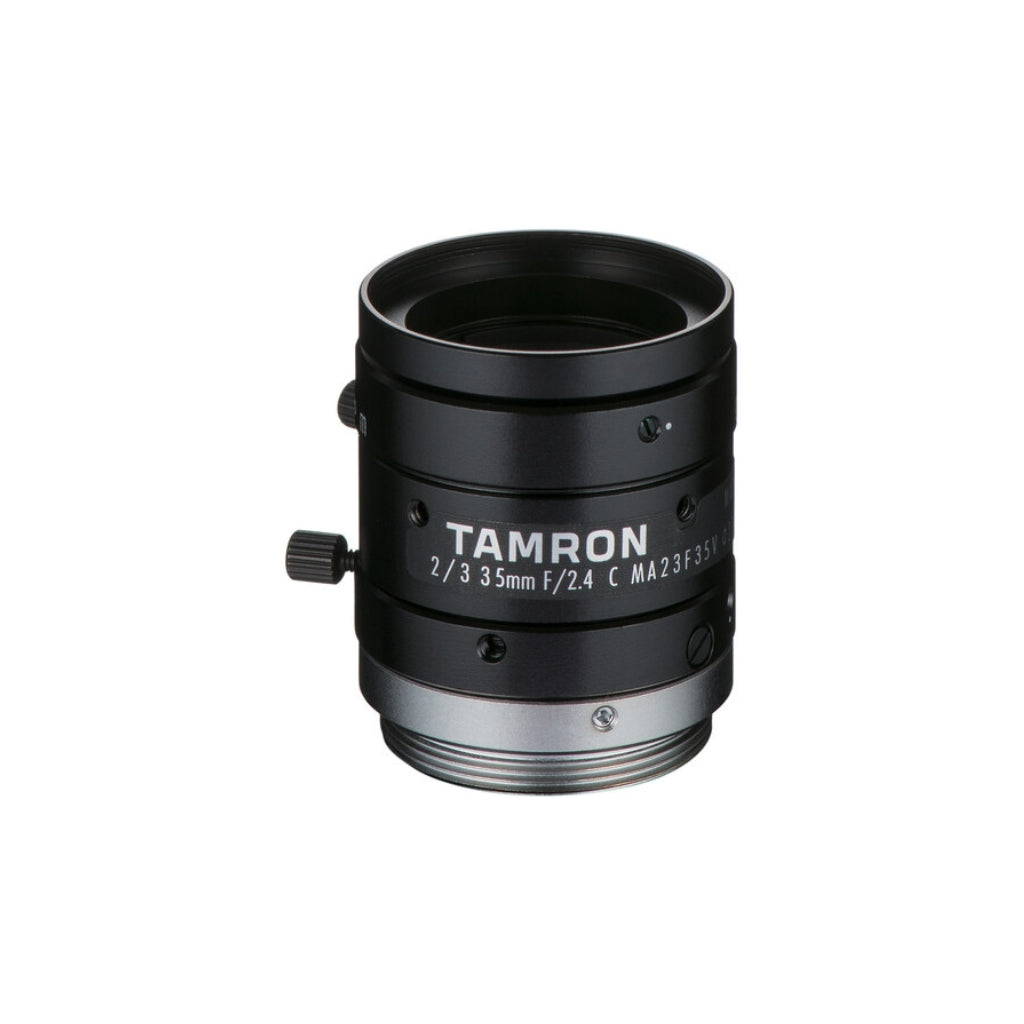

The Tamron MA23F35V is a 2/3" 35mm fixed-focal lens designed for superior performance in machine vision and industrial applications. Fully compatible with popular sensors like the IMX536, IMX546, and IMX566, this lens delivers unparalleled image sharpness and reliability, making it ideal for high-precision tasks. With a wide aperture range from F/2.4 to F/16 and a manual focus and iris control with locking mechanisms, users have complete control over their imaging setup.

The MA23F35V offers a versatile focal length of 35mm, providing a field of view that suits various imaging needs, from factory automation to quality control inspections. Its compact design and durable build, including the ability to operate in temperatures ranging from -20°C to +60°C, make it a robust choice for challenging environments.

Applications that benefit from this lens include industrial automation, robotic vision systems, optical inspection, and precision measurement. Its low TV distortion of 0.04% ensures minimal image distortion, making it a reliable choice for critical imaging processes. The lens supports multiple image formats, such as 4:3 and 16:9, with consistent performance across all compatible devices.

Features:

• 2/3" imager size compatibility
• 35mm fixed focal length
• F/2.4 to F/16 aperture range
• Manual focus and iris with lock
• C-mount lens for industrial use
• Wide operating temperature (-20°C to +60°C)
• TV distortion of 0.04%
• Lightweight (58g) with compact design

Applications:

• Factory automation systems
• Robotic vision
• Quality control inspections
• Optical inspection
• Precision measurement tasks
• Surveillance and security systems
• High-resolution image capturing

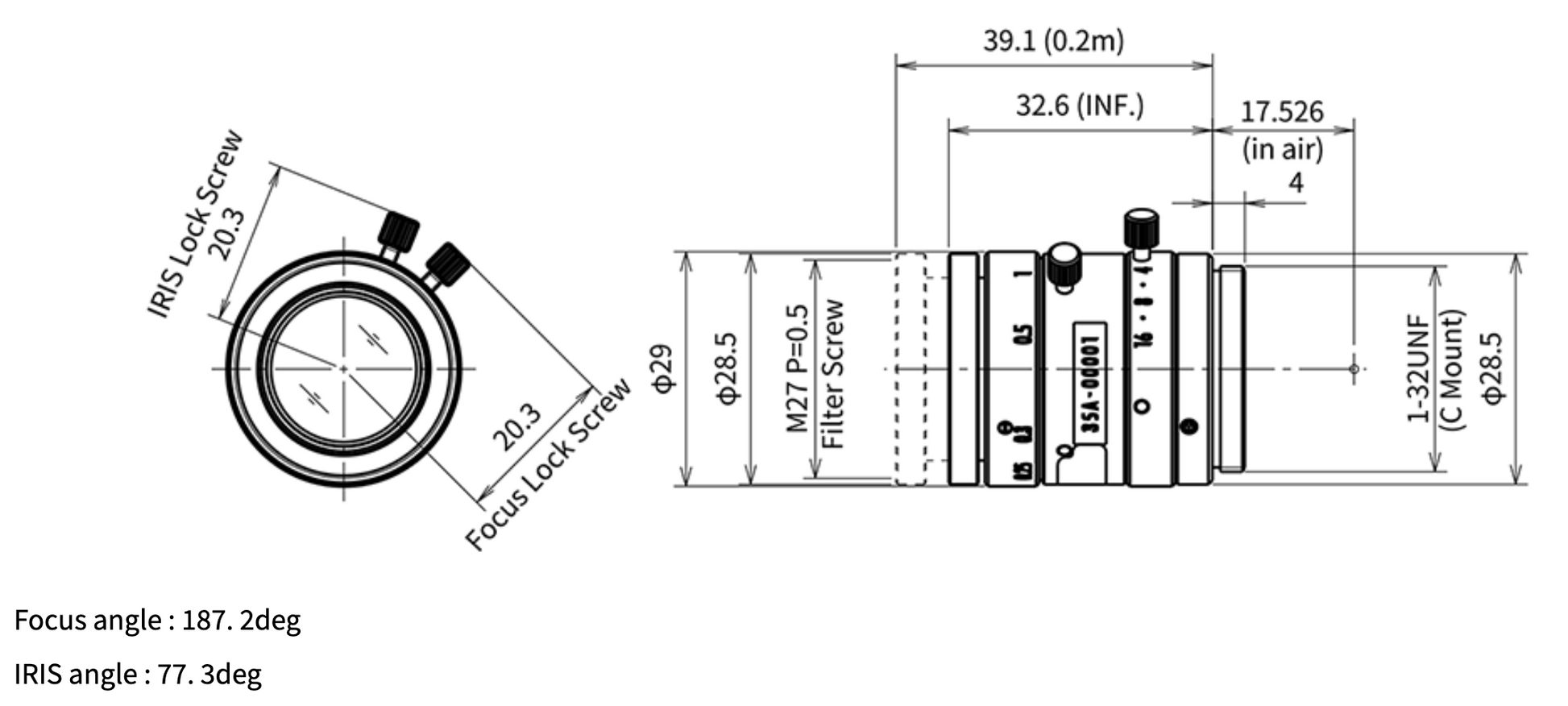

MA23F35V Spec Sheet
