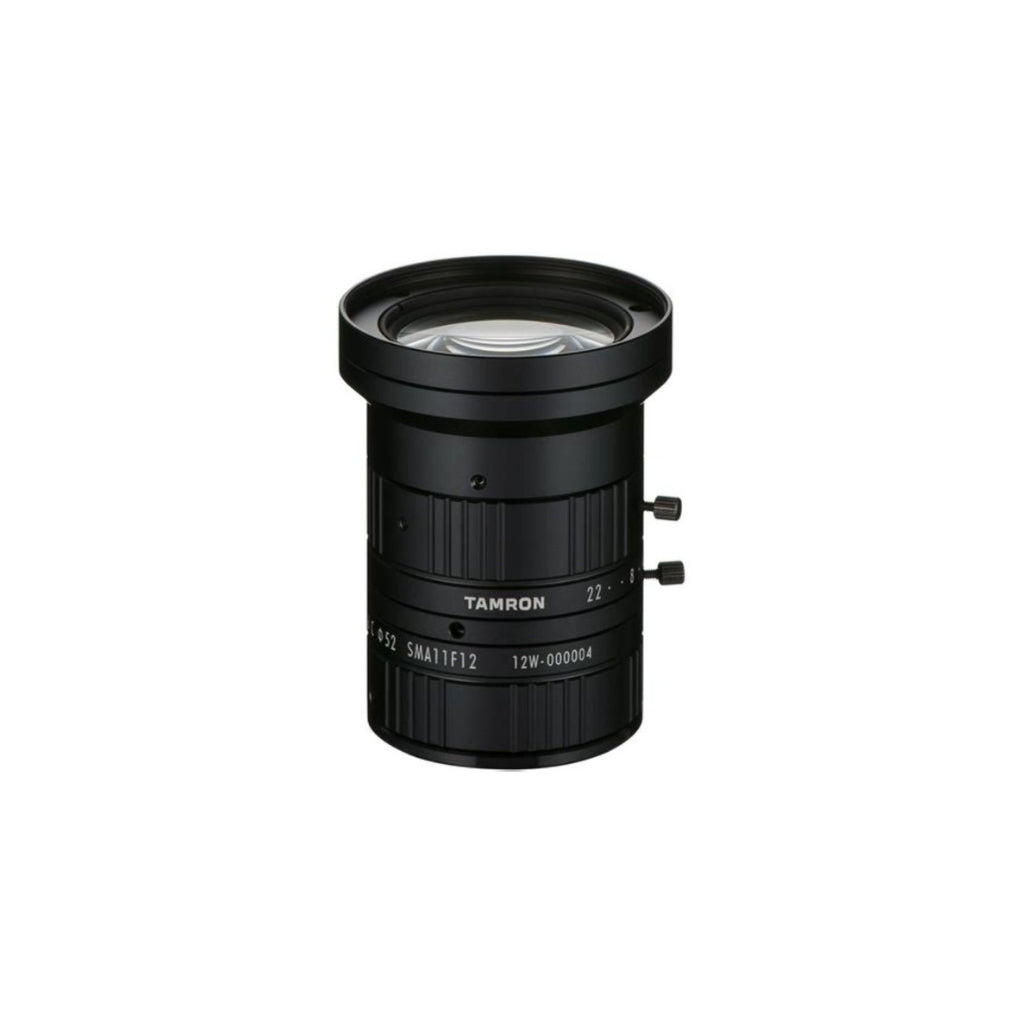

Tamron SMA11F12 1” SWIR 12mm F/1.6 Manual Lens Fully compatible with IMX990/IMX991

Enhance Industrial Vision with Tamron SMA11F12 1” SWIR 12mm F/1.6 Manual Lens

Tamron has established itself as a premier manufacturer of lenses tailored for machine vision and industrial applications, exemplified by the SMA11F12 1” SWIR 12mm F/1.6 Manual Lens. This lens is meticulously crafted to meet the stringent demands of modern imaging systems, offering compatibility with IMX990/IMX991 sensors for seamless integration into high-resolution setups. With a focal length of 12mm and a wide aperture range from F/1.6 to F/22, it ensures exceptional clarity and light sensitivity across varying lighting conditions.

The Tamron SMA11F12 boasts a robust build designed for reliability in challenging environments, supported by manual focus and iris adjustments that provide precise control over image capture. Its wide band coating (WBC-V-SWIR) allows transmission across the visible and short-wave infrared spectrum (400 - 1700nm), making it ideal for applications such as quality control, inspection systems, and surveillance. The lens's compact form factor and lightweight (260g) construction further enhance its versatility, suitable for both stationary and mobile setups.

Discover the Tamron SMA11F12 1” SWIR 12mm F/1.6 Manual Lens for enhanced industrial vision with IMX990/IMX991 compatibility. Perfect for precision imaging in machine vision applications. Order yours today!

Features:

• Manual focus and iris with lock
• Wide band coating (WBC-V-SWIR)
• Lightweight at 260g
• Wide aperture range from F/1.6 to F/22
• Compatible with 1-inch sensors

Applications:

• Quality control systems
• Inspection and metrology
• Surveillance and security

Download Data Sheet
