Tamron SMA11F25 1” SWIR 25mm F/1.6 Manual Lens Fully Compatible with IMX990/IMX991
Tamron SMA11F25 1” SWIR 25mm F/1.6 Manual Lens Fully Compatible with IMX990/IMX991
SKU:SMA11F25
Couldn't load pickup availability
Enhance Your Imaging with the Tamron SMA11F25 1” SWIR 25mm F/1.6 Lens for Machine Vision Applications

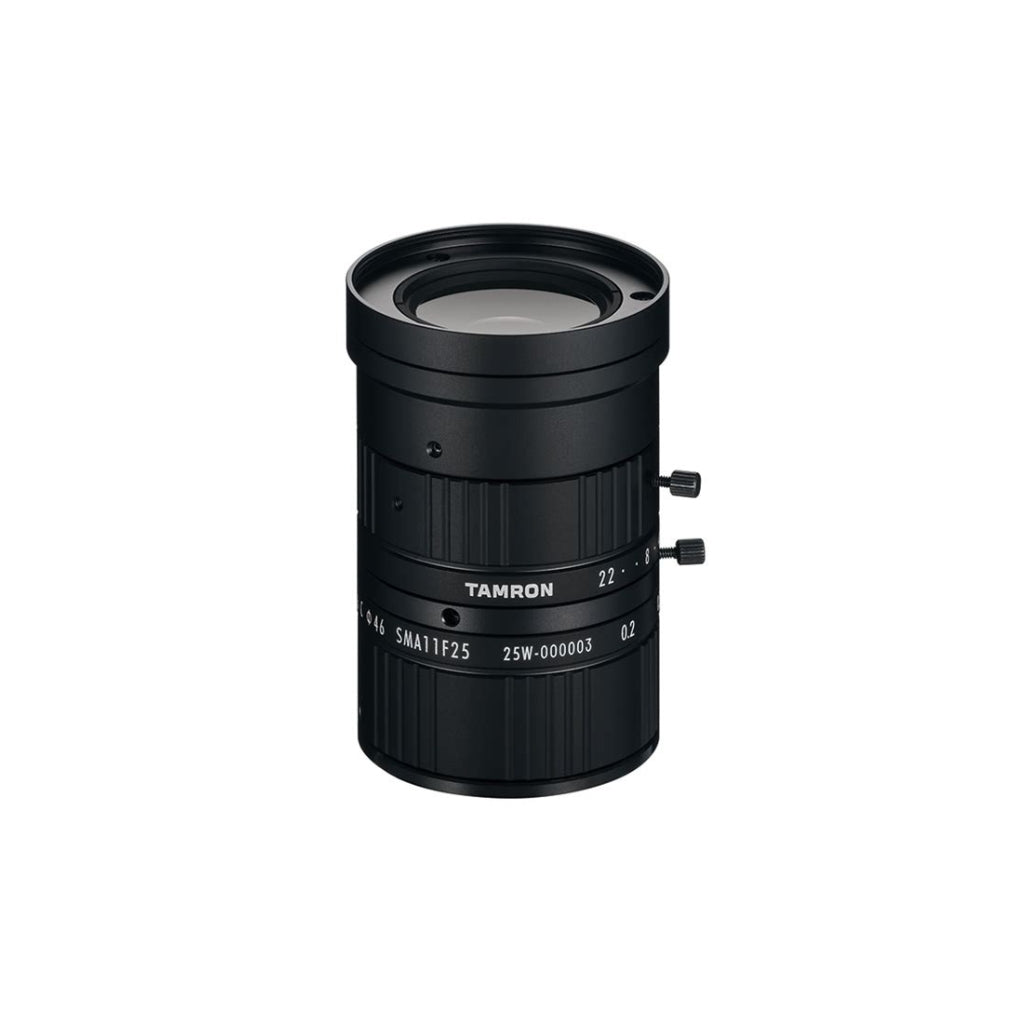

The Tamron SMA11F25 1” SWIR 25mm F/1.6 Manual Lens offers exceptional precision for industrial and machine vision applications. Specifically designed for shortwave infrared (SWIR) imaging, this lens features wide band coating (WBC-V-SWIR) to deliver high performance across a broad wavelength range of 400-1700nm, making it suitable for applications that require both visible and SWIR imaging. Its C-mount design allows it to seamlessly integrate with various imaging systems, including full compatibility with the Sony IMX990 and IMX991 sensors.
With a 1” sensor format and a focal length of 25mm, the SMA11F25 provides a sharp and clear image, even in challenging lighting conditions. The manual focus and iris controls, both equipped with locks, ensure precise adjustments, ideal for highly demanding industrial environments. The lens' low TV distortion (-1%) and robust temperature tolerance (operating from -20°C to +60°C) ensure consistent performance in diverse environments.
Perfect for machine vision, quality inspection, robotics, and SWIR imaging, this lens helps enhance imaging performance, allowing for detailed analysis and high-resolution data capture in various industrial applications.
Features:
- 1” sensor format compatible lens
- Wide band coating for visible and SWIR (400-1700nm)
- Focal length: 25mm
- C-mount with manual focus and iris (with locks)
- Low TV distortion (-1%)
- Wide operating temperature: -20°C to +60°C
- Full compatibility with Sony IMX990/IMX991 sensors
- Suitable for challenging industrial environments
Applications:
- Machine vision systems for quality control
- SWIR imaging for material sorting and inspection
- Robotics for precise imaging and navigation
- Precision agriculture with SWIR imaging sensors
- Semiconductor inspection for micro-level defect detection
- Pharmaceutical quality inspection
- Food and beverage industry for high-precision inspection
- Medical and scientific imaging requiring infrared detection
| Imager Size | 1" |
| Mount | C |
| Focal Length | 25mm |
| Aperture Range | F/1.6 ~ F/22 |
| T Stop Range | T/1.8 ~ T/24.7 |
| Angle of View (1") | 29.1° x 21.9° |
| Angle of View (2/3") | 20.1° x 15.1° |
| Angle of View (1/2") | 14.7° x 11.7° |
| Focus Range | 0.2m to infinity |
| Focus Control | With manual lock |
| Aperture Control | With manual lock |
| Filter Diameter | M46 P=0.75 |
| Compatible Wavelengths | 400 to 1700nm |
| Coating | WBC-V-SWIR |
| Distortion | -1% (*) |
| Weight | 260g |
| Operating Temperature Range | -20℃ to +60℃ |
