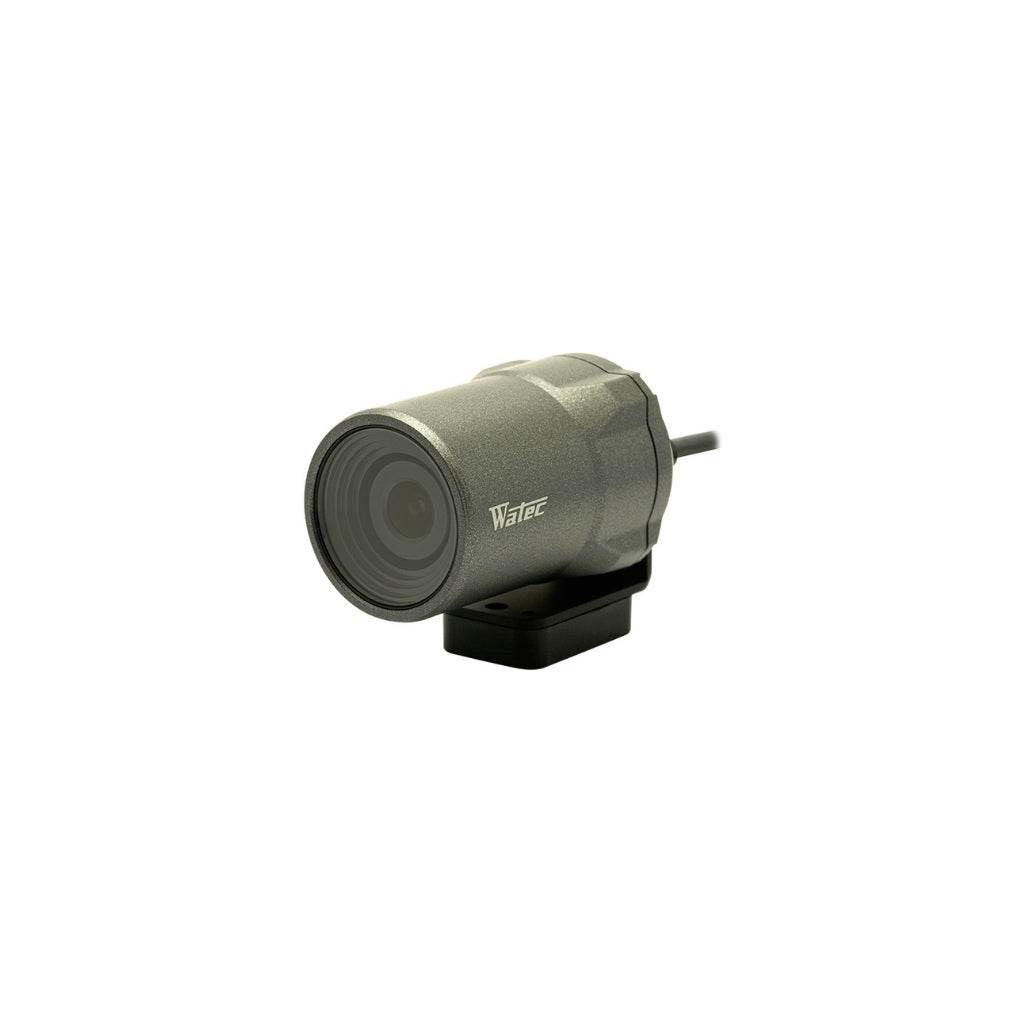

Watec WAT-03U2D 1/3” Compact High Sensitivity USB2.0 HD Water Resistant Color Camera

High-Sensitivity USB2.0 HD Camera for Industrial and Machine Vision Applications

The Watec WAT-03U2D is a miniature color USB camera engineered for seamless integration into machine vision systems. With its high sensitivity 1.3 M CMOS sensor and compact design, this camera is optimized for embedded applications. It boasts a remarkable minimum illumination of 0.02 lx F1.2 (AGC ON=42dB, Shutter=OFF), making it ideal for low-light environments. The camera supports various frame rates, including 30fps in HD and 60fps in VGA, ensuring smooth video capture. Its USB Video Class and USB Bus Power features facilitate plug & play functionality, eliminating the need for external power sources.

Features:

• High sensitivity 1.3 M CMOS sensor
• Compact and water-resistant design
• Plug & play USB2.0 connectivity
• Supports various frame rates: 30fps (HD), 60fps (VGA)
• CMOS image sensor with RGB primary color bayer arrangement
• Wide range of function settings including AE mode, white balance, and gamma characteristics

Applications:

• Industrial inspection
• Quality control
• Robotics guidance
• PCB inspection
• Pharmaceutical inspection

Download Data Sheet
